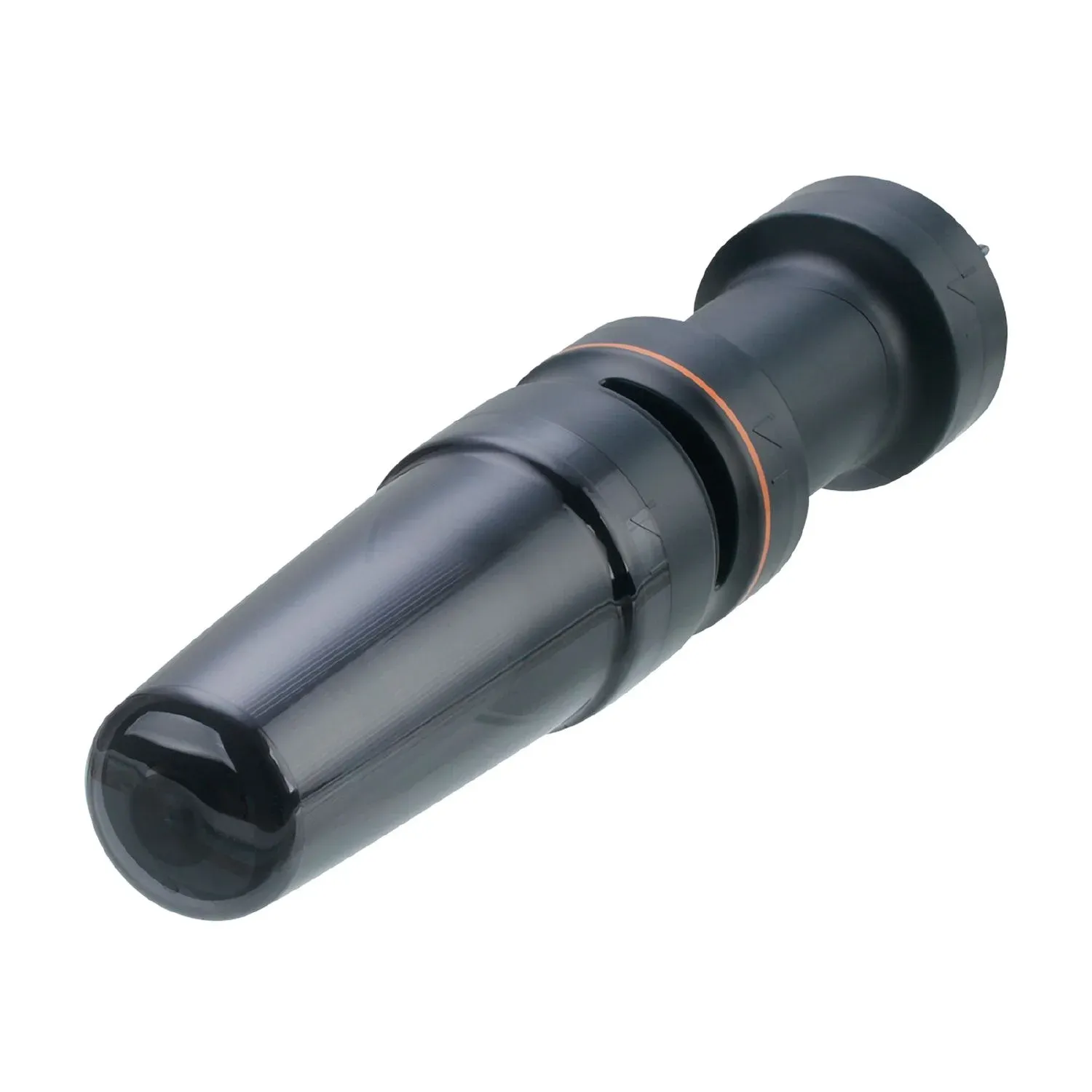

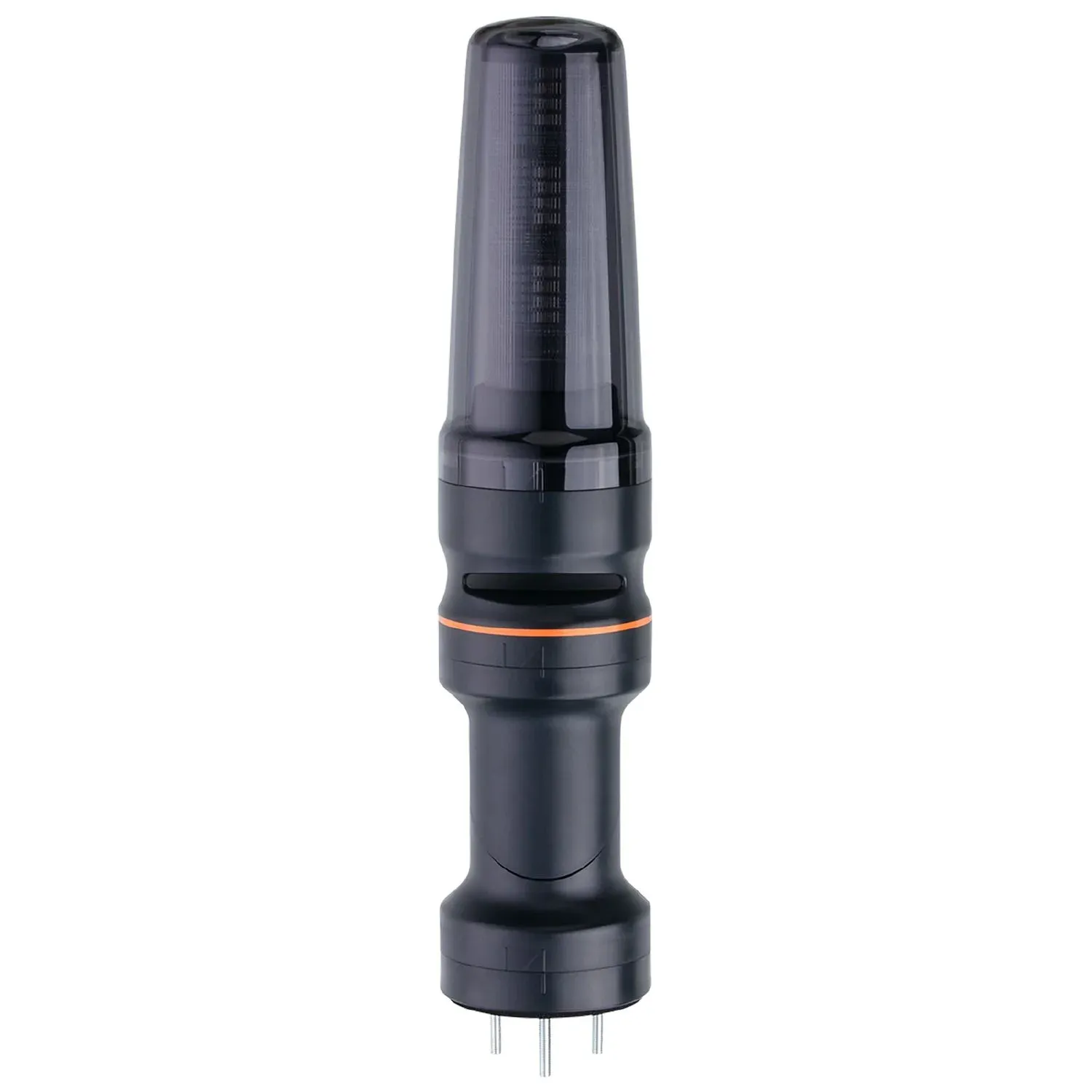

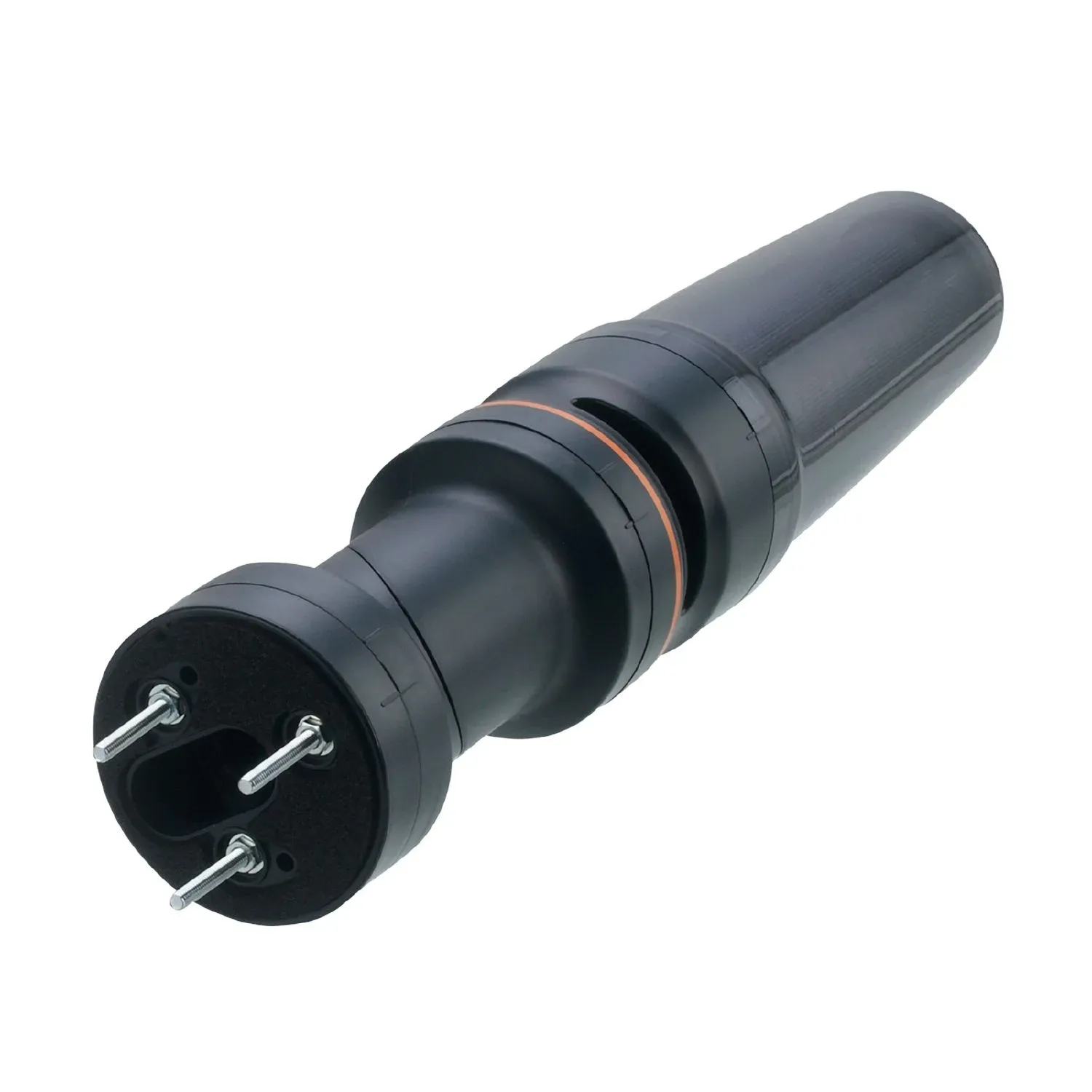

IFM DV2310
DV2310
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Perfect visibility
Modern LED RGB technology, long life, reduced stock-keeping
Quick and easy to mount
Also as standard version with digital inputs
Different modes configurable via IO-Link or setting menu
Specification
Application
| Application | signalling machine conditions |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | < 200 |
Inputs
| Input current High[mA] [mA] | 6 |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 8 |
| Supported DeviceIDs | default 1467 |
| default | 1467 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...50 |
|---|---|
| Storage temperature[°C] [°C] | -40...75 |
| Max. relative air humidity[%] [%] | 90 |
| Air pressure[kPa] [kPa] | < 106 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 54 |
Tests / approvals
| MTTF[years] [years] | 343 |
|---|---|
| UL approval | power supply Class 2 |
| power supply | Class 2 |
Mechanical data
| Weight[g] [g] | 520 |
|---|---|
| Type of mounting | mounting base |
| Dimensions[mm] [mm] | Ø 70 / L = 280 |
| Materials | housing: ABS; lens: PC |
Displays / operating elements
| Display | LED segment 3 x 4 LED |
|---|---|
| LED segment | 3 x 4 LED |
| Acoustic signal | buzzer |
| Max. sound pressure[dB] [dB] | 85 |
Accessories
| Accessories (optional) | mounting base, E89060 wall bracket, E89061 mounting adapter, E89063 bracket with lateral cable entry, E89064 mounting tube, E89065 mounting tube, E89066 mounting tube, E89067 |
|---|
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | M12; coding: A |
|---|
