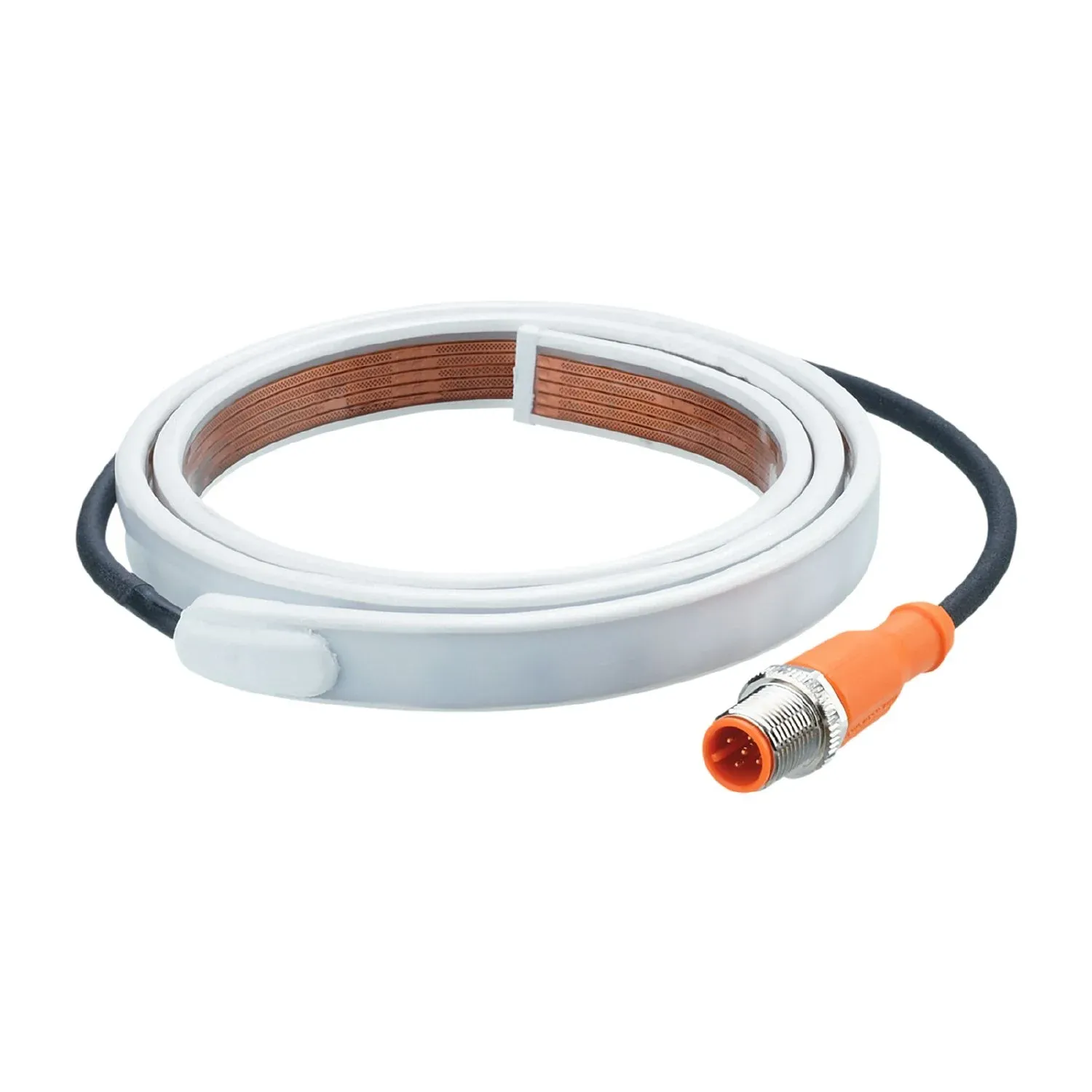

IFM DV1003
DV1003
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LEDs in red, green, blue and white colour can be activated via individual connections
Extremely robust, fully potted design with protection rating IP 68
Bent or straight installation
Powerful LEDs for high light yield
Specification
Application
| Application | signalling machine conditions |
|---|
Electrical data
| Operating voltage[V] [V] | 21.6...26.4 DC |
|---|---|
| Nominal voltage DC[V] [V] | 24; (to SELV/PELV) |
| Current consumption[mA] [mA] | 1200 |
| Colour temperature[K] [K] | 4000 |
| Luminous flux[lm] [lm] | red: 101.2; green: 188.8; blue: 37; white: 285.2 |
| Note on luminous flux[lm] [lm] | luminous flux indications refer to one meter of LED strip |
| Typ. lifetime[h] [h] | 30000 |
Inputs
| Input circuit of digital inputs | 24 V PNP |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...45 |
|---|---|
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 68 |
| Pollution degree | 2 |
Tests / approvals
| Approval | IEC 62471; IEC 62031 |
|---|
Mechanical data
| Weight[g] [g] | 90.1 |
|---|---|
| Dimensions[mm] [mm] | 765 x 14.2 x 4.5 |
| Materials | housing: TPU |
Displays / operating elements
| Display | signalling machine conditions LED, multi-colour RGB mounting light LED, white |
|---|---|
| signalling machine conditions | LED, multi-colour RGB |
| mounting light | LED, white |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.3 m |
|---|---|
| Connector | M12; coding: A |
