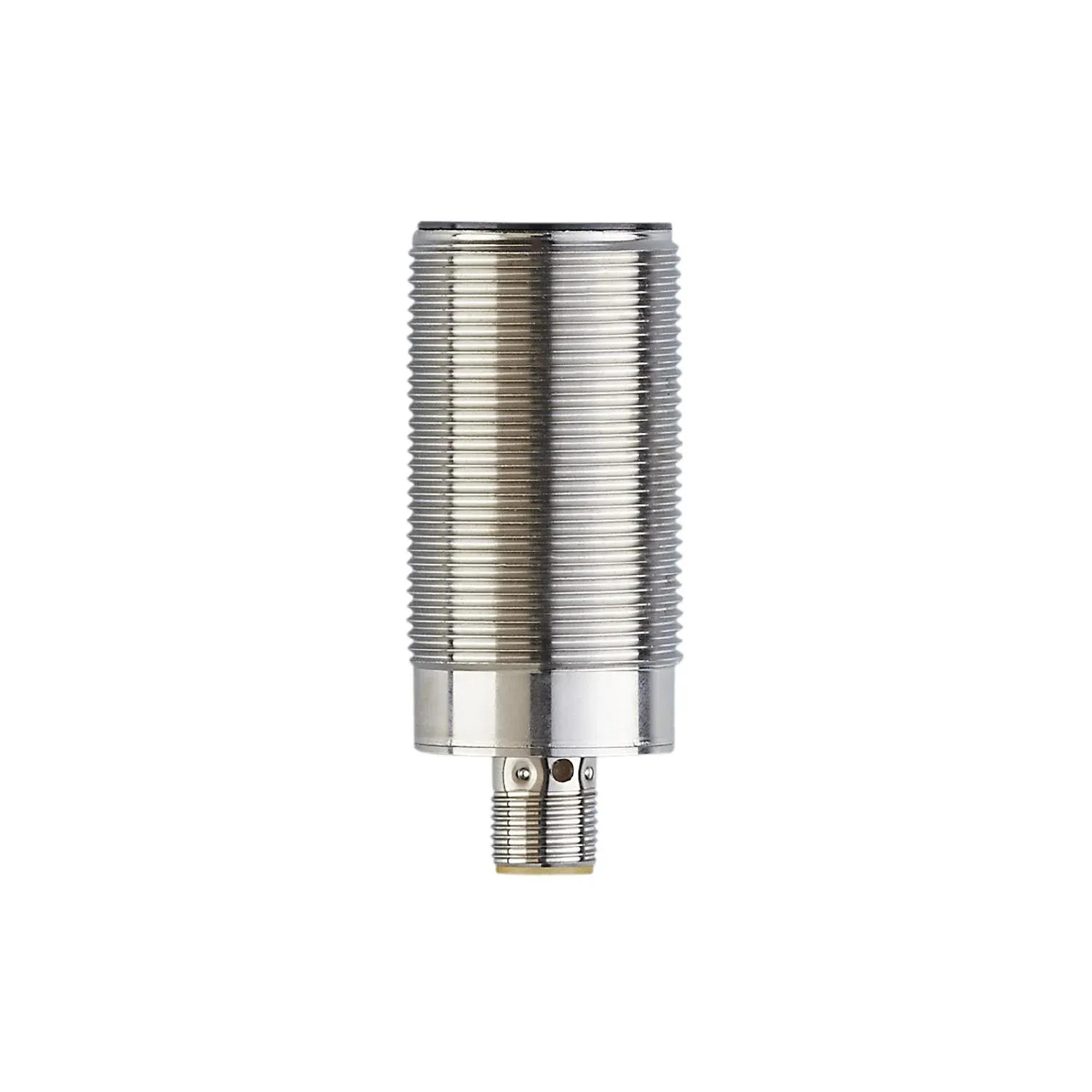

IFM DTM434
DTM434
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

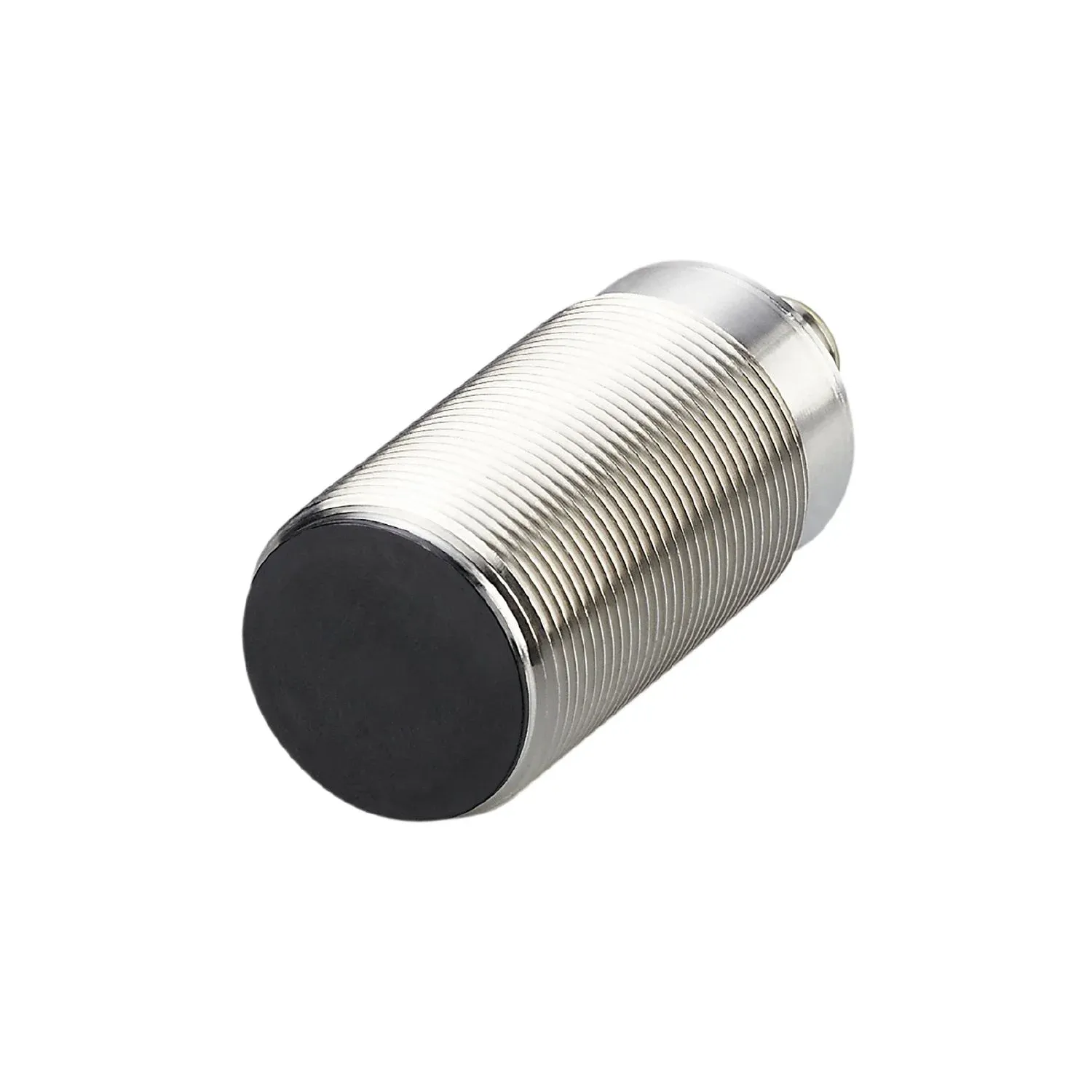

RFID read/write head HF for flush mounting
All in one unit: antenna, evaluation and CANopen interface
Suited for use in mobile machines
High protection rating for the requirements of harsh industrial environments
Large operating temperature range and high shock and vibration resistance
Specification
Application
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine; Brazil |
|---|---|
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 9...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 (24 V) / < 80 (12 V) |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Detection zone
| Distance write/read head front[mm] [mm] | 120 |
|---|---|
| Distance write/read head side[mm] [mm] | 60 |
| Distance to the ID tag[mm] [mm] | ≤ 30 |
Interfaces
| Communication interface | CAN |
|---|---|
| Protocol | CANopen |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance | EN 60068-2-27 40 g 6 ms / repetitive EN 60068-2-27 50 g 11 ms / not repetitive |
|---|---|
| EN 60068-2-27 | 50 g 11 ms / not repetitive |
| Vibration resistance | EN 60068-2-6 20 g 10...2000 Hz |
| EN 60068-2-6 | 20 g 10...2000 Hz |
| MTTF[years] [years] | 477 |
Mechanical data
| Weight[g] [g] | 198.5 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 70 |
| Thread designation | M30 x 1.5 |
| Materials | housing: stainless steel; Protective cover: PPS; LED window: PEI |
Displays / operating elements
| Display | Preoperational Mode 1 x LED, green lights Operational Mode 1 x LED, green flashing errors 1 x LED, red flashing tag communication 1 x LED, yellow lights |
|---|---|
| Preoperational Mode | 1 x LED, green lights |
| Operational Mode | 1 x LED, green flashing |
| errors | 1 x LED, red flashing |
| tag communication | 1 x LED, yellow lights |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection

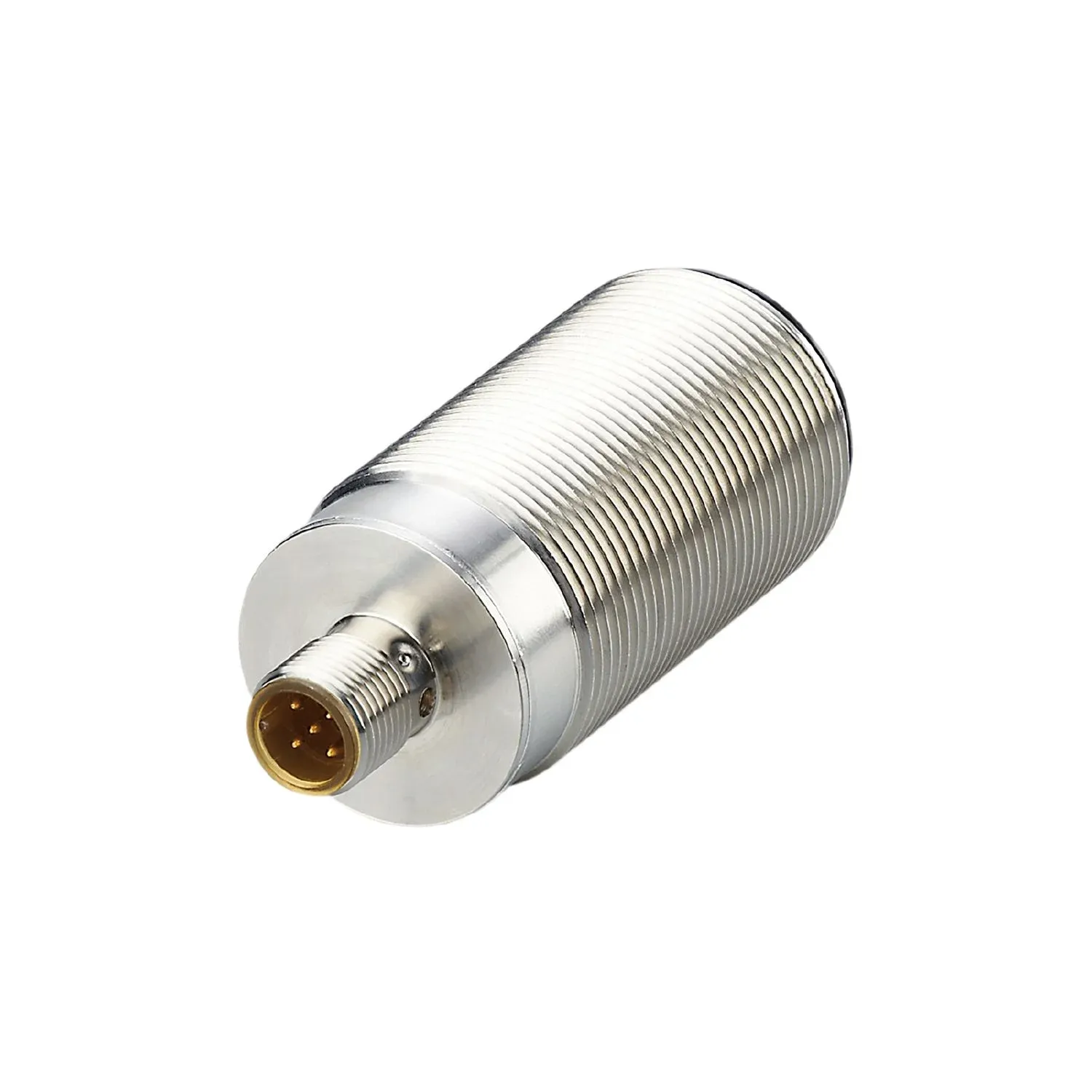

| Connector | 1 x M12; coding: A |
|---|
