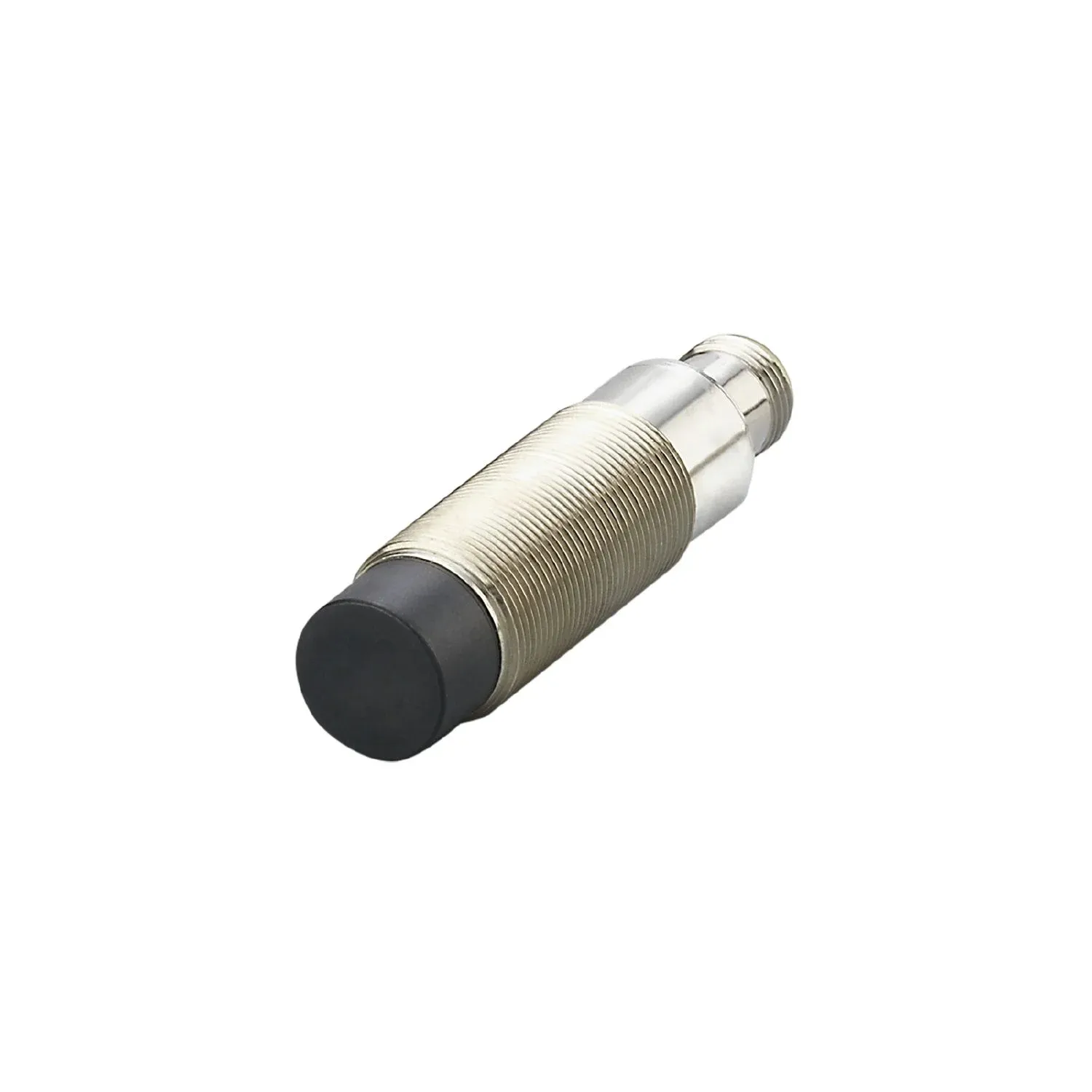

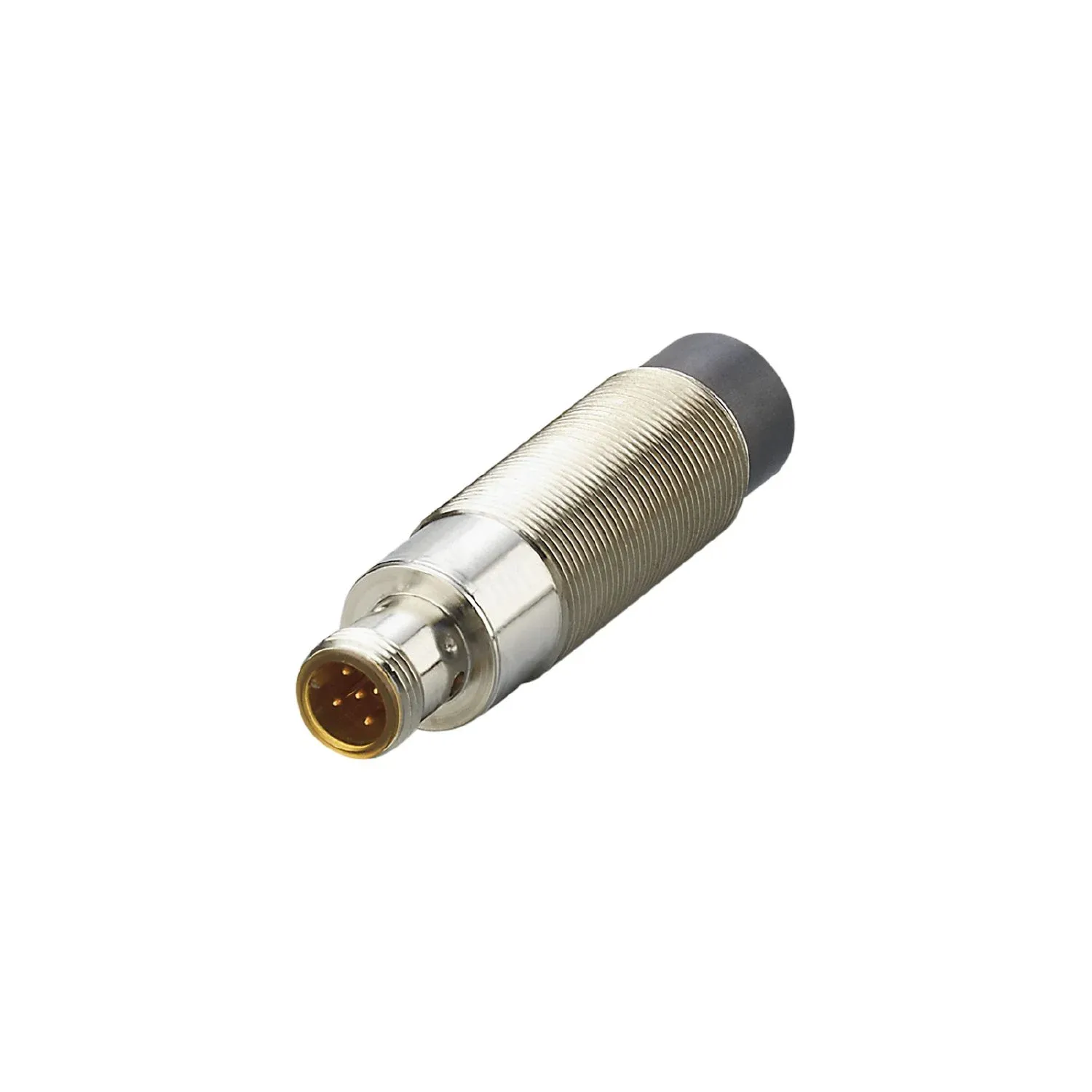

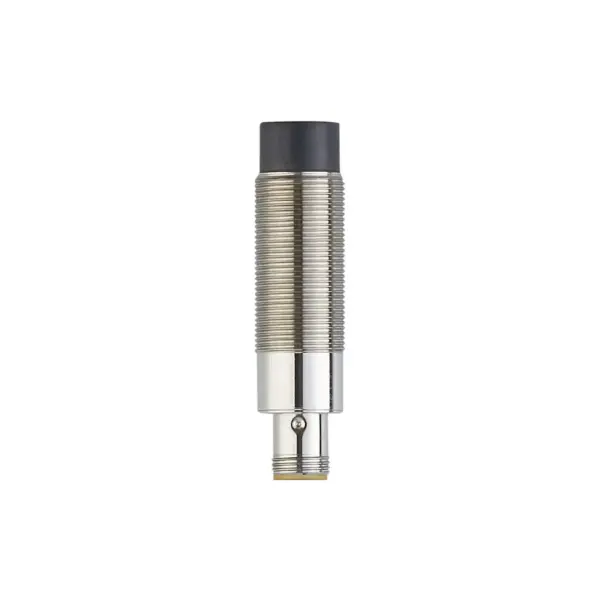

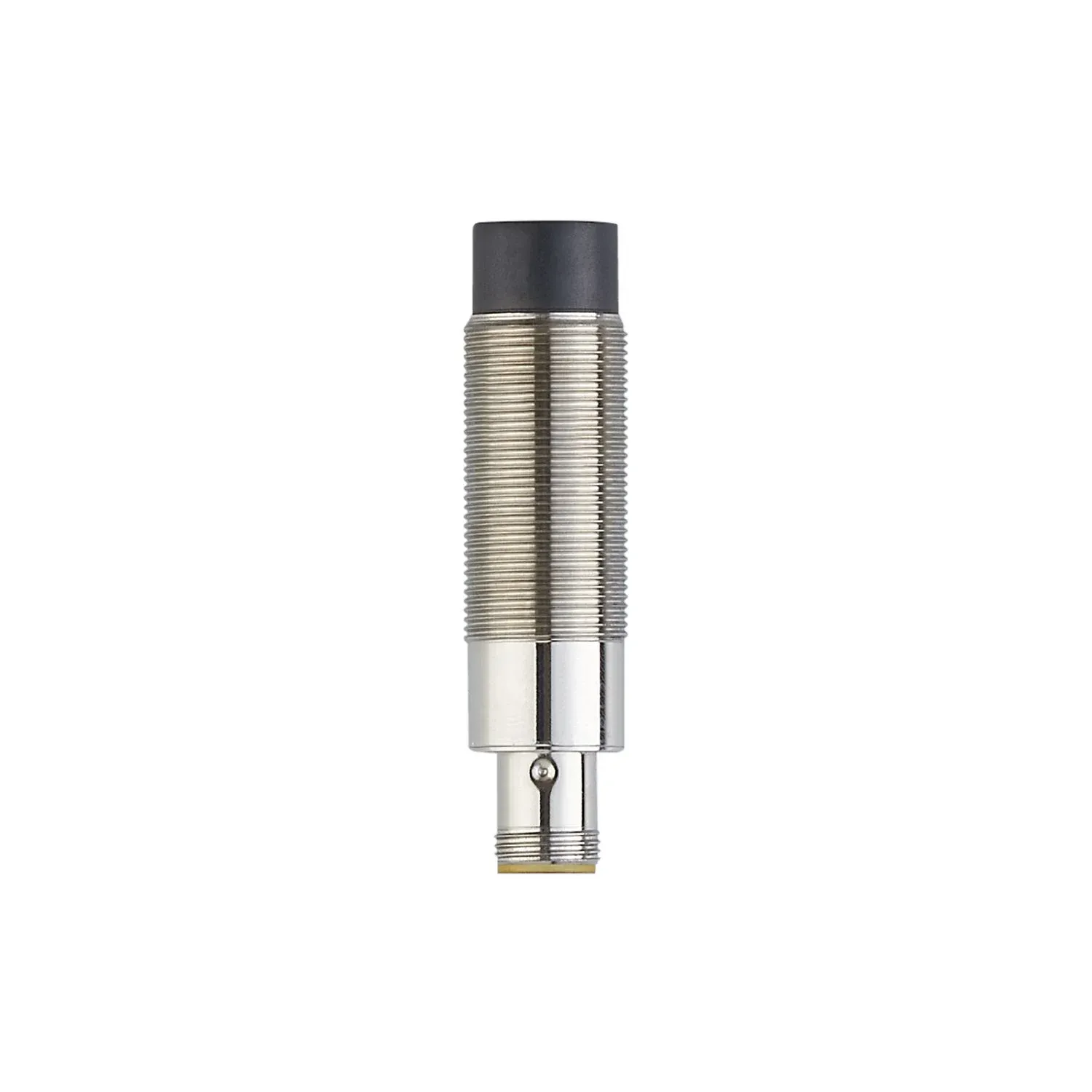

IFM DTM427
DTM427
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID read/write head HF for flush mounting
All in one unit: antenna, evaluation and SAE J 1939 interface
Suited for use in mobile machines
High protection rating for the requirements of harsh industrial environments
Large operating temperature range and high shock and vibration resistance
Specification
Application
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine |
|---|---|
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 9...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 (24 V) / < 80 (12 V) |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Detection zone
| Distance write/read head front[mm] [mm] | 180 |
|---|---|
| Distance write/read head side[mm] [mm] | 65 |
| Distance to the ID tag[mm] [mm] | ≤ 40 |
Interfaces
| Communication interface | CAN |
|---|---|
| Protocol | J1939 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance | EN 60068-2-27 40 g 6 ms / repetitive EN 60068-2-27 50 g 11 ms / not repetitive |
|---|---|
| EN 60068-2-27 | 50 g 11 ms / not repetitive |
| Vibration resistance | EN 60068-2-6 10 g 10...2000 Hz |
| EN 60068-2-6 | 10 g 10...2000 Hz |
| MTTF[years] [years] | 477 |
Mechanical data
| Weight[g] [g] | 139.5 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 70 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel; Protective cover: PPS; LED window: PEI |
Displays / operating elements
| Display | operation 1 x LED, green CAN communication 1 x LED, red tag communication 1 x LED, yellow |
|---|---|
| operation | 1 x LED, green |
| CAN communication | 1 x LED, red |
| tag communication | 1 x LED, yellow |
Remarks
| Remarks | Singapore Not approved for operation, for export only. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
