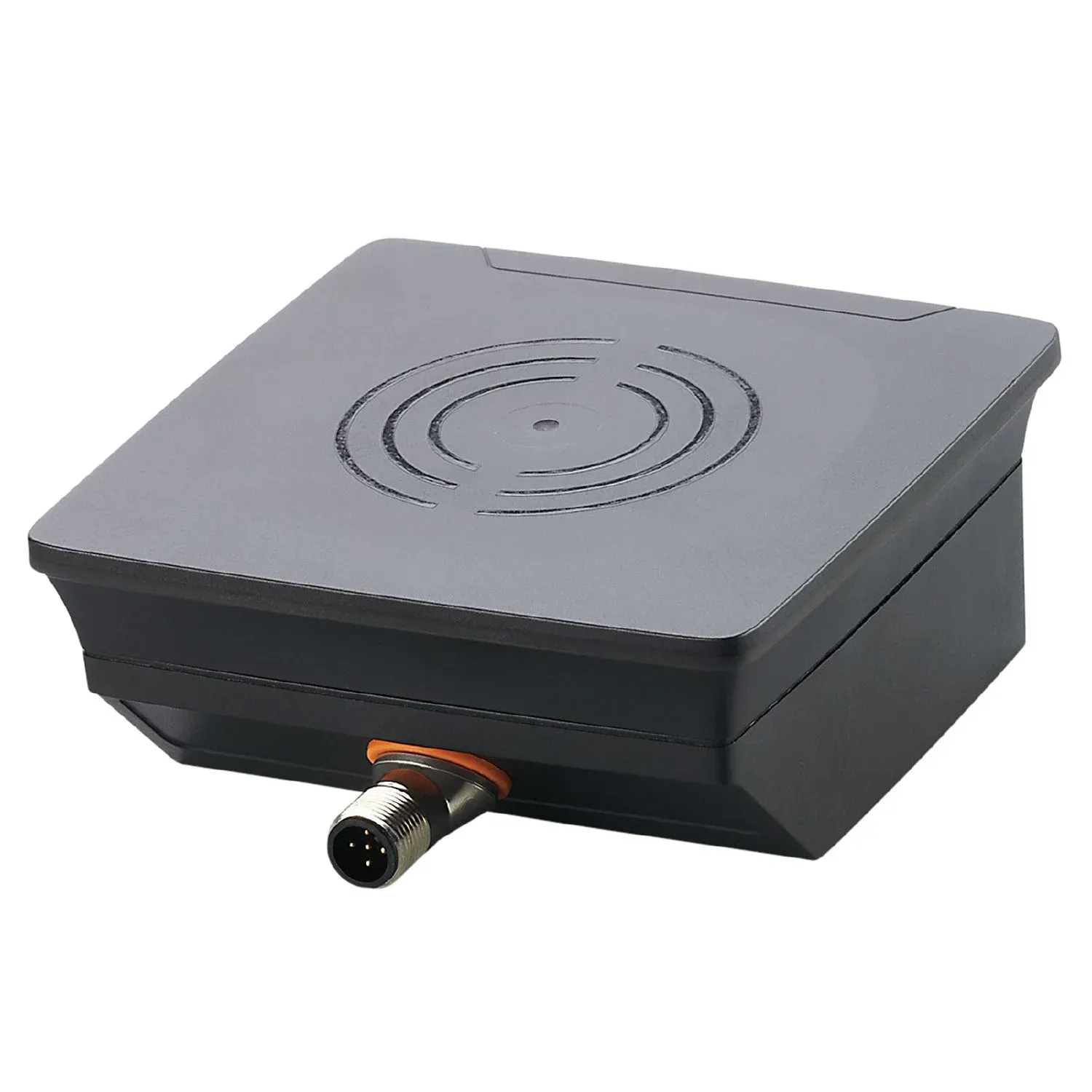

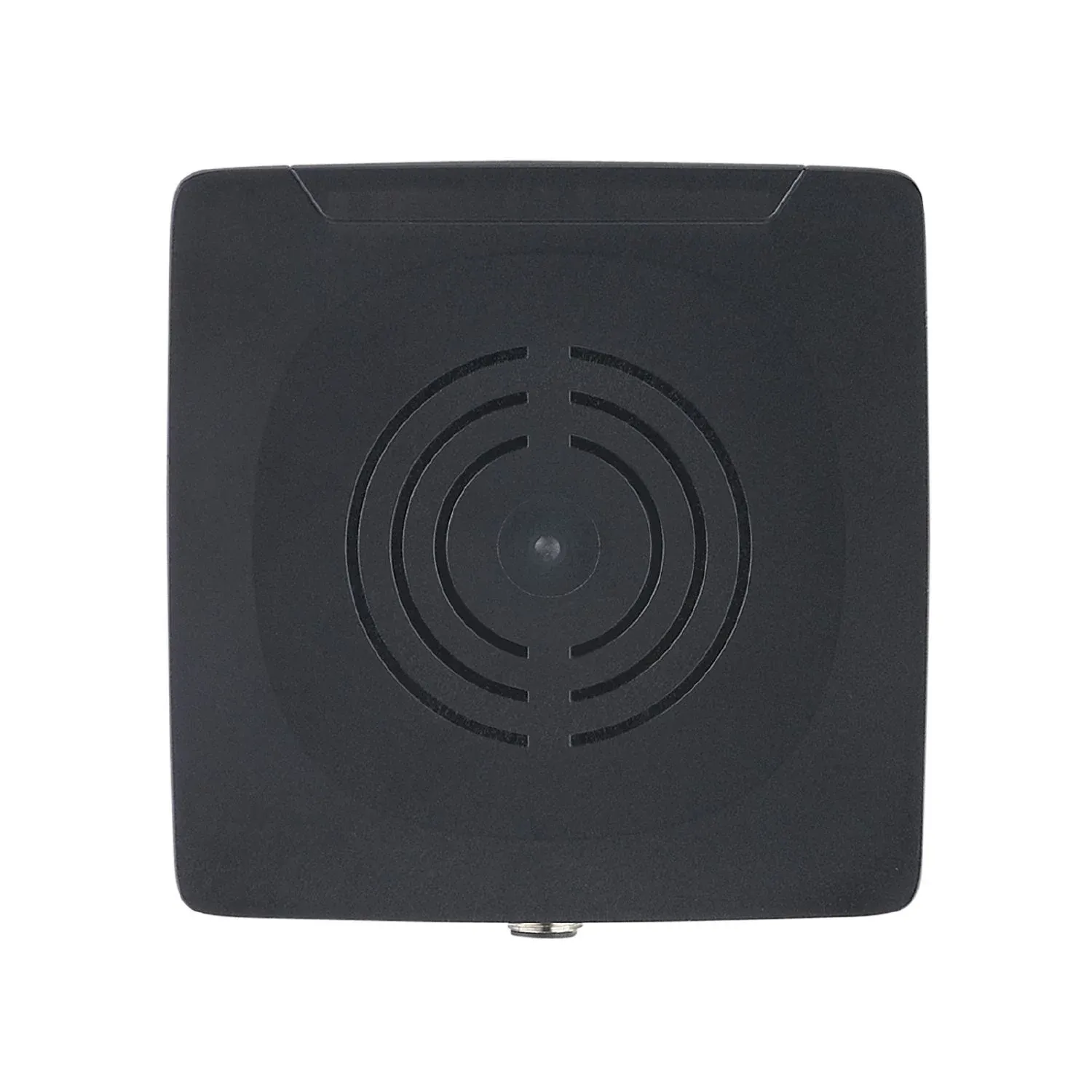

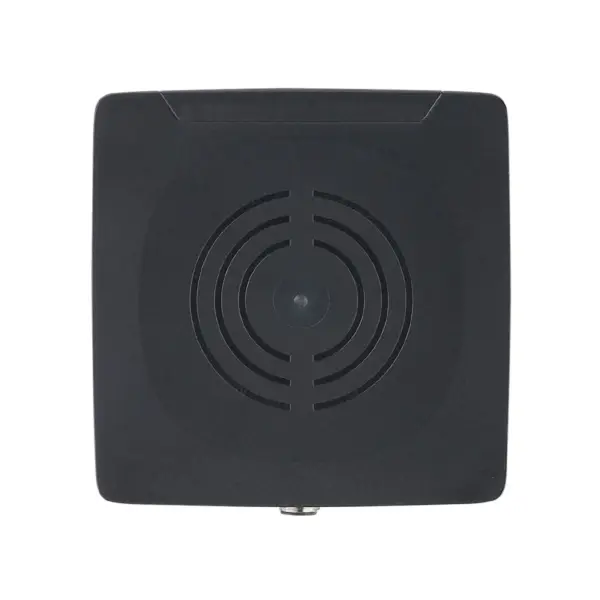

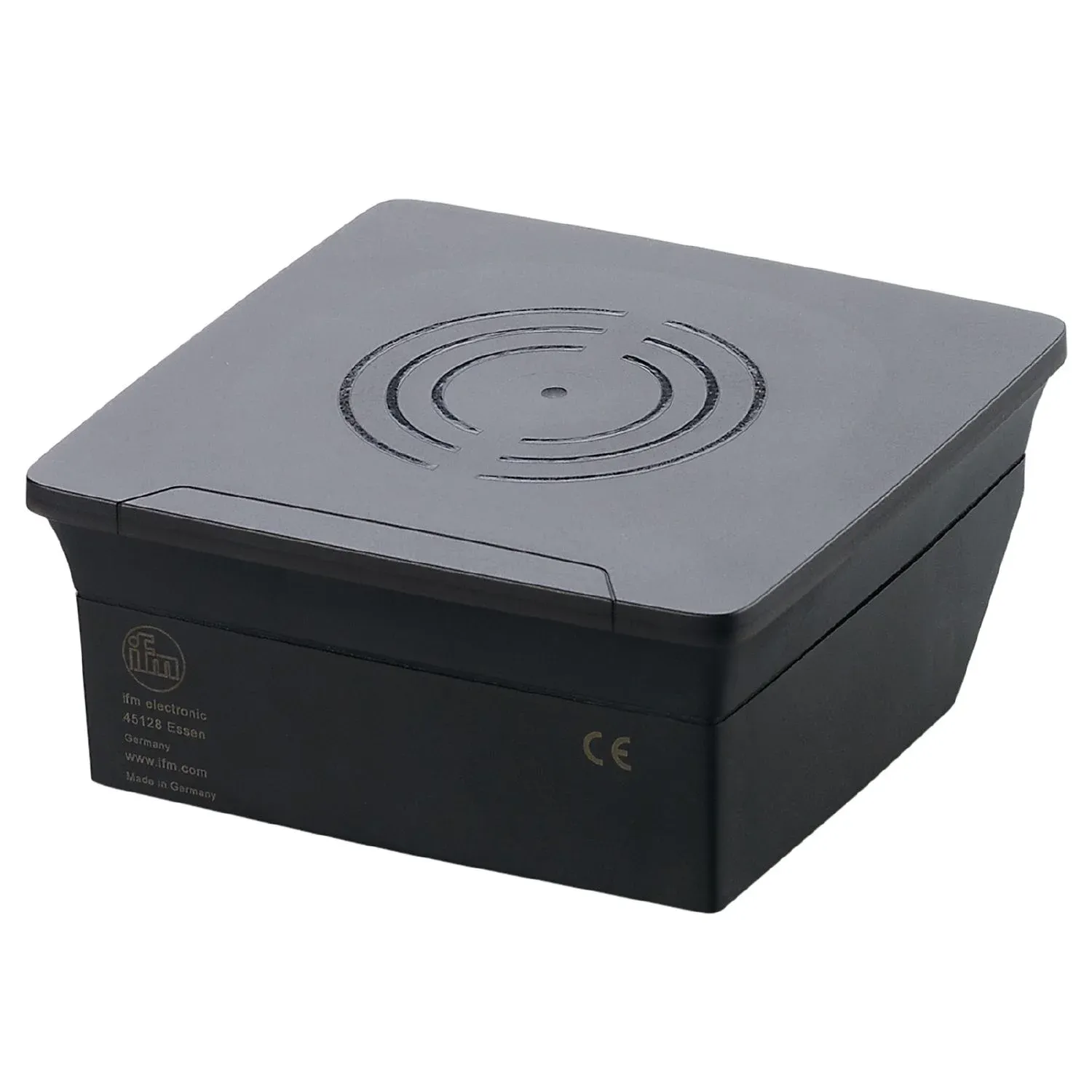

IFM DTI901
DTI901
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable identification of ID tags on workpiece carriers and products
RFID UHF read/write head for long range
High protection rating for the requirements of harsh industrial environments
For connection to IO-Link master version 1.1 by means of tried-and-tested M12 connection
Specification
Application
| Application | detection of objects on transport equipment |
|---|---|
| Radio approval for | Canada; USA |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 250 |
| Power consumption[W] [W] | 4.8 |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 902...928 |
| RFID standard | EPC Class1 GEN2/ISO 18000-63 |
| Transmission power EIRP[mW] [mW] | 200; (maximum: 410 mW) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Common - I&D Identification and Diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Common - I&D | Identification and Diagnosis |
| Min. process cycle time[ms] [ms] | 4 |
| Supported DeviceIDs | default 1418 |
| default | 1418 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance | EN 60068-2-27 40 g 6 ms / bump EN 60068-2-27 50 g 11 ms / single shock |
|---|---|
| EN 60068-2-27 | 50 g 11 ms / single shock |
| Vibration resistance | EN 60068-2-6 2 g 10...150 Hz |
| EN 60068-2-6 | 2 g 10...150 Hz |
| Electrical safety | EN 61010-2-201 electrical supply only via PELV circuits |
| EN 61010-2-201 | electrical supply only via PELV circuits |
| UL approval | Ta -20…60 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E205959 |
| Ta | -20…60 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 635.8 |
|---|---|
| Dimensions[mm] [mm] | 120 x 50 x 113 |
| Materials | PBT; PC; stainless steel; aluminium |
Displays / operating elements
| Display | operation 1 x LED, green tag communication 4 x LED bar display, yellow number of tags in the field |
|---|---|
| operation | 1 x LED, green |
| tag communication | 4 x LED bar display, yellow number of tags in the field |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
