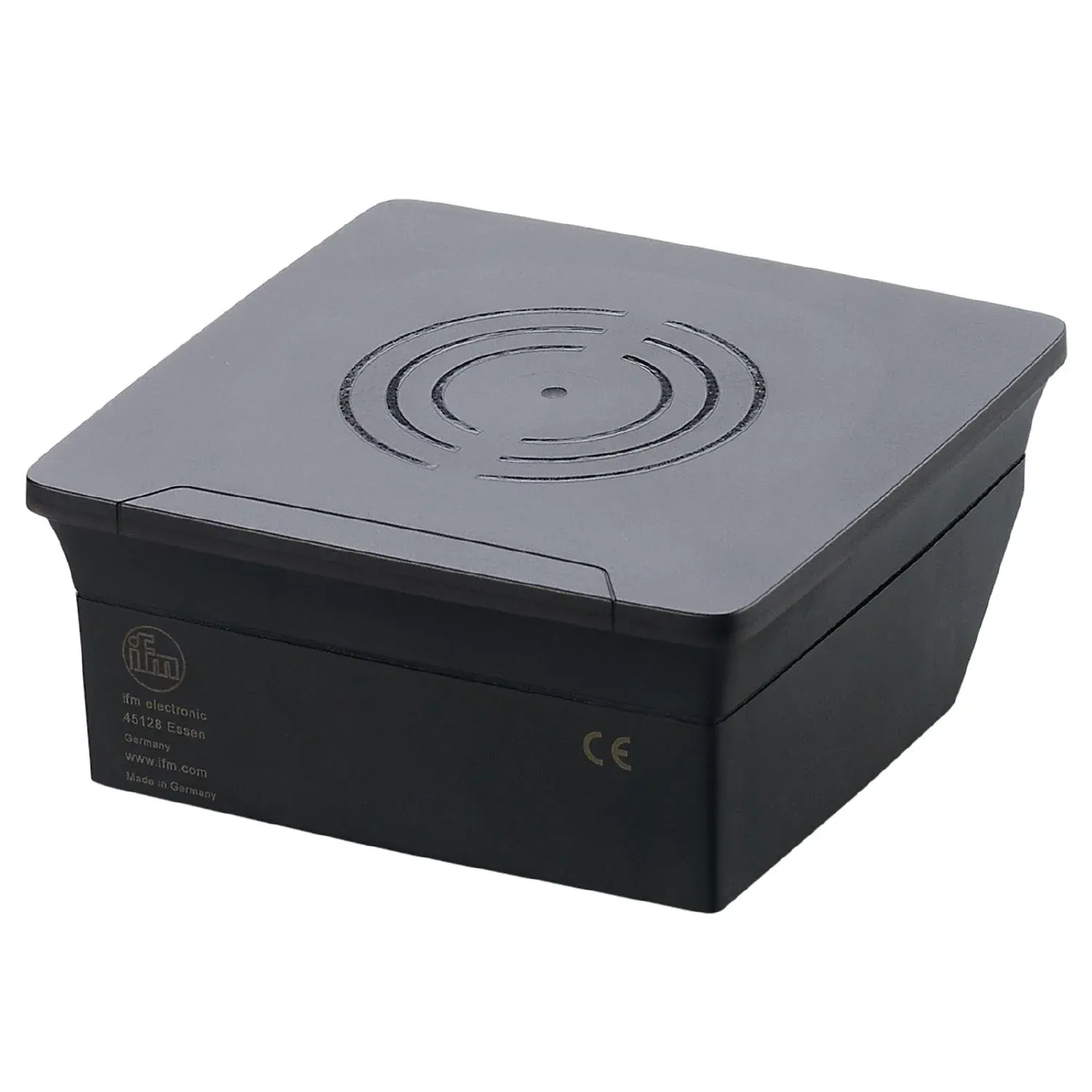

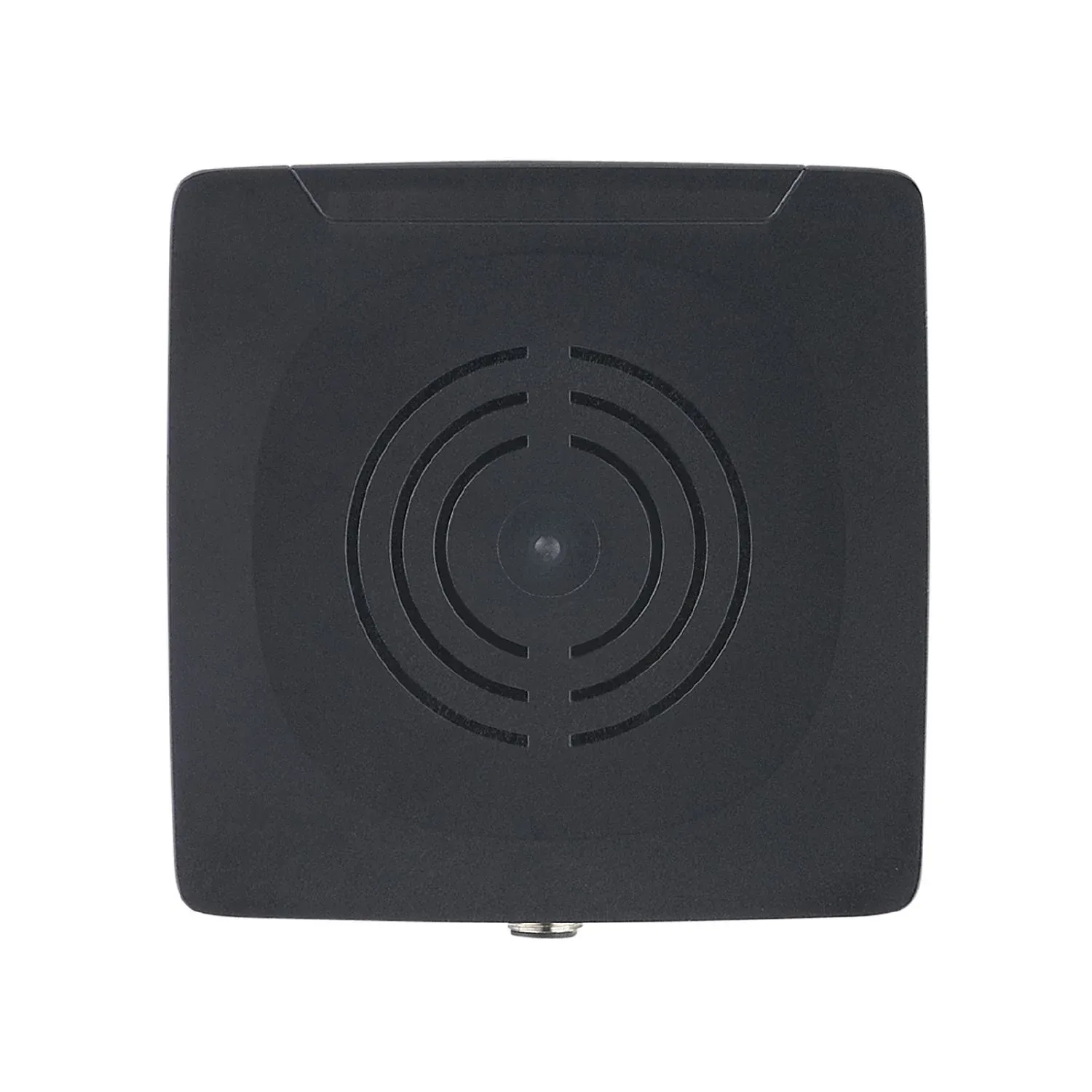

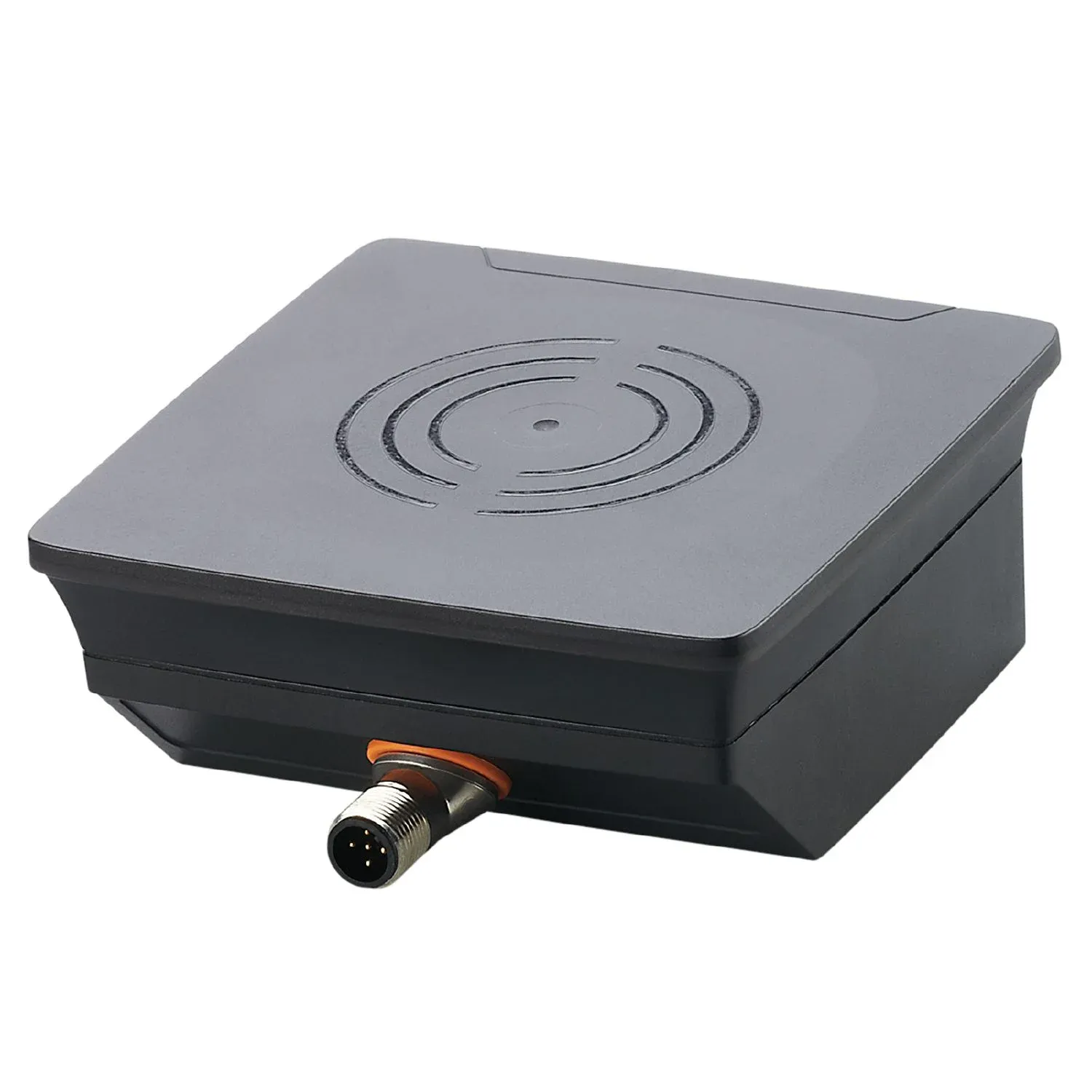

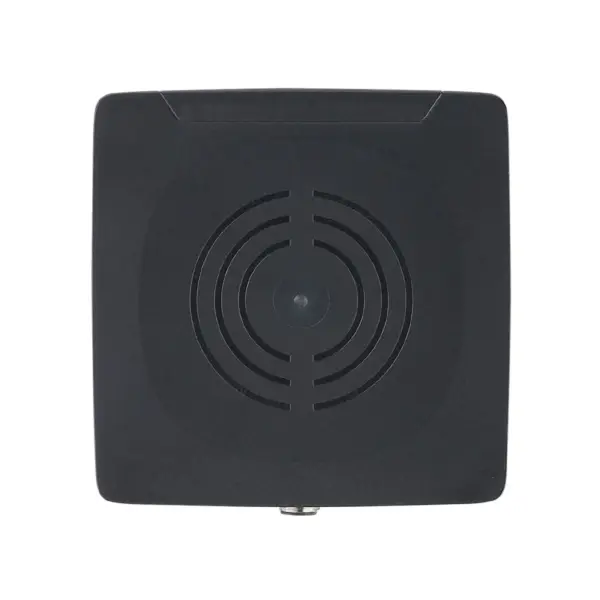

IFM DTI600
DTI600
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable identification of ID tags on workpiece carriers and products
RFID HF read/write head for long ranges
High protection rating for the requirements of harsh industrial environments
For connection to IO-Link master version 1.1 by means of tried-and-tested M12 connection
Specification
Application
| Application | detection of objects on transport equipment |
|---|---|
| Radio approval for | EU/RED; Japan; Australia; China; Taiwan; India; Singapore; USA; Canada; Brazil; Mexico; Malaysia; New Zealand; South Korea; Vietnam |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 19.2...28.8 DC |
|---|---|
| Current consumption[mA] [mA] | < 150 |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Detection zone
| Distance write/read head front[mm] [mm] | 400 |
|---|---|
| Distance write/read head side[mm] [mm] | 600 |
| Distance to the ID tag[mm] [mm] | referred to the ID tag E80384 : < 190 referred to an ISO card E80407 : < 230 |
| referred to the ID tag E80384 | : |
| referred to an ISO card E80407 | : |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device identification |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 22 |
| Supported DeviceIDs | default 967 |
| default | 967 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance | EN 60068-2-27 40 g 6 ms / bump EN 60068-2-27 50 g 11 ms / single shock |
|---|---|
| EN 60068-2-27 | 50 g 11 ms / single shock |
| Vibration resistance | EN 60068-2-6 2 g 10...150 Hz |
| EN 60068-2-6 | 2 g 10...150 Hz |
Mechanical data
| Weight[g] [g] | 456 |
|---|---|
| Dimensions[mm] [mm] | 120 x 50 x 113 |
| Materials | PBT; PC; stainless steel |
Displays / operating elements
| Display | operation 1 x LED, green tag communication 4 x LED bar display, yellow signal strength ID tag |
|---|---|
| operation | 1 x LED, green |
| tag communication | 4 x LED bar display, yellow signal strength ID tag |
Remarks
| Remarks | For the distances to other ID tags see the respective data sheet (E803xx) |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
