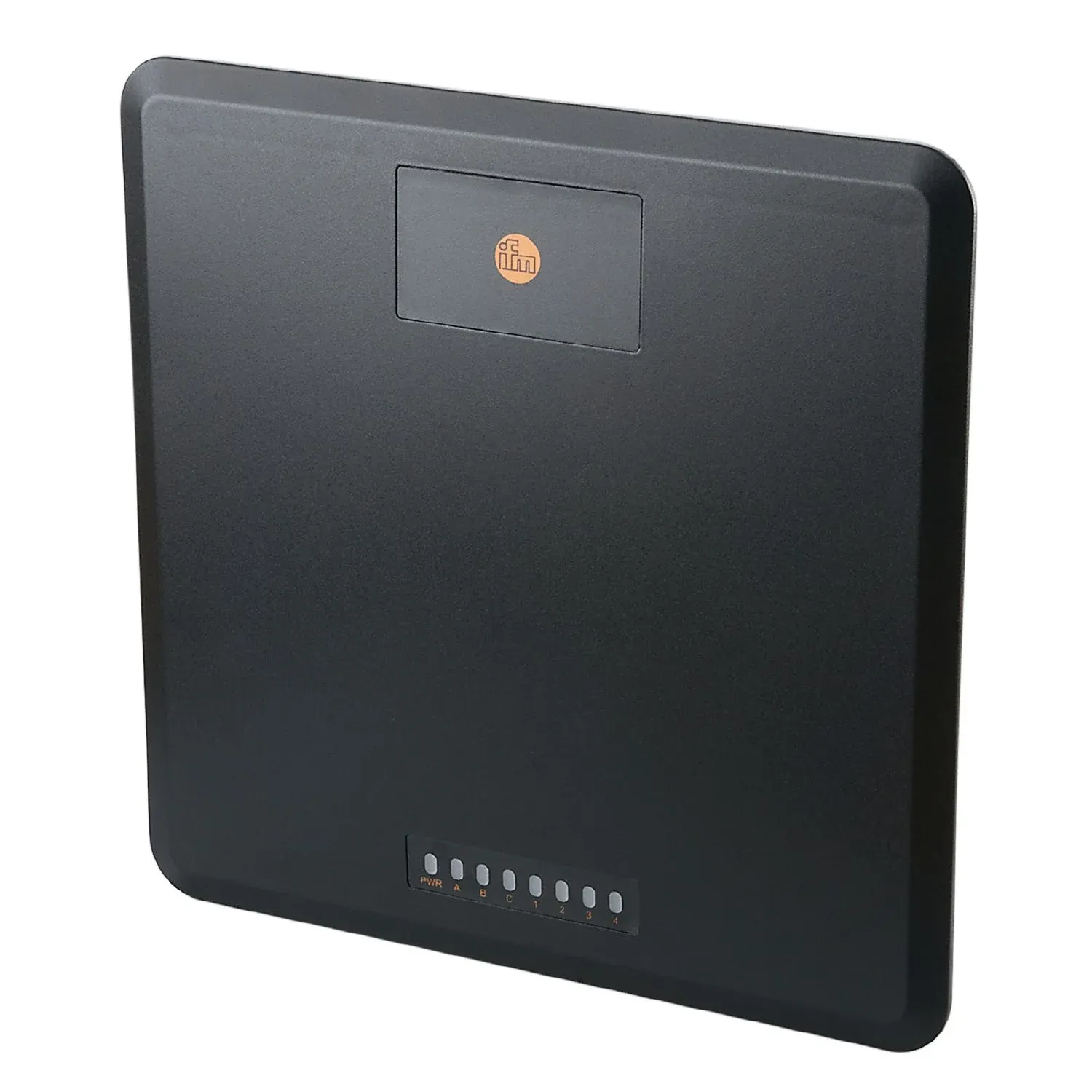

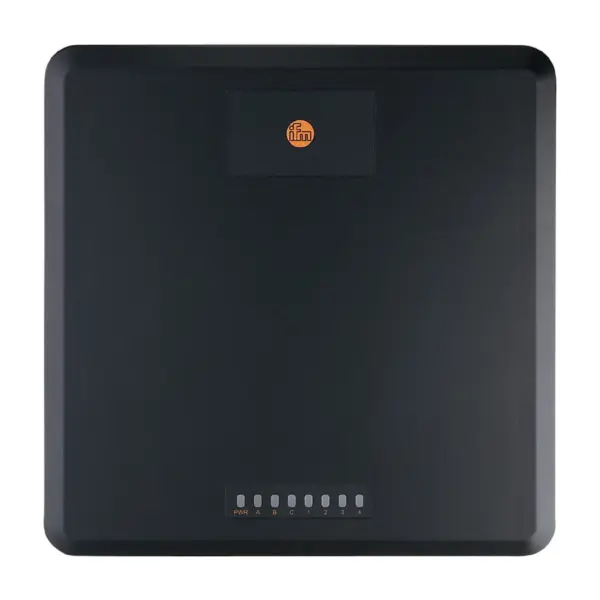

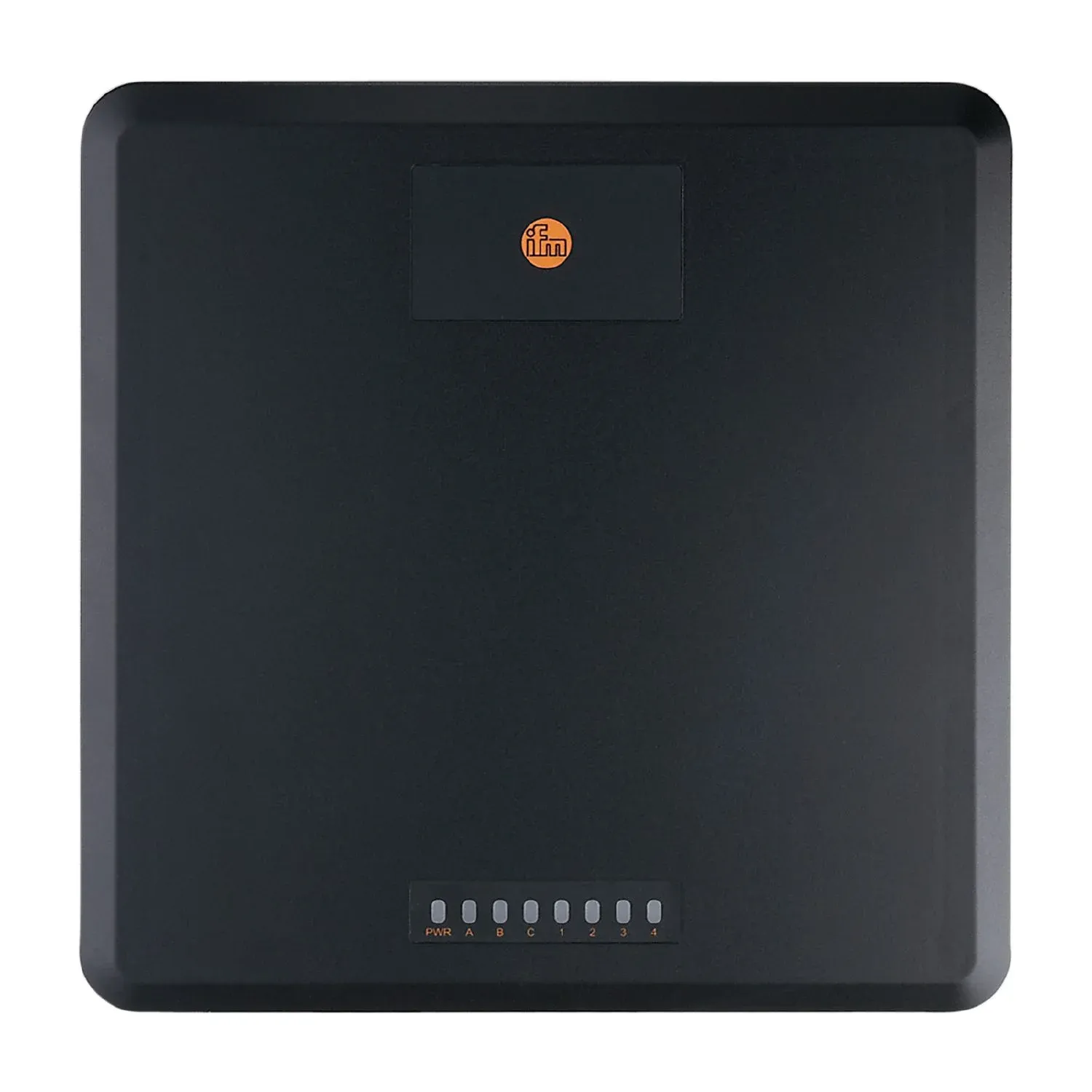

IFM DTE930
DTE930
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With four channels for the connection of RFID antennas
High protection rating for the requirements in industry and logistics
RFID evaluation unit for passive UHF antennas
Complies with the requirements of FCC for operation in the American frequency range
Specification
Application
| Radio approval for | USA; Canada; Australia; Singapore; Mexico; South Africa |
|---|
Electrical data
| Operating voltage[V] [V] | 24 DC |
|---|---|
| Current consumption[mA] [mA] | 700 |
| Operating frequency[MHz] [MHz] | 902...928 (FCC), 920...926 (ACMA), 920...923 (SDPPI ) max. 400 mW EIRP, 919...923 (SIRIM), 920...925 (IMDA), 915,3...920,9 (ICASA) |

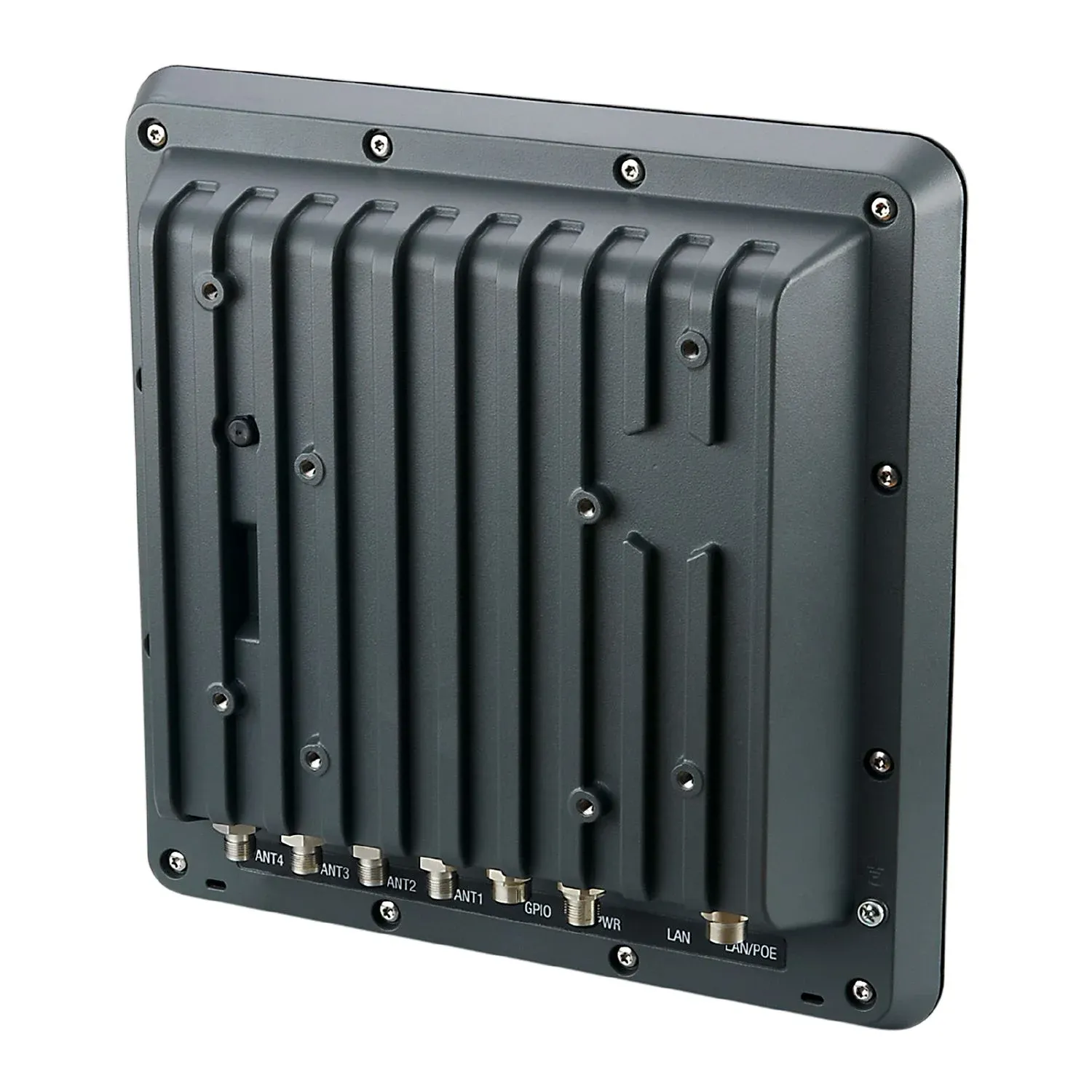

| Antenna connections | 4; (TNC Reverse) |
| RFID standard | EPC Class1 GEN2/ISO 18000-6C |
| Transmission power ERP[mW] [mW] | 2000; (parameterisable in steps: 1 dB 50mW ... 2W) |
| Impedance[Ω] [Ω] | 50 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|
Outputs
| Number of digital outputs | 4 |
|---|---|
| Max. current load per output[mA] [mA] | 500; (max.) |
Detection zone
| RSSI threshold | adjustable via software |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Protocol | TCP/IP |
| Usage type | parameter setting; data transmission |
Operating conditions
| Ambient temperature[°C] [°C] | -20...55 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 67 |
Tests / approvals
| Radio approval | FCC Part15 |
|---|---|
| UL approval | Ta -20...60 °C Enclosure type IP67 power supply SELV File number UL E347020 |
| Ta | -20...60 °C |
| Enclosure type | IP67 |
| power supply | SELV |
| File number UL | E347020 |
Mechanical data
| Weight[g] [g] | 3417.8 |
|---|---|
| Dimensions[mm] [mm] | 300 x 300 x 71 |
| Materials | housing: aluminium; Protective cover: plastics; TNC socket: brass / PTFE; connector: brass / plastic |
Displays / operating elements
| Display | operation 1 x LED, yellow/green 4 x LED, multi-colour programmable |
|---|---|
| operation | 1 x LED, yellow/green |
| Acoustic signal | buzzer |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Ethernet
| Connector | 1 x M12; coding: X |
|---|
Electrical connection - inputs / outputs
| Connector | 1 x M12 |
|---|
Electrical connection - power supply
| Connector | 1 x M12; coding: A |
|---|
