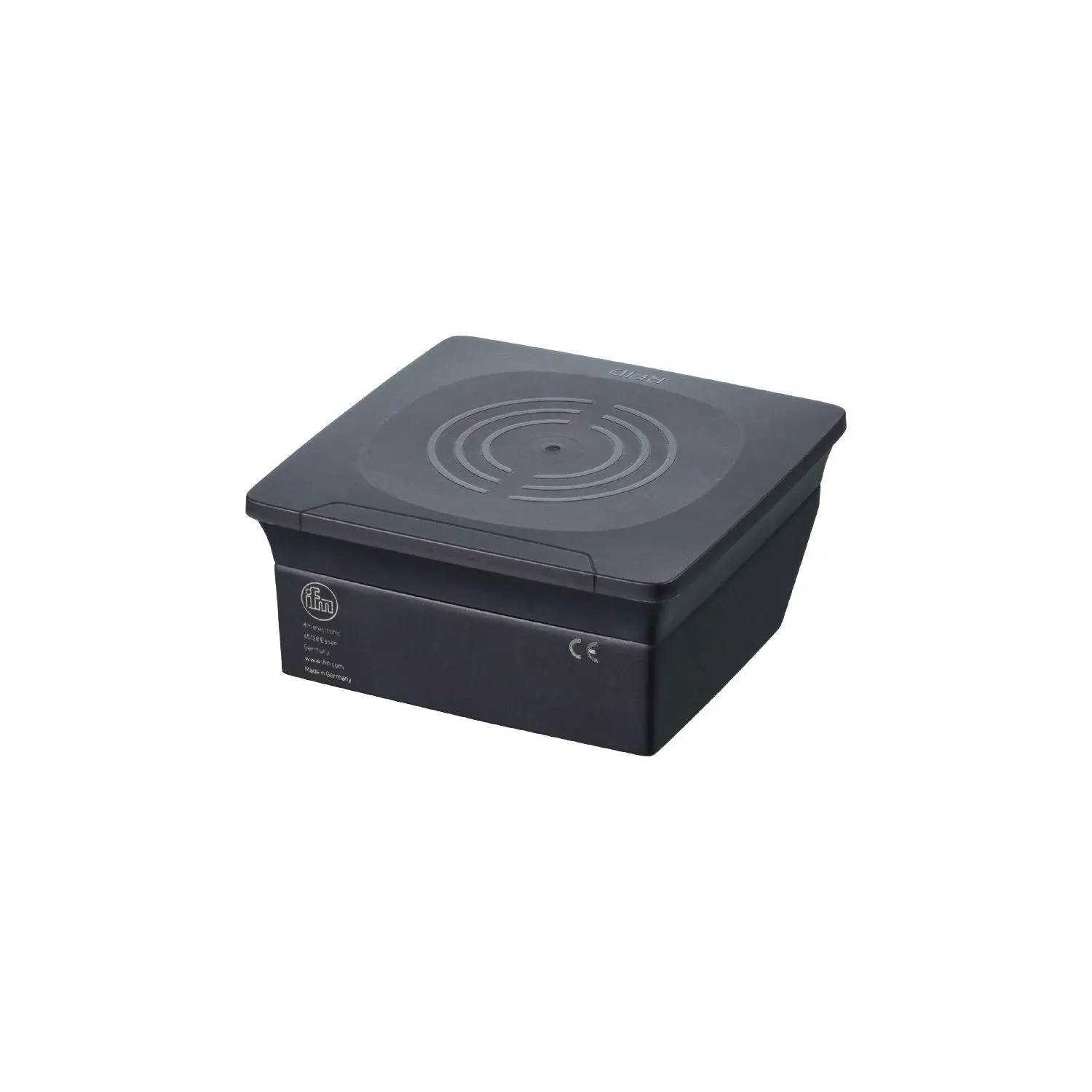

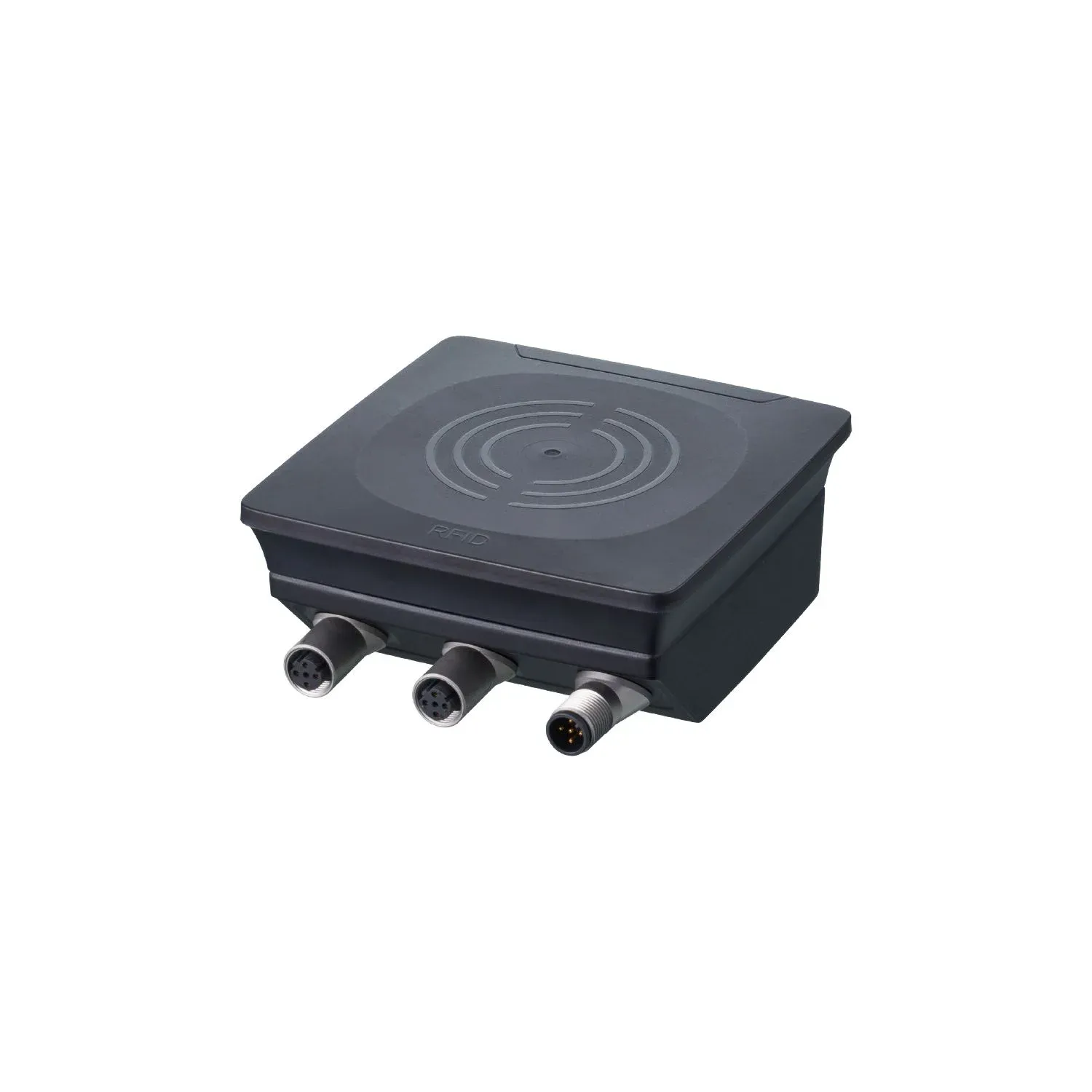

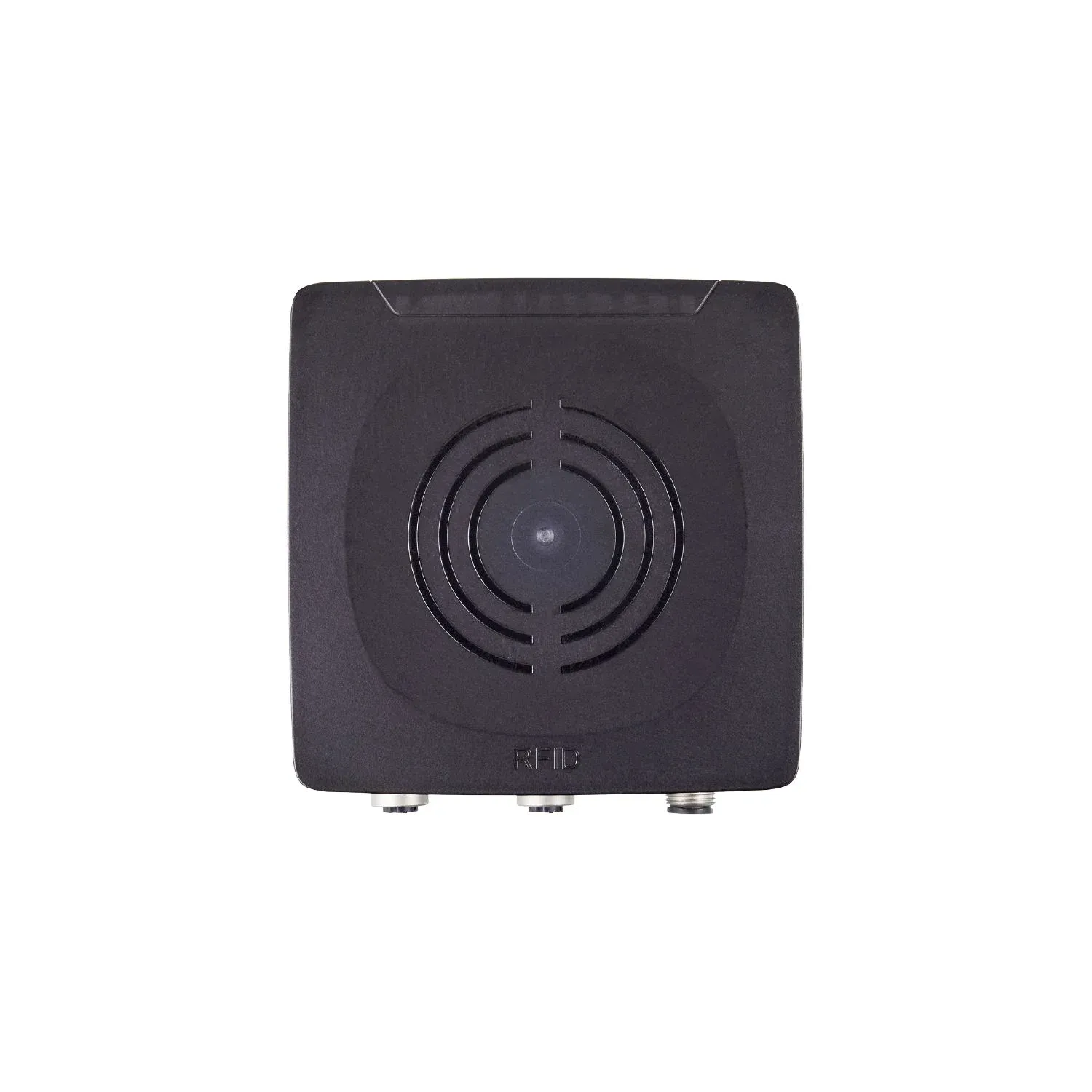

IFM DTE802
DTE802
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID UHF compact device with EtherNet/IP
High protection rating for the requirements in industry and logistics
RFID UHF read/write head for long range
Up to 16 transponders simultaneously
Specification
Application
| Radio approval for | EU/RED; India |
|---|---|
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 19.2...28.8 DC |
|---|---|
| Current consumption[mA] [mA] | 500 |
| Power consumption[W] [W] | 8.6 |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 865...868 (ETSI) |
| RFID standard | EPC Class1 GEN2/ISO 18000-63 |
| Transmission power ERP[mW] [mW] | 120; (maximum: 200 mW) |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | push-pull |
| Number of digital outputs | 2 |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Max. current load per output[mA] [mA] | 100; (max.) |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Angle of aperture[°] [°] | 60 |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Protocol | EtherNet/IP |
| Usage type | parameter setting |
| Factory settings | IP address: 192.168.0.79 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.100 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...55 |
|---|---|
| Note on ambient temperature | with mounting plate and cooling element: -20...60 °C |
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance | IEC 60028-2-27 40 g (6 ms) / bump 50 g (11 ms) / single shock |
|---|---|
| IEC 60028-2-27 | 40 g (6 ms) / bump |
| Vibration resistance | EN 60068-2-6 2 g (10...150 Hz) |
| EN 60068-2-6 | 2 g (10...150 Hz) |
| MTTF[years] [years] | 58 |
Mechanical data
| Weight[g] [g] | 699.45 |
|---|---|
| Dimensions[mm] [mm] | 113 x 118.6 x 50 |
| Materials | lower part: aluminium; upper part: PBT / PC; plug: stainless steel |
Displays / operating elements
| Display | power supply 1 x LED, green LED bar display 4 x LED, yellow number of tags in the field status 2 x LED, green/red fieldbus interface status 2 x LED, green/yellow Ethernet |
|---|---|
| power supply | 1 x LED, green |
| LED bar display | 4 x LED, yellow number of tags in the field |
| status | 2 x LED, green/yellow Ethernet |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Ethernet
| Connector | 2 x M12; coding: D |
|---|
Electrical connection - power supply
| Connector | 1 x M12; coding: A |
|---|
