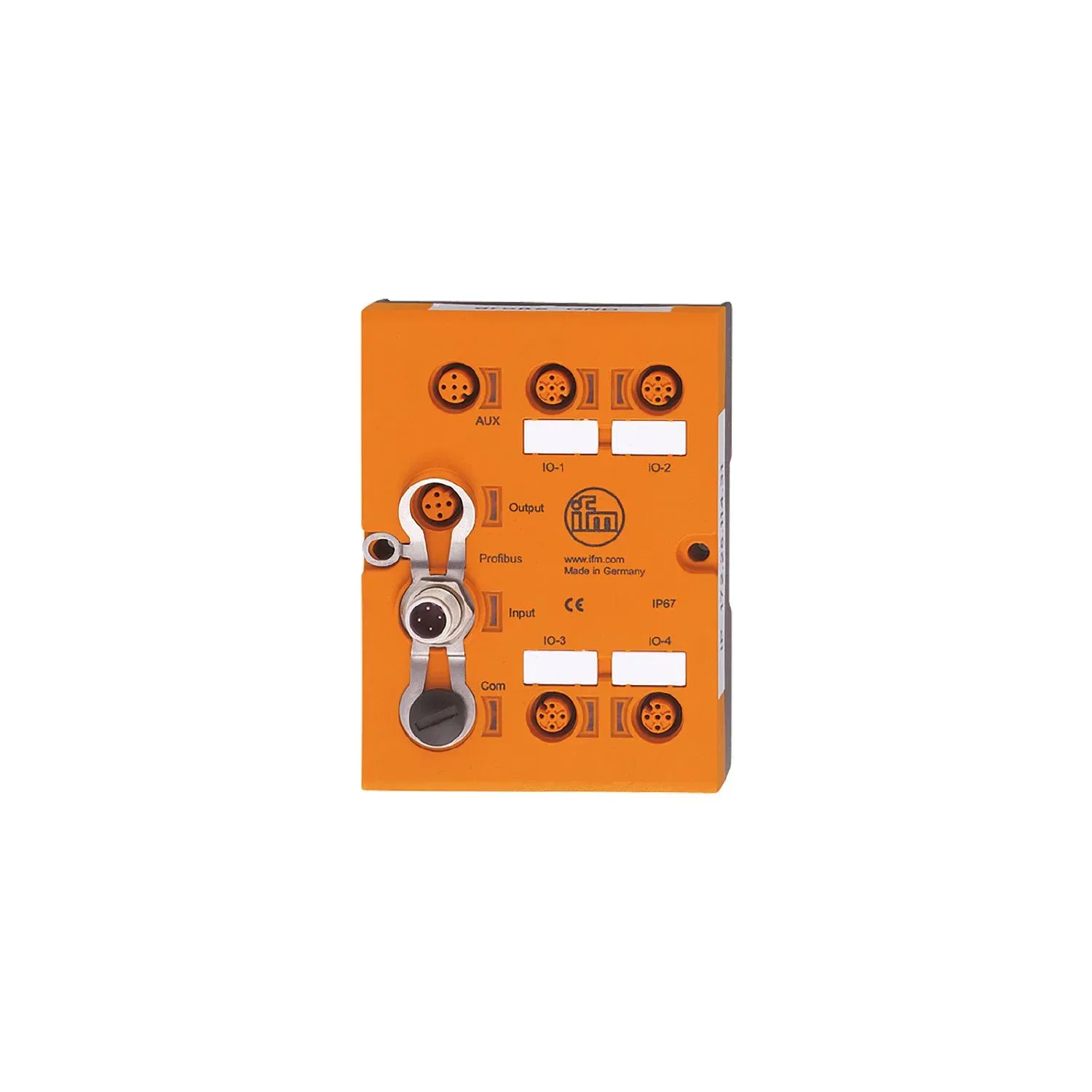

IFM DTE100
DTE100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID evaluation unit with PROFIBUS DP
With four channels for the connection of RFID antennas or digital I/Os
Connection of the antennas with ifm standard connection cables
Optimised Ethernet TCP/IP web server for device setup, diagnostics and monitoring
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Application | for up to 4 read/write heads type ANT4xx/ANT5xx/ANT600 |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 3000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|
Outputs
| Number of digital outputs | 4 |
|---|---|
| Max. current load per output[mA] [mA] | 500; (IO 1,2; IO 3,4: 1000 mA) |
Interfaces
| Communication interface | PROFIBUS DP |
|---|---|
| Factory settings | IP address: 192.168.0.79 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.100 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -20...85 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance | IEC 60068-2-27 15 g 11 ms |
|---|---|
| IEC 60068-2-27 | 15 g 11 ms |
| Vibration resistance | IEC 60068-2-6 ±1.6 mm (17...18 Hz) / 2 g (10...150 Hz) |
| IEC 60068-2-6 | ±1.6 mm (17...18 Hz) / 2 g (10...150 Hz) |
| MTTF[years] [years] | 101.69 |
Mechanical data
| Weight[g] [g] | 390 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 115 x 85 x 46.2 |
| Materials | upper part: PA Grivory GV5H orange; upper part: TPE; lower part: GD-AlSi12 |
Displays / operating elements
| Display | power supply 1 x LED, green 1 x LED, yellow Profibus-DP 1 x LED, red 1 x LED, green Ethernet 1 x LED, green 1 x LED, yellow Inputs / outputs 1 x LED, green 1 x LED, yellow |
|---|---|
| power supply | 1 x LED, green |
| Profibus-DP | 1 x LED, red |
| Ethernet | 1 x LED, green |
| Inputs / outputs | 1 x LED, green |
Accessories
| Items supplied | Protective cap: M12, E73004 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Profibus IN
| Connector | M12; coding: B |
|---|
Electrical connection - Profibus OUT
| Connector | M12; coding: B |
|---|
Electrical connection - power supply
| Connector | M12; coding: A |
|---|
