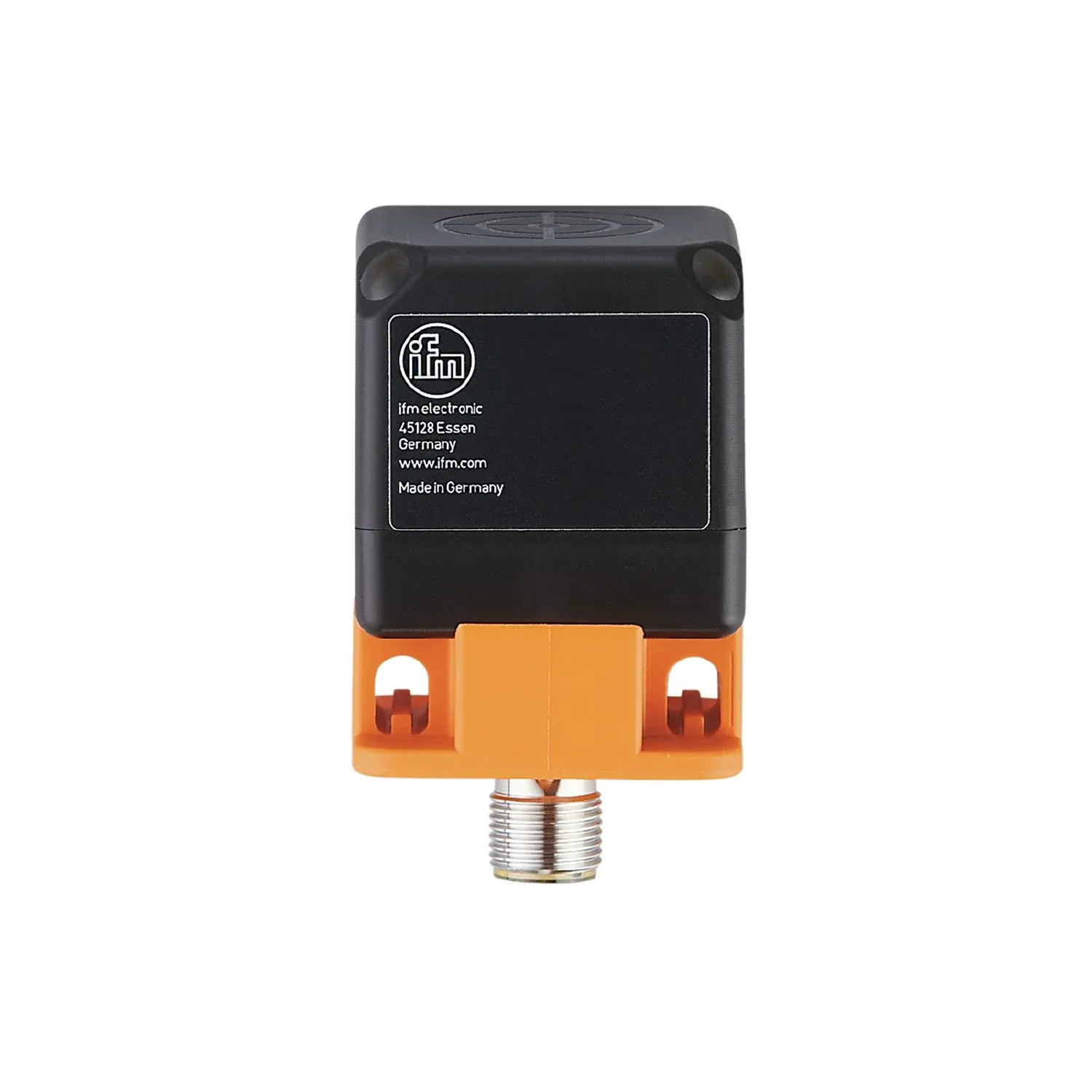

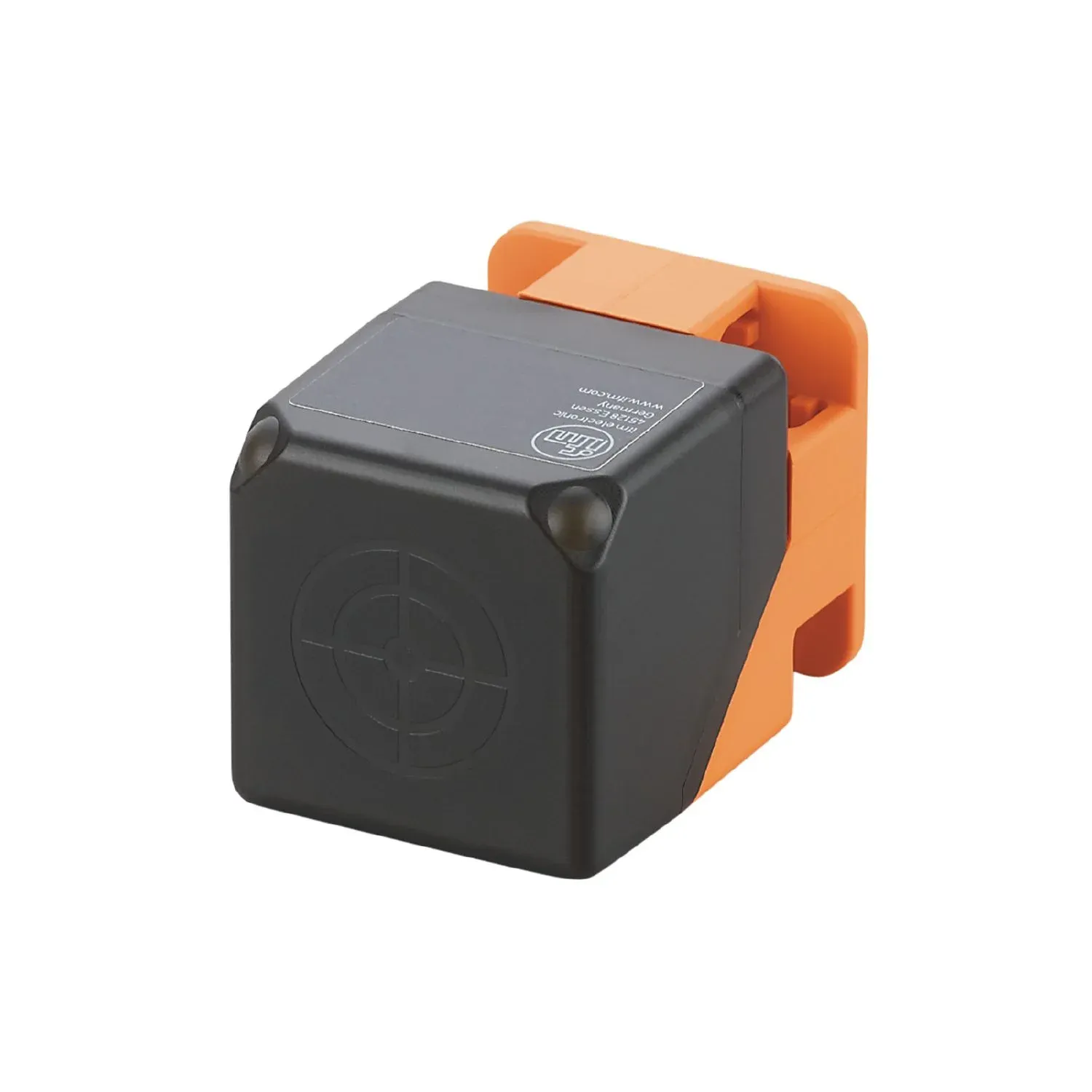

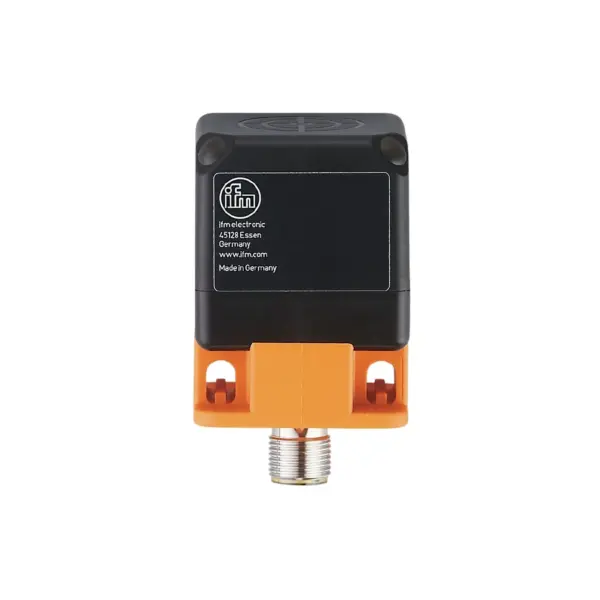

IFM DTC510
DTC510
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable identification of ID tags on workpiece carriers and products
Robust housing for applications in mounting, feeding and handling technology
Large read distance
Five positions of the sensing face selectable
Specification
Application
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; Taiwan; India; Singapore; China; South Korea |
|---|---|
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 9...32 DC |
|---|---|
| Current consumption[mA] [mA] | ≤ 50 (24 V) / ≤ 80 (12 V) |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Detection zone
| Distance to the ID tag[mm] [mm] | ≤ 60 |
|---|
Interfaces
| Communication interface | CAN |
|---|---|
| Protocol | CANopen |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance | EN 60068-2-27 40 g 6 ms / repetitive EN 60068-2-27 50 g 11 ms / not repetitive |
|---|---|
| EN 60068-2-27 | 50 g 11 ms / not repetitive |
| Vibration resistance | EN 60068-2-6 20 g 10...2000 Hz |
| EN 60068-2-6 | 20 g 10...2000 Hz |
| MTTF[years] [years] | 484 |
Mechanical data
| Weight[g] [g] | 180 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Dimensions[mm] [mm] | 40 x 40 x 54 |
| Materials | housing: PA; metal parts: stainless steel |
Displays / operating elements
| Display | Preoperational Mode 1 x LED, green lights Operational Mode 1 x LED, green flashing tag communication 1 x LED, yellow lights errors 1 x LED, red flashing |
|---|---|
| Preoperational Mode | 1 x LED, green lights |
| Operational Mode | 1 x LED, green flashing |
| tag communication | 1 x LED, yellow lights |
| errors | 1 x LED, red flashing |
Remarks
| Remarks | For the distances to other ID tags see the respective data sheet (E803xx) |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12, rotatable, locking; coding: A |
|---|
