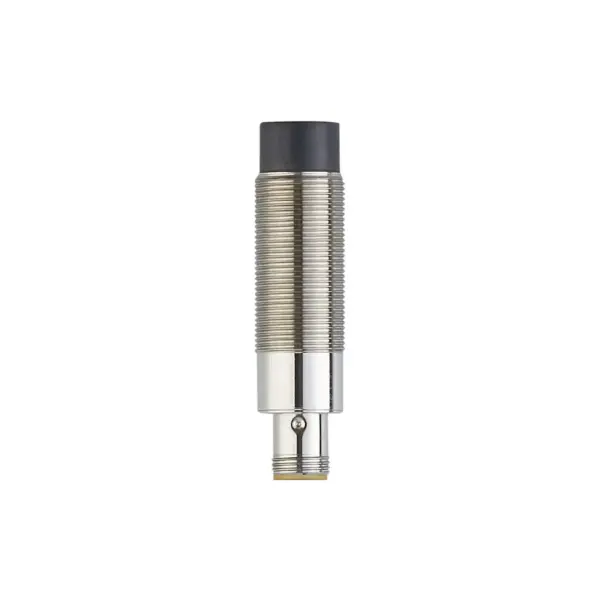

IFM DTC125
DTC125
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID HF compact unit for non-flush installation
All in one unit: antenna, evaluation and CANopen interface
High protection rating for the requirements of harsh industrial environments
RFID standard ISO14443A
Specification
Application
| Radio approval for | China; EU/RED; USA; Canada; United Kingdom |
|---|
Electrical data
| Operating voltage[V] [V] | 9...32 DC |
|---|---|
| Current consumption[mA] [mA] | ≤ 50 (24 V) / ≤ 80 (12 V) |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 13,56 |
| RFID standard | ISO 14443A |
Detection zone
| Distance to the ID tag[mm] [mm] | ≤ 20 |
|---|
Interfaces
| Communication interface | CAN |
|---|---|
| Protocol | CANopen |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | EN 301489-3 V 2.1.1 |
|---|---|
| EN 301489-3 | V 2.1.1 |
| Shock resistance | EN 60068-2-27 40 g 6 ms / repetitive EN 60068-2-27 50 g 11 ms / not repetitive |
| EN 60068-2-27 | 50 g 11 ms / not repetitive |
| Vibration resistance | EN 60068-2-6 20 g 10...2000 Hz |
| EN 60068-2-6 | 20 g 10...2000 Hz |
| Radio approval | EN 300 330 V2.1.1 |
| MTTF[years] [years] | 430 |
| UL approval | Ta -20…80 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E205959 |
| Ta | -20…80 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 106.2 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 70 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel; Protective cover: PPS; LED window: PEI |
Displays / operating elements
| Display | Preoperational Mode 1 x LED, green lights Operational Mode 1 x LED, green flashing tag communication 1 x LED, yellow lights errors 1 x LED, red flashing |
|---|---|
| Preoperational Mode | 1 x LED, green lights |
| Operational Mode | 1 x LED, green flashing |
| tag communication | 1 x LED, yellow lights |
| errors | 1 x LED, red flashing |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection

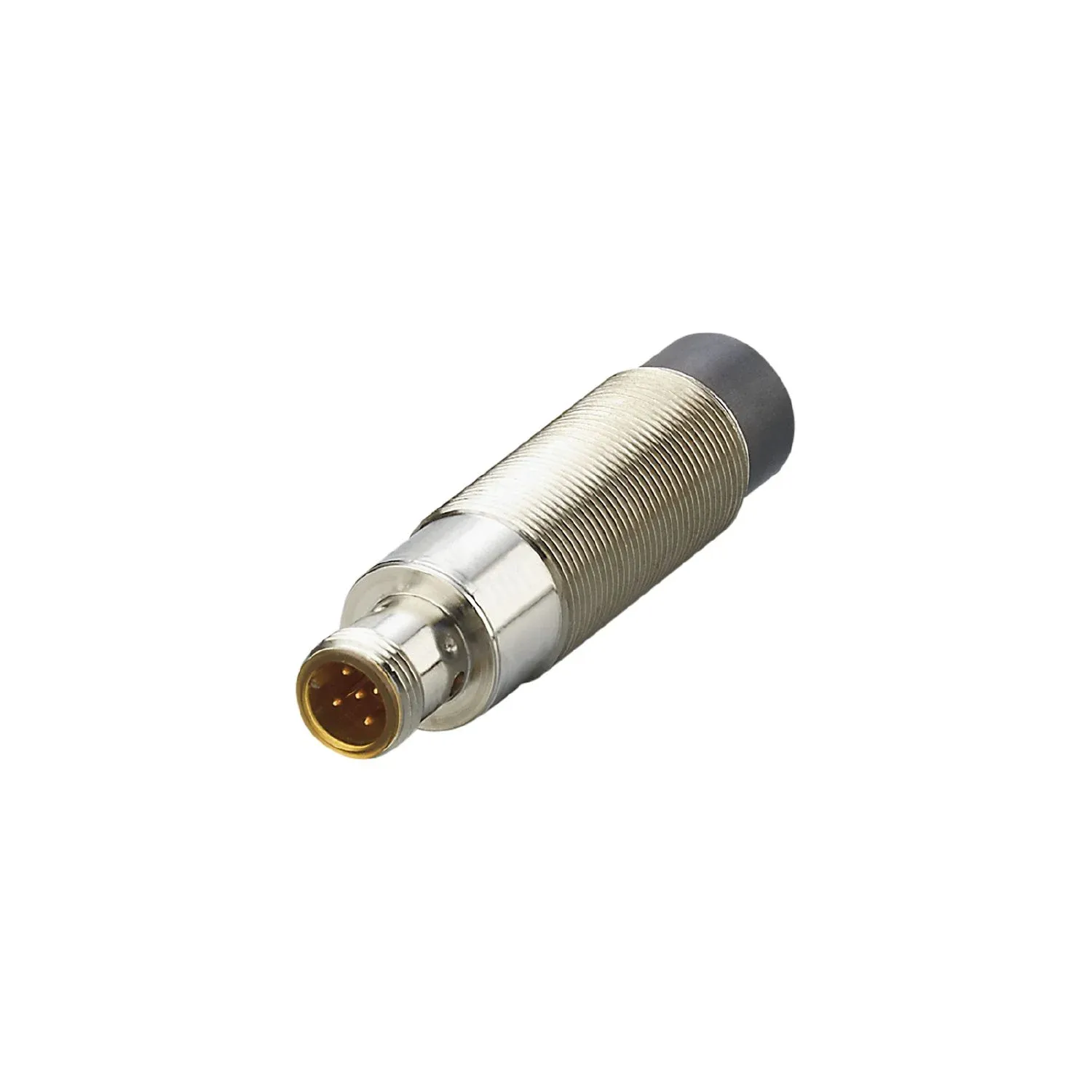

| Connector | 1 x M12, rotatable, locking; coding: A |
|---|
