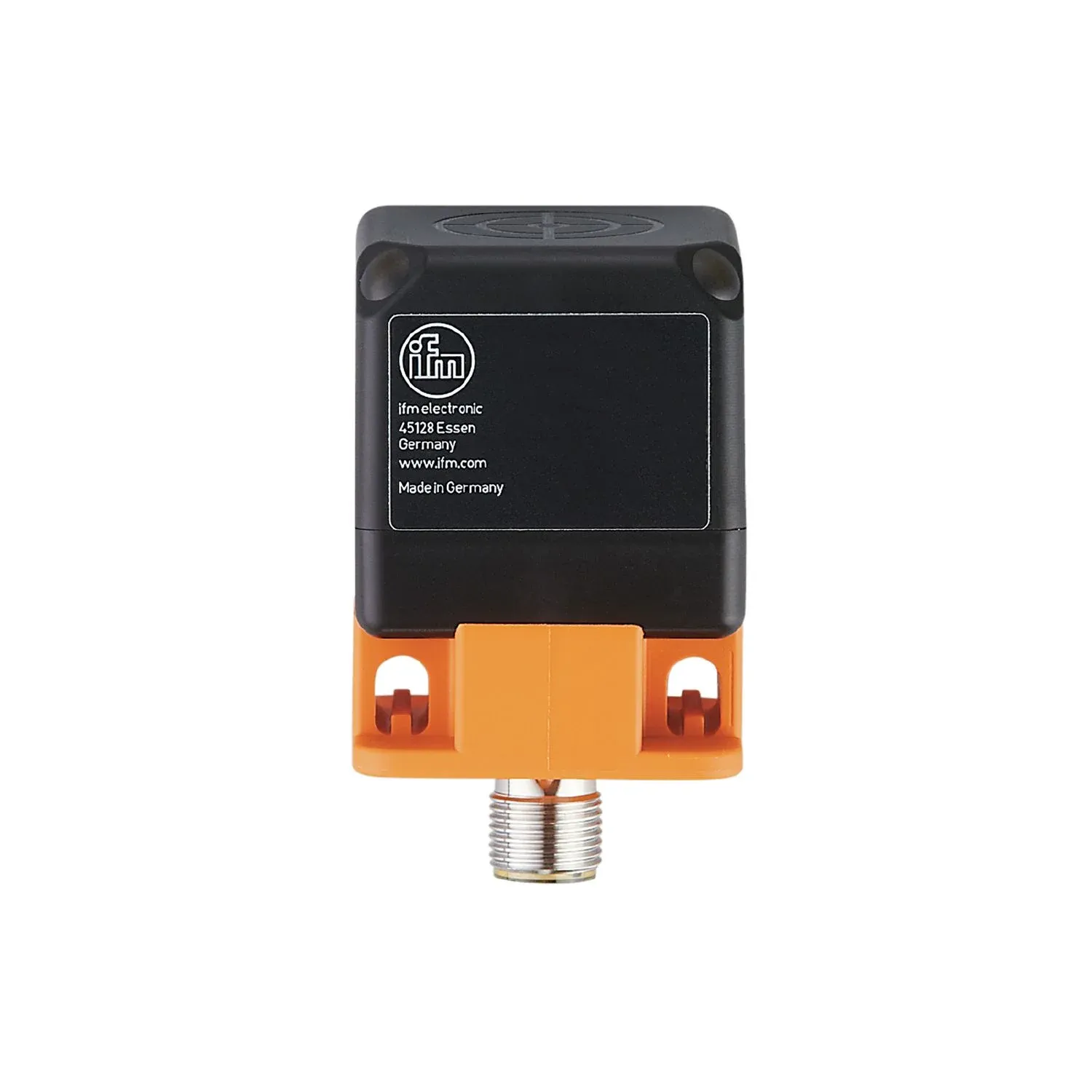

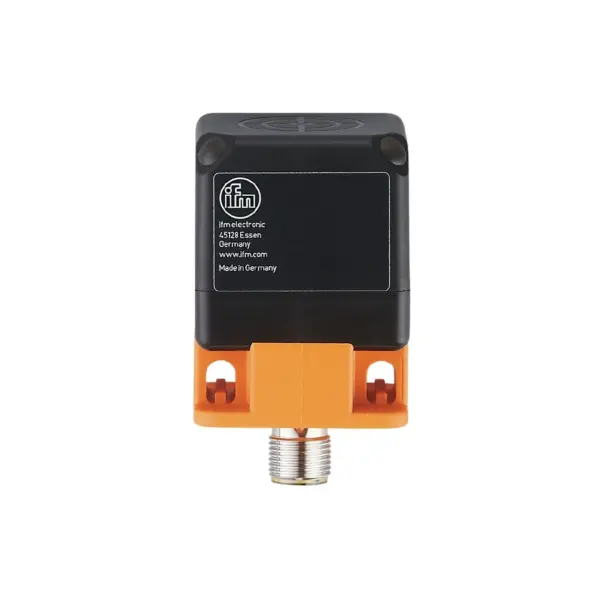

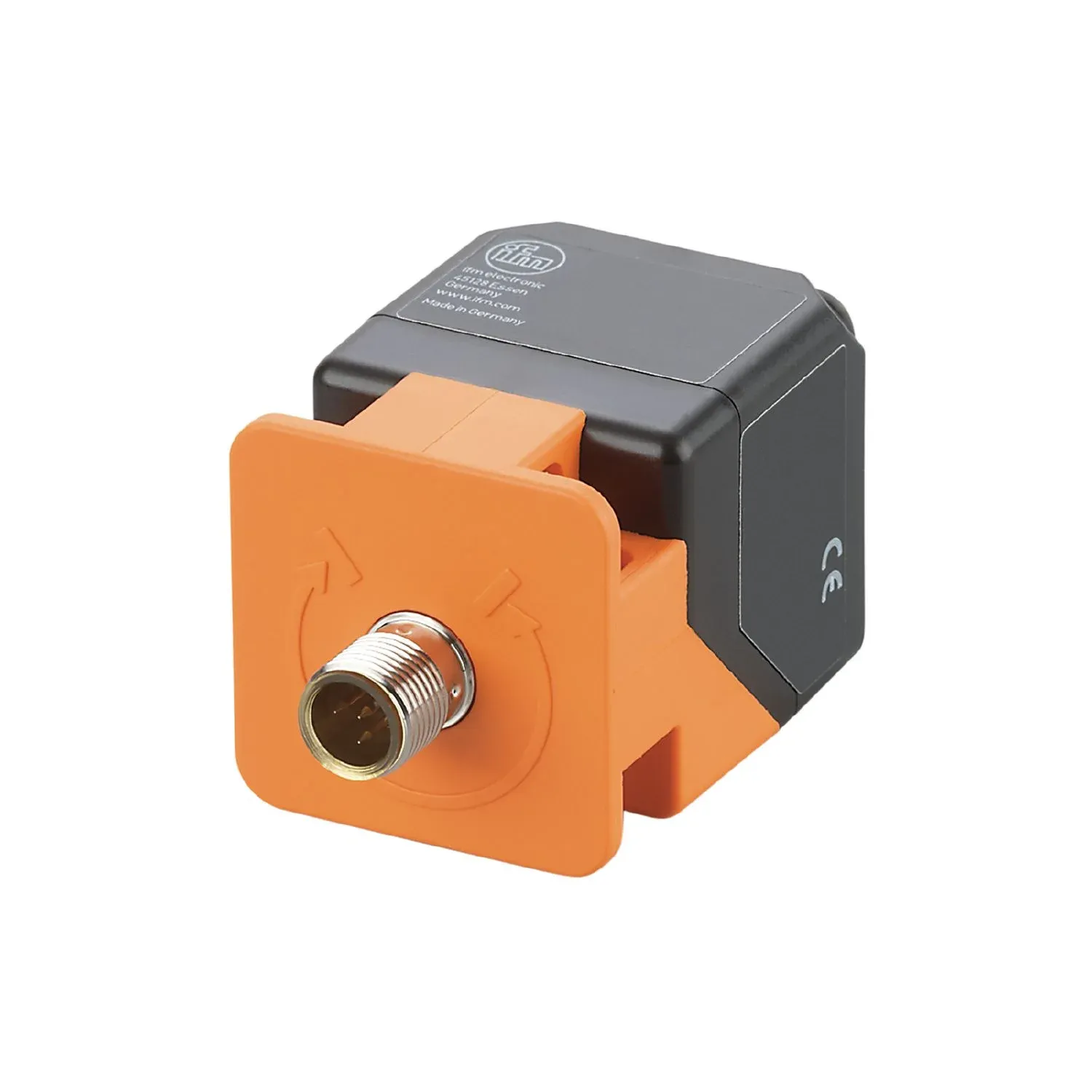

IFM DTA201
DTA201
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable identification of workpiece carriers in routing conveyors
Non-contact reading of RFID transponders (ID tags)
Compact and at a low cost: Antenna and evaluation in one housing
With AS-i interface
For use in production lines and in material flow control
Specification
Application
| Application | detection of objects on transport equipment |
|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Singapore; China |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Current consumption[mA] [mA] | < 75 |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 0,125 |
Outputs
| Electrical design | AS-i |
|---|
Detection zone
| Travel speed[m/s] [m/s] | < 0.5 |
|---|---|
| Distance read/read head front | 150 |
| Distance read/read head side | 150 |
| Note on distance read/read head | referred to : Read/write head DTA200 Read head DTA201 |
| referred to | : |
| Distance write/read head front[mm] [mm] | 300 |
| Distance write/read head side[mm] [mm] | 300 |
| Note on distance write/read head | referred to : Read/write head DTA200 Read head DTA201 |
| Distance to the ID tag[mm] [mm] | read : ≤ 55 static |
| read | : |
Interfaces
| Communication interface | AS-i |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | EN 50295 1999-03 |
|---|---|
| EN 50295 | 1999-03 |
| Shock resistance | EN 60068-2-29 40 g 6 ms EN 60068-2-27 50 g 11 ms |
| EN 60068-2-29 | 40 g 6 ms |
| EN 60068-2-27 | 50 g 11 ms |
| Vibration resistance | EN 60068-2-6 20 g 10...55 Hz |
| EN 60068-2-6 | 20 g 10...55 Hz |
| MTTF[years] [years] | 456 |
AS-i classification
| AS-i I/O configuration[hex] [hex] | 7 |
|---|---|
| AS-i ID code[hex] [hex] | 3 |
| AS-i certificate | 87202 |
Mechanical data
| Weight[g] [g] | 168.4 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Dimensions[mm] [mm] | 40 x 40 x 54 |
| Materials | PA |
Displays / operating elements
| Display | Operating voltage 1 x LED, green tag communication 1 x LED, yellow error AS-i data communication 1 x LED, red |
|---|---|
| Operating voltage | 1 x LED, green |
| tag communication | 1 x LED, yellow |
| error AS-i data communication | 1 x LED, red |
Remarks
| Remarks | For the distances to other ID tags see the respective data sheet (E803xx) |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12, rotatable, locking; coding: A |
|---|
