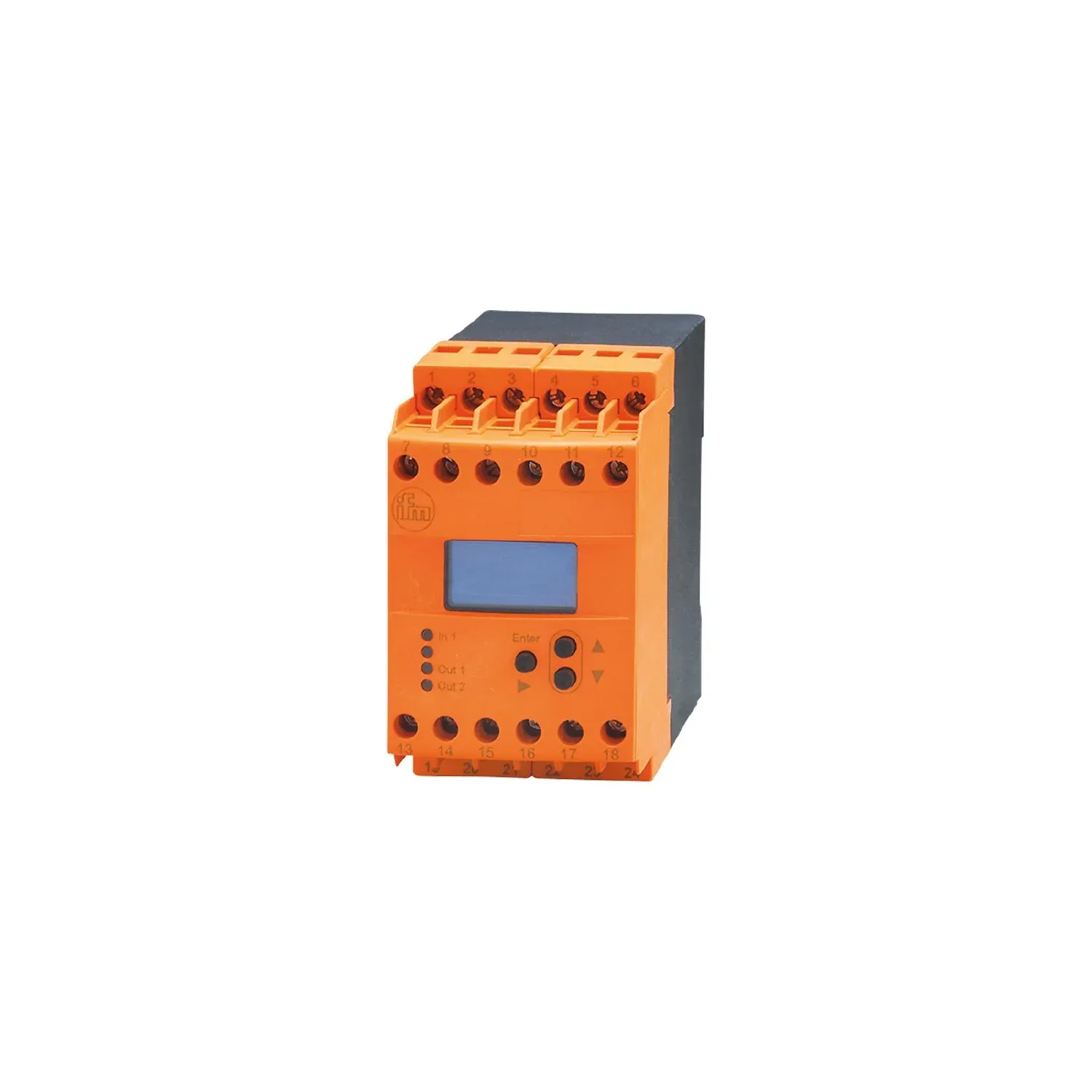

IFM DS2505
DS2505
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of slip, synchronism and pulse difference
Two switch points for slip/synchronous monitoring
Various configurable monitoring functions
Clearly readable, luminous OLED display for programming and actual value indication
Specification
Product characteristics
| Housing | rectangular |
|---|---|
| Dimensions[mm] [mm] | 78 x 45 x 124.7 |
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | pulse evaluation system with microprocessor for slip and synchronous monitoring; evaluation of pulse differences |
Electrical data
| Nominal voltage AC[V] [V] | 110...240 |
|---|---|
| Nominal voltage DC[V] [V] | 27 |
| Nominal voltage tolerance[%] [%] | < 10 |
| Nominal voltage tolerance 2[%] [%] | 20...10 |
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Power consumption[W] [W] | 3 |
| Auxiliary energy for sensors DC[V] [V] | 19.6...27.7; (SELV, ≤ 150 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of relay outputs: 2 |
|---|
Outputs
| Number of relay outputs | 2 |
|---|---|
| Contact rating | 6 A (250 V AC, 30 V DC); B300, R300; (ohmic resistance) |
Measuring/setting range
| Measuring range[Hz] [Hz] | 0.1...400 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 80; (40 °C: 50 %) |
| Protection | IP 50 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61010 2011 EMV 89/336/EWG EN 61000-6-2 2005 EN 61000-6-4 2007 |
|---|---|
| EN 61010 | 2011 |
| EN 61000-6-2 | 2005 |
| EN 61000-6-4 | 2007 |
Mechanical data
| Weight[g] [g] | 373.95 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 78 x 45 x 124.7 |
| Materials | housing: plastics |
Displays / operating elements
| Display | OLED display, 128 x 64 pixels luminous switching status LED, green |
|---|---|
| switching status | LED, green |
Remarks
| Remarks | the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| dual-chamber terminals | 2 x ...2.5 mm²; AWG 14 |
|---|
