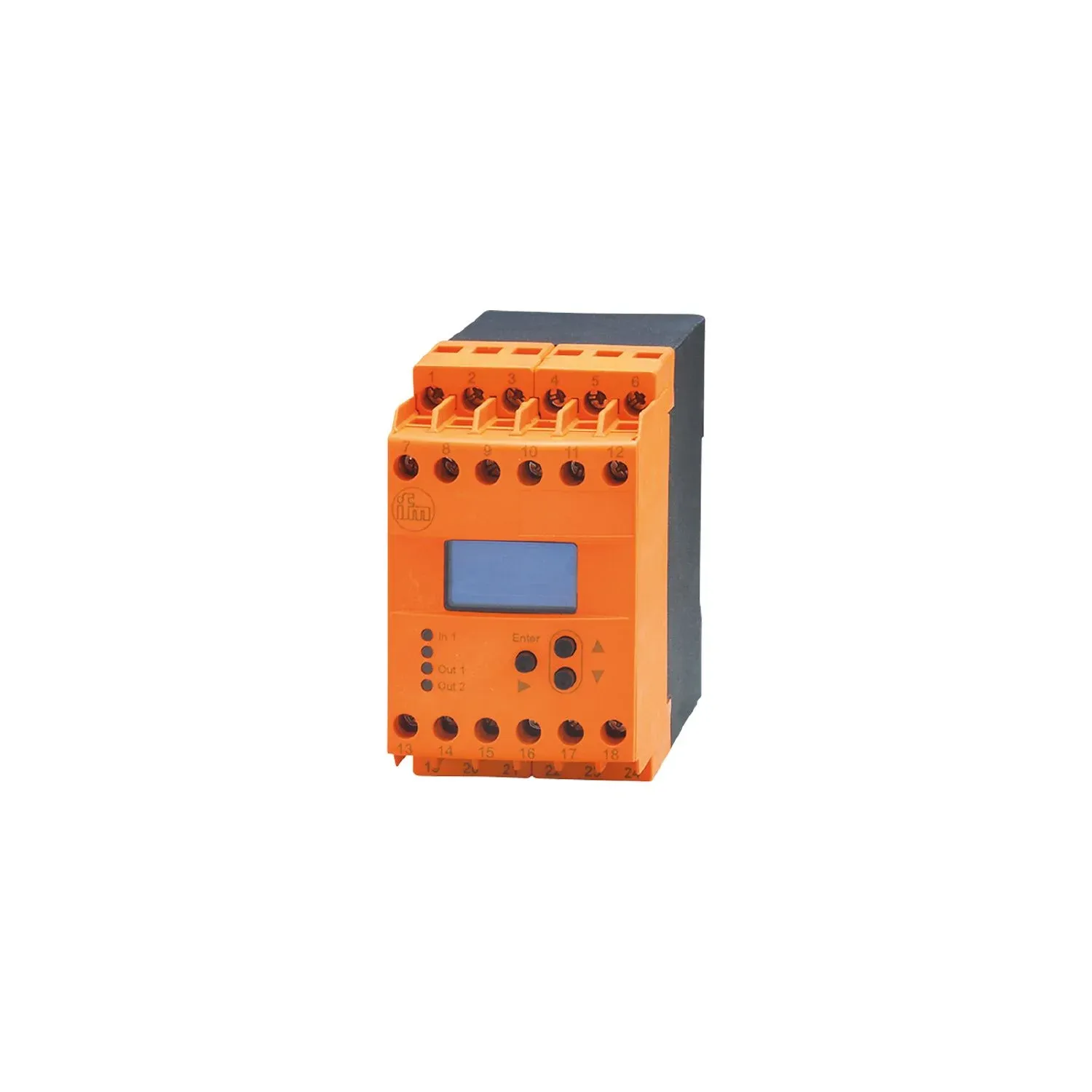

IFM DR2505
DR2505
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable monitoring of the rotational direction of drives
High input frequency of up to 60,000 pulses / minute
One switching output each for the separate indication of rotational directions “right” and “left”
Various configurable monitoring functions
Clearly readable, luminous OLED display for programming and actual value indication
Specification
Product characteristics
| Housing | rectangular |
|---|---|
| Dimensions[mm] [mm] | 78 x 45 x 124.7 |
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | pulse evaluation system with microprocessor for direction monitoring with separate direction indication for "right" and "left" |
Electrical data
| Nominal voltage AC[V] [V] | 110...240 |
|---|---|
| Nominal voltage DC[V] [V] | 27 |
| Nominal voltage tolerance[%] [%] | < 10 |
| Nominal voltage tolerance 2[%] [%] | 20...10 |
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Power consumption[W] [W] | 3 |
| Auxiliary energy for sensors DC[V] [V] | 19.6...27.7; (SELV, ≤ 150 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of relay outputs: 2 |
|---|
Outputs
| Number of relay outputs | 2 |
|---|---|
| Contact rating | 6 A (250 V AC, 30 V DC); B300, R300; (ohmic resistance) |
Operating conditions
| Ambient temperature[°C] [°C] | -40...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 80; (40 °C: 50 %) |
| Protection | IP 50 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61010 2011 EMV 89/336/EWG EN 61000-6-2 2005 EN 61000-6-4 2007 |
|---|---|
| EN 61010 | 2011 |
| EN 61000-6-2 | 2005 |
| EN 61000-6-4 | 2007 |
Mechanical data
| Weight[g] [g] | 379.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 78 x 45 x 124.7 |
| Materials | housing: plastics |
Displays / operating elements
| Display | OLED display, 128 x 64 pixels luminous switching status LED, green |
|---|---|
| switching status | LED, green |
Remarks
| Remarks | the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| dual-chamber terminals | 2 x ...2.5 mm²; AWG 14 |
|---|
