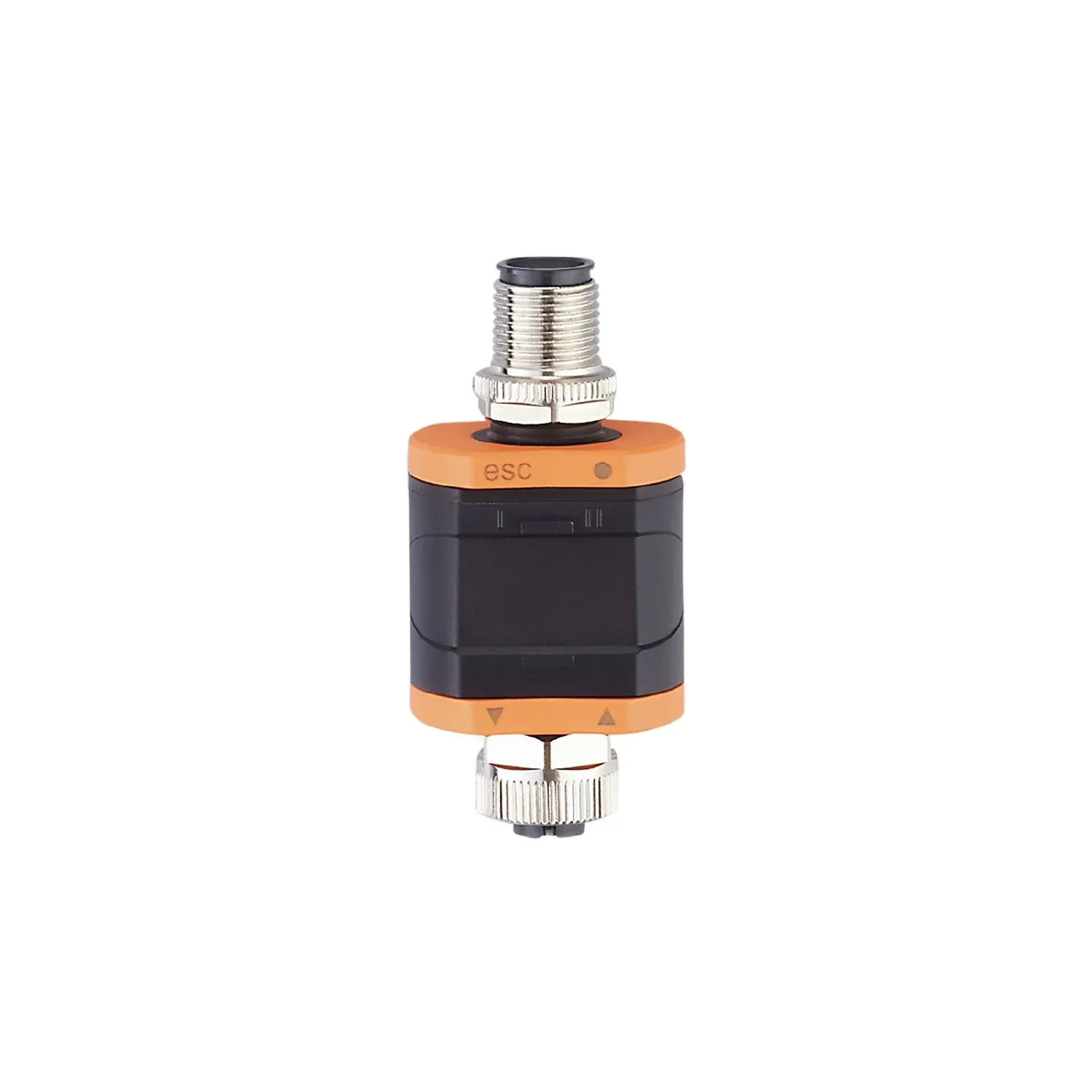

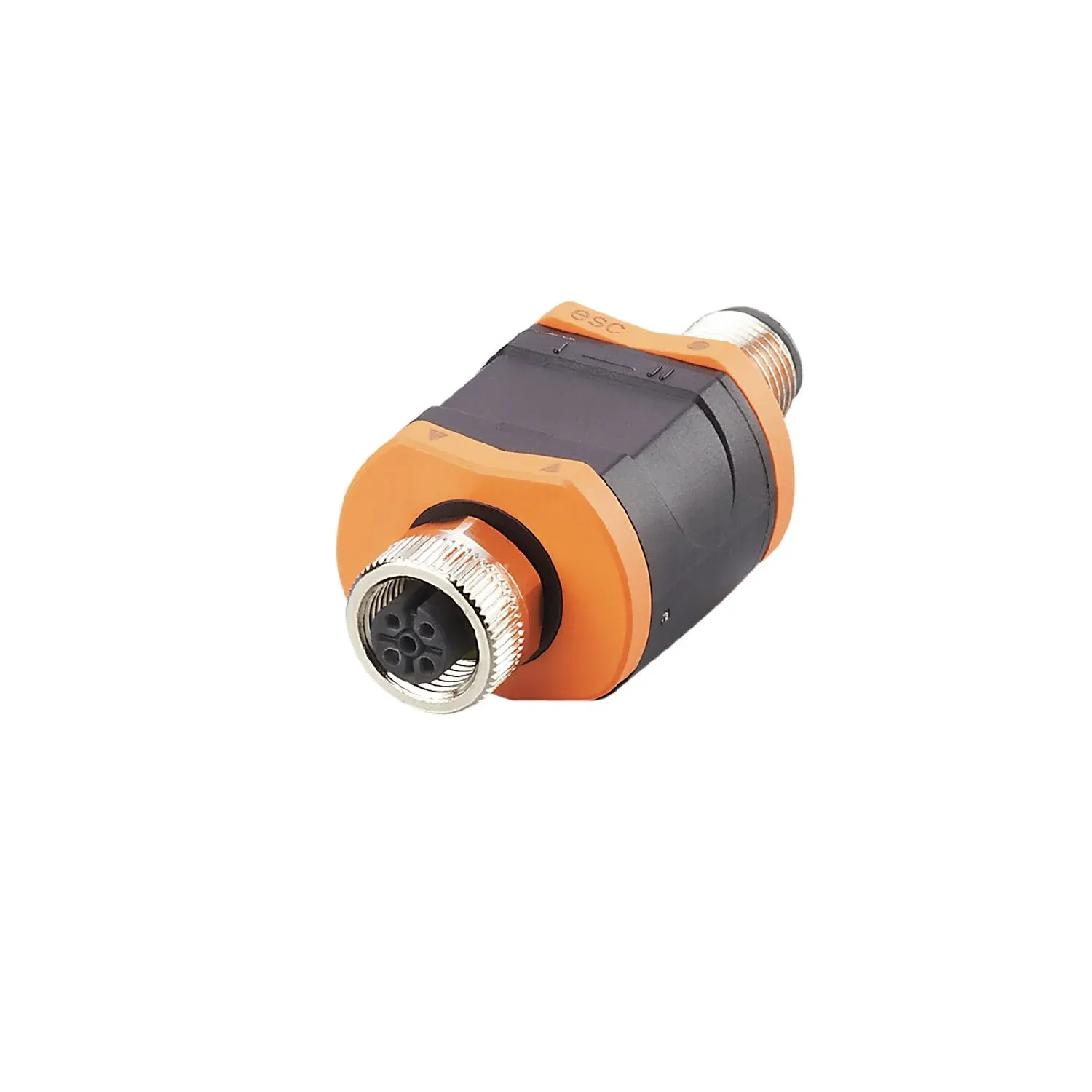

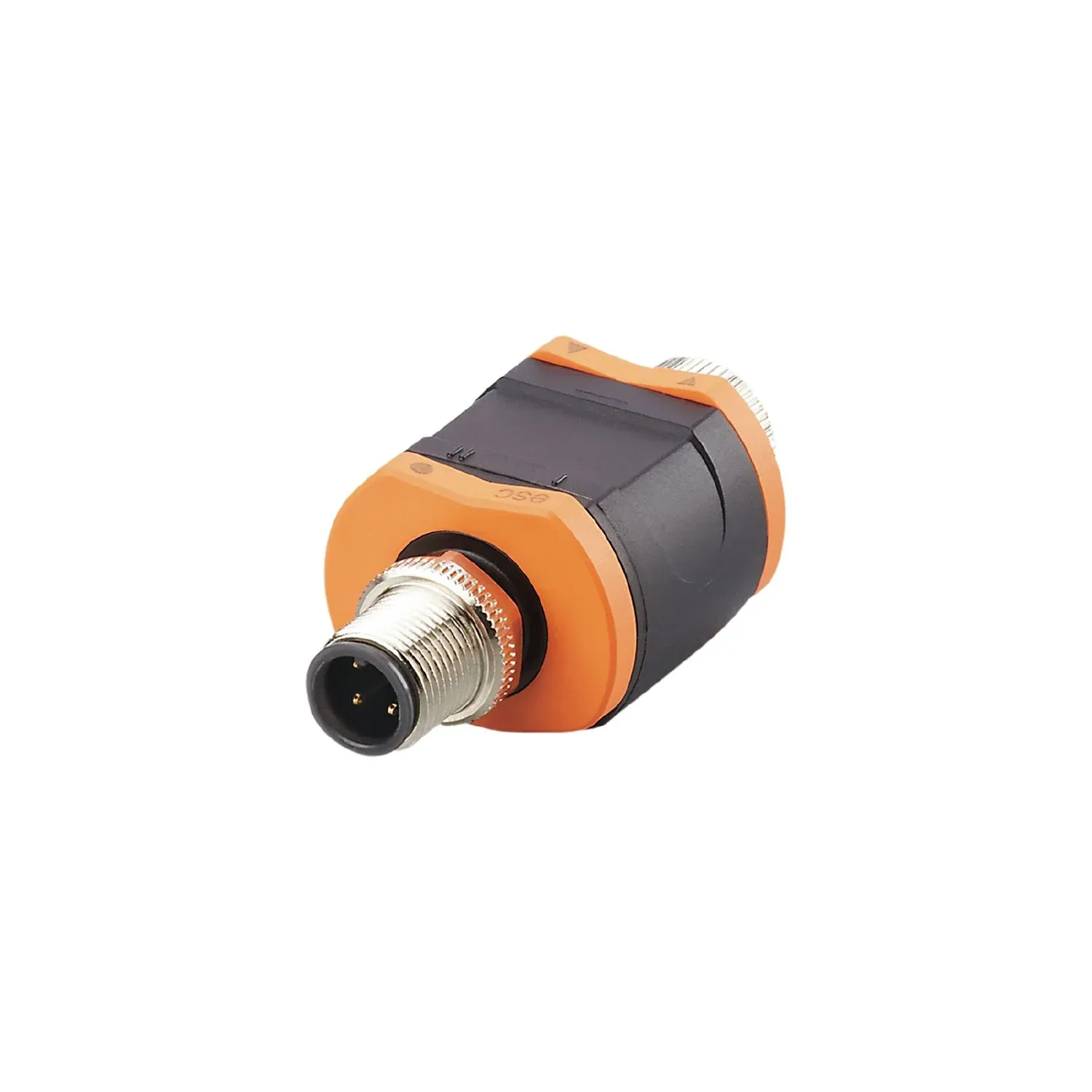

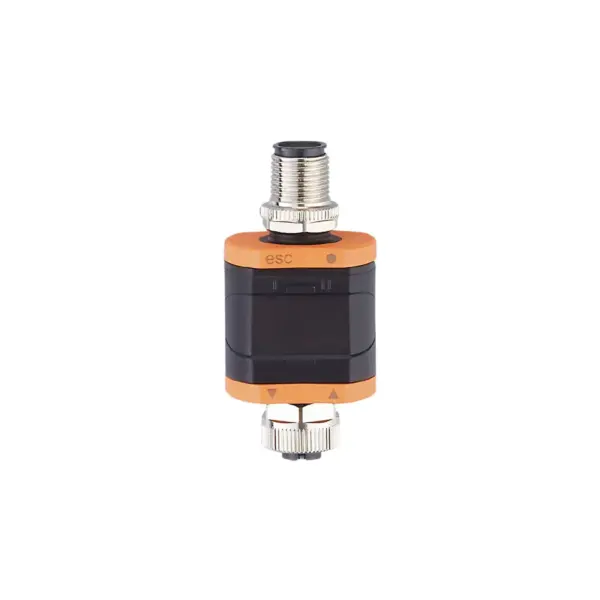

IFM DP2402
DP2402
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy parameter setting via rotary switch
Easy parameter setting via IO-Link
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Communication interface | IO-Link |
| Housing | rectangular |
| Dimensions[mm] [mm] | 63 x 30 x 24 |
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | < 380 |
| Max. current load total[A] [A] | 0.2 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2; (IEC61131-2) |
|---|---|
| Input current limitation[mA] [mA] | 200 |
Outputs
| Electrical design | PNP |
|---|---|
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Short-circuit proof | yes |
Measuring/setting range
| Sampling rate[Hz] [Hz] | < 2000 |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Usage type | parameter setting |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| SIO mode | yes |
| Required master port type | A |
| Process data binary | 2 |
| Min. process cycle time[ms] [ms] | 2 |
| Supported DeviceIDs | default 1168 |
| default | 1168 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Note on ambient temperature | 2000 m: -25...60 °C 3000 m: -25...53 °C 4000 m: -25...51 °C Bei folgender Betriebshöhe ist das Derating der Umgebungstemperatur in der Betriebsanleitung zu beachten: > 2000 m |
| Storage temperature[°C] [°C] | -25...60 |
| Max. relative air humidity[%] [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 67 |
| Pollution degree | 2 |
Tests / approvals
| MTTF[years] [years] | 317 |
|---|---|
| UL approval | Ta max. 55 °C File number UL E205959 |
| Ta | max. 55 °C |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 84.2 |
|---|---|
| Weight (without accessories and packaging)[g] [g] | 35 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 63 x 30 x 24 |
| Materials | housing: PA |
Displays / operating elements
| Display | operation 1 x LED, green switching output 2 x LED, yellow 7-segment LED display, red |
|---|---|
| operation | 1 x LED, green |
| switching output | 2 x LED, yellow |
| Operating elements | 2 push ring |
| 2 | push ring |
Accessories
| Accessories (optional) | mounting clip |
|---|
Remarks
| Remarks | For further information please see the operating instructions. the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
