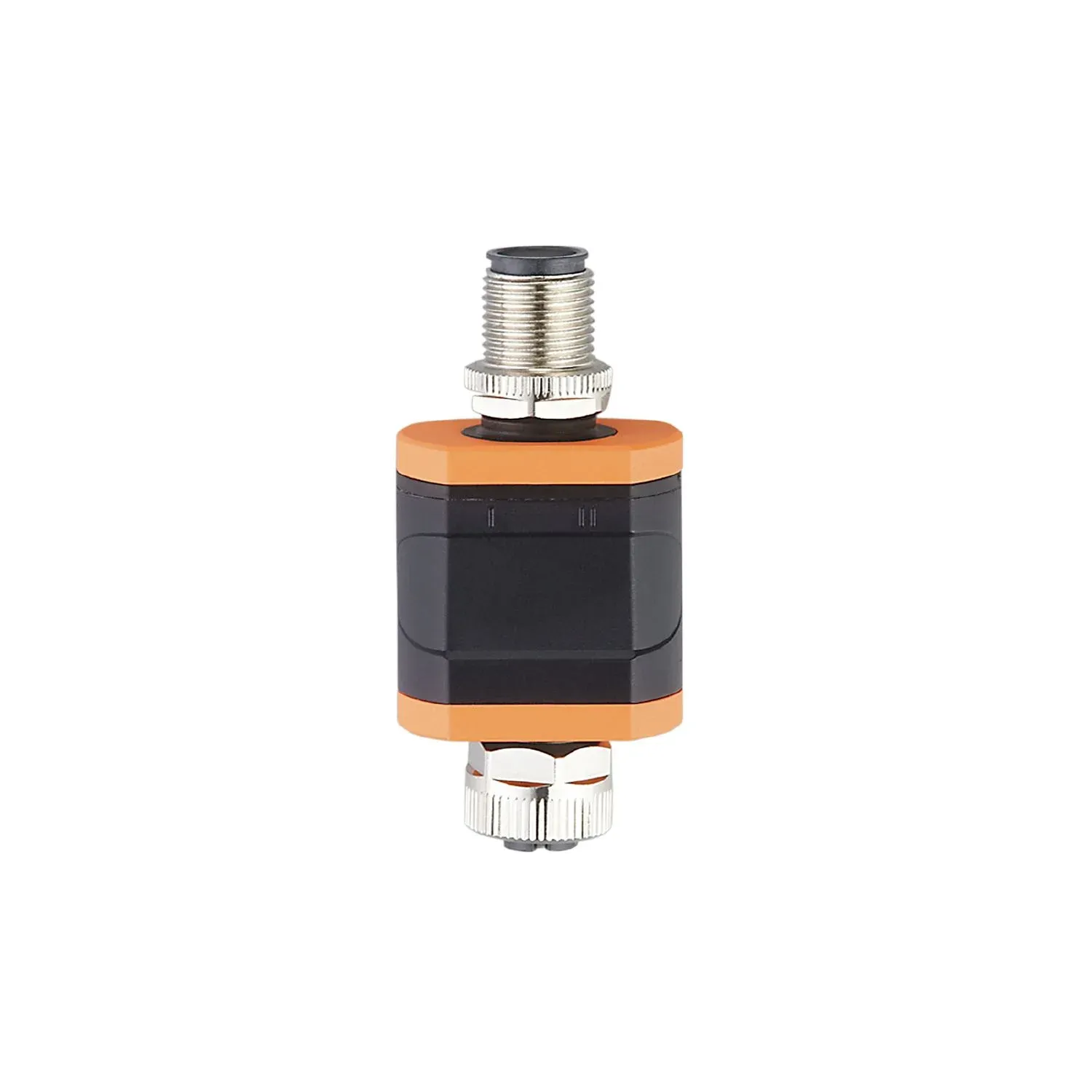

IFM DP1613
DP1613
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ideal for field applications thanks to protection class IP 67
Reliable M12 connection technology
2-channel version
Wear and bounce-free semiconductor relays
Electrical separation between input and output
Specification
Product characteristics
| Output function | normally closed |
|---|---|
| Dimensions[mm] [mm] | 63 x 30 x 24 |
Electrical data
| Operating voltage[V] [V] | 18...30 DC; ((in wet environments: 18...28 V) ; to SELV/PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | < 10 |
| Max. current load total[A] [A] | 2 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of relay outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2; (type 3 (IEC 61131-2)) |
|---|---|
| Input circuit of digital inputs | PNP |
Outputs
| Voltage range DC[V] [V] | 0...32; (to SELV/PELV) |
|---|---|
| Voltage range AC[V] [V] | 0...20; ((in wet environments: 0...16 V); to SELV/PELV) |
| Output function | normally closed |
| Max. current load per output[mA] [mA] | 1000 |
| Number of relay outputs | 2 |
| Switching frequency AC[Hz] [Hz] | 1 |
| Switching frequency DC[Hz] [Hz] | 1 |
| Notes on switching frequency[Hz] [Hz] | no capacitive loads |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Note on ambient temperature | 2000 m: -25...60 °C 3000 m: -25...55 °C 4000 m: -25...52 °C |
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 67 |
| Pollution degree | 2; (before installation and when the device is replaced) |
Tests / approvals
| MTTF[years] [years] | 942 |
|---|---|
| UL approval | Ta max. 55 °C File number UL E205959 |
| Ta | max. 55 °C |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 82.8 |
|---|---|
| Weight (without accessories and packaging)[g] [g] | 35 |
| Dimensions[mm] [mm] | 63 x 30 x 24 |
| Materials | housing: PA |
Accessories
| Accessories (optional) | mounting clip |
|---|
Remarks
| Remarks | For further information please see the operating instructions. the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |

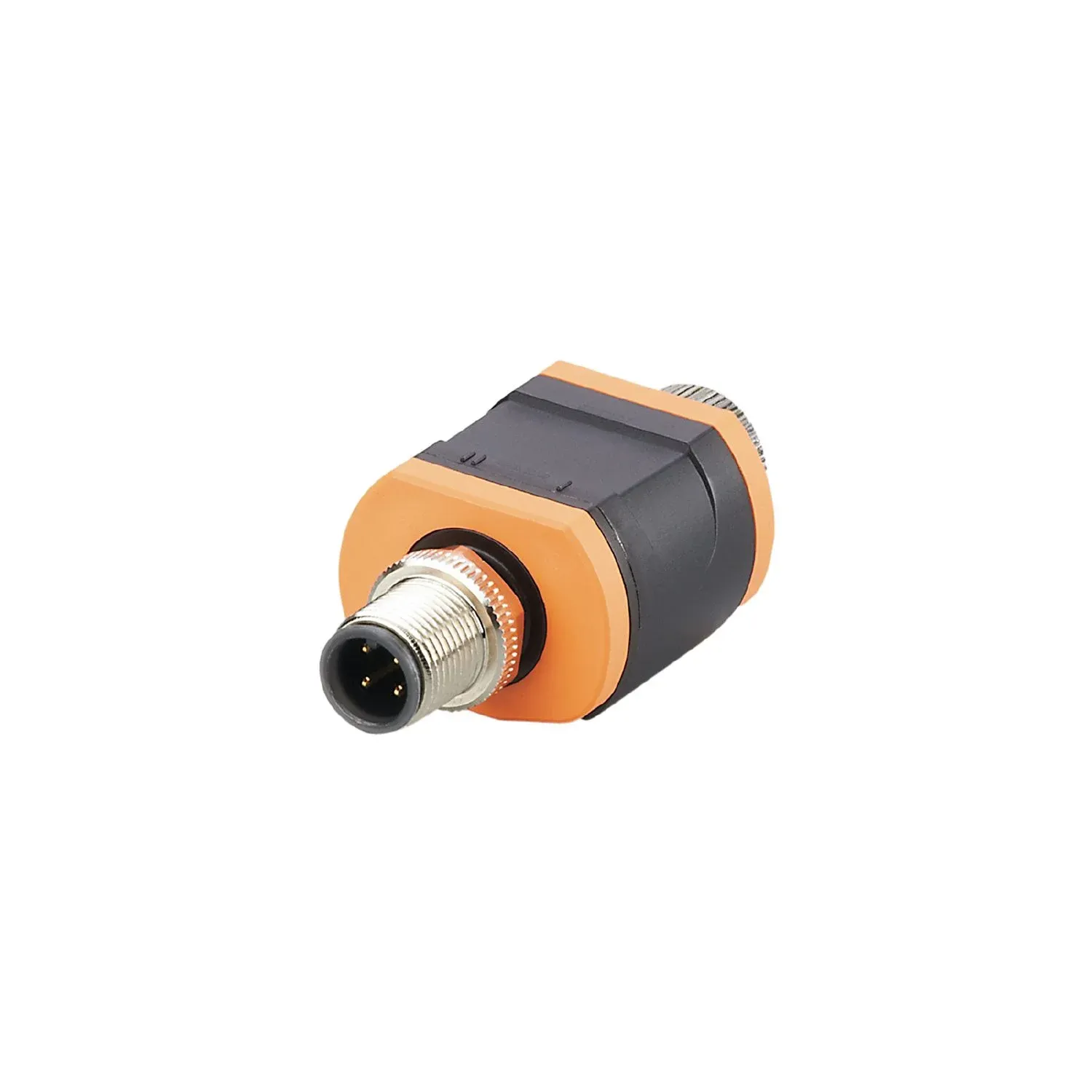

Electrical connection - plug
| Connector | 1 x M12, straight; coding: A |
|---|

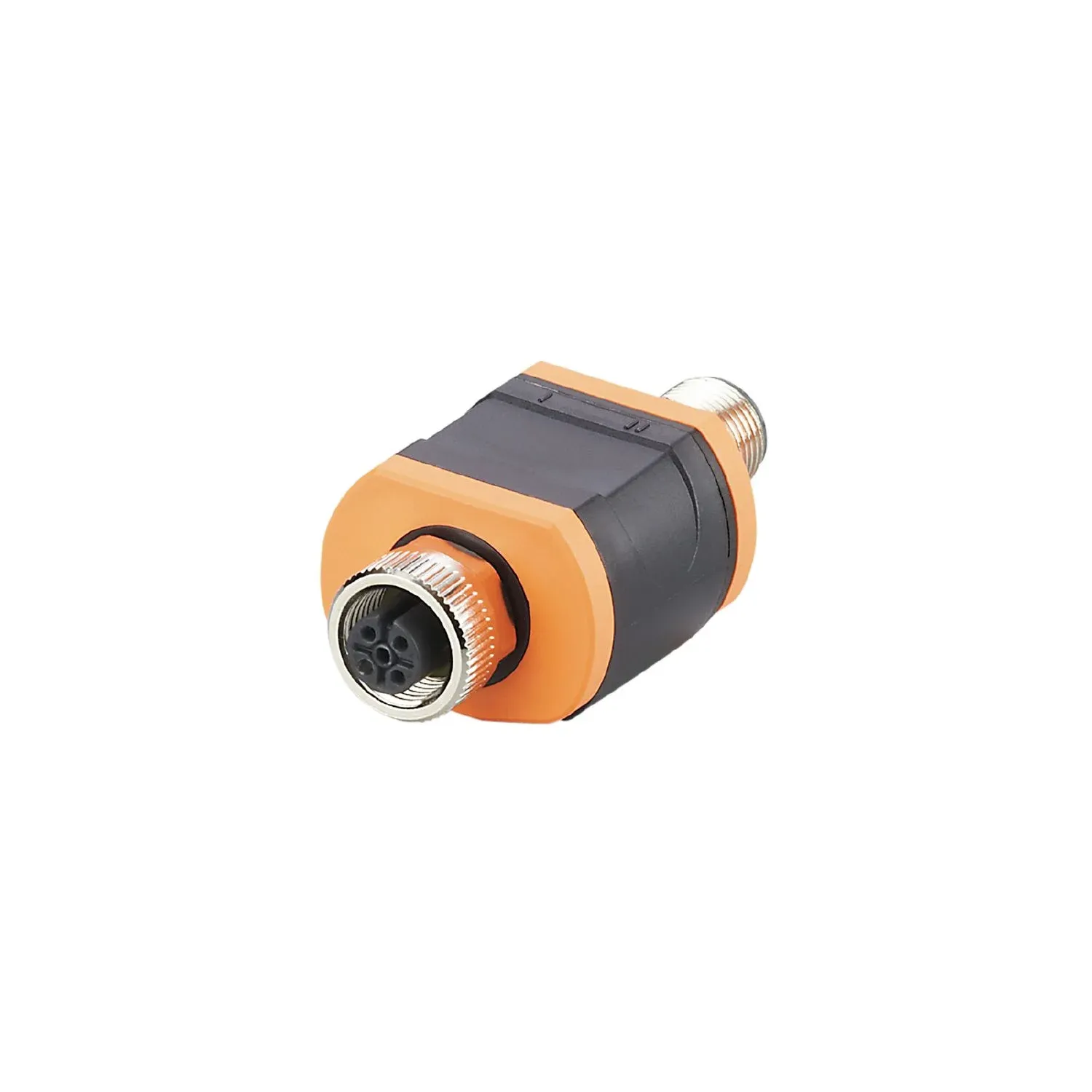

Electrical connection - socket
| Connector | 1 x M12, straight; coding: A |
|---|
