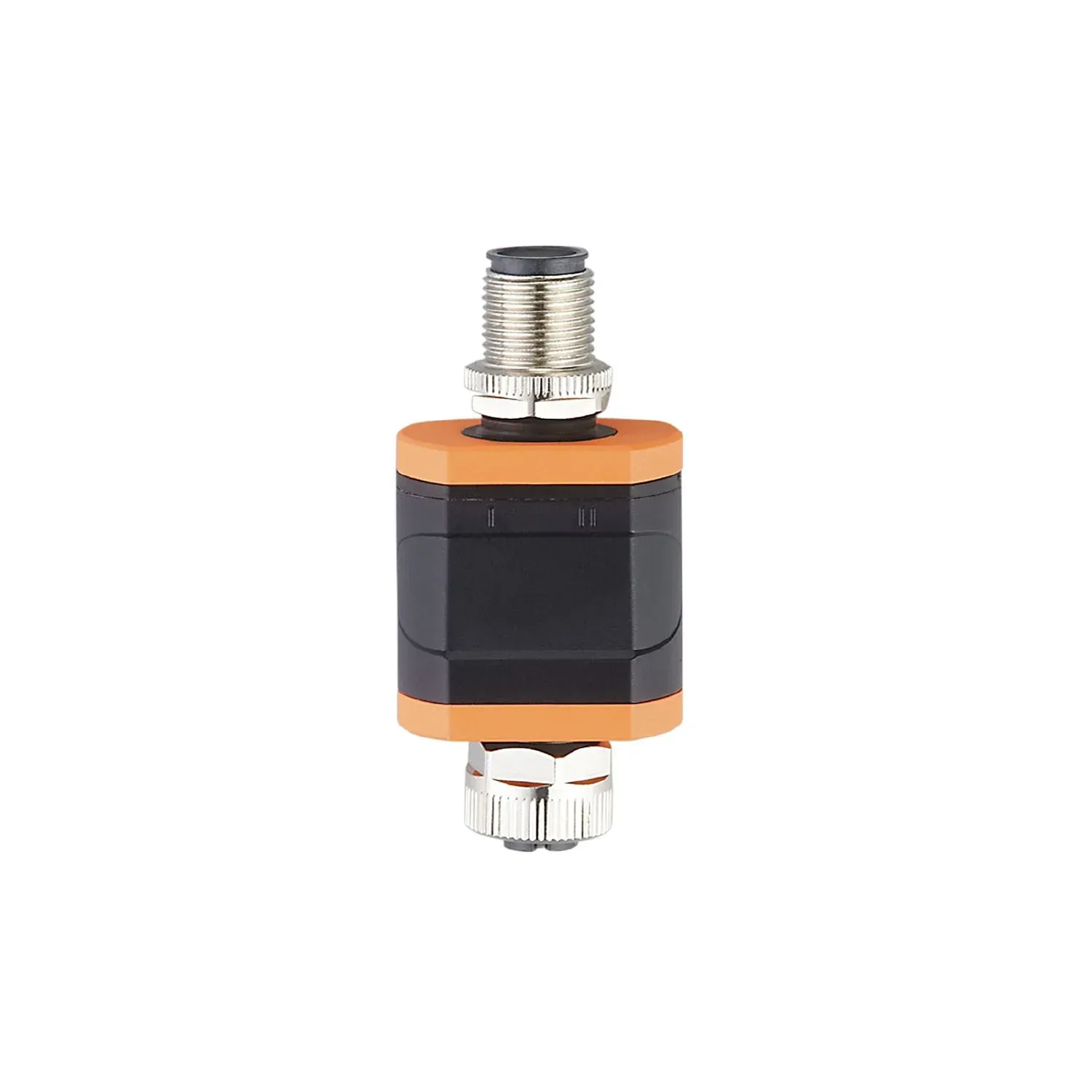

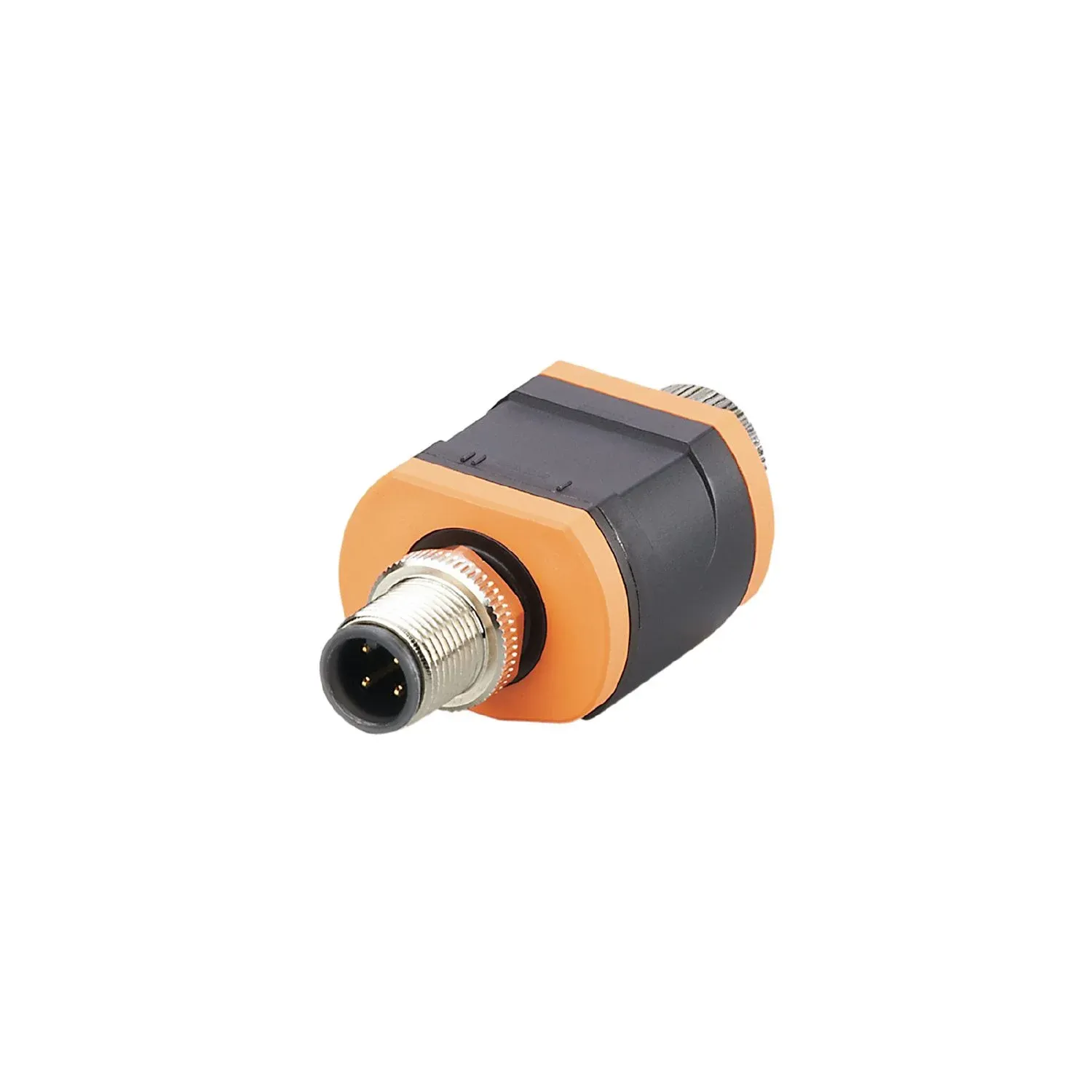

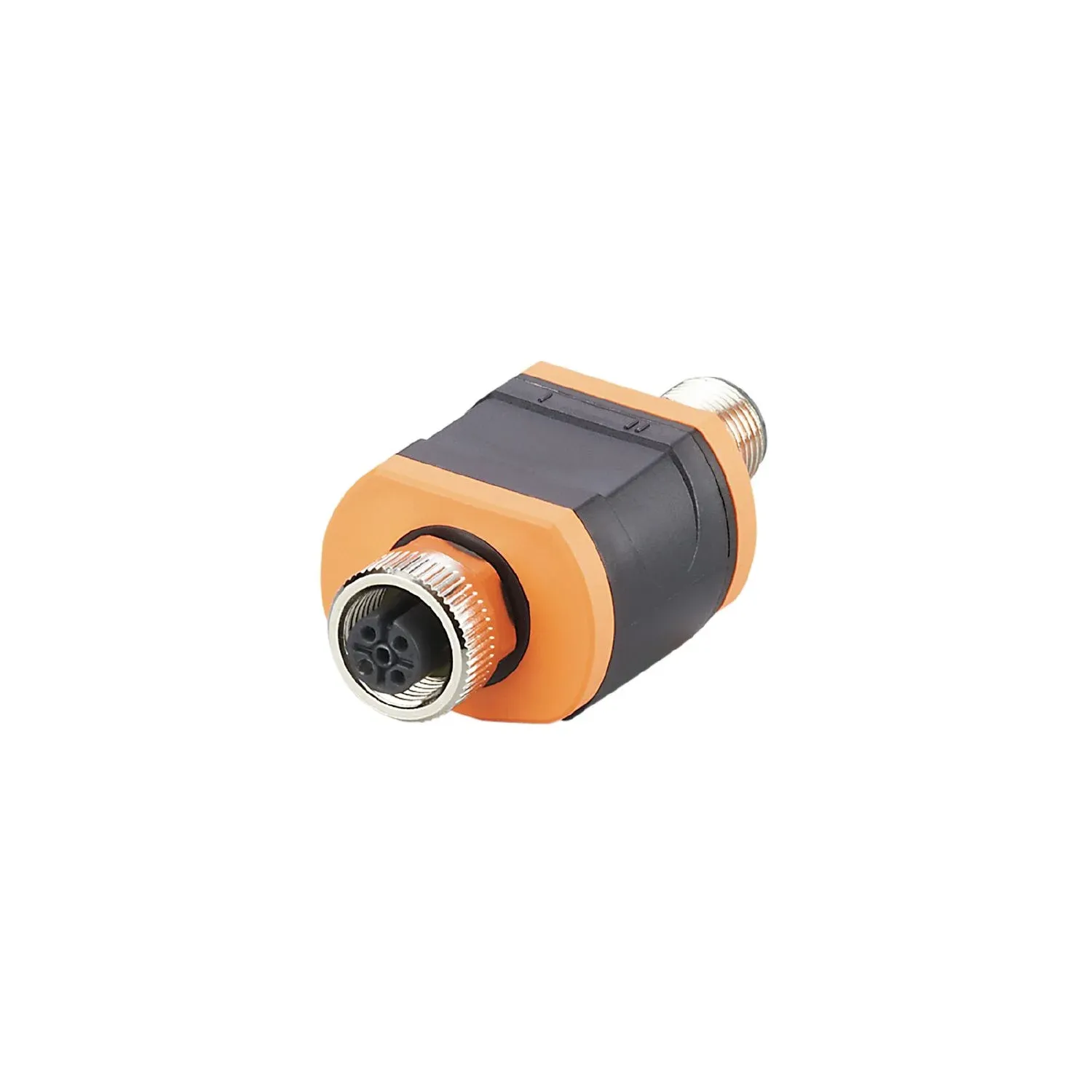

IFM DP1213
DP1213
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Signal conversion of IO-Link into analogue signals
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|---|
| Communication interface | IO-Link |
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | 300 |
| Max. current load total[A] [A] | 0.2 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Number of analogue outputs | 2 |
|---|---|
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 300 |
| Precision analogue output[%] [%] | 0,25 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| SIO mode | no |
| Required master port type | A/B |
| Process data analogue | 2 |
| Min. process cycle time[ms] [ms] | 3.6 |
| Supported DeviceIDs | default 612 |
| default | 612 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Note on ambient temperature | 2000 m: -25...70 °C 3000 m: -25...64 °C 4000 m: -25...62 °C |
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 67 |
| Pollution degree | 2 |
Tests / approvals
| MTTF[years] [years] | 352 |
|---|---|
| UL approval | Ta max. 50 °C File number UL E205959 |
| Ta | max. 50 °C |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 91.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 63 x 30 x 24 |
| Materials | housing: PA |
Displays / operating elements
| Display | operation 1 x LED, green analogue output 2 x LED, yellow |
|---|---|
| operation | 1 x LED, green |
| analogue output | 2 x LED, yellow |
Accessories
| Accessories (optional) | mounting clip |
|---|
Remarks
| Remarks | For further information please see the operating instructions. the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
