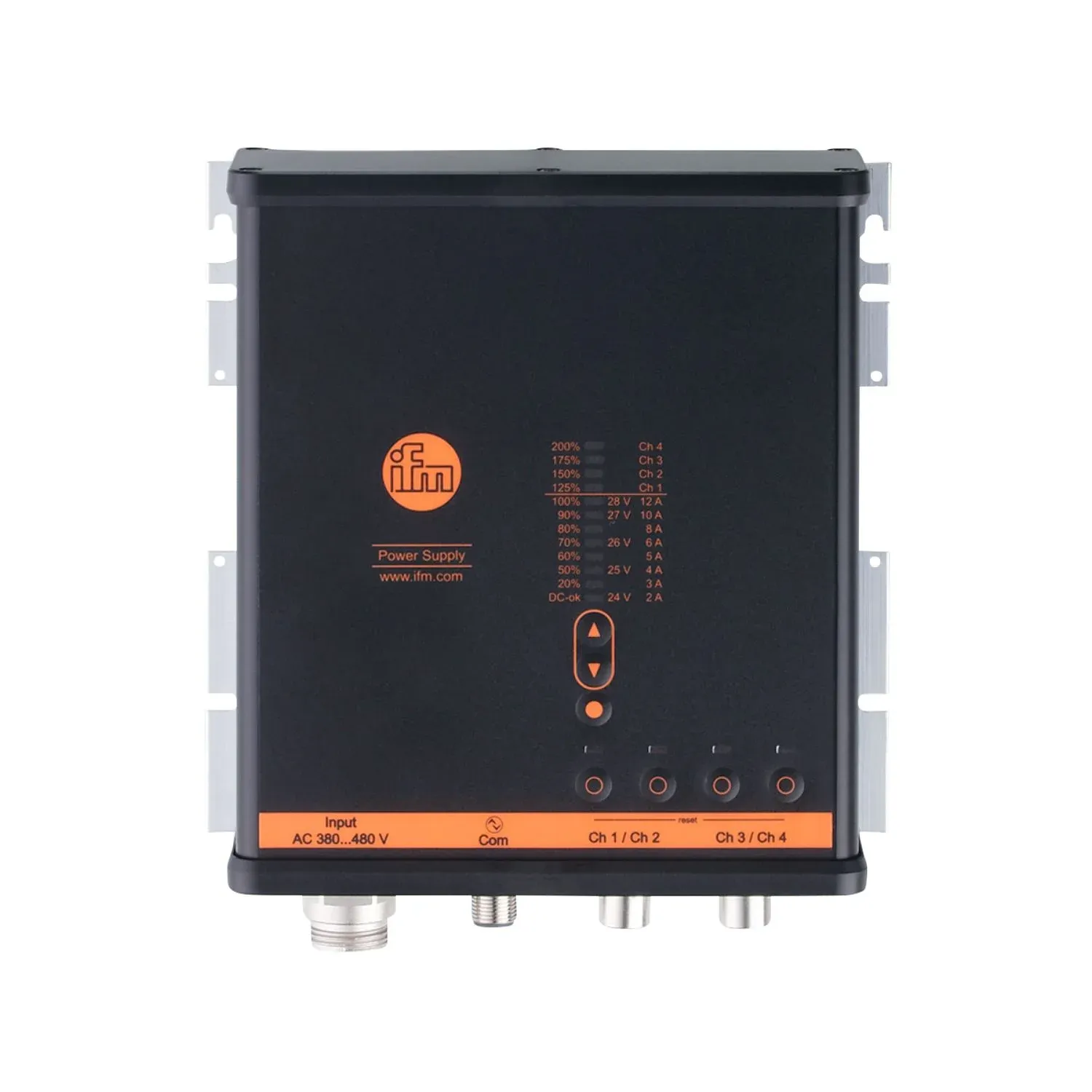

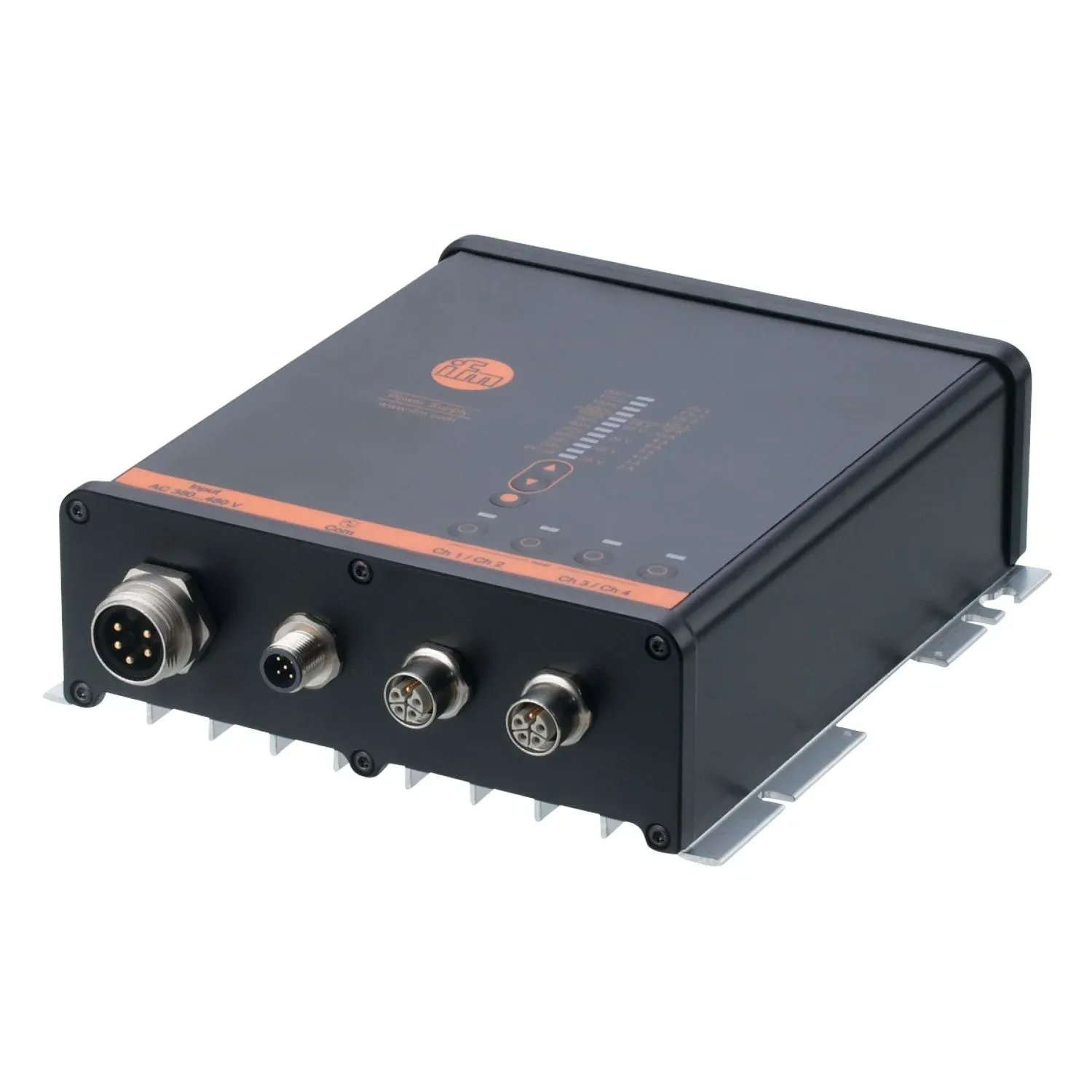

IFM DN4237
DN4237
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Protection of the wiring via configurable electronic circuit breakers
Installation without control cabinet
Additional diagnostics by measuring current, voltage and mains quality as well as counting operating hours
Energy-efficient generation of extra-low voltage without power loss
Output voltage, load currents, output circuit states and trigger cause are communicated via IO-Link
Switching the output circuits on and off as well as resetting the circuit breakers is possible via IO-Link
Specification
Electrical data
| Nominal voltage AC[V] [V] | 400 / 480 |
|---|---|
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Input voltage range AC[V] [V] | 323...552 |
| Output voltage DC[V] [V] | 24...28 |
| Protection class | I |
| Max. power-on delay time[ms] [ms] | 2000 |
| Output voltage tolerance[%] [%] | 0.2 |
| Max. output current at min. output voltage[A] [A] | 20.8 |
| Max. output current at max. output voltage[A] [A] | 17.8 |
| Output power (permanent)[W] [W] | 500 |
| Output power (peak)[W] [W] | 1000 |
| Power factor (nominal voltage 400 V AC / 50 Hz) | 0.94 |
| Power factor (nominal voltage 480 V AC / 50 Hz) | 0.95 |
| Number of output circuits | 4 |
| Switch-on peak current (nominal voltage 400 V AC / 60 Hz)[A] [A] | 2.1 |
| Switch-on peak current (nominal voltage 480 V AC / 50 Hz)[A] [A] | 2 |
| Efficiency (nominal voltage 400 V AC / 60 Hz)[%] [%] | 94.2 |
| Efficiency (nominal voltage 480 V AC / 50 Hz)[%] [%] | 94 |
| Mains buffering time (nominal voltage 400 V AC / 60 Hz)[ms] [ms] | 24 |
| Mains buffering time (nominal voltage 480 V AC / 50 Hz)[ms] [ms] | 24 |
| Input current (nominal voltage 400 V AC / 60 Hz)[A] [A] | 1.1 |
| Input current (nominal voltage 480 V AC / 50 Hz)[A] [A] | 0.9 |
Outputs
| Load capacitance, total[mF] [mF] | 12.5 |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 2 |
| Supported DeviceIDs | default 1270 |
| default | 1270 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (relative humidity) |
| Max. height above sea level[m] [m] | 5000 |
| Protection | IP 65; IP 67 |
| Pollution degree | 3 |
Tests / approvals
| EMC | EN 61000-4-2 CD 8 kV / failure criterion A EN 61000-4-2 AD 15 kV / failure criterion A EN 61000-4-3 80 Mhz...2.7 GHz / 20 V/m failure criterion A EN 61000-4-3 2.7 GHz...6 GHz kV / 10 V/m failure criterion A EN 61000-4-8 50 / 60 Hz / 30 A/m failure criterion A EN 61000-4-4 Burst 4 kV / failure criterion A EN 61000-4-5 Surge 2 kV Lx / Ly / failure criterion A EN 61000-4-5 Surge 4 kV L / PE / failure criterion A EN 61000-4-5 Surge 1 kV + / - / failure criterion A EN 61000-4-5 Surge 1 kV + - / PE / failure criterion A EN 61000-4-5 Surge 1 kV + - / PE / failure criterion A EN 61000-4-5 Surge 1 kV DC-OK / PE / failure criterion A EN 61000-4-6 0.15...80 MHz / 20 V failure criterion A EN 61000-4-11 0 V up to 1 cycle / failure criterion A EN 61000-4-11 40 % of V / 200 ms failure criterion A EN 61000-4-11 70 % of V / 500 ms failure criterion A EN 61000-4-11 0 V / 5000 ms failure criterion C VDE 0160 1550 V / 1.3 ms failure criterion A EN 55032 Class B EN 55032 Class B EN 55011 Class B EN 61000-3-2 EN 61000-3-3 |
|---|---|
| EN 61000-4-2 CD | 8 kV / failure criterion A |
| EN 61000-4-2 AD | 15 kV / failure criterion A |
| EN 61000-4-3 | 2.7 GHz...6 GHz kV / 10 V/m failure criterion A |
| EN 61000-4-8 | 50 / 60 Hz / 30 A/m failure criterion A |
| EN 61000-4-4 Burst | 4 kV / failure criterion A |
| EN 61000-4-5 Surge | 1 kV DC-OK / PE / failure criterion A |
| EN 61000-4-6 | 0.15...80 MHz / 20 V failure criterion A |
| EN 61000-4-11 | 0 V / 5000 ms failure criterion C |
| VDE 0160 | 1550 V / 1.3 ms failure criterion A |
| EN 55032 | Class B |
| EN 55011 | Class B |
| Continuous shock resistance | IEC 60068-2-27 30 g 6 ms / 20 g 11 ms |
| IEC 60068-2-27 | 30 g 6 ms / 20 g 11 ms |
| Vibration resistance | IEC 600068-2-6 2...17.8 Hz ± 1.6mm / 17.8...500 Hz 2 g |
| IEC 600068-2-6 | 2...17.8 Hz ± 1.6mm / 17.8...500 Hz 2 g |
| MTTF[years] [years] | 27 |
Mechanical data
| Weight[g] [g] | 1616.05 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 199.7 x 178 x 59.5 |
| Materials | housing: aluminium alloy; housing cap: PC; screws: steel bronzed |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A; Locking: brass |
|---|
Electrical connection - Output voltage
| Connector | 2 x M12; coding: L; Locking: brass |
|---|
Electrical connection - power supply
| Connector | 1 x 7/8"; Locking: brass |
|---|
