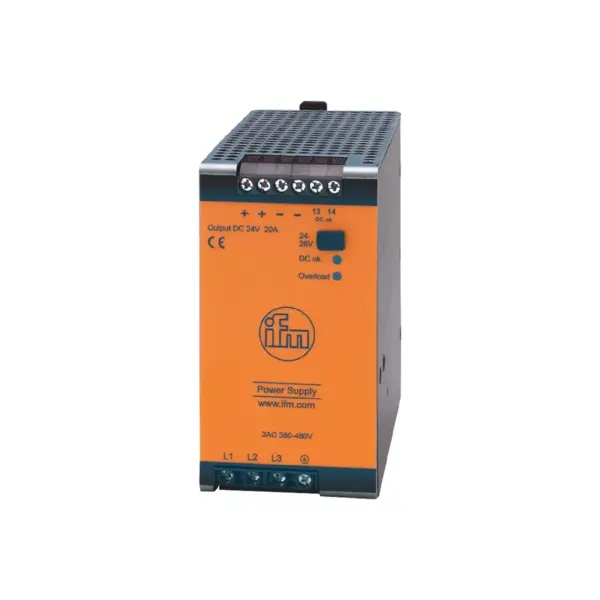

IFM DN4034
DN4034
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the regulated power supply for controllers, sensors, actuators, and industrial electronics
Low power loss thanks to high efficiency
High mains buffering time
Particularly space-saving design
High power reserves
Specification
Application
| Design | housing for DIN rail mounting |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 47...64 |
|---|---|
| Nominal voltage AC[V] [V] | < 400 |
| Input voltage range AC[V] [V] | 380...480; (-15 % / +15 %) |
| Output voltage DC[V] [V] | 24...28 |
| Protection class | I; (IEC 61140) |
| Overvoltage protection | yes; (< 35 DC) |
| Output voltage[V] [V] | adjustable; output voltage to SELV, PELV |
| Max. output current at min. output voltage[A] [A] | 20 |
| Max. output current at max. output voltage[A] [A] | 17.5 |
| Max. output current peak at min. output voltage[A] [A] | 30 |
| Max. output current peak at max. output voltage[A] [A] | 26 |
| Output power (permanent)[W] [W] | 480 |
| Output power (peak)[W] [W] | 720 |
| Note on output power (peak)[W] [W] | if consumption > 4 s the power is automatically reduced to the output power |
| Power factor (nominal voltage 400 V AC / 50 Hz) | 0.94 |
| Note on power factor (nominal voltage 400 V AC / 50 Hz) | with symmetrical phase voltage |
| Power factor (nominal voltage 480 V AC / 50 Hz) | 0.95 |
| Note on power factor (nominal voltage 480 V AC / 50 Hz) | with symmetrical phase voltage |
| Power reserve[%] [%] | 50 |
| Number of output circuits | 1 |
| Max. residual ripple[mV] [mV] | 100 |
| Switch-on peak current (nominal voltage 400 V AC / 60 Hz)[A] [A] | 3 |
| Switch-on peak current (nominal voltage 480 V AC / 50 Hz)[A] [A] | 3 |
| Inrush current limitation | yes |
| Efficiency (nominal voltage 400 V AC / 60 Hz)[%] [%] | 95 |
| Efficiency (nominal voltage 480 V AC / 50 Hz)[%] [%] | 94.8 |
| External input protection | ≥ B-6 A / ≥ C-3 A |
| Derating[W/K] [W/K] | 12 (60...70 °C) |
| Mains buffering time (nominal voltage 400 V AC / 60 Hz)[ms] [ms] | 22 |
| Mains buffering time (nominal voltage 480 V AC / 50 Hz)[ms] [ms] | 22 |
| Input current (nominal voltage 400 V AC / 60 Hz)[A] [A] | 0.78 |
| Input current (nominal voltage 480 V AC / 50 Hz)[A] [A] | 0.64 |
| Power loss (nominal voltage 400 V AC / 60 Hz)[W] [W] | 25.3 |
| Power loss (nominal voltage 480 V AC / 50 Hz)[W] [W] | 26.6 |
| Back feeding protection[V] [V] | 34 |
Outputs
| Short-circuit proof | yes |
|---|---|
| Overload protection | yes |
| Overload performance | output current constant |
| Type DC-OK signal | relay output |
| Reliability of the DC OK signal | 60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Note on ambient temperature | observe the free space for convection (see operating instructions) |
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (IEC 60068-2-30) |
| Protection | IP 20; (EN 60529) |
| Pollution degree | 2; (IEC 62103: conductive soiling not permitted) |
Tests / approvals
| EMC | EN 61000-6-1 EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 EN 61000-3-2 Class A |
|---|---|
| EN 61000-3-2 | Class A |
| Vibration resistance | IEC 60068-2-6 ±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
| IEC 60068-2-6 | ±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
| Shock resistance | IEC 60068-2-27 30 g 6 ms / 20 g 11 ms |
| IEC 60068-2-27 | 30 g 6 ms / 20 g 11 ms |
| MTTF[years] [years] | 132 |
| Power Factor Correction (PFC) | met |
Mechanical data
| Weight[g] [g] | 1029 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 124 x 65 x 132.5 |
| Materials | housing: steel sheet |
Displays / operating elements
| Display | DC ok 1 x LED overload 1 x LED |
|---|---|
| DC ok | 1 x LED |
| overload | 1 x LED |
Remarks
| Remarks | Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage |
|---|---|
| Pack quantity | 1 pcs. |
