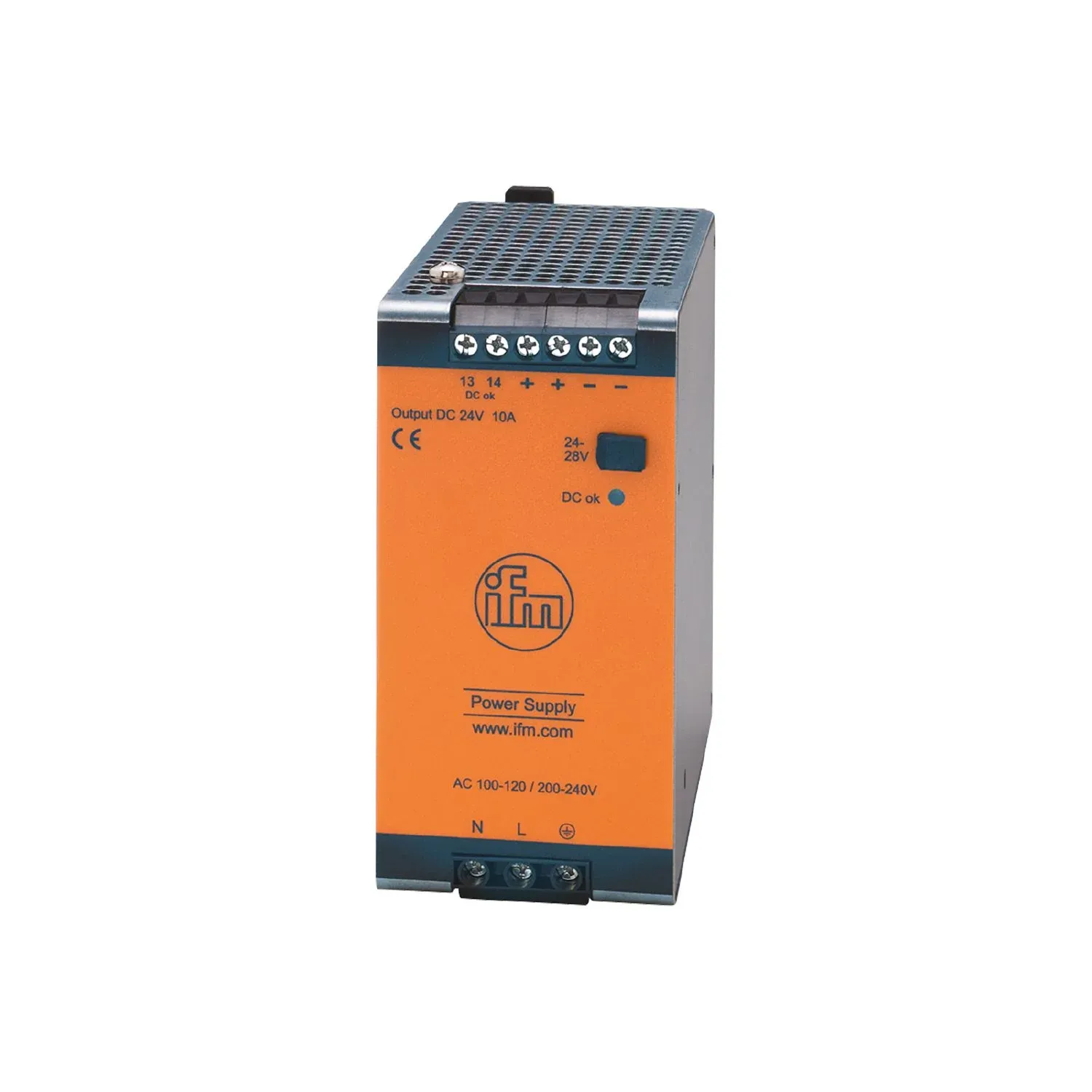

IFM DN4013
DN4013
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the regulated power supply for controllers, sensors, actuators, and industrial electronics
Low power loss thanks to high efficiency
High mains buffering time
Particularly space-saving design
High power reserves
Specification
Application
| Design | housing for DIN rail mounting |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 47...64 |
|---|---|
| Operating voltage[V] [V] | automatic range selection |
| Nominal voltage AC[V] [V] | < 230 |
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Input voltage range AC[V] [V] | 100...120 / 200...240; (-10 % / +10 %) |
| Output voltage DC[V] [V] | 24...28 |
| Protection class | I; (IEC 61140) |
| Overvoltage protection | yes; (< 39 DC) |
| Output voltage[V] [V] | adjustable; output voltage to SELV, PELV |
| Max. output current at min. output voltage[A] [A] | 10 |
| Max. output current at max. output voltage[A] [A] | 8.6 |
| Max. output current peak at min. output voltage[A] [A] | 12 |
| Max. output current peak at max. output voltage[A] [A] | 10.3 |
| Output power (permanent)[W] [W] | 240 |
| Output power (peak)[W] [W] | 288 |
| Note on output power (peak)[W] [W] | ≤ 45 °C permitted continuously; > 45 °C < 1 minute every 10 minutes |
| Power factor (nominal voltage 120 V AC / 60 Hz) | 0.59 |
| Power factor (nominal voltage 230 V AC / 50 Hz) | 0.51 |
| Power reserve[%] [%] | 20 |
| Number of output circuits | 1 |
| Max. residual ripple[mV] [mV] | 50 |
| Switch-on peak current (nominal voltage 120 V AC / 60 Hz)[A] [A] | 3 |
| Switch-on peak current (nominal voltage 230 V AC / 50 Hz)[A] [A] | 3 |
| Inrush current limitation | yes |
| Efficiency (nominal voltage 120 V AC / 60 Hz)[%] [%] | 91 |
| Efficiency (nominal voltage 230 V AC / 50 Hz)[%] [%] | 91.6 |
| External input protection | ≥ B-10 A / ≥ C-6 A |
| Derating[W/K] [W/K] | 6 (60...70 °C) |
| Mains buffering time (nominal voltage 120 V AC / 60 Hz)[ms] [ms] | 46 |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz)[ms] [ms] | 47 |
| Input current (nominal voltage 120 V AC / 60 Hz)[A] [A] | 3.73 |
| Input current (nominal voltage 230 V AC / 50 Hz)[A] [A] | 2.23 |
| Power loss (nominal voltage 120 V AC / 60 Hz)[W] [W] | 23.7 |
| Power loss (nominal voltage 230 V AC / 50 Hz)[W] [W] | 22 |
| Back feeding protection[V] [V] | 35 |
Outputs
| Short-circuit proof | yes |
|---|---|
| Overload protection | yes |
| Overload performance | output current constant |
| Type DC-OK signal | relay output |
| Reliability of the DC OK signal | 60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Note on ambient temperature | observe the free space for convection (see operating instructions) |
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (IEC 60068-2-30) |
| Protection | IP 20; (EN 60529) |
| Pollution degree | 2; (IEC 62103: conductive soiling not permitted) |
| Overheat protection | yes |
Tests / approvals
| EMC | EN 61000-6-1 EN 61000-6-2 EN 61000-6-4 |
|---|---|
| Vibration resistance | IEC 60068-2-6 ±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
| IEC 60068-2-6 | ±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
| Shock resistance | IEC 60068-2-27 30 g 6 ms / 20 g 11 ms |
| IEC 60068-2-27 | 30 g 6 ms / 20 g 11 ms |
| MTTF[years] [years] | 70 |
Mechanical data
| Weight[g] [g] | 875.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 124 x 62 x 122.5 |
| Materials | housing: steel sheet |
Displays / operating elements
| Display | DC ok 1 x LED |
|---|---|
| DC ok | 1 x LED |
Remarks
| Remarks | Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage |
|---|---|
| Pack quantity | 1 pcs. |
