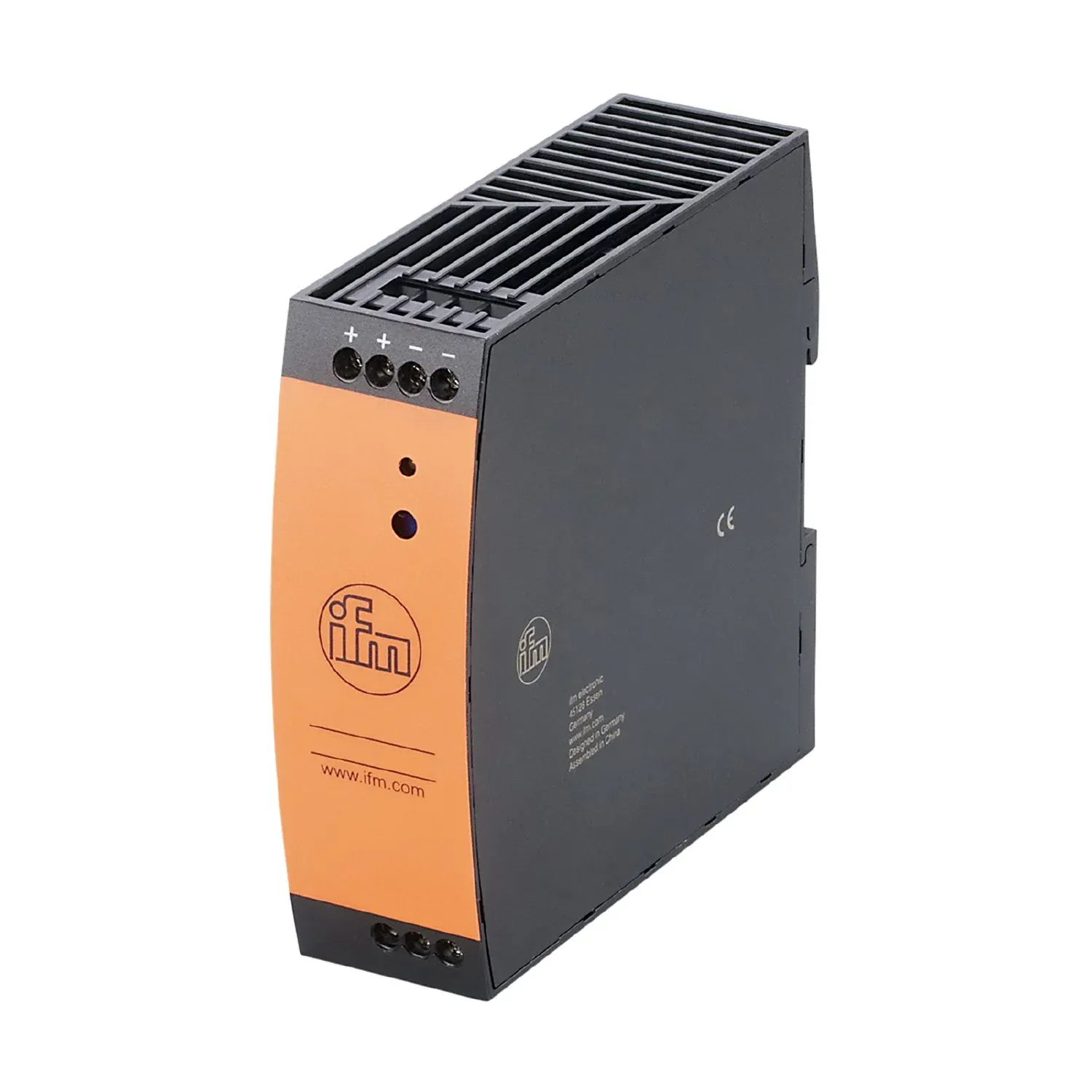

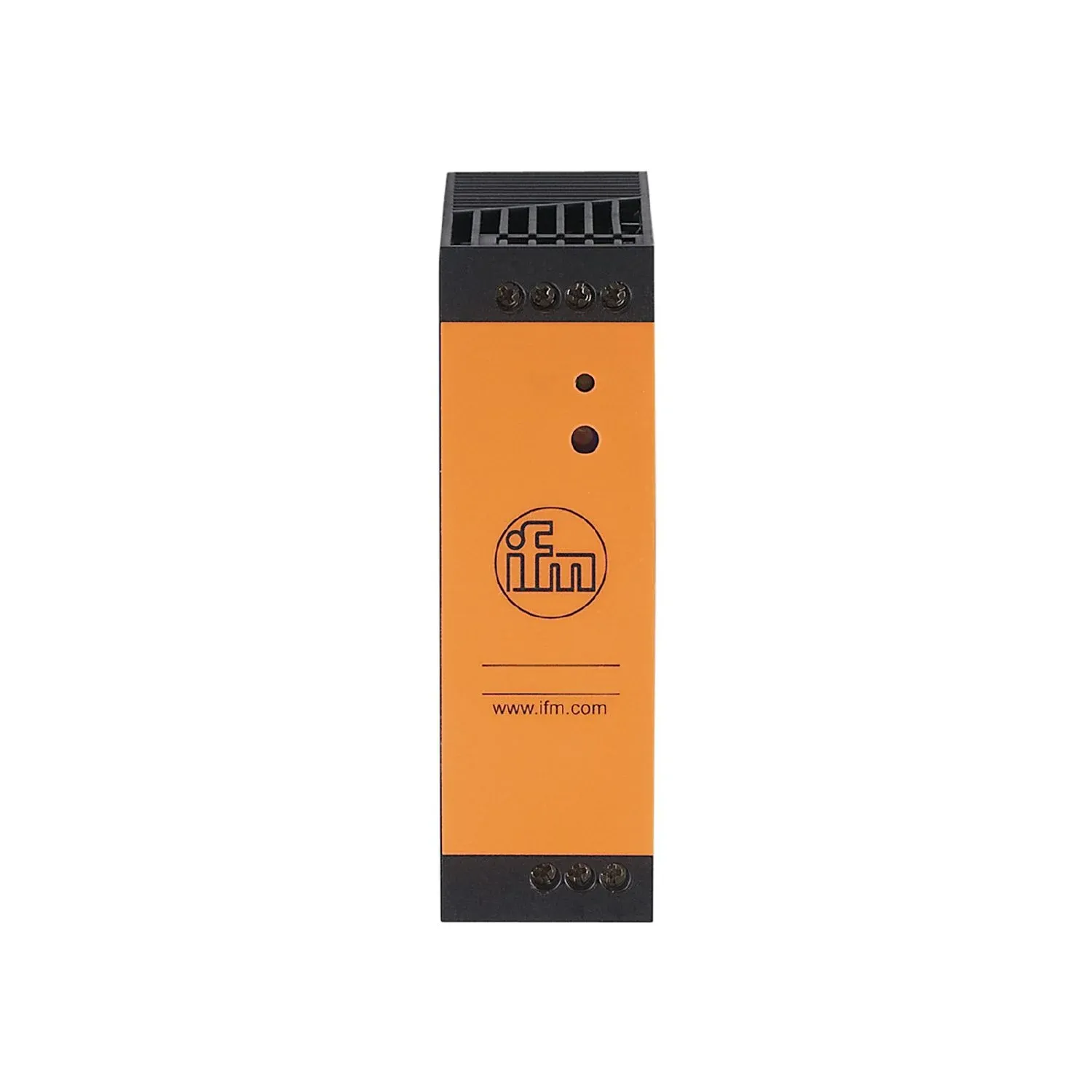

IFM DN1042
DN1042
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the regulated power supply for controllers, sensors, actuators, and industrial electronics
Low power loss thanks to high efficiency
Inexpensive plastic version
Specification
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Nominal voltage AC[V] [V] | 230 |
| Input voltage range AC[V] [V] | 200...240; (-10 % / +10 %) |
| Output voltage DC[V] [V] | 24...28 |
| Protection class | I; (IEC 61140) |
| Overvoltage protection | yes; (< 34 V DC) |
| Output voltage[V] [V] | adjustable; output voltage to SELV, PELV |
| Max. output current at min. output voltage[A] [A] | 5 |
| Max. output current at max. output voltage[A] [A] | 4.3 |
| Max. output current peak at min. output voltage[A] [A] | 6 |
| Max. output current peak at max. output voltage[A] [A] | 5.1 |
| Output power (permanent)[W] [W] | 120 |
| Power factor (nominal voltage 230 V AC / 50 Hz) | 0.54 |
| Number of output circuits | 1 |
| Max. residual ripple[mV] [mV] | 100 |
| Switch-on peak current (nominal voltage 230 V AC / 50 Hz)[A] [A] | 28 |
| Efficiency (nominal voltage 230 V AC / 50 Hz)[%] [%] | 90.5 |
| External input protection | ≥ B-10 A / ≥ C-6 A |
| Derating[W/K] [W/K] | 3 (55...70 °C) |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz)[ms] [ms] | 60 |
| Input current (nominal voltage 230 V AC / 50 Hz)[A] [A] | 1.06 |
| Power loss (nominal voltage 230 V AC / 50 Hz)[W] [W] | 12.6 |
| Back feeding protection[V] [V] | 35 |
Outputs
| Short-circuit proof | yes |
|---|---|
| Overload protection | yes |
| Overload performance | output current constant |
| Parallel connection of outputs possible | no |
| Series connection of outputs possible | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -10...70 |
|---|---|
| Note on ambient temperature | observe the free space for convection (see operating instructions) |
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 95; (IEC 60068-2-30) |
| Protection | IP 20; (EN 60529) |
| Pollution degree | 2; (IEC 62103: conductive soiling not permitted) |
Tests / approvals
| EMC | EN 61000-6-1 EN 61000-6-2 EN 61000-6-4 |
|---|---|
| Vibration resistance | IEC 60068-2-6 ±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
| IEC 60068-2-6 | ±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
| Shock resistance | IEC 60068-2-27 30 g 6 ms / 20 g 11 ms |
| IEC 60068-2-27 | 30 g 6 ms / 20 g 11 ms |
| MTTF[years] [years] | 196 |
Mechanical data
| Weight[g] [g] | 436.15 |
|---|---|
| Housing | rectangular |

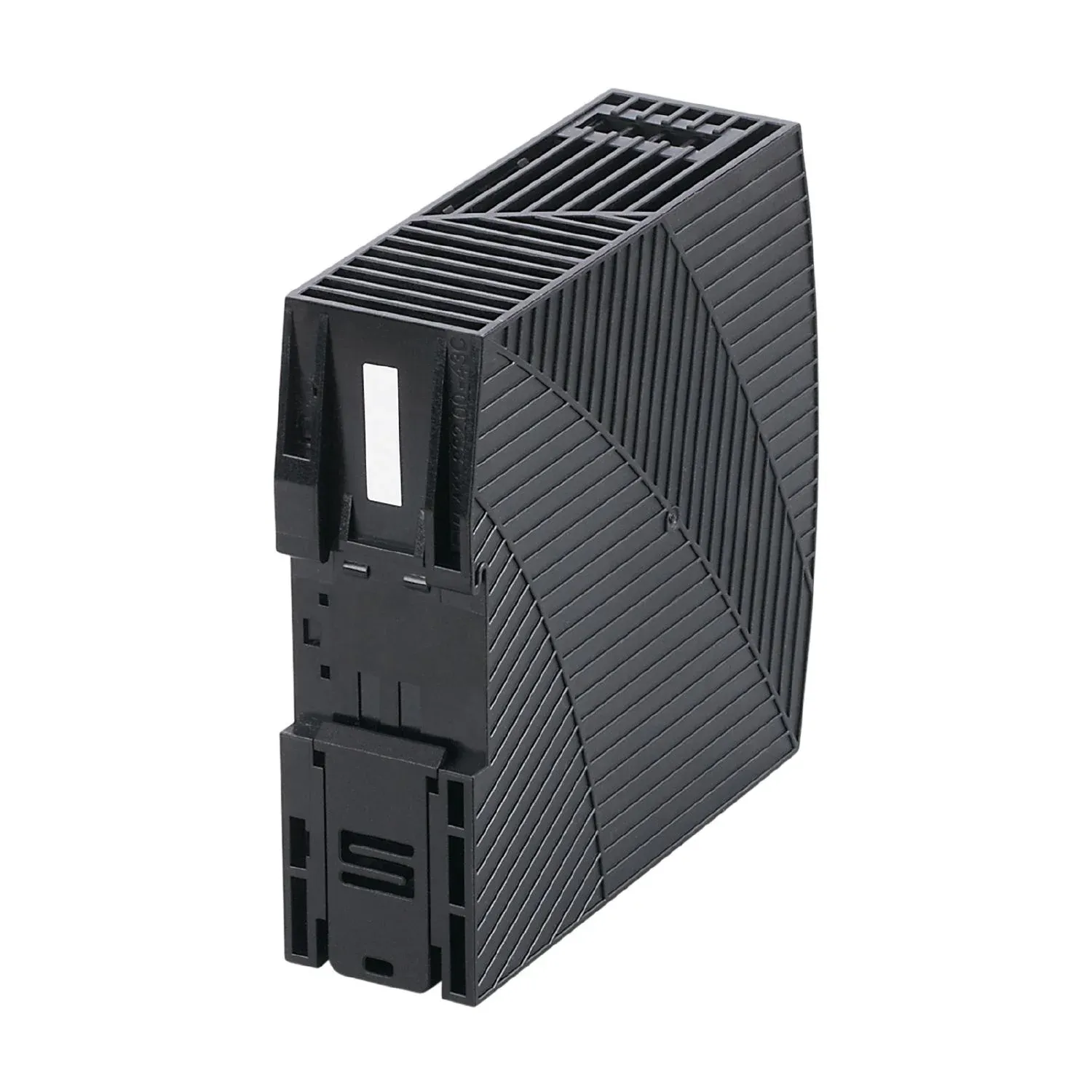

| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 124 x 39 x 129 |
| Materials | housing: PC |
Displays / operating elements
| Display | DC ok 1 x LED |
|---|---|
| DC ok | 1 x LED |
Remarks
| Remarks | Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage UL 508 (Industrial Control Equipment) |
|---|---|
| Pack quantity | 1 pcs. |
