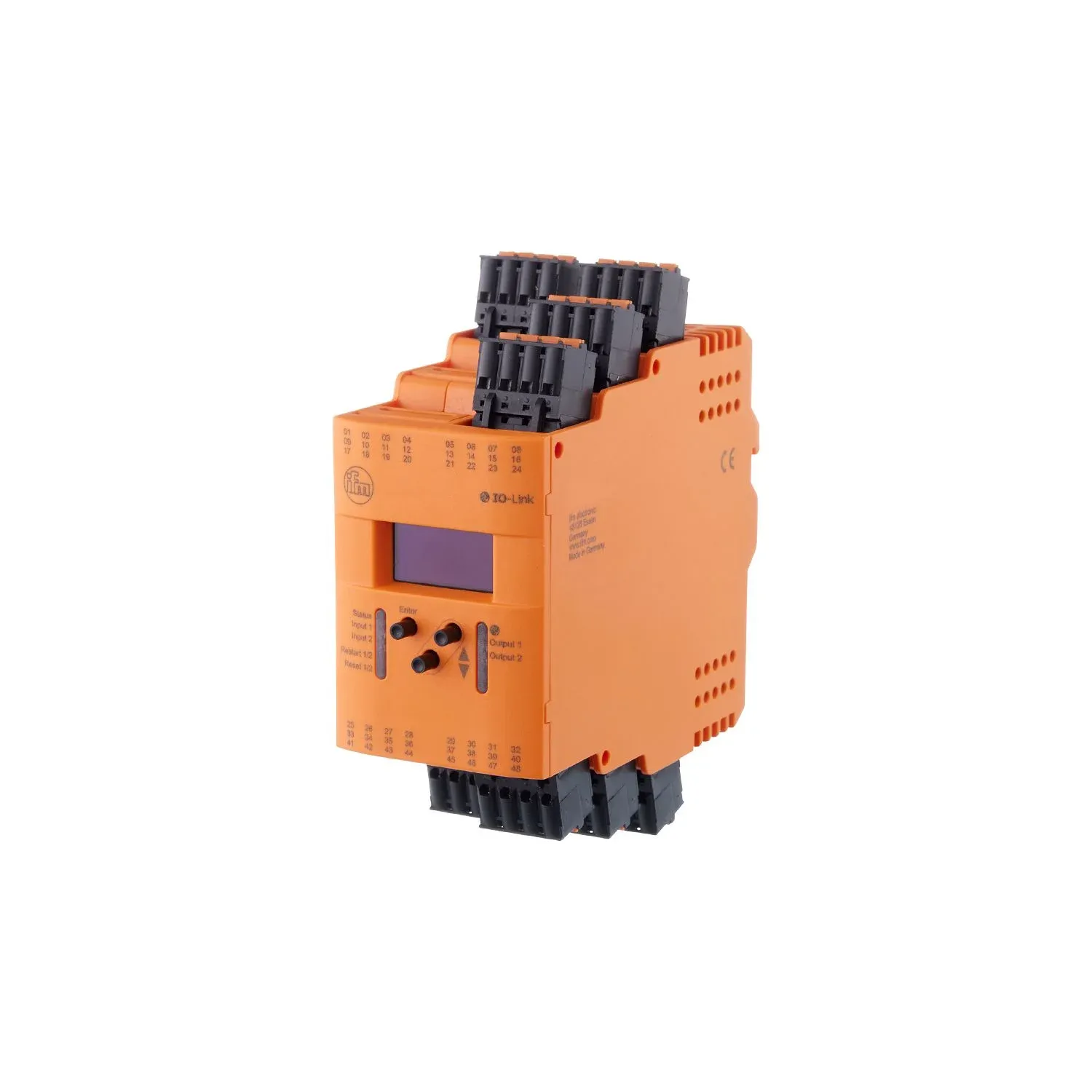

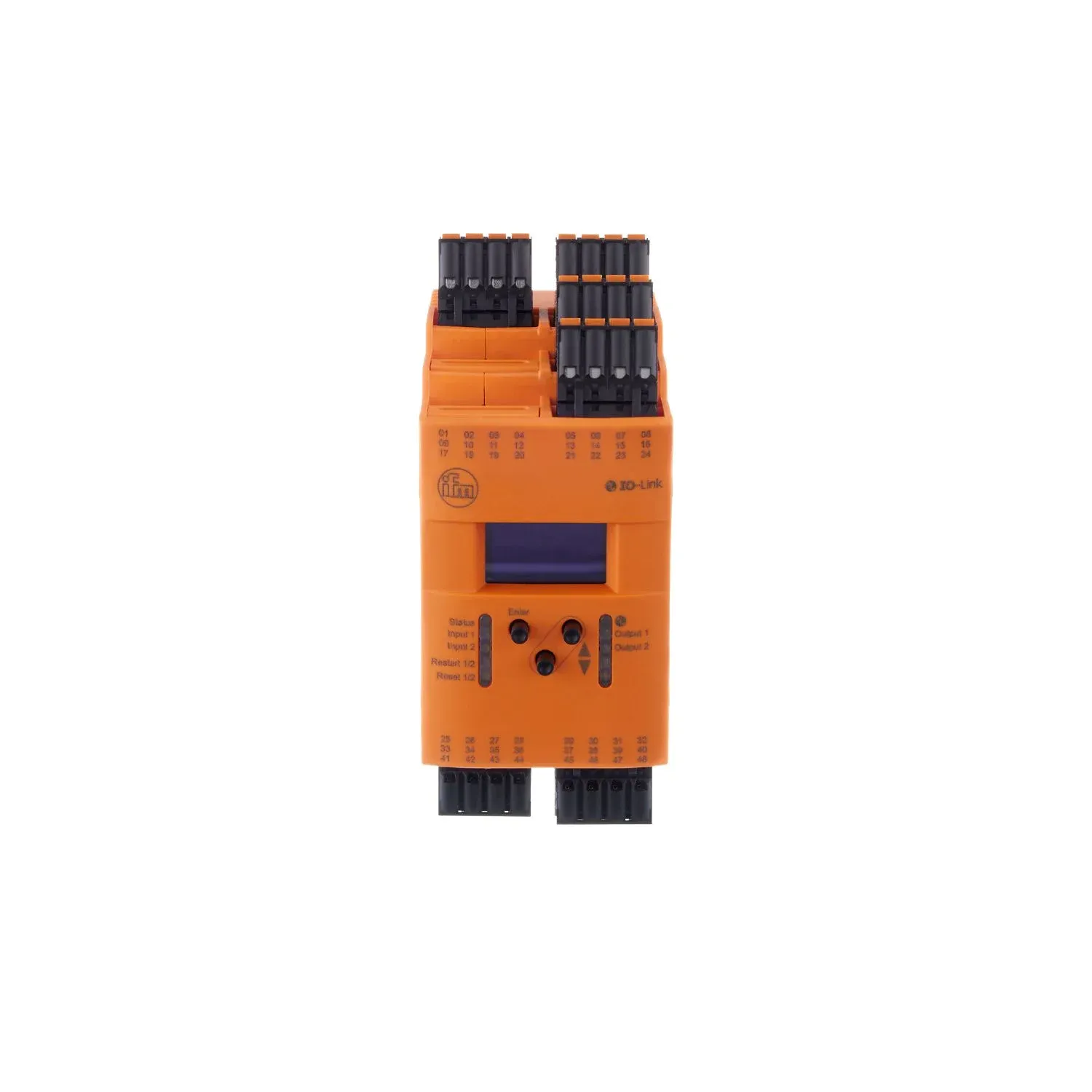

IFM DL3003
DL3003
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable limit monitoring of flow, pressure, temperature, or level
With two analogue inputs
Possibility of calculating a new value based on the two input values
Various configurable monitoring functions
Monitoring data is provided via two relays and transistor outputs
Easy parameter setting and process value output via IO-Link
Specification
Product characteristics
| Communication interface | IO-Link |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 126 x 50 x 112.4 |
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | 2-channel threshold relay for analogue standard signals |
Electrical data
| Operating voltage[V] [V] | 110...240 AC / 18...30 DC; (tolerance AC operation: -20 % / +10 %) |
|---|---|
| Nominal voltage AC[V] [V] | 110...240 |
| Nominal voltage DC[V] [V] | 24 |
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Current consumption[mA] [mA] | AC operation: max. 8 A (including maximum AC supply for additional devices ) |
| Max. power consumption DC[W] [W] | 9 |
| Overvoltage category | II |
| Auxiliary energy for sensors DC[V] [V] | 16.5...27.7; (Short-circuit proof; DC operation: ≤ 200 mA; AC operation: ≤ 150 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 2; Number of digital outputs: 2; Number of analogue outputs: 1; Number of relay outputs: 2 |
|---|
Inputs
| Number of analogue inputs | 2; (configurable) |
|---|---|
| Analogue input (current)[mA] [mA] | 0...20 |
| Input resistance[Ω] [Ω] | 300 |
| Analogue input (voltage)[V] [V] | 0...10 |
| Input resistance[kΩ] [kΩ] | 25 |
| Resolution of analogue input | 12 Bit |
Outputs
| Number of digital outputs | 2 |
|---|---|
| Number of relay outputs | 2; (changeover contact) |
| Number of analogue outputs | 1 |
| Circuit | PNP |
| Max. current load per output[mA] [mA] | 10 |
| Short-circuit proof | yes |
| Electrically separated | no |
| Minimum load current[mA] [mA] | 10; (> 12 V) |
| Contact rating | 6 A; (max. 240 V AC / 30 V DC see diagram:: Contact rating; B300: 6000 cycles) |
| Switching frequency AC[Hz] [Hz] | < 2 |
| Switching frequency DC[Hz] [Hz] | < 2 |
| Analogue current output[mA] [mA] | 4...20; (max.. 20,5 mA) |
| Max. load[Ω] [Ω] | 600; (300 Ω: Operating voltage < 24 V DC) |
Accuracy / deviations
| Accuracy | ± 0.75; (% of the final value < 45 °C; including analogue input accuracy) |
|---|---|
| Temperature coefficient[% of the span / 10 K] [% of the span / 10 K] | ± 0,1; (> 45 °C) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 4.1.2 Measuring and Switching Sensor, 2 channel Common - I&D Identification and Diagnosis Extension Sensor control Extension Quantity detection, switches when value exceeds the setpoint Function Locator Function ProductURI |
| Smart Sensor - SSP 4.1.2 | Measuring and Switching Sensor, 2 channel |
| Common - I&D | Identification and Diagnosis |
| Extension | Quantity detection, switches when value exceeds the setpoint |
| Function | ProductURI |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 4.9 |
| Supported DeviceIDs | default 1583 |
| default | 1583 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...60 |
|---|---|
| Note on ambient temperature | 110V AC operation: -25...60 °C 2000...3000 m: max. 58 °C 3000...4000 m: max. 56 °C Contact rating relay output: B300 max. 50 °C |
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 80; (31 °C; linearly decreasing to 50 % (40 °C)) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 20; (when mounted) |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-8 |
|---|---|
| Electrical safety | EN 61010-1 EN 61010-2-201 |
| MTTF[years] [years] | 150 |
| UL approval | Ta 60 °C Enclosure type open Type File number UL E191692 |
| Ta | 60 °C |
| Enclosure type | open Type |
| File number UL | E191692 |
Mechanical data
| Weight[g] [g] | 338.6 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 126 x 50 x 112.4 |
| Materials | housing: plastics |
Displays / operating elements
| Display | 1x OLED display, 128 x 64 pixels luminous switching status 2x LED, yellow operation 1x LED, green/red |
|---|---|
| switching status | 2x LED, yellow |
| operation | 1x LED, green/red |
| Teach function | yes |
Accessories
| Items supplied | cage clamps: 9 |
|---|
Remarks
| Remarks | For information about installation and operation please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| cage clamps | ...2.5 mm² |
|---|
