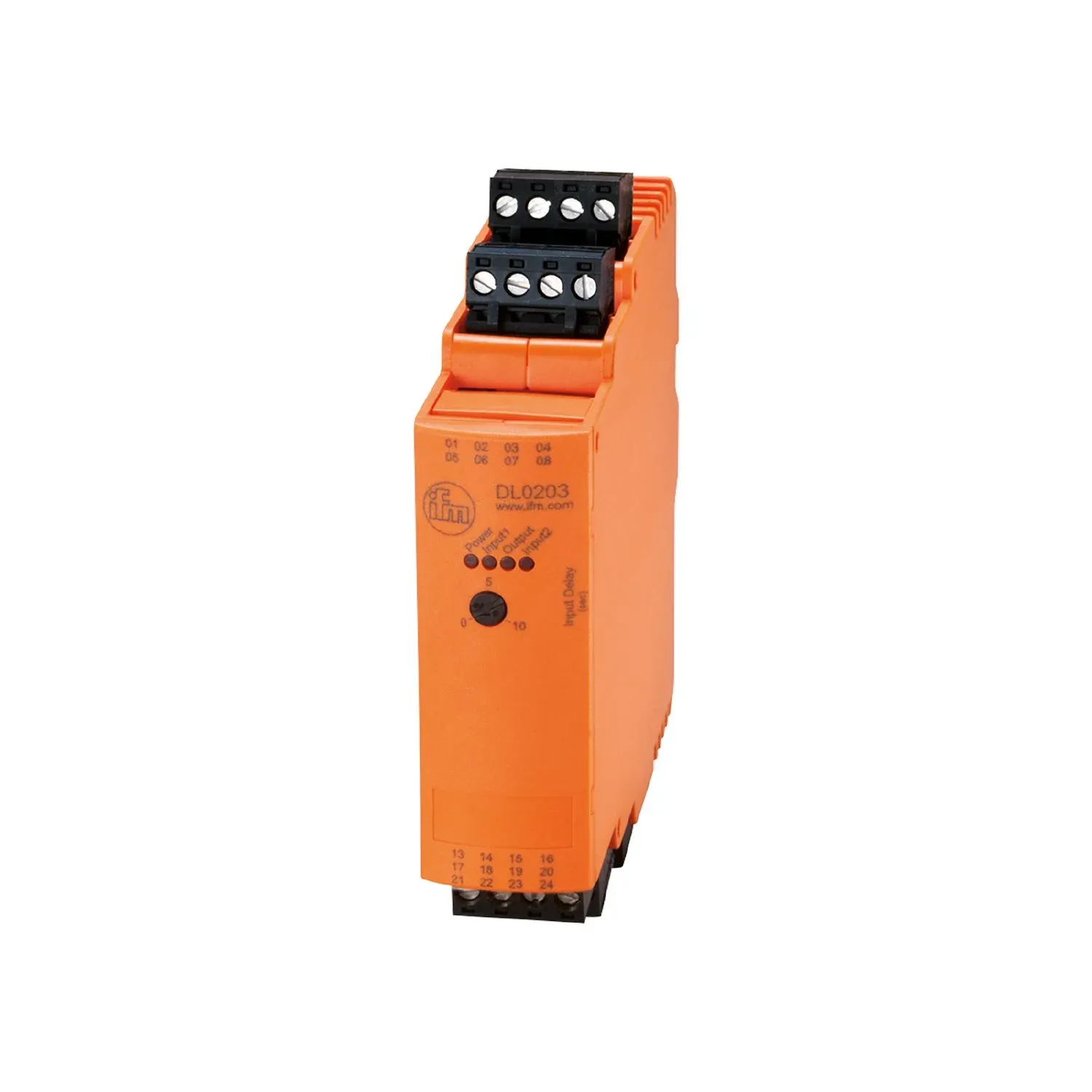

IFM DL0203
DL0203
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For level control of tanks and containers
Reliable protection against´ overflow, dry run and leakage
Direct control of pumps and valves
Adjustable switch-on and switch-off delay
Integrated wide-range power supply for the sensor supply
Specification
Product characteristics
| Housing | rectangular |
|---|---|
| Dimensions[mm] [mm] | 116 x 25.4 x 109.1 |
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | two-point control of levels |
Electrical data
| Operating voltage tolerance 2[%] [%] | > 20 |
|---|---|
| Nominal voltage AC[V] [V] | 110...240 |
| Nominal voltage DC[V] [V] | 27 |
| Nominal voltage tolerance[%] [%] | > 20 |
| Nominal voltage tolerance 2[%] [%] | 20...10 |
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Insulation rating[V] [V] | 9 |
| Max. power consumption AC[W] [W] | 6 |
| Max. power consumption DC[W] [W] | 4 |
| Auxiliary energy for sensors DC[V] [V] | 18.5...30; (SELV, ≤ 100 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of relay outputs: 1 |
|---|
Outputs
| Number of digital outputs | 1 |
|---|---|
| Number of relay outputs | 1 |
| Contact rating | 4 A (240 V AC); 6 A (30 V DC); (ohmic resistance) |
| Short-circuit proof | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 80; (40 °C: 50 % non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2; (≤ 240 V AC) |
Tests / approvals
| MTTF[years] [years] | 224 |
|---|---|
| UL approval | UL approval no. N001 |
| UL approval no. | N001 |
Mechanical data
| Weight[g] [g] | 235 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 116 x 25.4 x 109.1 |
| Materials | housing: PC-GF20 |
Displays / operating elements
| Display | power supply 1 x LED, green Inputs 2 x LED, yellow Output 1 x LED, green |
|---|---|
| power supply | 1 x LED, green |
| Inputs | 2 x LED, yellow |
| Output | 1 x LED, green |
Accessories
| Items supplied | connector: 5 x 4-pole, with screw connection, E40173 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| pin headers | 4 x ; Spacing: 5.0 mm |
|---|
