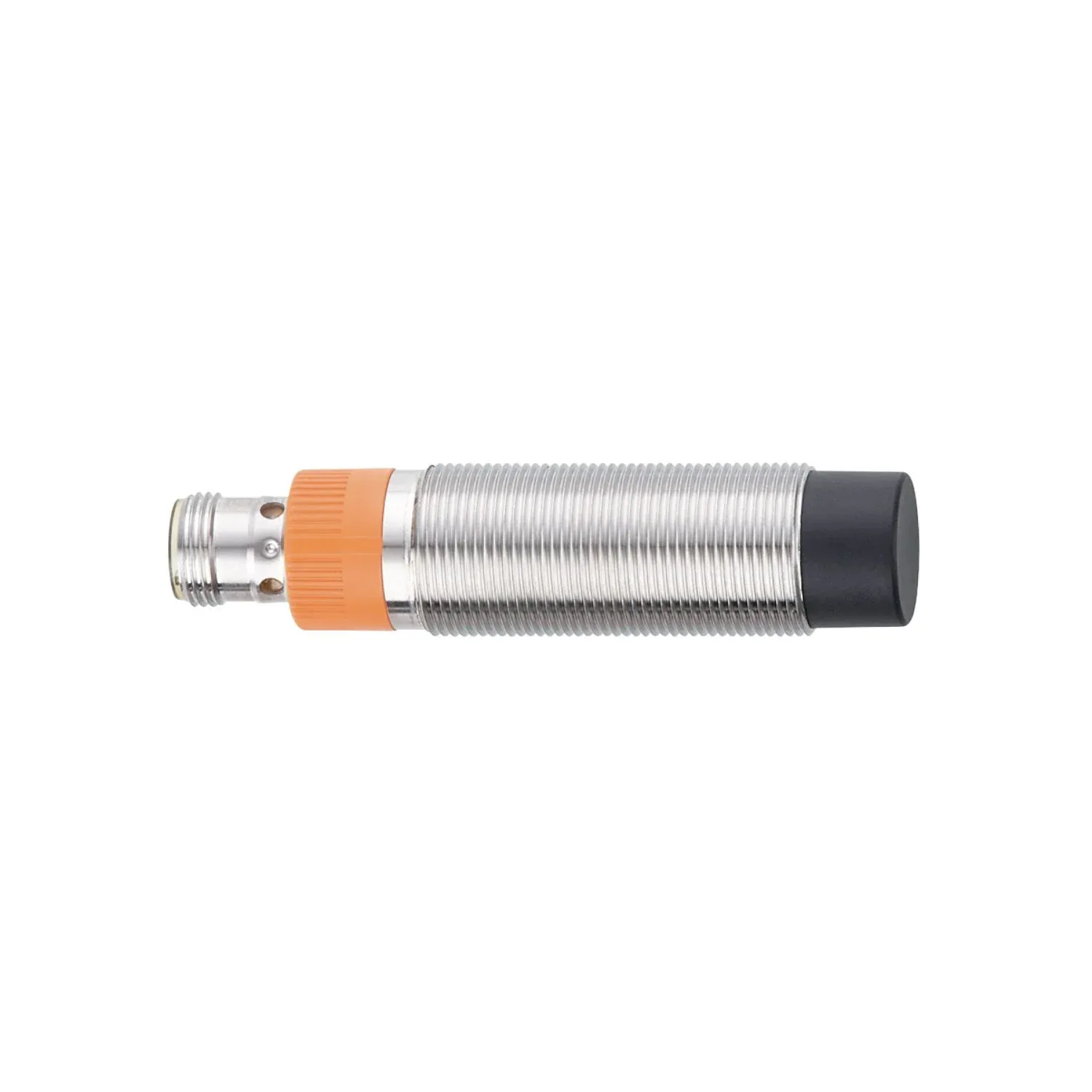

IFM DI604A - Image 1

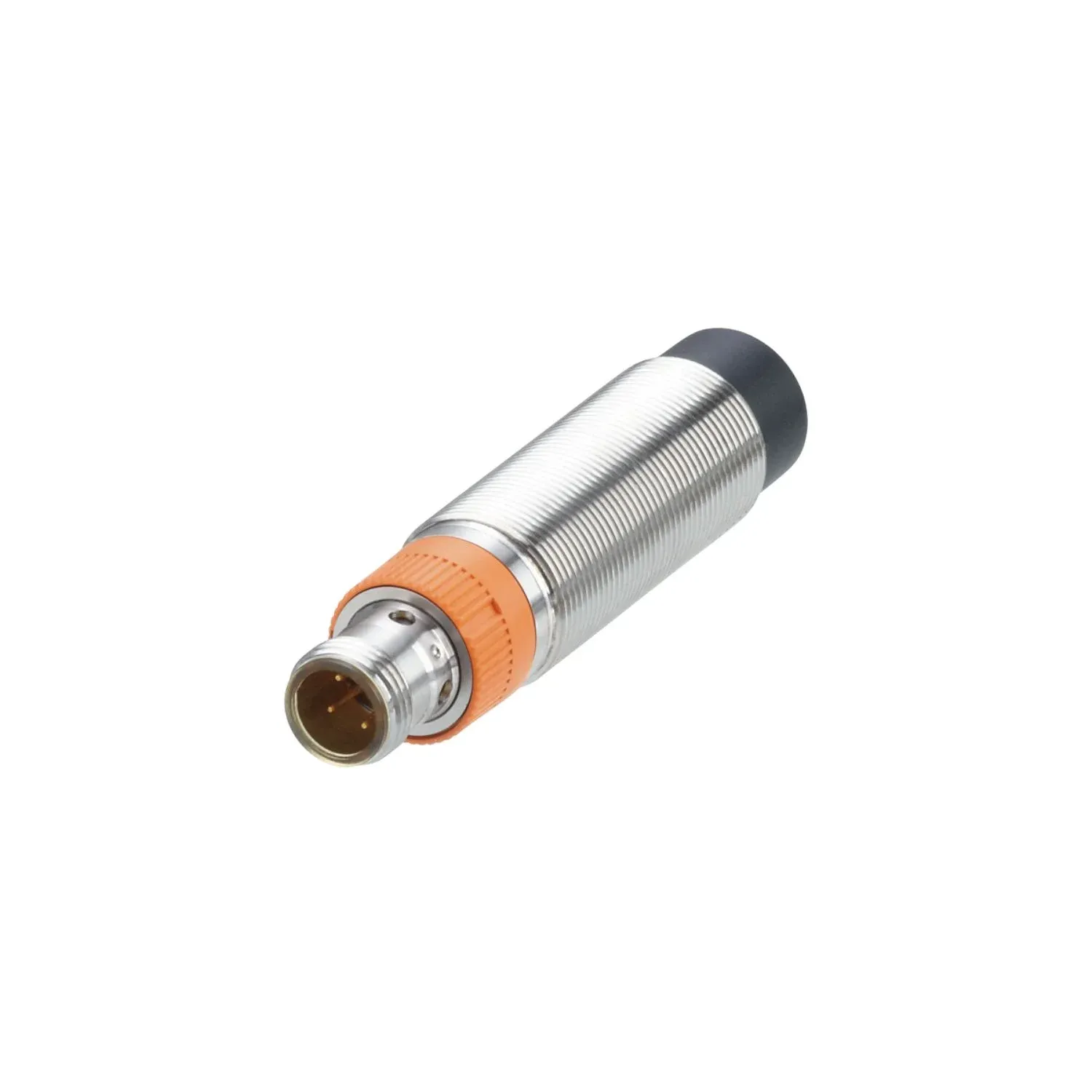

IFM DI604A - Image 2

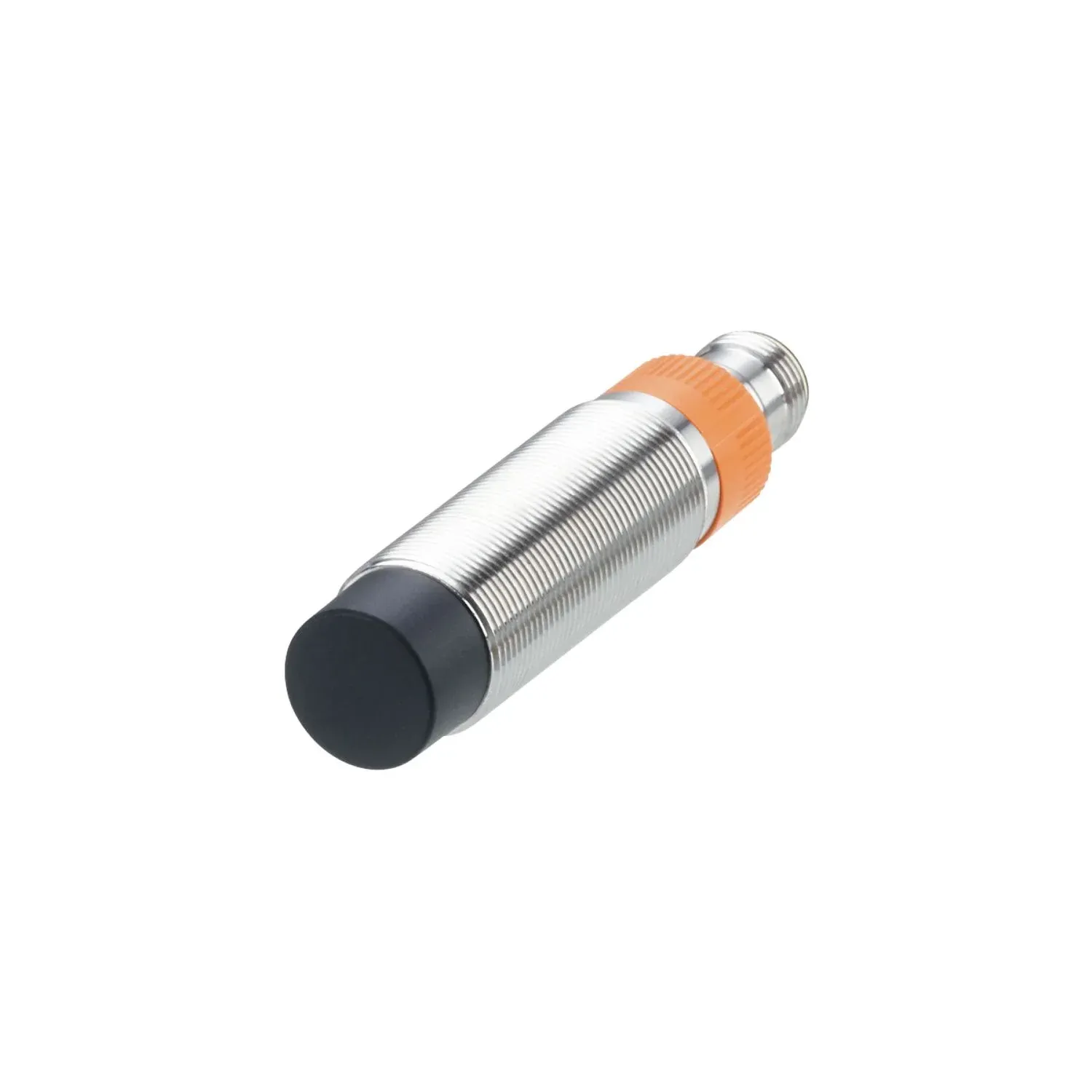

IFM DI604A - Image 3
IFM DI604A - Image 4
IFM DI604A - Image 5
IFM DI604A - Image 6
IFM DI604A
IFM DI604A - Image 2
IFM DI604A - Image 3
IFM DI604A - Image 4
IFM DI604A - Image 5
IFM DI604A - Image 6

Fast delivery within 72 Hours

IFM DI604A

DI604A

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

For applications in hazardous areas
Reliable non-contact monitoring of the rotational speed with regard to underspeed
2 in 1: speed sensor and evaluation in one compact housing
Easy setting of the switch point via potentiometer
With IO-Link for transmission of signals and diagnostic data

Specification

Product characteristics

Electrical designPNP/NPN; (parameterisable)
Output functionnormally open / normally closed; (parameterisable)
Sensing range[mm] [mm]8
Communication interfaceIO-Link
Housingthreaded type
Dimensions[mm] [mm]M18 x 1 / L = 76.4

Application

Special featureGold-plated contacts
Applicationevaluation of rotating and linear movements with regard to underspeed; blocking

Electrical data

Operating voltage[V] [V]10...30 DC
Current consumption[mA] [mA]< 15
Protection classII
Reverse polarity protectionyes

Outputs

Electrical designPNP/NPN; (parameterisable)
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2.5
Factory settingElectrical design: PNP
Output function: normally open
switch point: 100 Imp/min
Output OUT2: Pulse output
Short-circuit protectionyes
Overload protectionyes
Output signalpulse signal; switching signal; (parameterisable)
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]< 500
Pulse outputexternal evaluation of the damping pulses

Detection zone

Sensing range[mm] [mm]8

Measuring/setting range

Measuring range[Imp/min] [Imp/min]1...32000
Setting range[Imp/min] [Imp/min]3...24000
Measuring principleinductive

Accuracy / deviations

Correction factorstainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr] [% of Sr]10
Hysteresis[% of Sp] [% of Sp]10...30
Repeatability IO-Link[%] [%]1; (of the final value of the measuring range)
Temperature drift± 10 %; (of the final value of the measuring range)

Response times

Start-up delay[s] [s]0...30; (In steps of: 100 ms; Default: 10 s)
Max. damping frequency[Imp/min] [Imp/min]60000

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 4.2.1
Measuring and Switching Sensor, high resolution, 1 channel
Common - I&D
Identification and Diagnosis
Function
Locator
Function
ProductURI
Smart Sensor - SSP 4.2.1Measuring and Switching Sensor, high resolution, 1 channel
Common - I&DIdentification and Diagnosis
FunctionProductURI
SIO modeyes
Required master port typeA
Min. process cycle time[ms] [ms]3.7
IO-Link process data (cyclical)process value
32
device status
4
binary switching information
2
process value32
device status4
binary switching information2
IO-Link functions (acyclical)switch-on cycle counter; operating hours counter; internal temperature; application specific tag
Supported DeviceIDsdefault
1444
default1444
NoteFor further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature[°C] [°C]-20...60
ProtectionIP 67

Tests / approvals

ApprovalBVS 17 ATEX E 112 X; IECEx BVS 17.0094X
ATEX markingII 3D Ex tc IIIC T80°C Dc
EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN55011
class B
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-6 HF conducted10 V
EN55011class B
Vibration resistanceEN 60068-2-6 Fc
20 g (10...3000 Hz)
50 sweep cycles, 1 octave per minute, in 3 axes
EN 60068-2-6 Fc20 g (10...3000 Hz)
Shock resistanceEN 60068-2-27 Ea
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
EN 60068-2-27 Ea100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistanceEN 60068-2-27
41 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
EN 60068-2-2741 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature changeEN 60068-2-14 Na
TA = -25°C; TB = 80°C; t1 = 30 min; t2 = <10 s 50 cycles
EN 60068-2-14 NaTA = -25°C; TB = 80°C; t1 = 30 min; t2 = <10 s 50 cycles
Salt spray testEN 60068-2-52 Kb
severity level 5 (4 test cycles)
EN 60068-2-52 Kbseverity level 5 (4 test cycles)
MTTF[years] [years]471

Mechanical data

Weight[g] [g]75
Housingthreaded type
Mountingnon-flush mountable
Dimensions[mm] [mm]M18 x 1 / L = 76.4
Thread designationM18 x 1
Materialshousing: stainless steel (316L/1.4404); sensing face: PA; LED window: PEI; lock nuts: stainless steel (316L/1.4404)
Tightening torque[Nm] [Nm]35

Displays / operating elements

Displayoperation
4 x LED, green
switching output
4x LED, yellow
error message
4x LED, red
operation4 x LED, green
switching output4x LED, yellow
error message4x LED, red

Accessories

Items suppliedlock nuts: 2

Remarks

Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Contacts: gold-plated
