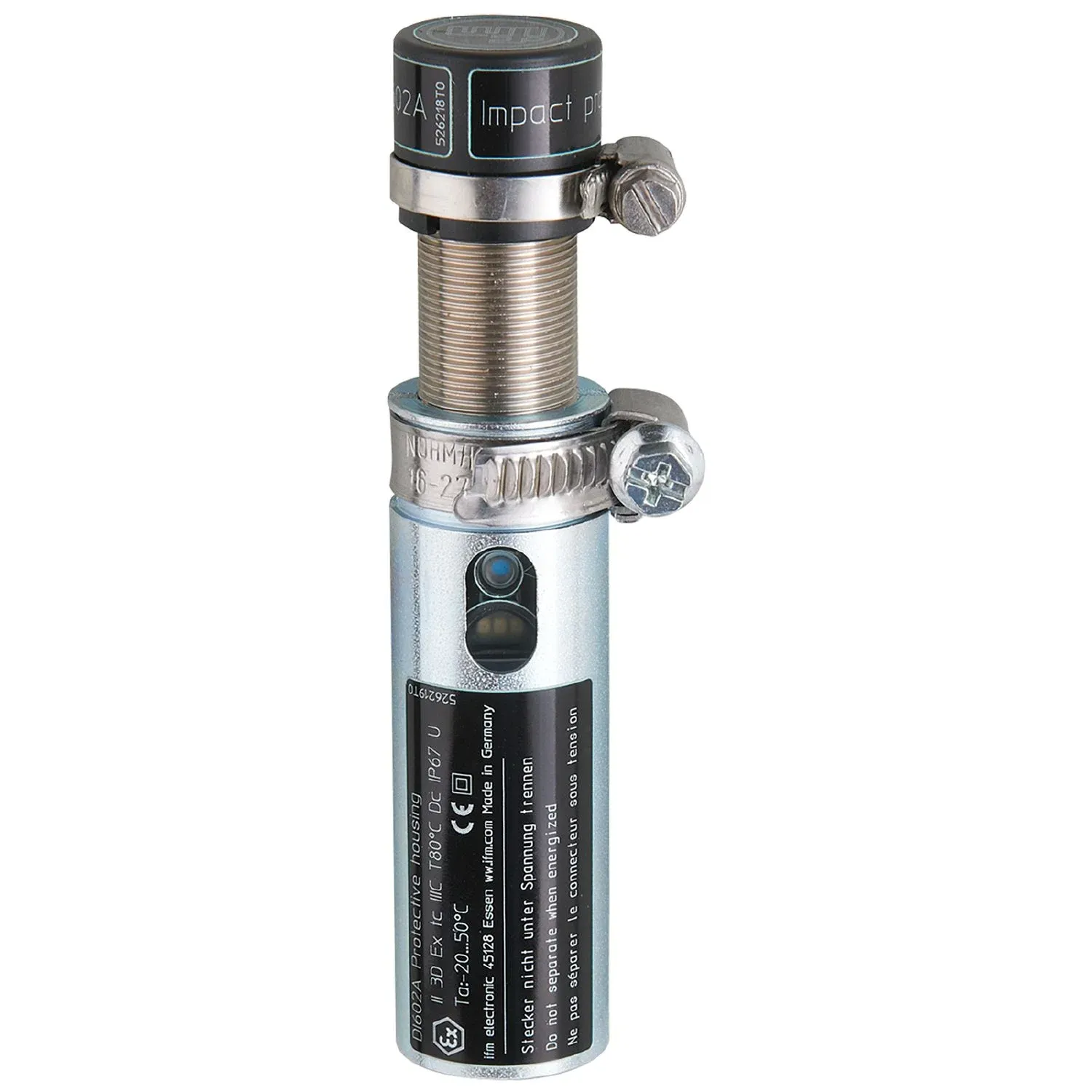

IFM DI602A
DI602A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Reliable non-contact monitoring of the rotational speed with regard to underspeed
2 in 1: speed sensor and evaluation in one compact housing
Easy setting of the switch point via teach button
For direct connection to a PLC
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Sensing range[mm] [mm] | 8 |
| Housing | cylindrical |
| Dimensions[mm] [mm] | M18 x 1 / L = 119 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | evaluation of rotating and linear movements with regard to underspeed; blocking |
Electrical data
| Nominal voltage DC[V] [V] | 10...36 |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 150; (when used outside the hazardous area: 250; Pulse output: 15) |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 8 |
|---|---|
| Sensing range adjustable | no |
| Operating distance[mm] [mm] | 0...6 |
Measuring/setting range
| Setting range[Imp/min] [Imp/min] | 3...6000 |
|---|---|
| Measuring principle | inductive |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 10 |
Response times
| Start-up delay[s] [s] | 0...15 |
|---|---|
| Max. damping frequency[Imp/min] [Imp/min] | 18000 |
Software / programming
| Adjustment of the switch point | Teach function |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...50 |
|---|---|
| Note on ambient temperature | when used outside the hazardous area: -20...60 °C |
| Storage temperature[°C] [°C] | -25...60 |
| Protection | IP 67 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T80°C Dc IP67 U |
|---|---|
| Note on ATEX marking | only in conjunction with the impact protection housing |
| EMC | EN 60947-5-2 |
| MTTF[years] [years] | 1051 |
Mechanical data
| Weight[g] [g] | 177 |
|---|---|
| Housing | cylindrical |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 119 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316Ti/1.4571); PBT; TPE-U |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green input signal 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| input signal | 1 x LED, green |
Accessories
| Items supplied | lock nuts: 2 Impact protection housing Mounting clamps |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
