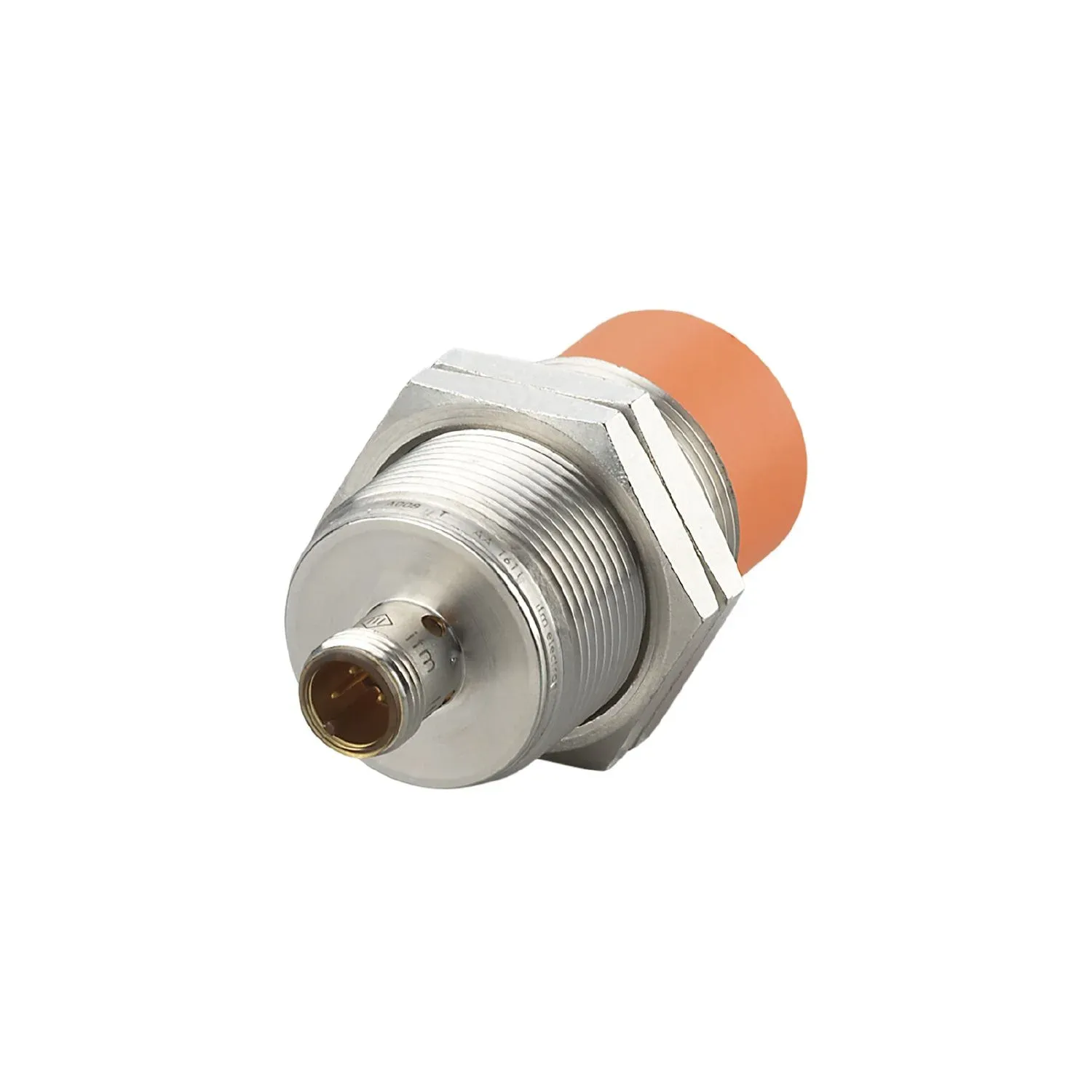

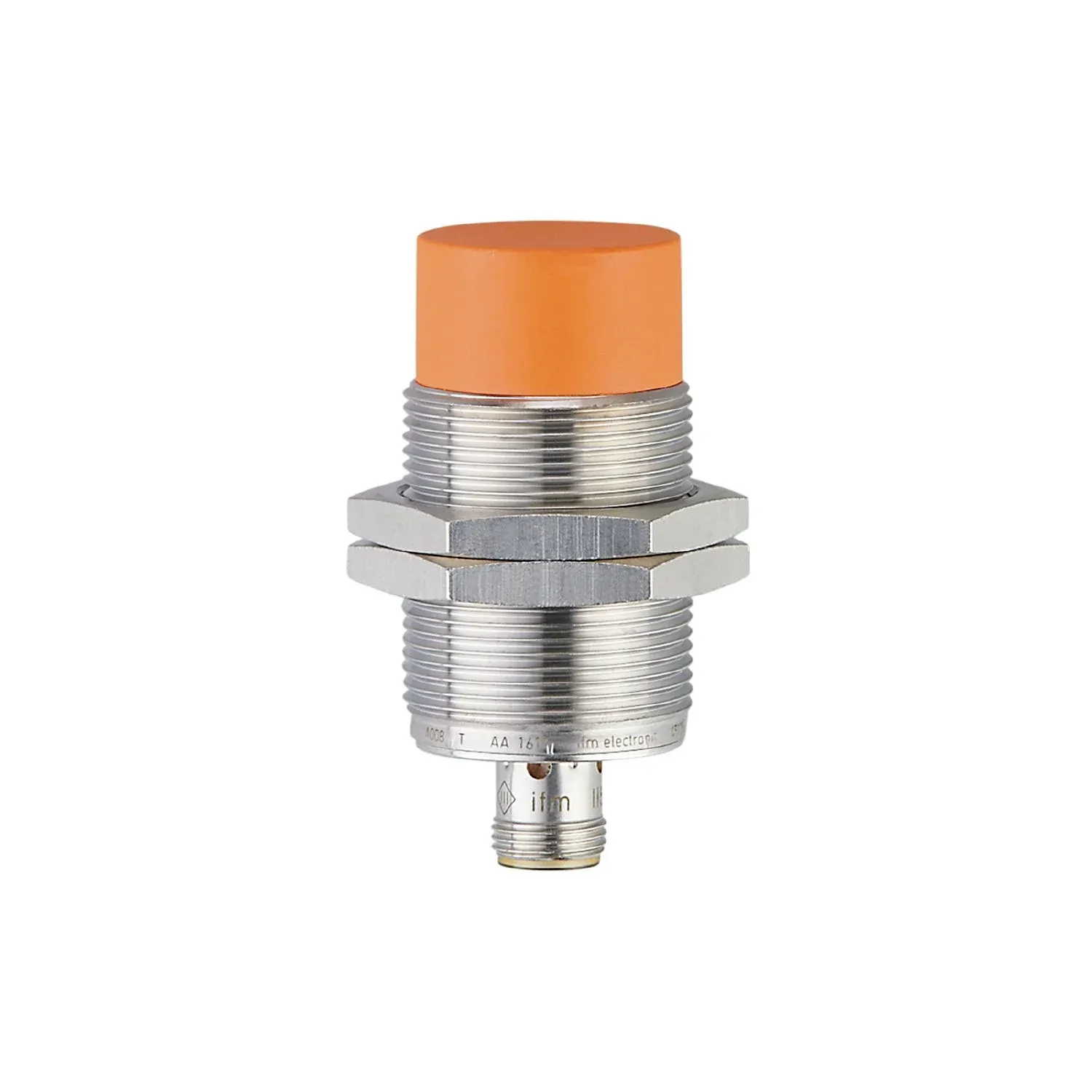

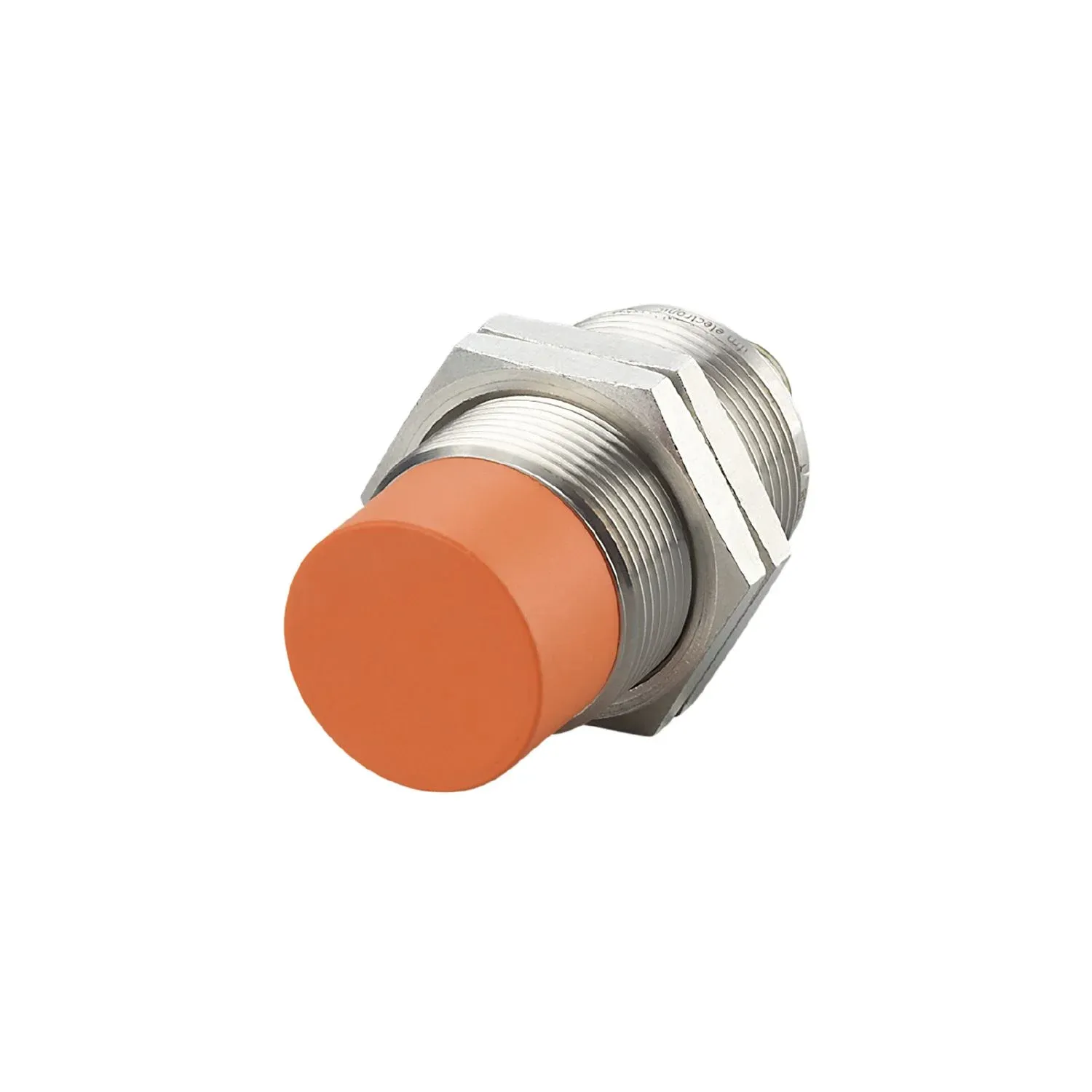

IFM DI5032
DI5032
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable non-contact monitoring of the rotational speed with regard to underspeed
2 in 1: speed sensor and evaluation in one compact housing
With IO-Link for transmission of signals and diagnostic data
Easy parameter setting via IO-Link
Specification
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Sensing range[mm] [mm] | 21 |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 65 |
Application
| Application | simple evaluation of rotating and linear movement with regard to underspeed; blocking |
|---|
Electrical data
| Nominal voltage DC[V] [V] | 10...30 |
|---|---|
| Current consumption[mA] [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 21 |
|---|---|
| Sensing range adjustable | no |
| Operating distance[mm] [mm] | 0...17 |
Measuring/setting range
| Setting range[Imp/min] [Imp/min] | 5...14400 |
|---|---|
| Measuring principle | inductive |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 10 |
Response times
| Start-up delay[s] [s] | 0...30; (In steps of: 100 ms; Default: 15 s) |
|---|---|
| Max. damping frequency[Imp/min] [Imp/min] | 18000 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Multiple switching signal Function Process data variable Function Device diagnosis Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| Min. process cycle time[ms] [ms] | 3.2 |
| Supported DeviceIDs | default 912 |
| default | 912 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Protection | IP 66; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B EN 60947-5-2 |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| Shock resistance | EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| Vibration resistance | DIN EN 60947-5-2 20 g (10...3000 Hz) 50 sweep cycles, 1 octave per minute, in 3 axes |
| DIN EN 60947-5-2 | 20 g (10...3000 Hz) |
| MTTF[years] [years] | 664 |
| UL approval | UL approval no. A008 |
| UL approval no. | A008 |
Mechanical data
| Weight[g] [g] | 113.6 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 65 |
| Thread designation | M30 x 1.5 |
| Materials | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Tightening torque[Nm] [Nm] | 50 |
Displays / operating elements
| Display | SIO mode output stage supplied with current 4 x LED, yellow IO-Link mode target in measuring range 4 x LED, yellow target outside measuring range 4 x LED, yellow flashing |
|---|---|
| output stage supplied with current | 4 x LED, yellow |
| target in measuring range | 4 x LED, yellow |
| target outside measuring range | 4 x LED, yellow flashing |
Accessories
| Items supplied | lock nuts: 2 x M30 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
