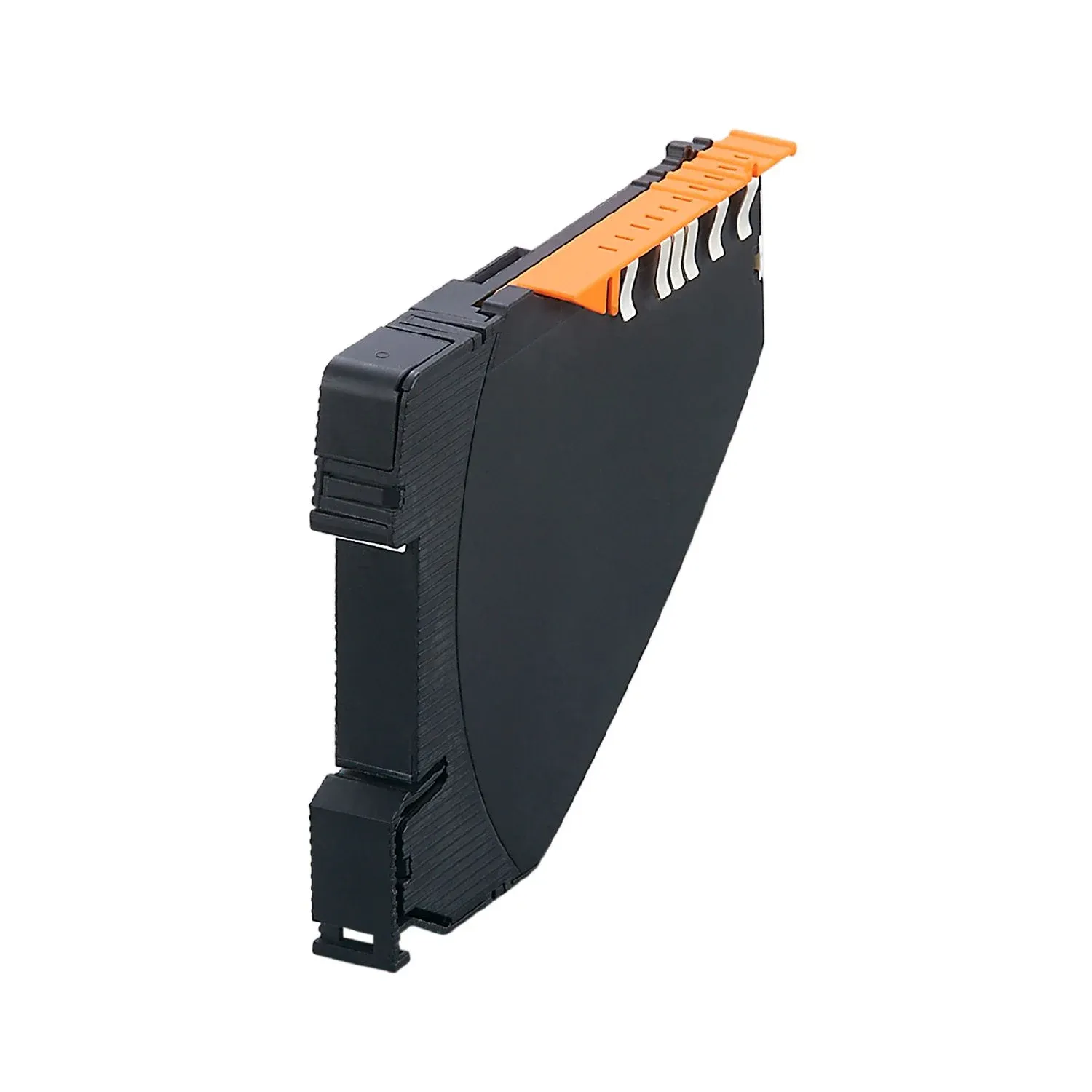

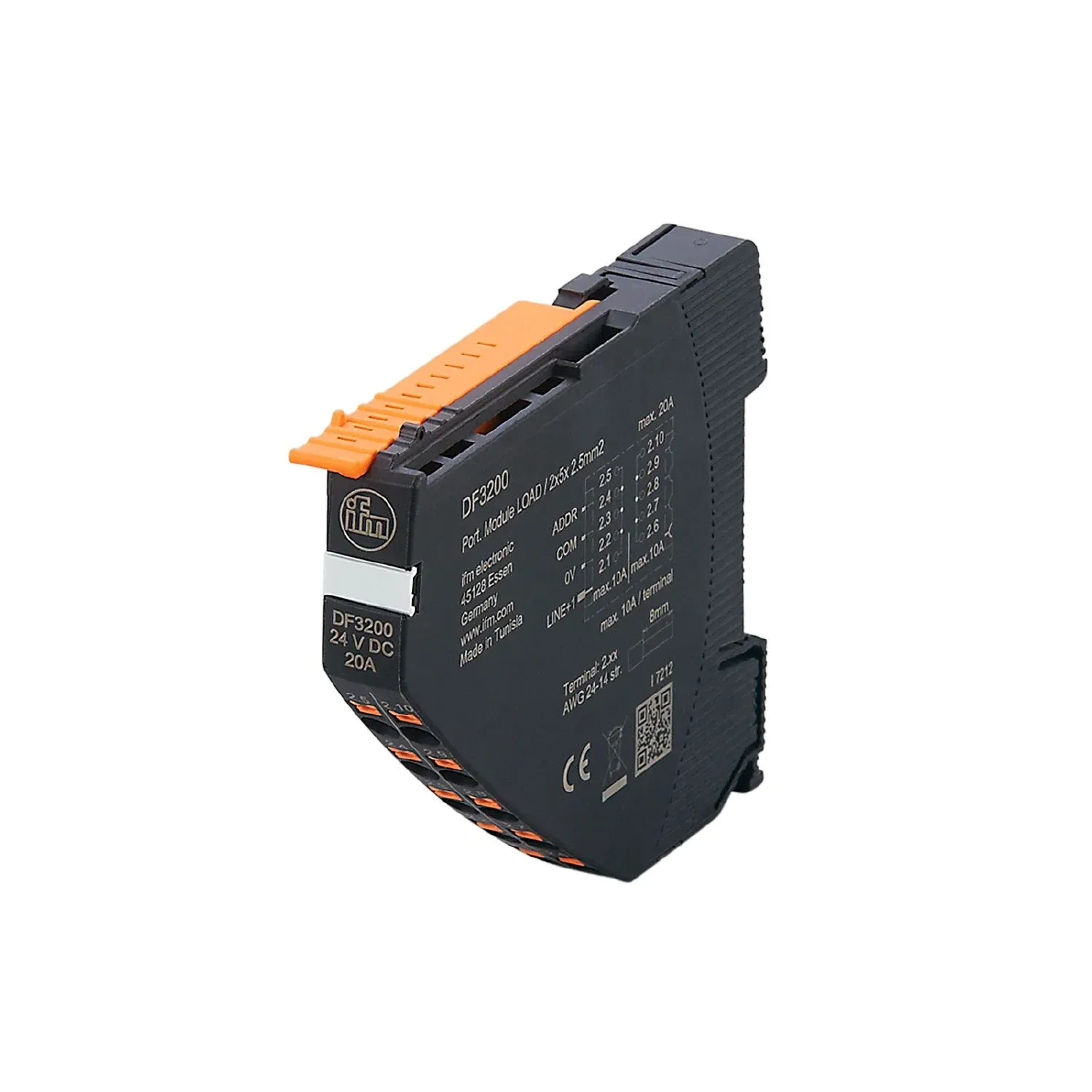

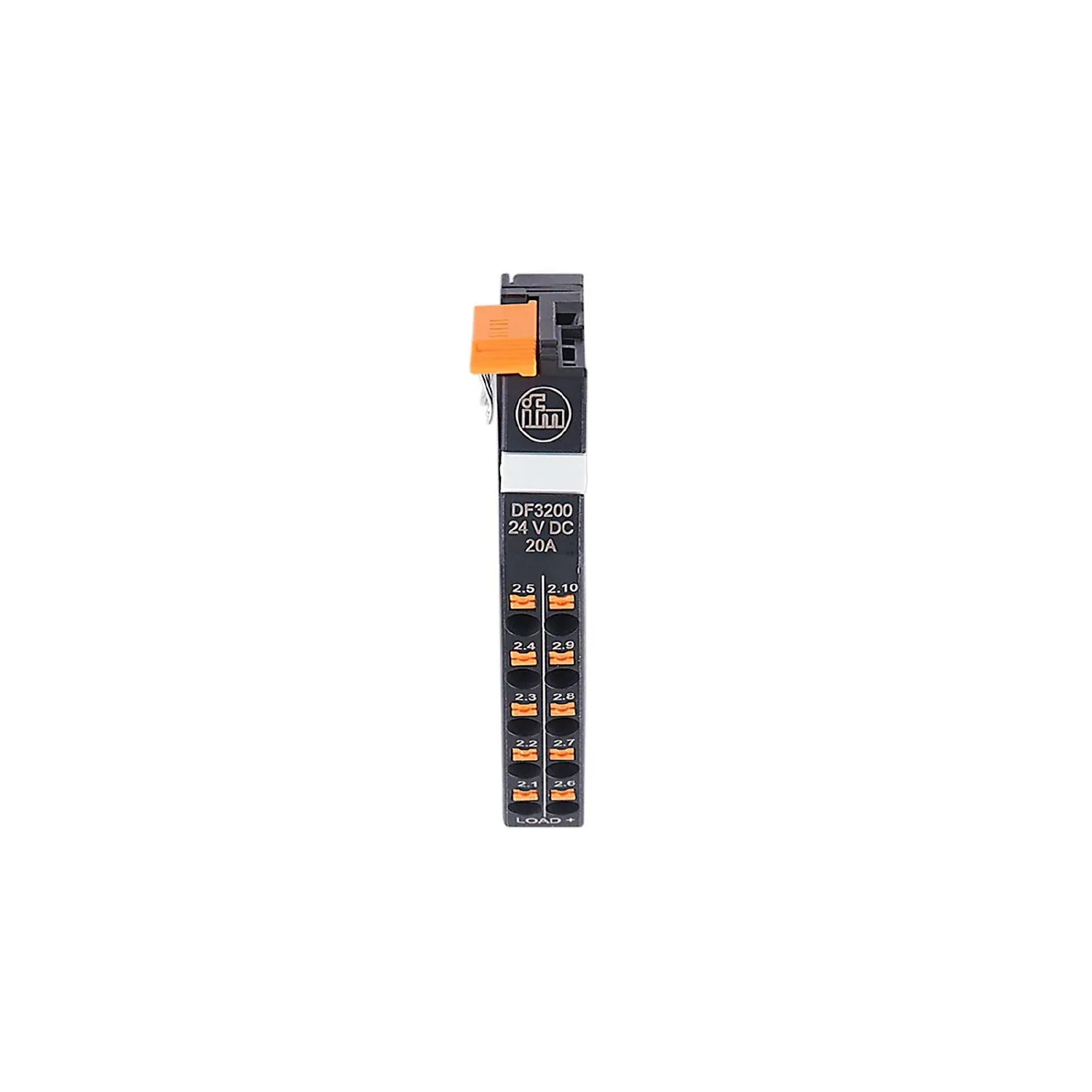

IFM DF3200
DF3200
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Simple side-by-side installation due to flap mechanism
Ideal distribution terminal for the modular fuse system
Particularly space-saving design
Specification
Application
| Design | potential module 2 x 5 x 2,5 mm² |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Protection class | III |
| Max. load current[A] [A] | 20 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...70 |
| Protection | IP 20 |
Tests / approvals
| EMC | EN 61000-6-3 radiation of interference EN 61000-6-2 immunity |
|---|---|
| EN 61000-6-3 | radiation of interference |
| EN 61000-6-2 | immunity |
Mechanical data
| Weight[g] [g] | 64.8 |
|---|---|
| Type of mounting | mounting on DIN rail |
| Installation instruction | string mounting possible |
| Dimensions[mm] [mm] | 80 x 12.5 x 98.5 |
Remarks
| Pack quantity | 1 pcs. |
|---|
