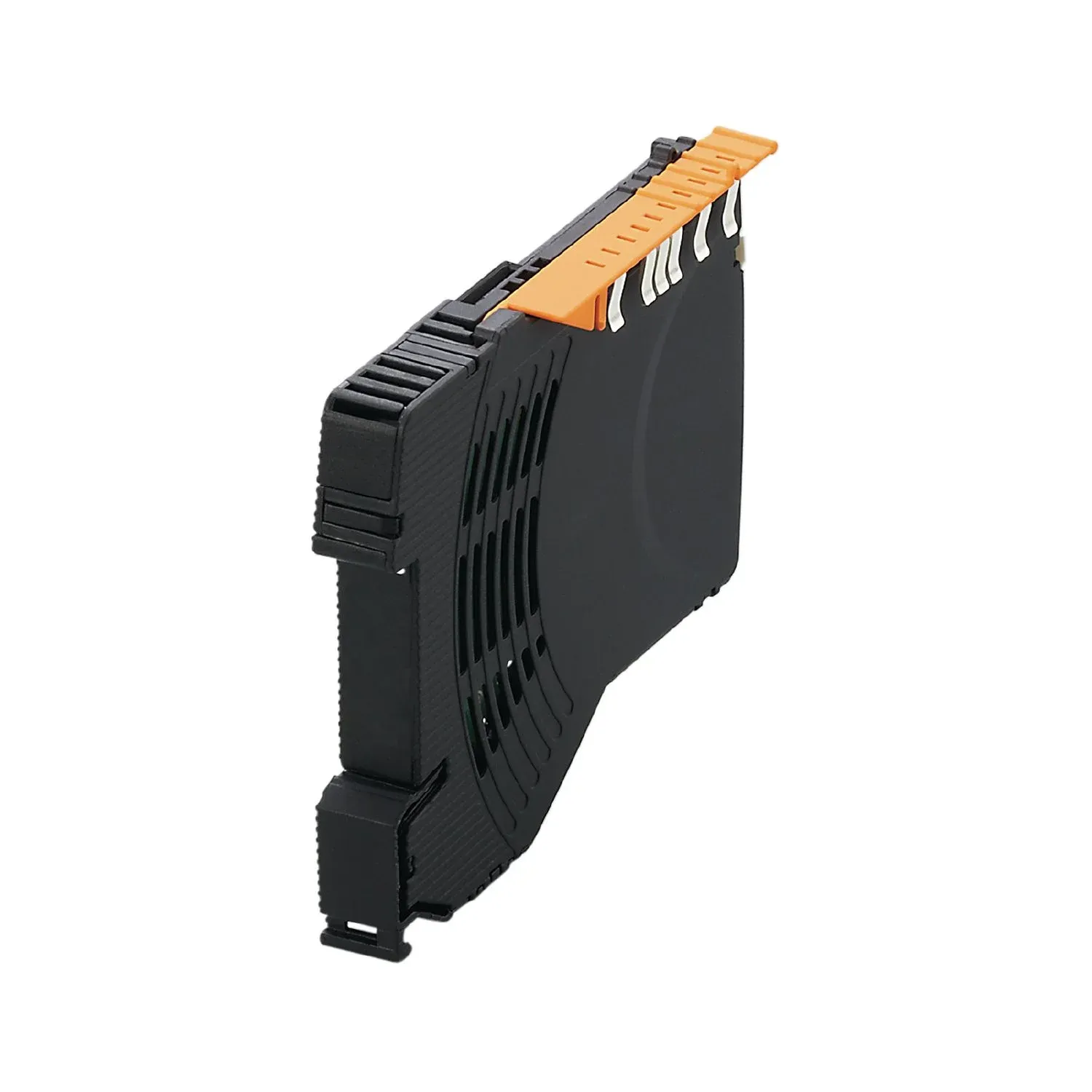

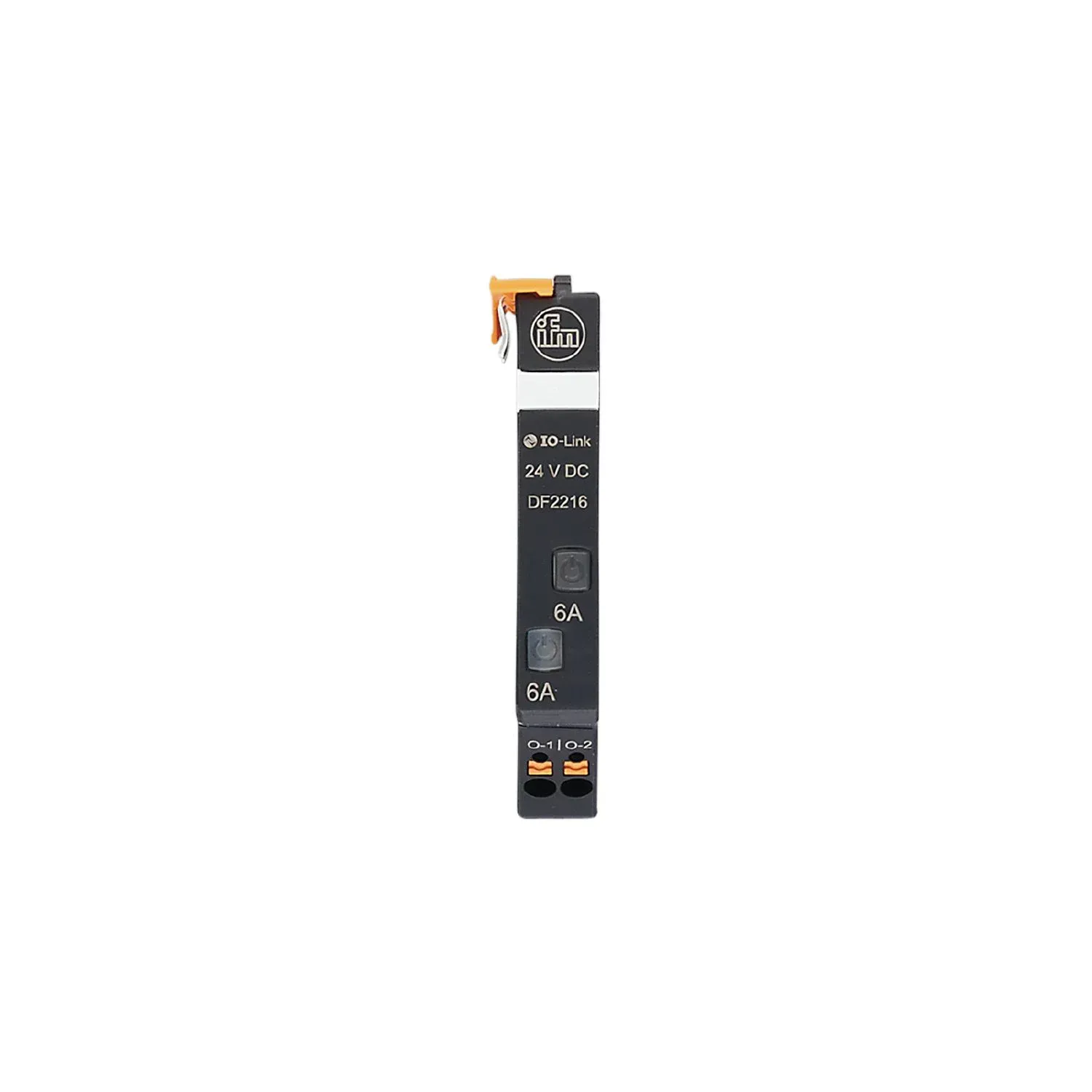

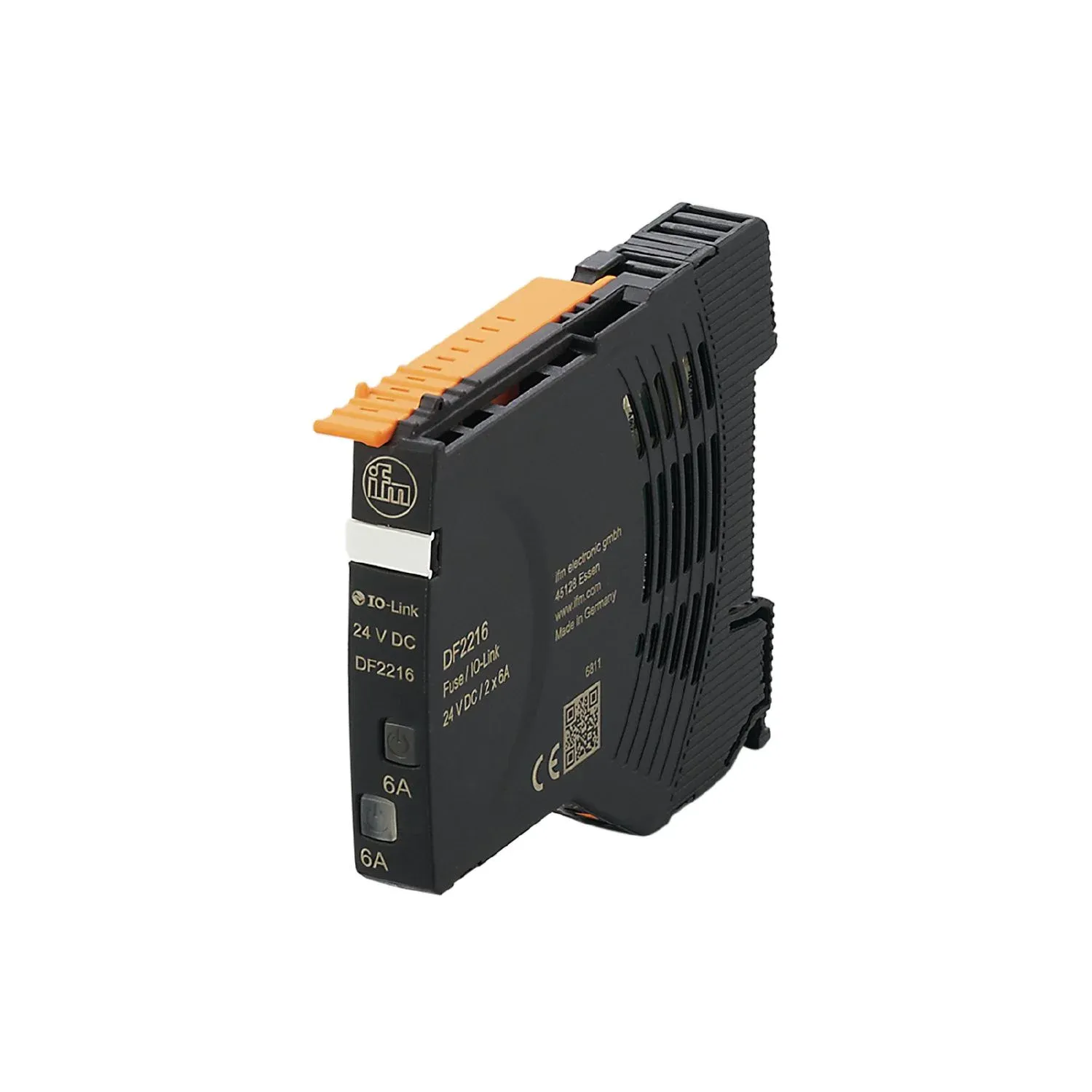

IFM DF2216
DF2216
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the permanent monitoring of the 24 V secondary circuit
Reliable switch-off in case of a fault
Modular and selective protection of machinery and plant
Clearly visible LED for indicating capacity utilisation, tripping and operation
With IO-Link for transmission of signals and diagnostic data
Specification
Application
| Design | housing for DIN rail mounting |
|---|
Electrical data
| Operating voltage[V] [V] | to SELV/PELV |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Input voltage DC[V] [V] | 19.2...30 |
| Protection class | III |
| Mains buffering time (nominal voltage 24 V DC)[ms] [ms] | 10 |
| Closed-circuit current[mA] [mA] | 8 |
| Power loss (nominal voltage 24 V DC)[W] [W] | 1.26 |
| Number of channels | 2 |
| Nominal current[A] [A] | 6 |
| Nominal current (Fail Safe Element)[A] [A] | 6 |
Outputs
| Load capacitance, total[mF] [mF] | 20 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...70 |
| Protection | IP 20; (on the front) |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-3 radiation of interference EN 61000-6-2 immunity |
|---|---|
| EN 61000-6-3 | radiation of interference |
| EN 61000-6-2 | immunity |
Mechanical data
| Weight[g] [g] | 73 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 80 x 12.5 x 98.5 |
Displays / operating elements
| Display | status 2 x LED, red / green / orange |
|---|---|
| status | 2 x LED, red / green / orange |
| Operating elements | 2 x pushbutton |
| 2 x | pushbutton |
Remarks
| Pack quantity | 1 pcs. |
|---|
