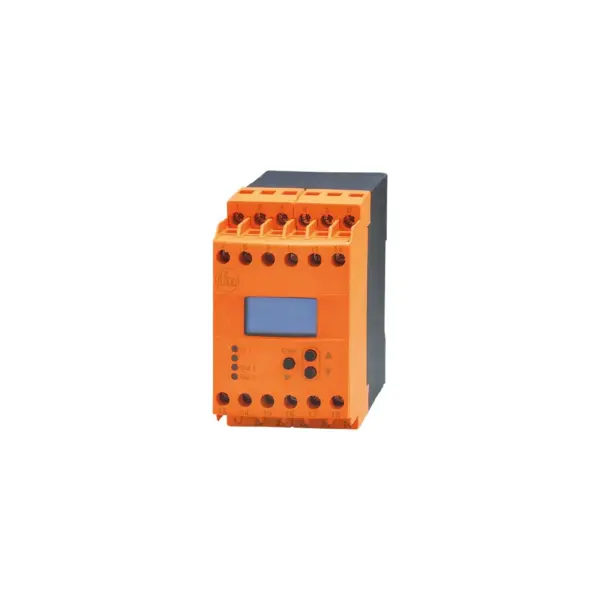

IFM DD2510
DD2510
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For detecting frequency, speed and rotational speed
Reliable monitoring of overspeed or underspeed
Easy setting of the switch points via programming buttons
Clearly readable, luminous OLED display for programming and actual value indication
With relay and transistor switching outputs and additional analogue output
Specification
Product characteristics
| Housing | rectangular |
|---|---|
| Dimensions[mm] [mm] | 78 x 45 x 124.7 |
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | pulse evaluation system with microprocessor for frequency; rotational speed; speed; pulses and machine cycles |
Electrical data
| Nominal voltage AC[V] [V] | < 230 |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Nominal voltage tolerance[%] [%] | 10 |
| Nominal voltage tolerance 2[%] [%] | 10 |
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Power consumption[W] [W] | 3 |
| Auxiliary energy for sensors DC[V] [V] | 19.6...27.7; (SELV, ≤ 15 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1; Number of relay outputs: 2 |
|---|
Outputs
| Number of relay outputs | 2 |
|---|---|
| Contact rating | 4 A (240 V AC); 6 A (30 V DC); (ohmic resistance) |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 500 |
Measuring/setting range
| Setting range Hz[Hz] [Hz] | 0.1...1000 |
|---|---|
| Setting range[Imp/min] [Imp/min] | 1...60000 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 80; (40 °C: 50 %) |
| Protection | IP 50 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61010 2011 EMV 89/336/EWG EN 61000-6-2 2005 EN 61000-6-4 2007 |
|---|---|
| EN 61010 | 2011 |
| EN 61000-6-2 | 2005 |
| EN 61000-6-4 | 2007 |
Mechanical data
| Weight[g] [g] | 380 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 78 x 45 x 124.7 |
| Materials | housing: plastics |
Displays / operating elements
| Display | OLED display, 128 x 64 pixels luminous switching status LED, green |
|---|---|
| switching status | LED, green |
Remarks
| Remarks | the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| dual-chamber terminals | 2 x ...2.5 mm² |
|---|
