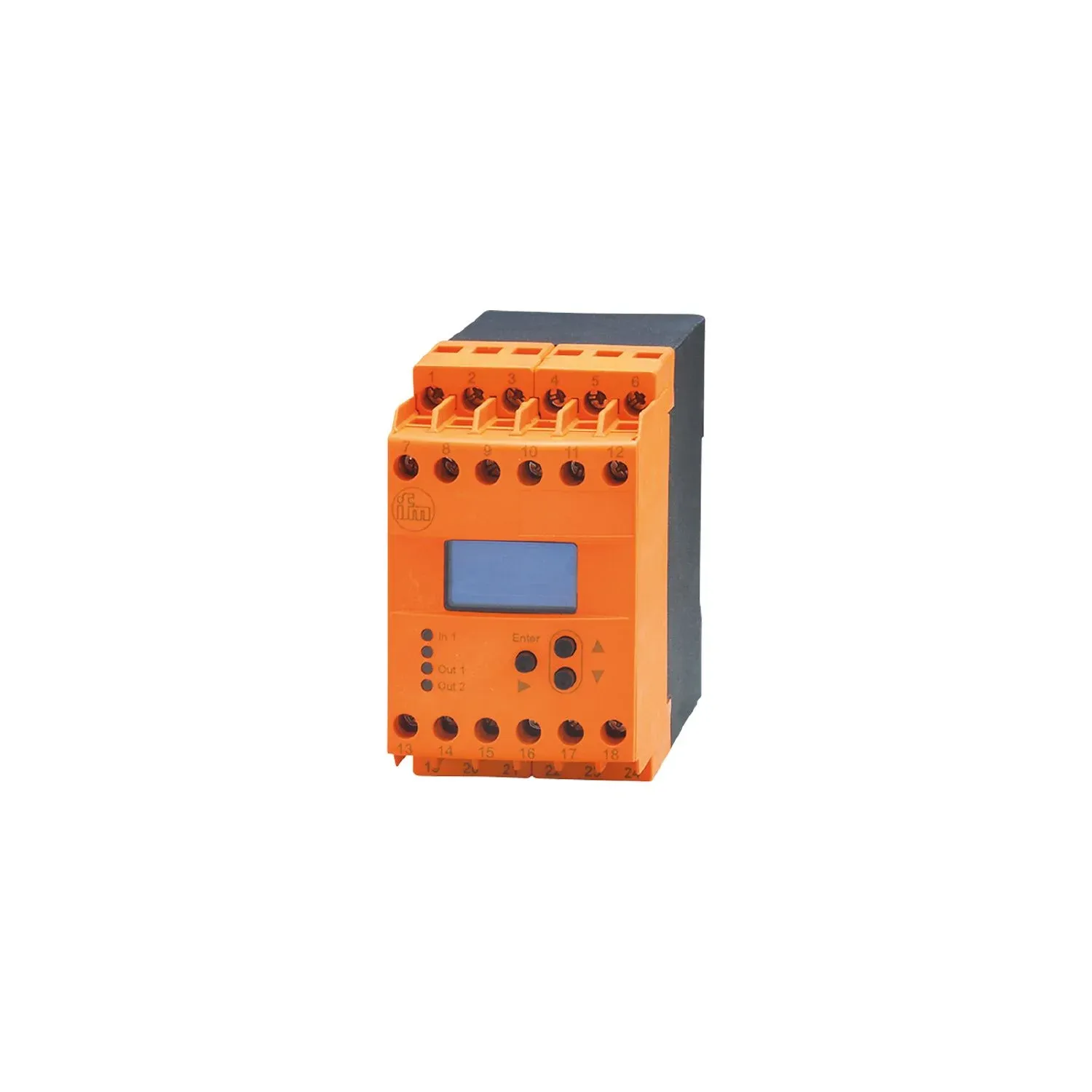

IFM DD2505
DD2505
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For detecting frequency, speed and rotational speed
Monitoring of two input channels with one separate output relay each
Easy setting of the switch points via programming buttons
Clearly readable, luminous OLED display for programming and actual value indication
High input frequency of up to 60,000 pulses / minute
Specification
Product characteristics
| Housing | rectangular |
|---|---|
| Dimensions[mm] [mm] | 78 x 45 x 124.7 |
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | pulse evaluation system with microprocessor for frequency; rotational speed; speed; pulses and machine cycles |
Electrical data
| Nominal voltage AC[V] [V] | 110...240 |
|---|---|
| Nominal voltage DC[V] [V] | 27 |
| Nominal voltage tolerance[%] [%] | < 10 |
| Nominal voltage tolerance 2[%] [%] | 20...10 |
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Power consumption[W] [W] | 3 |
| Auxiliary energy for sensors DC[V] [V] | 19.6...27.7; (SELV, ≤ 150 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of relay outputs: 2 |
|---|
Outputs
| Number of digital outputs | 2 |
|---|---|
| Number of relay outputs | 2 |
| Contact rating | 6 A (250 V AC, 30 V DC); B300, R300; (ohmic resistance) |
Measuring/setting range
| Setting range Hz[Hz] [Hz] | 0.1...1000 |
|---|---|
| Setting range[Imp/min] [Imp/min] | 1...60000 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 80; (40 °C: 50 %) |
| Protection | IP 50 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61010 2011 EMV 89/336/EWG EN 61000-6-2 2005 EN 61000-6-4 2007 |
|---|---|
| EN 61010 | 2011 |
| EN 61000-6-2 | 2005 |
| EN 61000-6-4 | 2007 |
Mechanical data
| Weight[g] [g] | 381 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 78 x 45 x 124.7 |
| Materials | housing: plastics |
Displays / operating elements
| Display | OLED display, 128 x 64 pixels luminous switching status LED, green |
|---|---|
| switching status | LED, green |
Remarks
| Remarks | the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| dual-chamber terminals | 2 x ...2.5 mm²; AWG 14 |
|---|
