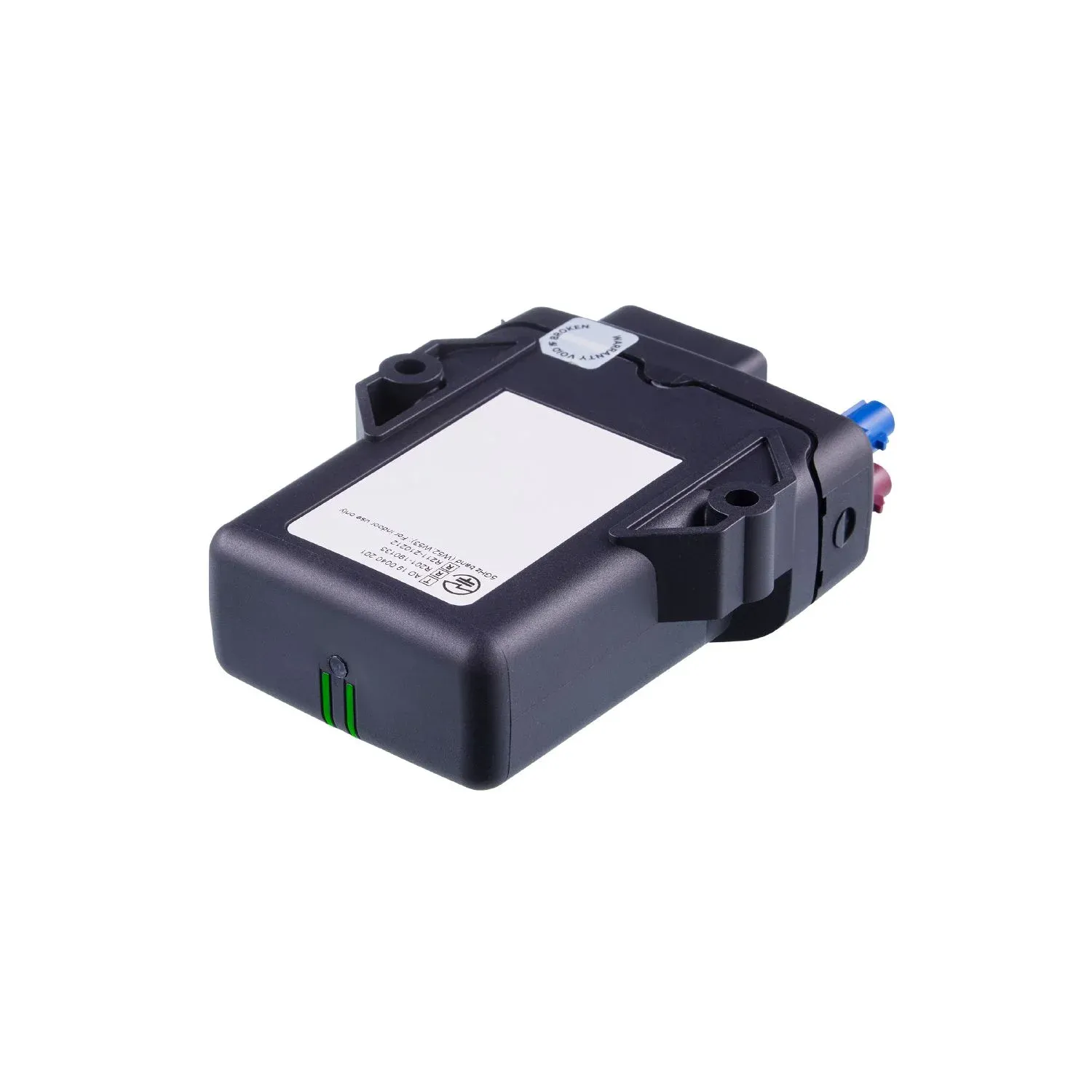

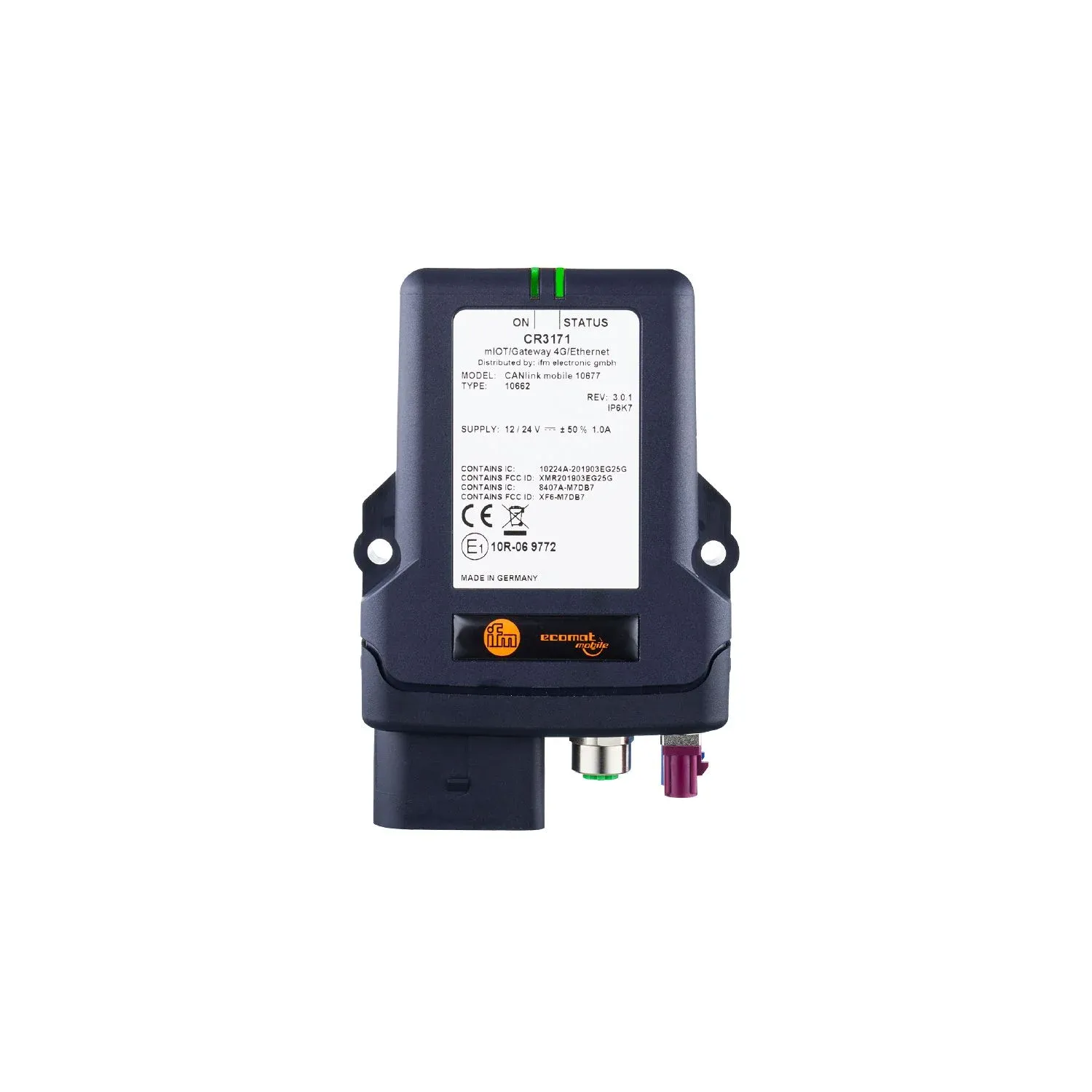

IFM CR3171
CR3171
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
mobile IoT gateway with 4G / LTE mobile network connection
Global transmission of machine and position data to the cloud
Safe TLS end-to-end communication
Buffering of data even with unstable radio connections
Live connection for diagnostics / debugging and software updates
Specification
Application
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|---|
Electrical data
| Operating voltage[V] [V] | 6...36 DC |
|---|---|
| Nominal voltage DC[V] [V] | 12 / 24 |
| Nominal voltage tolerance[%] [%] | 50 |
| Current consumption[mA] [mA] | < 290; (24 V; sleep mode: <= 1 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 4; Number of digital outputs: 1 |
|---|
Inputs
| Number of analogue inputs | 4 |
|---|---|
| Analogue input (voltage)[V] [V] | 0...15 |
| Resolution of analogue input | 12 Bit |
Outputs
| Number of digital outputs | 1 |
|---|---|
| Voltage range DC[V] [V] | 6...36 |
| Permanent current rating of switching output DC[mA] [mA] | 500 |
Measuring/setting range
| Resolution | 16 bit |
|---|---|
| Number of measurement axes | 3 |
| Measuring range acceleration[g] [g] | ± 16 |
| Measuring range vehicle yaw rate[°/s] [°/s] | ± 250 |
Interfaces
| Communication interface | Bluetooth; GNSS; Mobile networks; WLAN |
|---|---|
| Transmission standard | IEEE 802.11 a/b/g/n |
| Frequency band | 2,412 ... 2,472 GHz; 5,150 ... 5,350 GHz; 5,470 ... 5,725 GHz; 5,725 ... 5,785 GHz |
| Transmission power[mW] [mW] | 72.11; (2,412 ... 2,472 GHz; 91,62 mW: 5,150 ... 5,350 GHz; 58,08 mW: 5,470 ... 5,725 GHz; 24,43 mW: 5,725 ... 5,785 GHz; Antenna integrated) |
| Note on interfaces | eSIM |
Operating conditions
| Ambient temperature[°C] [°C] | -40...75 |
|---|---|
| Protection | IP 6K7; (with mounted connectors or protective caps) |
Tests / approvals
| EMC | EN 301489-1 EN 301489-17 EN 301489-19 EN 301489-52 EN IEC 61000-6-2 EN ISO 13766-1 EN 62311 |
|---|---|
| Radio approval | EN 301511, EN 300440, EN 301908-1, EN 301908-2, EN 301908-13, EN 300328, EN 303413 |
| Standard | EN 62368-1; EN 301893; EN IEC 63000 |
Mechanical data
| Weight[g] [g] | 266.3 |
|---|---|
| Materials | housing: PA black |
Displays / operating elements
| Display | status 2 x LED, multi-colour |
|---|---|
| status | 2 x LED, multi-colour |
Hardware
| Processor | Dual Core ARM Cortex A7 (650 MHz) |
|---|---|
| RAM | DDR3 RAM: 512 MB FRAM: 32 KB |
| Mass storage | 2,5 GByte Flash |
Data memories
| Real-time clock | yes; UTC, battery buffered |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|

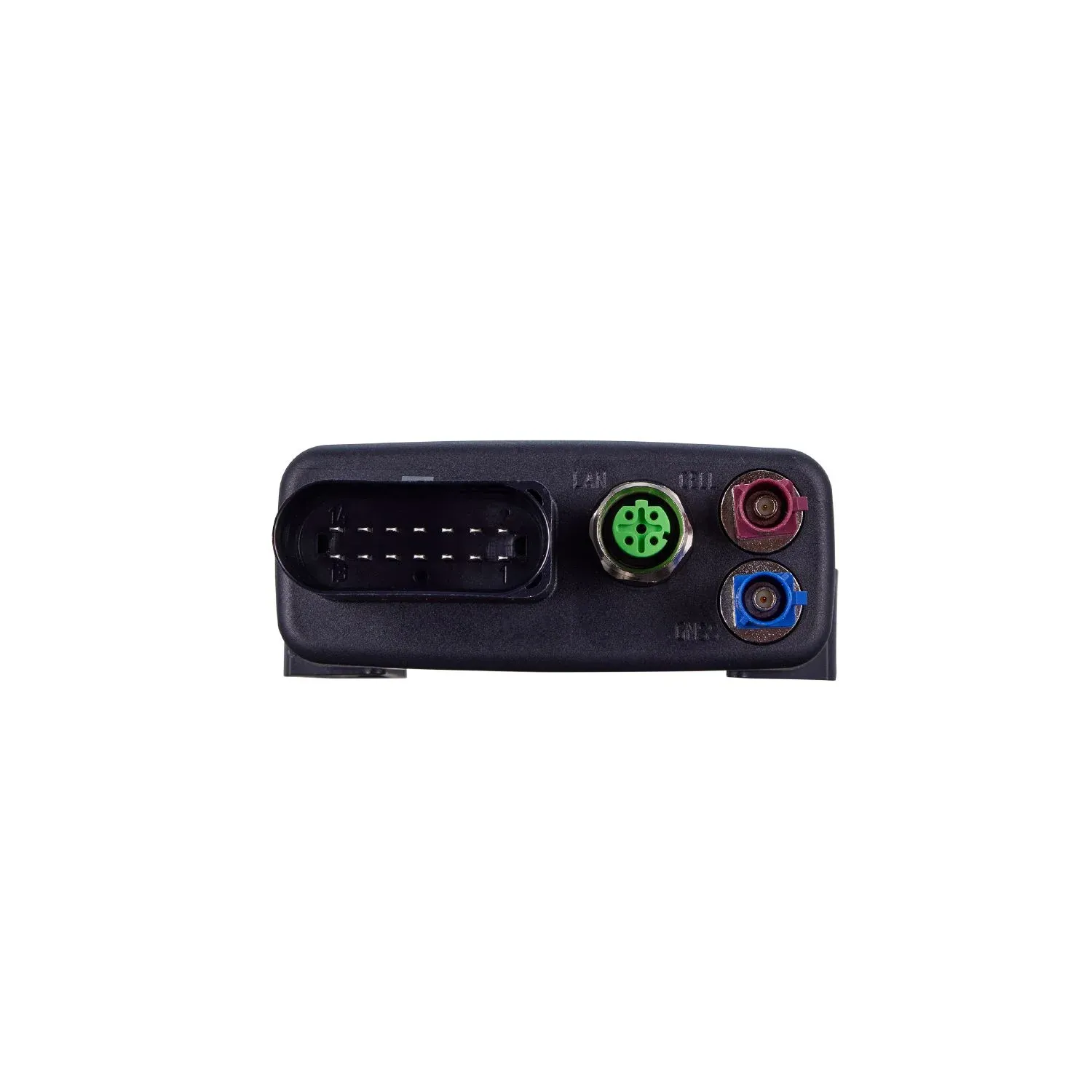

Electrical connection - plug
| Connector | Micro Timer II |
|---|
Electrical connection - socket
| Connector | M12; coding: D |
|---|
Electrical connection - GNSS
| Connector | FAKRA C; Moulded body: blue |
|---|
Electrical connection - Mobile networks
| Connector | FAKRA D; Moulded body: claret violet |
|---|
