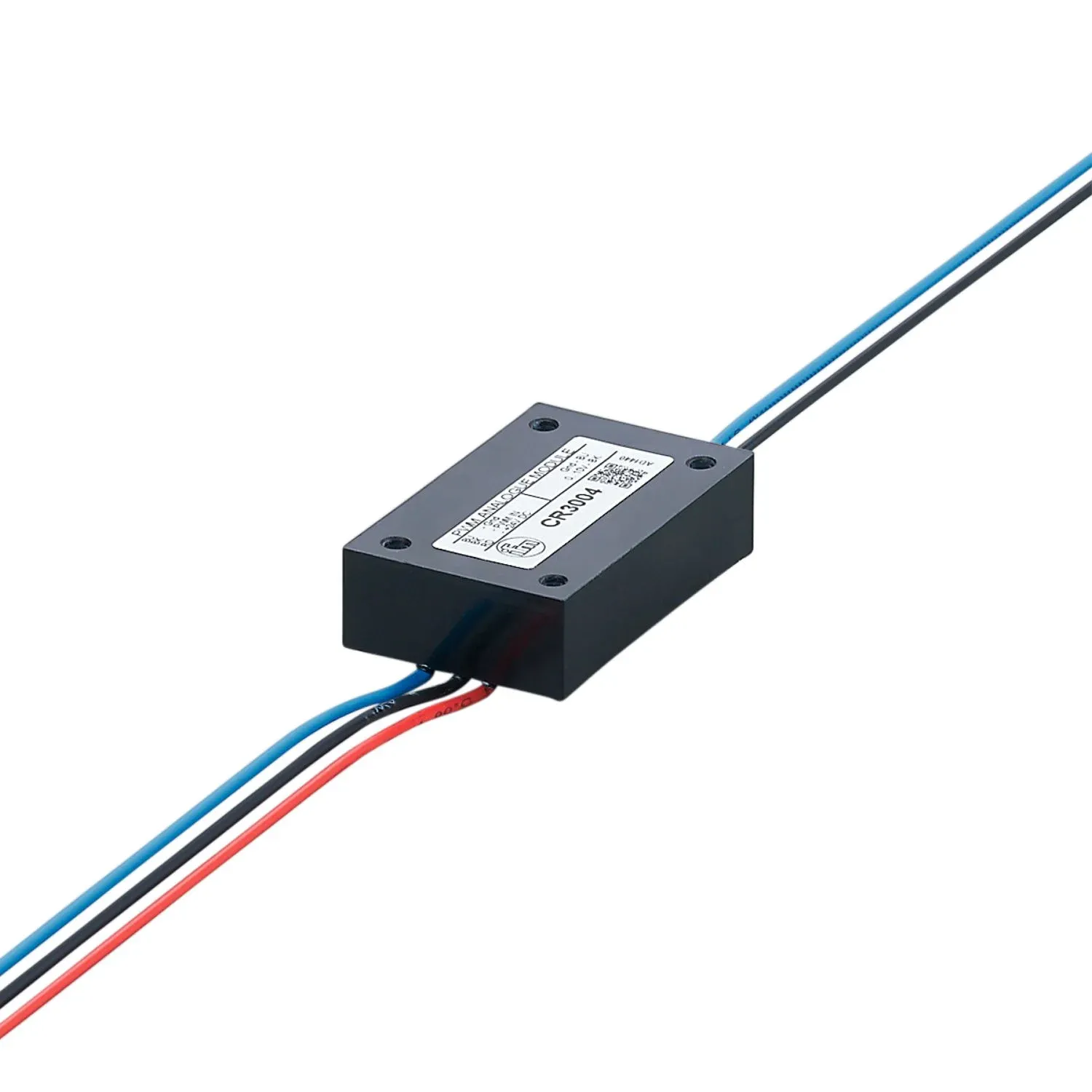

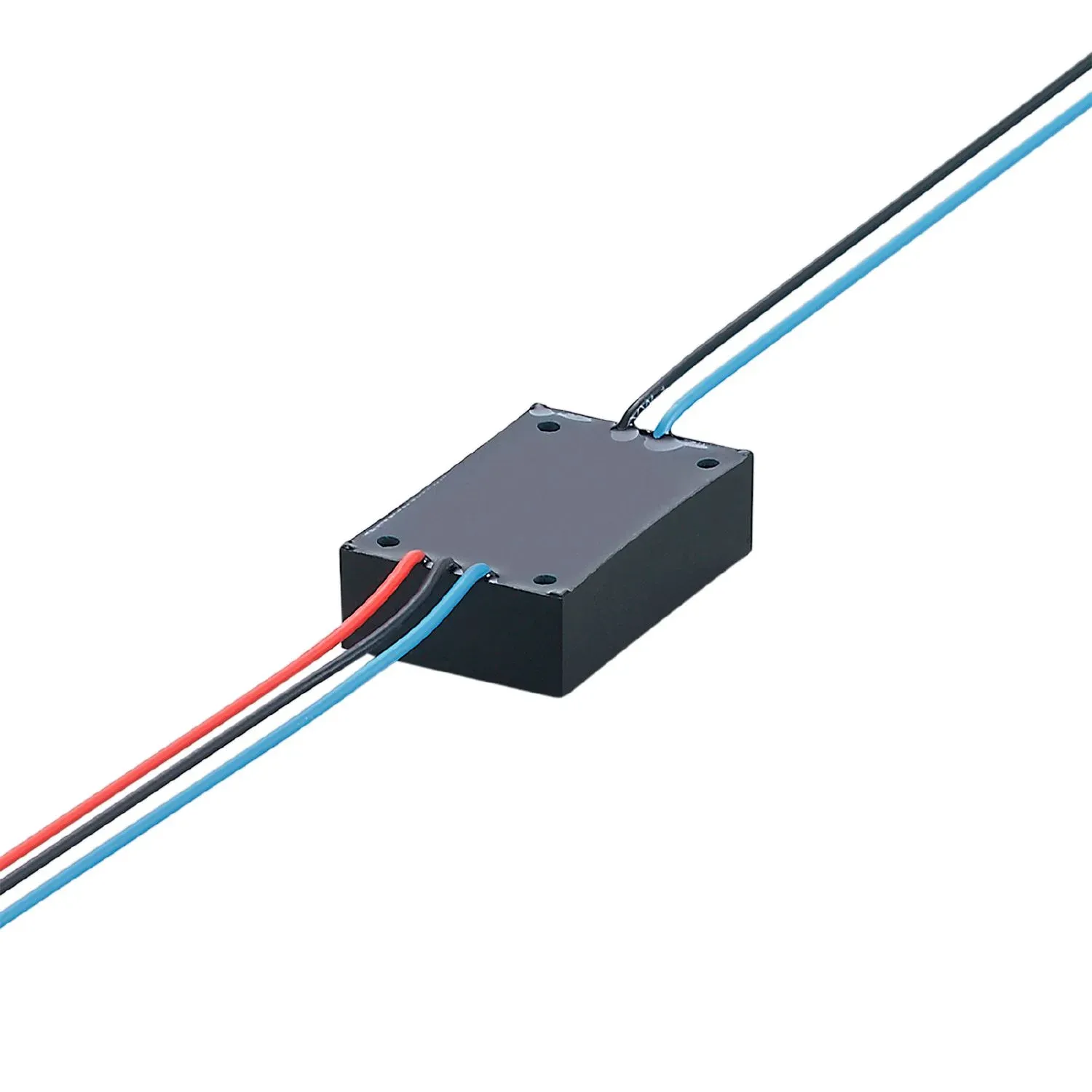

IFM CR3004
CR3004
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Conversion of a PWM signal into an analogue output signal
Precise linearised voltage output
Simple connection via strands with wire end ferrules
For mobile vehicles
Wide operating temperature range
Specification
Application
| Design | housing module |
|---|
Electrical data
| Operating voltage[V] [V] | 24...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Inputs
| Number of PWM inputs | 1 |
|---|---|
| PWM frequency inputs[Hz] [Hz] | 122 |
Outputs
| Number of analogue outputs | 1 |
|---|---|
| Analogue voltage output[V] [V] | 0...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Note on ambient temperature | wires flexed -5...105 °C wires at rest -30...105 °C |
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 70.5 |
|---|---|
| Dimensions[mm] [mm] | 54 x 34 x 15 |
| Materials | polyamide glass fibre reinforced |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.28 m; / Core ends with wire end sleeves |
|---|
