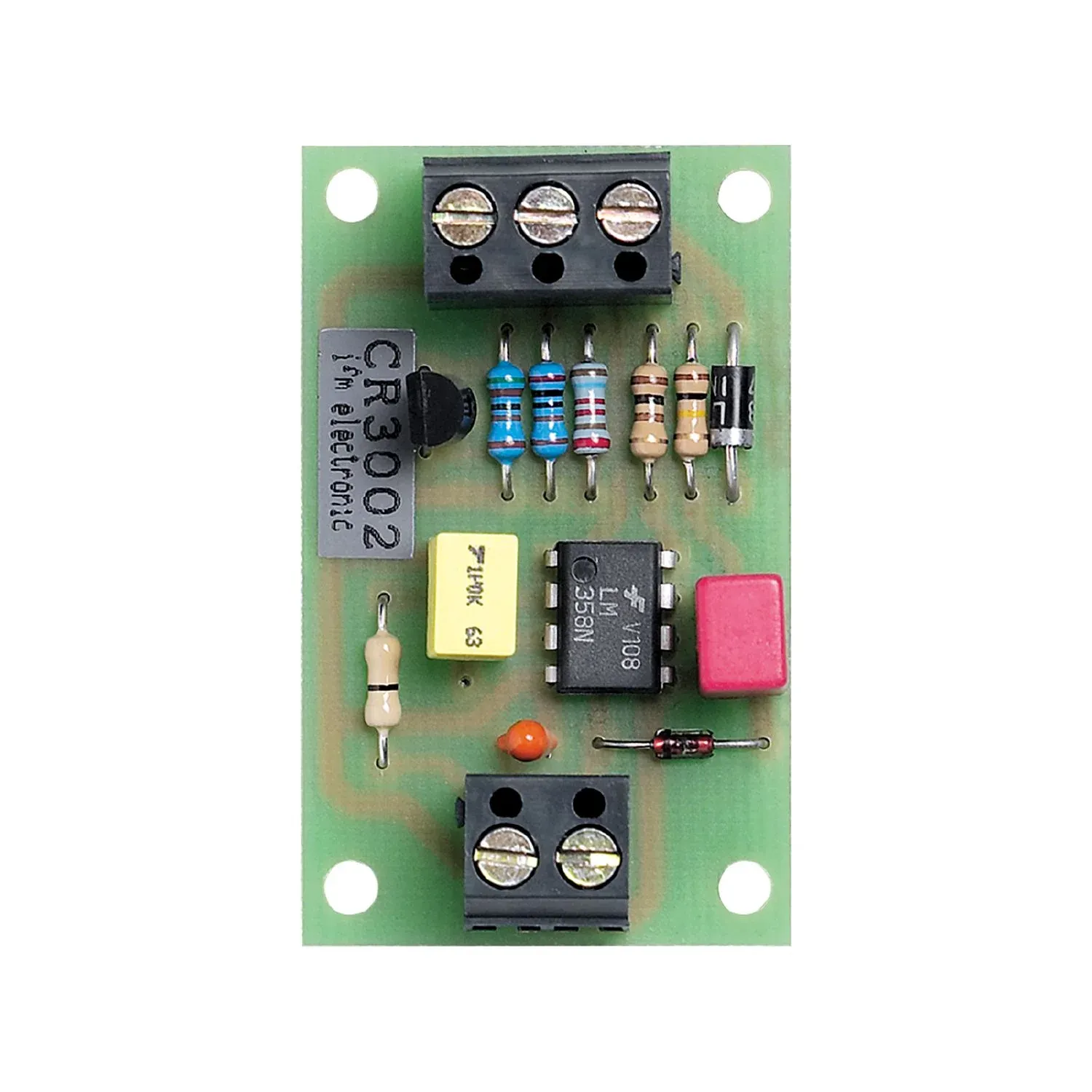

IFM CR3002
CR3002
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Conversion of a PWM signal into an analogue output signal
Precise linearised voltage output
Simple connection via screw terminals
For mobile vehicles
Wide operating temperature range
Specification
Application
| Design | PCB module |
|---|
Electrical data
| Operating voltage[V] [V] | 24...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Inputs
| Number of PWM inputs | 1 |
|---|---|
| PWM frequency inputs[Hz] [Hz] | 122; (24 V DC PWM signal) |
Outputs
| Number of analogue outputs | 1 |
|---|---|
| Analogue voltage output[V] [V] | 0...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|
Mechanical data
| Weight[g] [g] | 37 |
|---|---|
| Dimensions[mm] [mm] | 49 x 30 x 15 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals | 2.5 mm² |
|---|
