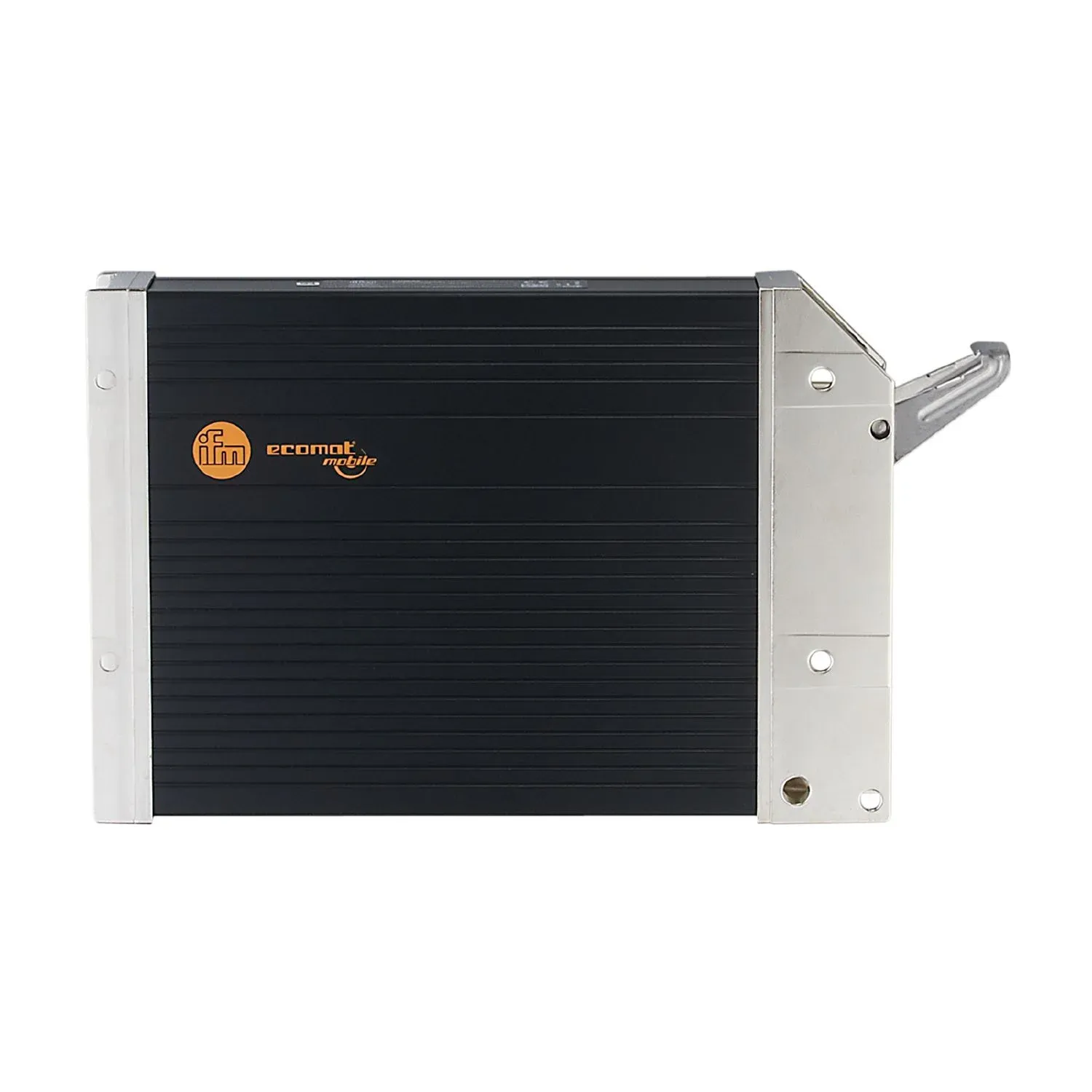

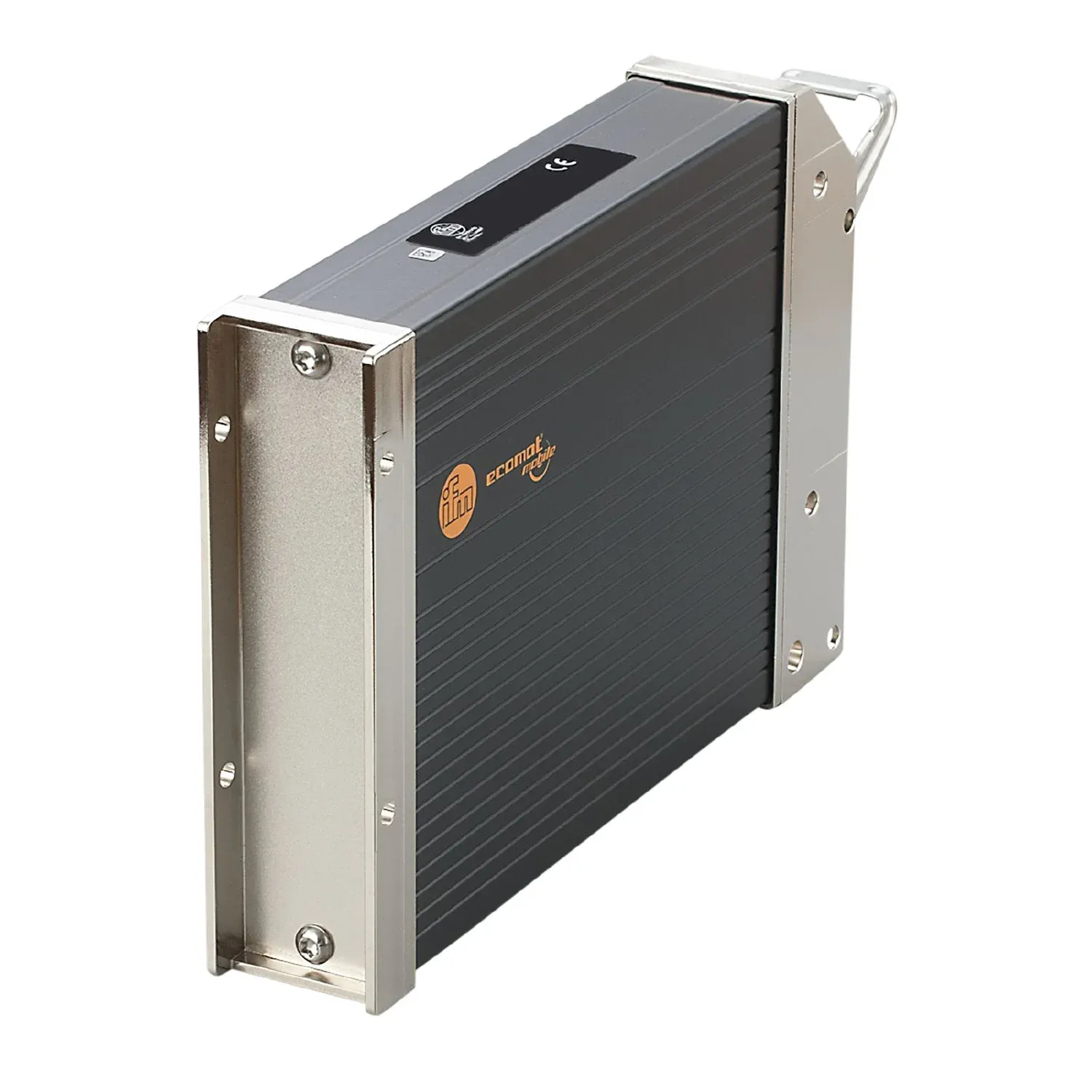

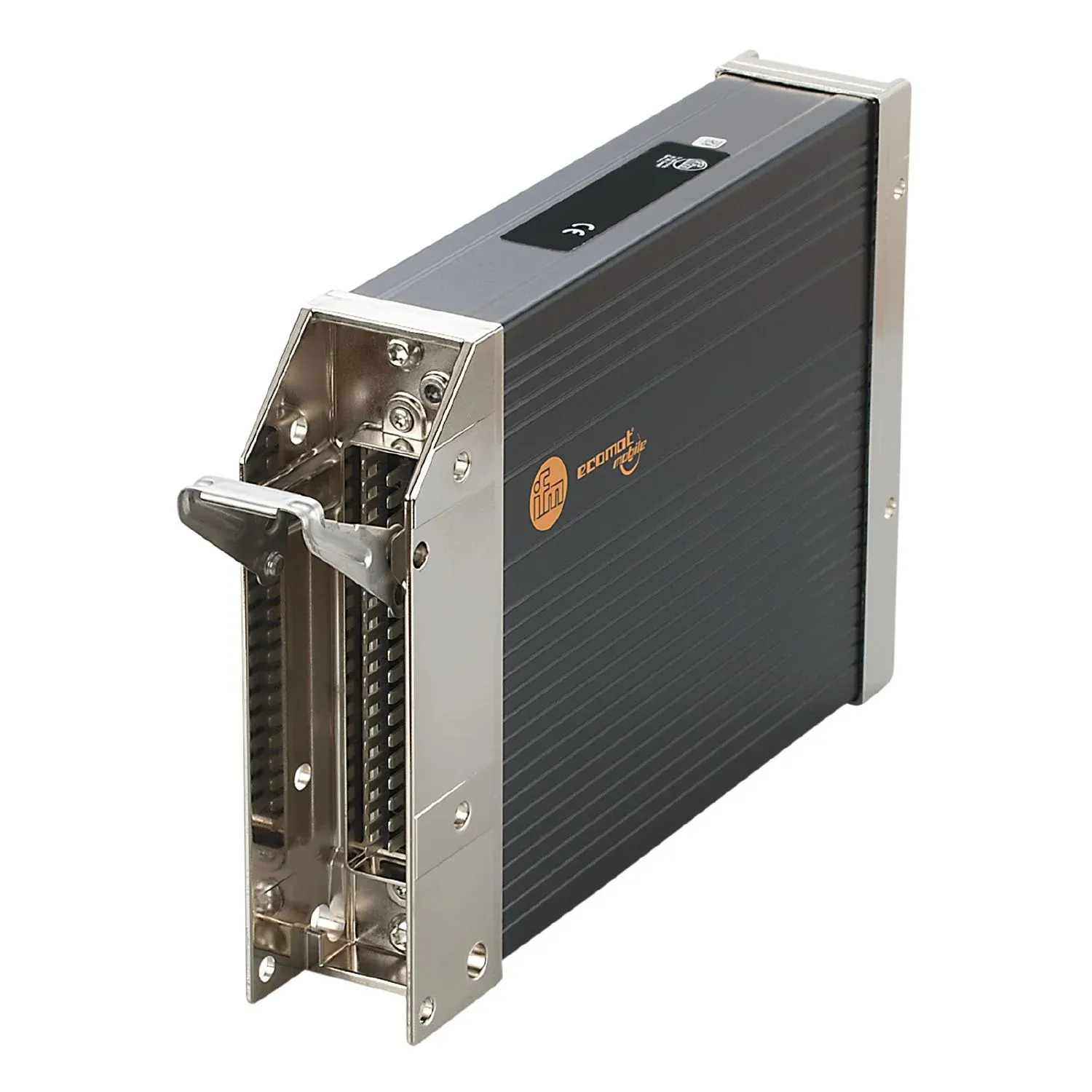

IFM CR2520
CR2520
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power outputs with parameterisable H-bridges
Decentralised connection of sensors and actuators
With many multifunctional configurable input and output channels
High-performance CAN interface for various communication tasks
High protection rating for the requirements of mobile machines
Specification
Electrical data
| Operating voltage[V] [V] | 10...32 DC |
|---|
Inputs / outputs
| Total number of inputs and outputs | 30 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 15; Number of analogue inputs: 4; Number of digital outputs: 15; Number of outputs with H-bridge: 4 |
Inputs
| Number of digital inputs | 15 |
|---|---|
| Number of analogue inputs | 4 |
| Analogue input (current)[mA] [mA] | 0...20 |
| Analogue input (voltage)[V] [V] | 0...32 |
Outputs
| Number of digital outputs | 15 |
|---|---|
| Number of PWM outputs | 3 |
| Number of outputs with H-bridge | 4 |
| Number of high-current outputs | 4 |
Software / programming
| Parameter setting options | input/output functions |
|---|
Interfaces
| Number of CAN interfaces | 1 |
|---|
Tests / approvals
| MTTF[years] [years] | 66 |
|---|
Mechanical data
| Weight[g] [g] | 1463 |
|---|---|
| Housing | rectangular |
| Type of mounting | screw mounting |
| Dimensions[mm] [mm] | 153 x 241 x 43 |
Remarks
| Notes | Please do not use for new projects. |
|---|---|
| Pack quantity | 1 pcs. |
