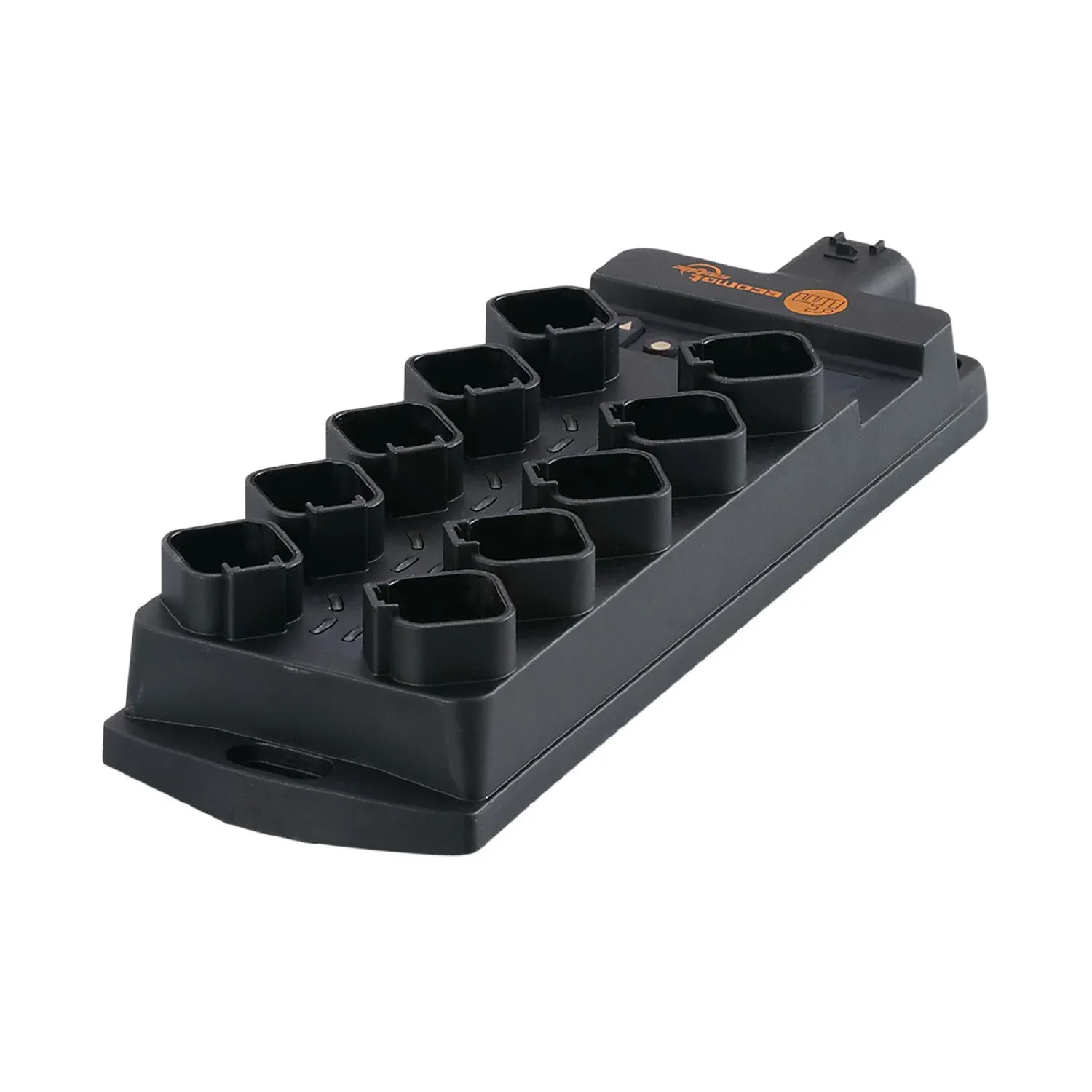

IFM CR2050
CR2050
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Decentralised connection of sensors and actuators
With many multifunctional configurable input channels
High-performance CAN interface for various communication tasks
Programmable to IEC 61131-3 with CODESYS
High protection rating for the requirements of mobile machines
Specification
Electrical data
| Operating voltage[V] [V] | 8...32 DC |
|---|---|
| Reverse polarity protection | yes |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of analogue inputs: 8; Number of frequency inputs: 4; Number of resistor inputs: 4 |
Inputs
| Total number of inputs | 16 |
|---|---|
| Number of frequency inputs | 4 |
| Number of resistor inputs | 4 |
| Number of digital inputs | 16 |
| Number of analogue inputs | 8 |
| Analogue input (current)[mA] [mA] | 0...20 |
| Analogue input (voltage)[V] [V] | 0...32 |
Outputs
| Short-circuit protection | yes |
|---|
Software / programming
| PLC function to IEC 61131-3 | yes |
|---|
Interfaces
| Number of CAN interfaces | 2 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-4 |
|---|---|
| MTTF[years] [years] | 100 |
Mechanical data
| Weight[g] [g] | 692 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 234.2 x 76 x 40.5 |
| Materials | PA glass fibre reinforced |
Displays / operating elements
| Display | 10-segment LED display, red/green 4-digit |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - CAN interface 1
| Connector | 2 x DEUTSCH connector |
|---|
Electrical connection - Inputs
| Connector | 8 x DEUTSCH connector |
|---|
Electrical connection - supply / CAN interface 2
| Connector | 1 x AMP connector |
|---|
