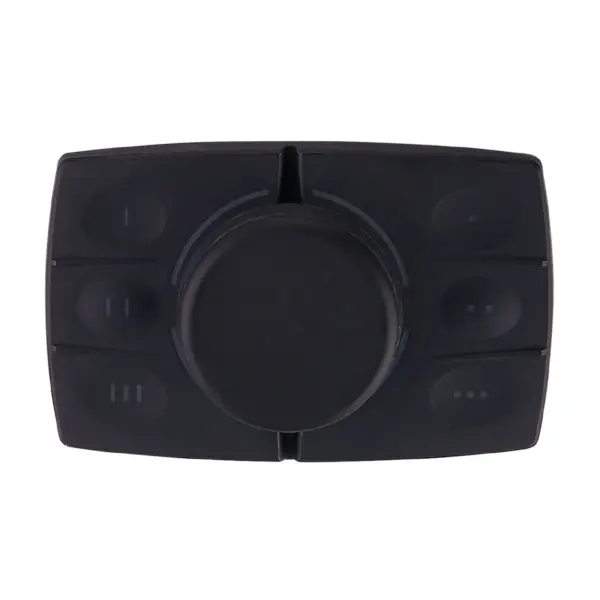

IFM CR1301
CR1301
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

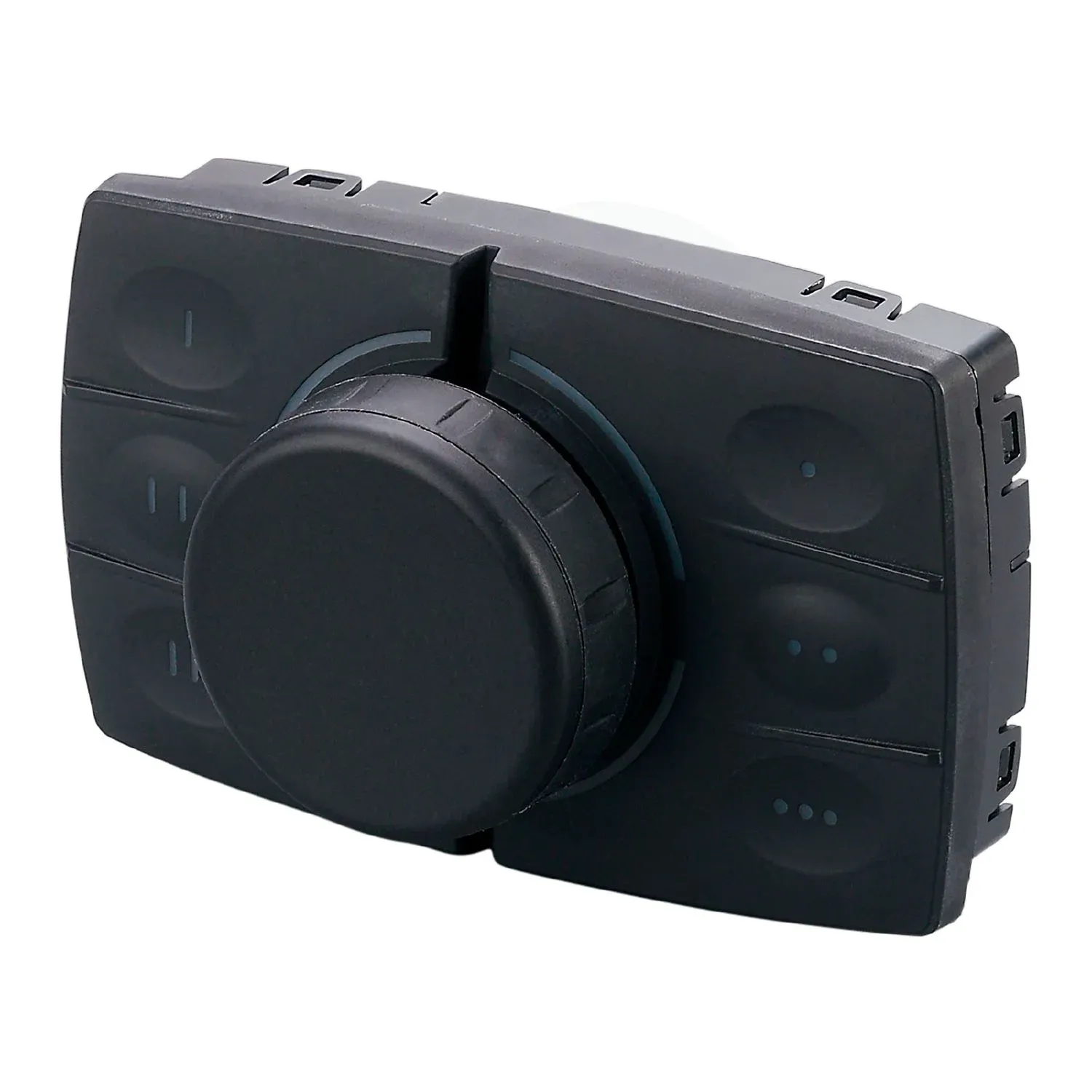

Robust keypad with knob with integrated 4-way pushbutton and push function for mobile machines
Six RGB backlit function keys and one segmented LED ring
All backlights can be controlled separately in any colour
High-performance CAN interface for various communication tasks
Simple integration into existing applications
Specification
Product characteristics
| Communication interface | CAN |
|---|---|
| Operating elements | 6 freely programmable backlit function keys 1 knob with push and joystick function in two axes and with backlit keys 24 stops per revolution |
| 6 | freely programmable backlit function keys |
| 1 | knob with push and joystick function in two axes and with backlit keys |
Application
| Design | installation in panels or panel cutouts |
|---|
Electrical data
| Operating voltage[V] [V] | 9...32 DC |
|---|---|
| Nominal voltage DC[V] [V] | 12 / 24 |
| Current consumption[mA] [mA] | < 400; (13,5 V DC) |
| Reverse polarity protection | yes |
Interfaces
| Communication interface | CAN |
|---|---|
| Number of CAN interfaces | 1 |
| Protocol | J1939 |
| Factory settings | Baud rate: 250 node ID: 135 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65 |
Tests / approvals
| EMC | UN/ECE-R10 noise emission and noise immunity: 100 V/m DIN EN 61000-6-2 ESD DIN EN 61000-6-4 Burst ISO 7637-2 pulse 1 severity level 4 / function state C (24 V) ISO 7637-2 pulse 2a severity level 4 / function state A (24 V) ISO 7637-2 pulse 2b severity level 4 / function state C (24 V) ISO 7637-2 pulse 3a severity level 4 / function state A (24 V) ISO 7637-2 pulse 3b severity level 4 / function state A (24 V) ISO 7637-2 pulse 4 severity level 4 / function state B (24 V) ISO 7637-2 pulse 5b severity level 4 / function state A (24 V) ISO 7637-2 pulse 4 severity level 4 / function state B (12 V) |
|---|---|
| UN/ECE-R10 noise emission and noise immunity: | 100 V/m |
| ISO 7637-2 pulse 1 | severity level 4 / function state C (24 V) |
| ISO 7637-2 pulse 2a | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 2b | severity level 4 / function state C (24 V) |
| ISO 7637-2 pulse 3a | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 3b | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 4 | severity level 4 / function state B (12 V) |
| ISO 7637-2 pulse 5b | severity level 4 / function state A (24 V) |
| Continuous shock resistance | ISO 16750-3 30 g 6 ms / 24000 shocks |
| ISO 16750-3 | 30 g 6 ms / 24000 shocks |
| Fast temperature change | EN 60068-2-30 damp heat: cyclical 55 °C upper temperature limit / 6 cycles EN 60068-2-78 damp heat: constant 40 °C 93 % rH / test period 21 days |
| EN 60068-2-30 damp heat: cyclical | 55 °C upper temperature limit / 6 cycles |
| EN 60068-2-78 damp heat: constant | 40 °C 93 % rH / test period 21 days |
| Vibration resistance | ISO 16750-3 Test VII random, mounting place car body EN 60068-2-6 sine 10...500 Hz / 10 cycles/axis, sine |
| ISO 16750-3 Test VII | random, mounting place car body |
| EN 60068-2-6 sine | 10...500 Hz / 10 cycles/axis, sine |
| Salt spray test | EN 60068-2-52 Salt spray severity level 3 / motor vehicle |
| EN 60068-2-52 Salt spray | severity level 3 / motor vehicle |
| MTTF[years] [years] | 119 |
Mechanical data
| Weight[g] [g] | 472.55 |
|---|---|
| Weight (without accessories and packaging)[g] [g] | 400 |
| Housing | rectangular |
| Type of mounting | installation |
| Dimensions[mm] [mm] | 86 x 136 x 74.5 |
| Materials | housing: PC/ABS; silicone overlay: PA66 transparent |
| Information on service life | pushbuttons: > 100000 activations knob (rotation by 360°): > 100000 cycles knob (push function): > 100000 activations knob (tilting per axis): > 100000 activations |
| pushbuttons: | > 100000 activations |
| knob (rotation by 360°): | > 100000 cycles |
| knob (push function): | > 100000 activations |
| knob (tilting per axis): | > 100000 activations |
Displays / operating elements
| Display | four-part segment ring LED, multi-colour |
|---|---|
| four-part segment ring | LED, multi-colour |
| Operating elements | 6 freely programmable backlit function keys 1 knob with push and joystick function in two axes and with backlit keys 24 stops per revolution |
| 6 | freely programmable backlit function keys |
| 1 | knob with push and joystick function in two axes and with backlit keys |
Remarks
| Pack quantity | 1 pcs. |
|---|
