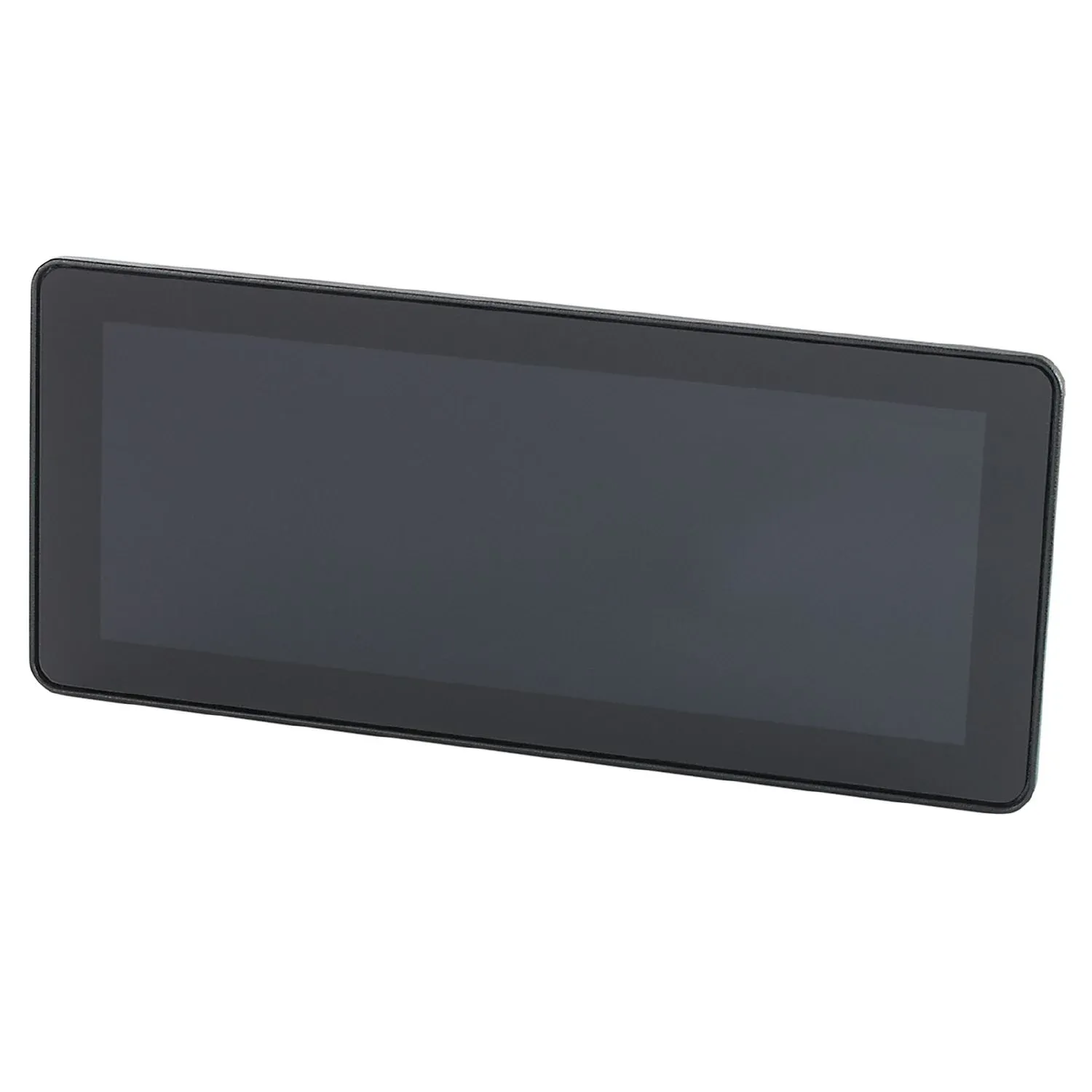

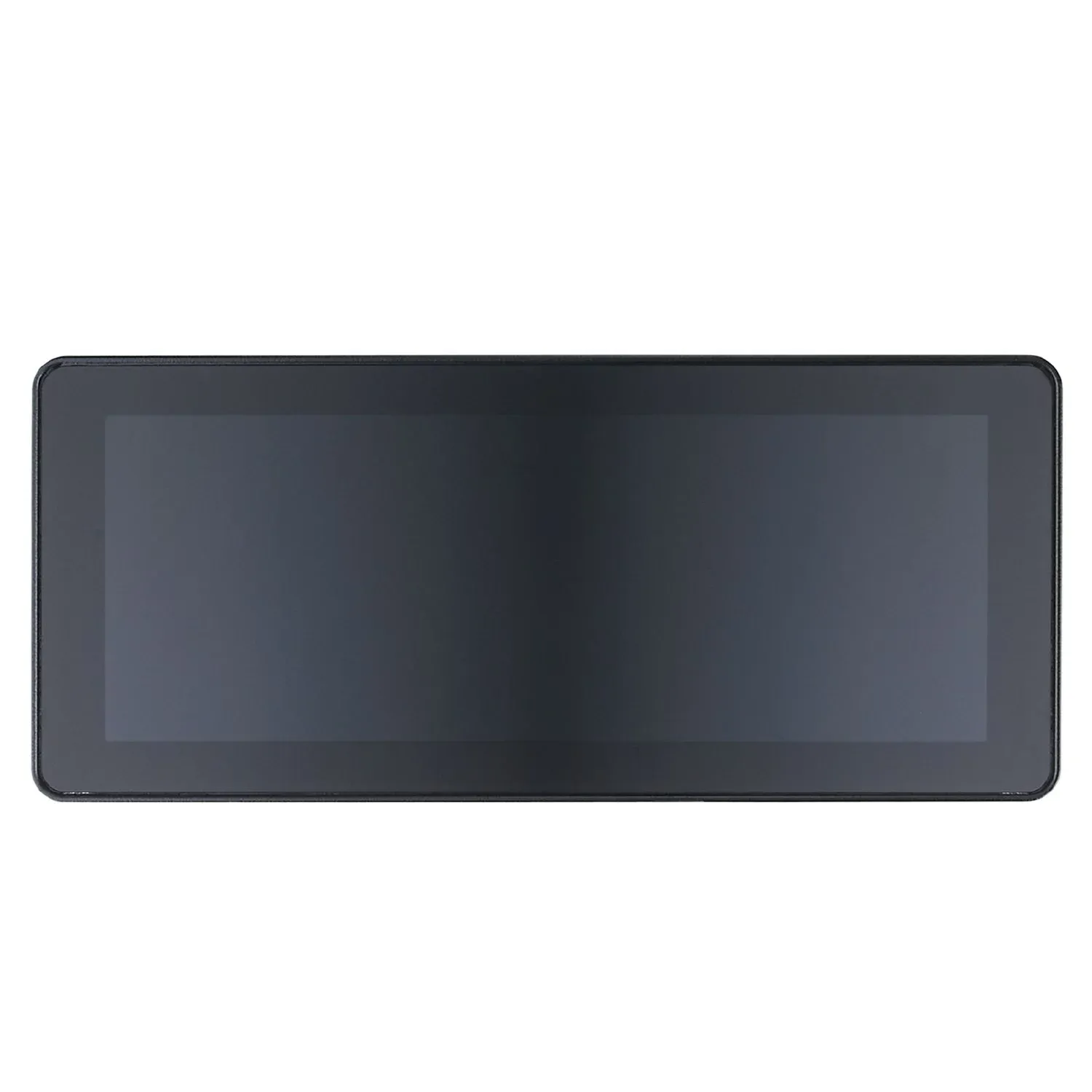

IFM CR1213

CR1213

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Powerful, robust HMI with modern 64-bit architecture and touch screen
High-performance USB interface for data logging and support of analogue cameras and Ethernet cameras
High-performance CAN and Ethernet interfaces for various communication tasks
Freely programmable to IEC 61131-3 with CODESYS 3.5

Specification

Product characteristics

Communication interfaceEthernet; CAN; USB
Display typeTFT LCD colour display with touch function

Electrical data

Operating voltage[V] [V]8...32 DC; (For information on how to protect the device, please refer to the operating instructions.)
Nominal voltage DC[V] [V]12 / 24
Current consumption[mA] [mA]< 1208; (24 V DC; with switched outputs: < 5000 mA)
Power consumption[W] [W]29
Reverse polarity protectionyes; (in case of supply via the on-board system / battery)

Inputs / outputs

Number of inputs and outputsNumber of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs2
Number of video inputs2; (analogue)
Video input1 Vss, 75 Ohm, PAL, NTSC
Digital inputfunction type
binary, low-side, CSI
input range [V]
0...32
switching level high [V]
> 70 % VBB30
switching level low [V]
< 30 % VBB30
input frequency [Hz]
< 20
input resistance [Ω]
10000
function typebinary, low-side, CSI
input range [V]0...32
switching level high [V]> 70 % VBB30
switching level low [V]< 30 % VBB30
input frequency [Hz]< 20
input resistance [Ω]10000

Outputs

Number of digital outputs2
Max. current load per output[mA] [mA]2500
Switching frequency DC[Hz] [Hz]< 20
Audio outputStereo; Class D; 2 x 1W; 8 Ω; BTL
Digital outputfunction type
binary, high side, CSO
voltage range [V]
8...32
switching current [A]
0,025...2,5
protective circuitry
inductive load, thermal protection
diagnostic functions
short circuit
function typebinary, high side, CSO
voltage range [V]8...32
switching current [A]0,025...2,5
protective circuitryinductive load, thermal protection
diagnostic functionsshort circuit
PWM outputoutput frequency [Hz]
< 20
output frequency [Hz]< 20

Software / programming

Parameter setting optionsCODESYS 3.5; Qt
PLC function to IEC 61131-3yes
Operating systemEmbedded Linux

Interfaces

Communication interfaceEthernet; CAN; USB
Number of CAN interfaces4
Number of Ethernet interfaces1
Number of USB interfaces1
Number of video interfaces (CVBS)2; (1 Vss, 75 Ohm, PAL, NTSC)
Transmission rate< 480 MBit/s
ProtocolTCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP; PROFINET; EtherCAT
ProfileCiA DS 301 Version 4.2; CiA DS 401 Version 1.4
InterfaceCAN Interface 2.0 A/B ISO 11898
Factory settingsTransmission rate: 250 kBit/s
Transmission standard10Base-T; 100Base-TX
Note on interfacesHost-Controller
Version2.0

Operating conditions

Ambient temperature[°C] [°C]-30...65
Note on ambient temperature2000 m: -30...65 °C
3000 m: -30...60 °C
The temperature of the mainboard must not exceed 85 °C.
for further information please see the operating instructions
Storage temperature[°C] [°C]-35...85
Max. relative air humidity[%] [%]90; (non condensing)
Max. height above sea level[m] [m]3000
ProtectionIP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
Pollution degree2; (before installation and when the device is replaced)
Chemical mediaISO 16750-5
AA, BA, BD, CC, DB, DC, DD, ED
only one chemical permitted at a time
ISO 16750-5AA, BA, BD, CC, DB, DC, DD, ED

Tests / approvals

EMCUN/ECE-R10 noise emission and noise immunity:
100 V/m
DIN EN IEC 61000-6-2
immunity
DIN EN IEC 61000-6-4
noise emission
ISO 10605 ESD
330 pF / 2000 Ohm
DIN EN ISO 13766-1
8 kV air discharge / function state C
ISO 7637-2 pulse 1
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 5
severity level 3 / function state C (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (12 V)
UN/ECE-R10 noise emission and noise immunity:100 V/m
DIN EN IEC 61000-6-2immunity
DIN EN IEC 61000-6-4noise emission
ISO 10605 ESD330 pF / 2000 Ohm
DIN EN ISO 13766-18 kV air discharge / function state C
ISO 7637-2 pulse 1severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2aseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 2bseverity level 4 / function state C (24 V)
ISO 7637-2 pulse 3aseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 3bseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 4severity level 4 / function state A (12 V)
ISO 7637-2 pulse 5severity level 3 / function state C (24 V)
Continuous shock resistanceISO 16750-3
15 g 6 ms / 24000 shocks
ISO 16750-315 g 6 ms / 24000 shocks
Vibration resistanceISO 16750-3 Test VIII
random, mounting location cabin, utility vehicles: decoupled cabin
EN 60068-2-6 sine
10...500 Hz 0.72 mm/10 g / 10 cycles/axis, sine
ISO 16750-3 Test VIIIrandom, mounting location cabin, utility vehicles: decoupled cabin
EN 60068-2-6 sine10...500 Hz 0.72 mm/10 g / 10 cycles/axis, sine
Climatic testsEN 60068-2-30 damp heat: cyclical
55 °C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant
40 °C 93 % rH / test period 21 days
EN 60068-2-30 damp heat: cyclical55 °C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant40 °C 93 % rH / test period 21 days
Salt spray testEN 60068-2-52 Salt spray
test method 3 / motor vehicle
EN 60068-2-52 Salt spraytest method 3 / motor vehicle
Railway applicationsDIN EN 50155 Pkt 13.3
EN 50121-3-2
EN 55016

Mechanical data

Weight[g] [g]2257
Housingrectangular
Type of mountingpanel / surface; surface mounting with RAM mount system; panel mounting with mounting handle; (panel cutout: 326,8 x 148,2 mm)
Dimensions[mm] [mm]160.5 x 339.1 x 47.7
Materialshousing: diecast aluminium black powder-coated RAL 9005; Display: glass chemically hardened and anti-reflective colour display in optical bonding technology; diaphragm: Gore-Tex
Information on service lifeDisplay LED lifetime:
> 70000 h
Display LED lifetime:> 70000 h

Displays / operating elements

Displaydisplay rotation: 4 x 90°
status LED1 LED, multi-colour freely programmable
Display resolution1280 x 480
Display typeTFT LCD colour display with touch function
Display size12.3"
Aspect ratio8:3
Display background illuminationLED
Colour depth24 Bit
Brightness[cd/m²] [cd/m²]> 1000; (adjustable: 0...100 %; In steps of: 1 %)
Contrast ratio1000:1
Touchscreen versionPCAP; (recognition up to 10 fingers, optimised for wet conditions and gloves)
Acoustic signalintegrated audio stereo output

Hardware

ProcessorDual Core 64 Bit 800 MHz + GPU
RAM1 GByte RAM
Mass storage10 GByte Flash
Non-volatile memory16 kByte

Data memories

Real-time clockyes; UTC, battery buffered

Accessories

Items suppliedbattery: 1 x CR1225 (3 V, 48 mAh), fitted

Remarks

RemarksMaximale Leitungslänge zum Anschluss an die Videoeingänge: 30 m
Pack quantity1 pcs.

Electrical connection - AMP connector

Connector1 x (40-pole)

Electrical connection - ETH0

Connector1 x M12; coding: D

Electrical connection - USB0

Connector1 x M12; coding: B
