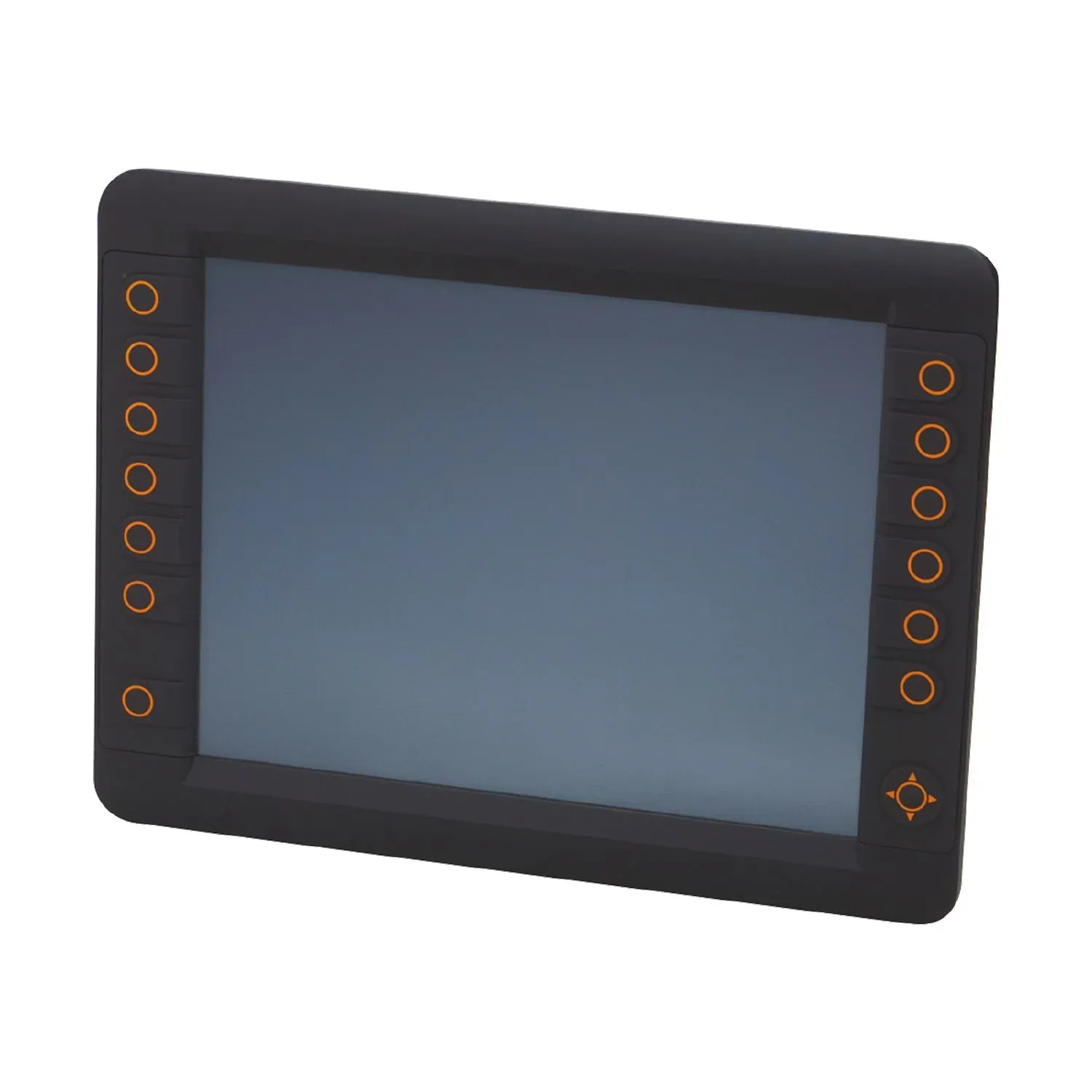

IFM CR1200
CR1200
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust HMIs with backlit function keys with tactile feedback
High-performance CAN interfaces for various communication tasks
Freely programmable to IEC 61131-3 with CODESYS 2.3
USB interface for data logging and optional interface for analogue cameras
Specification
Product characteristics
| Operating elements | 13 freely programmable backlit function keys 1 navigation key with pushbutton |
|---|---|
| 13 | freely programmable backlit function keys |
| 1 | navigation key with pushbutton |
| Display type | colour display |
Electrical data
| Operating voltage[V] [V] | 10...32 DC |
|---|---|
| Power consumption[W] [W] | 18 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 1; Number of analogue inputs: 1; Number of digital outputs: 1 |
|---|
Inputs
| Number of digital inputs | 1 |
|---|---|
| Number of analogue inputs | 1 |
| Analogue input (current)[mA] [mA] | 0...20 |
| Analogue input (voltage)[V] [V] | 0...32 |
Outputs
| Number of digital outputs | 1 |
|---|
Software / programming
| PLC function to IEC 61131-3 | yes |
|---|
Interfaces
| Number of CAN interfaces | 4 |
|---|---|
| Number of Ethernet interfaces | 1 |
| Number of USB interfaces | 2 |
| Number of video interfaces (CVBS) | 2 |
Mechanical data
| Weight[g] [g] | 3459.7 |
|---|---|
| Housing | rectangular |
| Type of mounting | panel / surface |
| Dimensions[mm] [mm] | 245 x 324 x 62 |
Displays / operating elements
| Display | 12" colour display |
|---|---|
| Operating elements | 13 freely programmable backlit function keys 1 navigation key with pushbutton |
| 13 | freely programmable backlit function keys |
| 1 | navigation key with pushbutton |
| Display resolution | 1024 x 768 |
| Display type | colour display |
| Display size | 12" |
| Display background illumination | LED |
Data memories
| Real-time clock | yes |
|---|
Remarks
| Notes | Please do not use for new projects. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12 |
|---|
