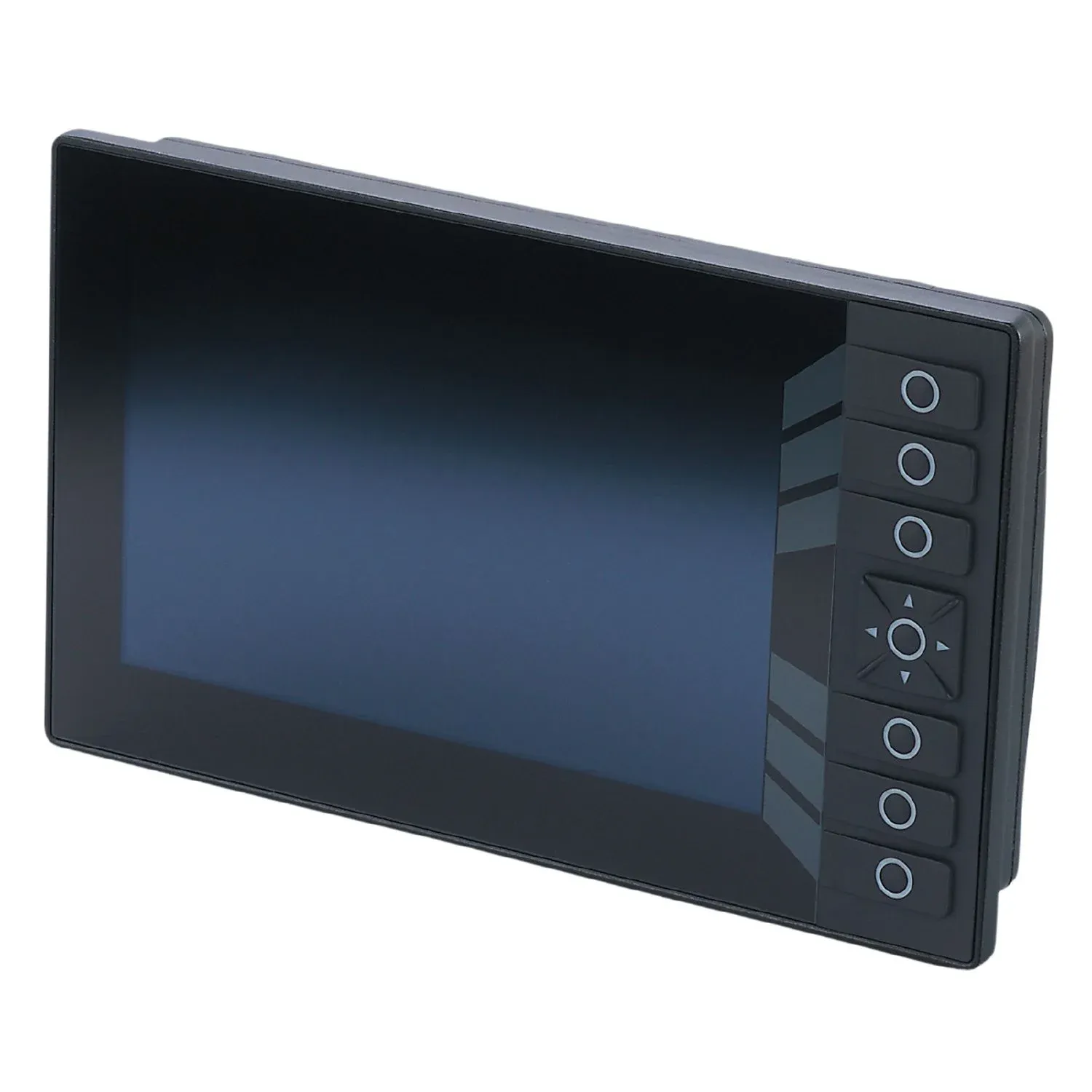

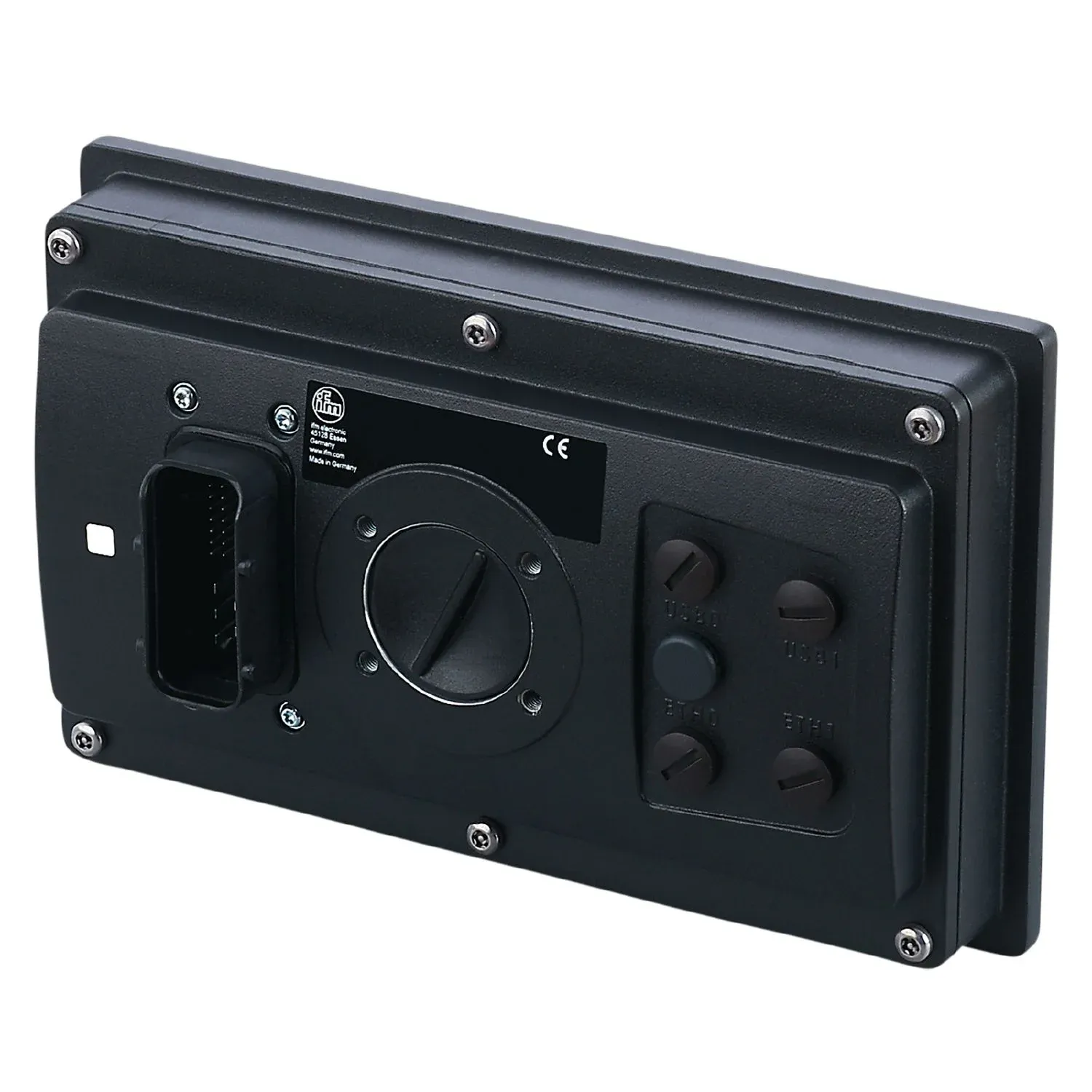

IFM CR1077

CR1077

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Powerful, robust HMI with modern 64 bit architecture and optional touch screen
Versions with RGB backlit function keys with tactile feedback
High-performance USB interface for data logging and support of analogue cameras and Ethernet cameras
High-performance CAN and Ethernet interfaces for various communication tasks
Programmable to IEC 61131-3 with CODESYS

Specification

Product characteristics

Communication interfaceEthernet; CAN; USB
Operating elements6
freely programmable backlit function keys
1
navigation key with pushbutton
6freely programmable backlit function keys
1navigation key with pushbutton
Display typecolour display with touch function

Electrical data

Operating voltage[V] [V]8...32 DC
Nominal voltage DC[V] [V]12 / 24
Current consumption[mA] [mA]< 5000
Power consumption[W] [W]27
Reverse polarity protectionyes; (in case of supply via the on-board system / battery)

Inputs / outputs

Number of inputs and outputsNumber of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs2
Number of video inputs4; (analogue)
Video input1 Vss, 75 Ohm, PAL, NTSC
Audio inputStereo Line-In; -10 dBV (= 0,316 V); Max 0 dBV (= 1 V)

Outputs

Number of digital outputs2
Max. current load per output[mA] [mA]2500
Switching frequency DC[Hz] [Hz]< 20
Audio outputStereo Class D; 1W; 8 Ω; BTL

Software / programming

Parameter setting optionsCODESYS 3.5
PLC function to IEC 61131-3yes
Operating systemEmbedded Linux 4.14

Interfaces

Communication interfaceEthernet; CAN; USB
Number of CAN interfaces4
Number of Ethernet interfaces2
Number of USB interfaces2
Transmission rate< 480 MBit/s
ProtocolTCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP
ProfileCiA DS 301 Version 4; CiA DS 401 Version 1.4
InterfaceCAN Interface 2.0 A/B ISO 11898
Factory settingsTransmission rate: 250 kBit/s
Transmission standard10Base-T; 100Base-TX
Note on interfacesOPC UA Micro Embedded Device Server
VersionUSB 2.0

Operating conditions

Ambient temperature[°C] [°C]-35...60
Note on ambient temperature2000 m: -30...65 °C
3000 m: -30...60 °C
The temperature of the mainboard must not exceed 85 °C.
for further information please see the operating instructions
Storage temperature[°C] [°C]-35...85
Max. relative air humidity[%] [%]90; (non condensing)
Max. height above sea level[m] [m]3000
ProtectionIP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
Pollution degree2
Chemical mediaISO 16750-5
AA, BA, BD, CC, DB, DC, DD, ED
only one chemical permitted at a time
ISO 16750-5AA, BA, BD, CC, DB, DC, DD, ED

Tests / approvals

EMCUN/ECE-R10 noise emission and noise immunity:
100 V/m
DIN EN 61000-6-2
DIN EN 61000-6-4
ISO 10605 ESD
DIN EN ISO 13766-1
8 kV air discharge / function state C
ISO 7637-2 pulse 1
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 5
severity level 3 / function state C (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (12 V)
UN/ECE-R10 noise emission and noise immunity:100 V/m
DIN EN ISO 13766-18 kV air discharge / function state C
ISO 7637-2 pulse 1severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2aseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 2bseverity level 4 / function state C (24 V)
ISO 7637-2 pulse 3aseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 3bseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 4severity level 4 / function state A (12 V)
ISO 7637-2 pulse 5severity level 3 / function state C (24 V)
Continuous shock resistanceISO 16750-3
30 g 6 ms / 24000 shocks
ISO 16750-330 g 6 ms / 24000 shocks
Vibration resistanceISO 16750-3 Test VII
random, mounting place car body
EN 60068-2-6 sine
10...500 Hz / 10 cycles/axis, sine
ISO 16750-3 Test VIIrandom, mounting place car body
EN 60068-2-6 sine10...500 Hz / 10 cycles/axis, sine
Climatic testsEN 60068-2-30 damp heat: cyclical
55 °C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant
40 °C 93 % rH / test period 21 days
EN 60068-2-30 damp heat: cyclical55 °C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant40 °C 93 % rH / test period 21 days
Salt spray testEN 60068-2-52 Salt spray
severity level 3 / motor vehicle
EN 60068-2-52 Salt sprayseverity level 3 / motor vehicle
MTTF[years] [years]37
Railway applicationsDIN EN 50155 Pkt 12.2
EN 50121-3-2
EN 55016

Mechanical data

Weight[g] [g]1512
Housingrectangular
Type of mountingpanel / surface
Dimensions[mm] [mm]137.4 x 223.6 x 46.5
Materialshousing: diecast aluminium powder-coated; Display: glass anti-reflective and hardened
Information on service lifepushbuttons:
1000000 Betätigungen
navigation key with pushbutton:
1000000 Betätigungen
Display LED lifetime:
> 70000 h
pushbuttons:1000000 Betätigungen
navigation key with pushbutton:1000000 Betätigungen
Display LED lifetime:> 70000 h

Displays / operating elements

Displaydisplay rotation: 4 x 90°
status LED1 LED, multi-colour freely programmable
Operating elements6
freely programmable backlit function keys
1
navigation key with pushbutton
6freely programmable backlit function keys
1navigation key with pushbutton
Display resolution800 x 480
Display typecolour display with touch function
Display size7"
Aspect ratio16:10
Display background illuminationLED
Colour depth18 Bit
Brightness[cd/m²] [cd/m²]< 800; (adjustable: 0...100 %; In steps of: 1 %)
Contrast ratio1000:1
Touchscreen versionPCAP; (recognition up to 10 fingers, optimised for wet conditions and gloves)

Hardware

ProcessorARM Quad Core 64 Bit 1,2 GHz
RAM1 GByte RAM
Mass storage8 GByte Flash
Non-volatile memory16 kByte

Data memories

Real-time clockyes; UTC, battery buffered

Accessories

Items suppliedbattery: 1 x CR1225 (3 V, 48 mAh), fitted

Remarks

Pack quantity1 pcs.
