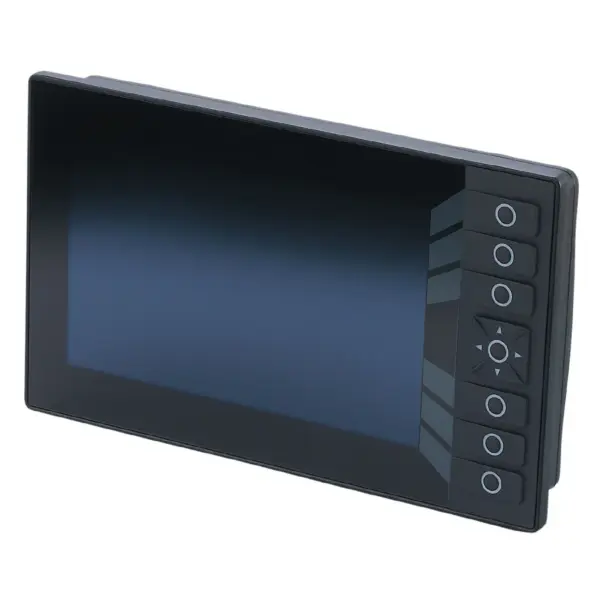

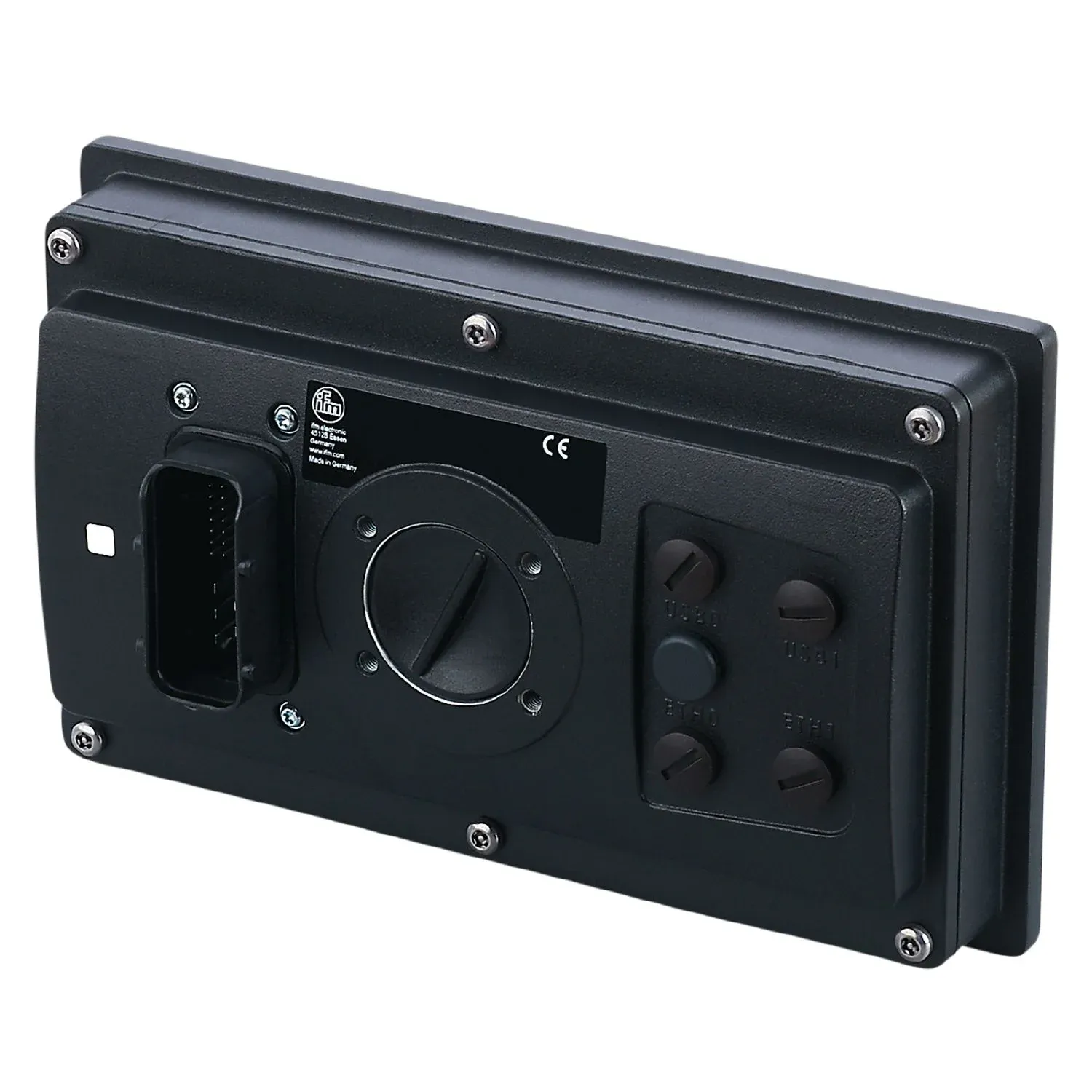

Powerful, robust HMI with modern 64-bit architecture
RGB backlit function keys with tactile feedback.
High-performance USB interface for data logging and support of analogue cameras and Ethernet cameras
High-performance CAN and Ethernet interfaces for various communication tasks
Freely programmable to IEC 61131-3 with CODESYS 3.5

Specification

Product characteristics

Communication interfaceEthernet; CAN; USB
Operating elements6
Operating elements
1
navigation key with pushbutton
6Operating elements
1navigation key with pushbutton
Display typecolour display

Electrical data

Operating voltage[V] [V]8...32 DC
Nominal voltage DC[V] [V]12 / 24
Current consumption[mA] [mA]< 1125; (24 V DC; with switched outputs: < 5000 mA)
Power consumption[W] [W]27

Inputs / outputs

Number of inputs and outputsNumber of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs2
Number of video inputs2; (analogue)
Video inputPAL, NTSC

Outputs

Number of digital outputs2
Max. current load per output[mA] [mA]2500
Audio outputStereo Line-Out

Software / programming

Parameter setting optionsCODESYS 3.5
PLC function to IEC 61131-3yes
Operating systemEmbedded Linux 4.14

Interfaces

Communication interfaceEthernet; CAN; USB
Number of CAN interfaces4
Number of Ethernet interfaces1
Number of USB interfaces1
Number of video interfaces (CVBS)2
Transmission rate< 480 MBit/s
ProtocolTCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP
ProfileCiA DS 301 Version 4; CiA DS 401 Version 1.4
InterfaceCAN Interface 2.0 A/B ISO 11898
Transmission standard10Base-T; 100Base-TX
Note on interfacesOPC UA Micro Embedded Device Server
Version2.0

Operating conditions

Ambient temperature[°C] [°C]-35...65
Note on ambient temperature2000 m: -30...65 °C
3000 m: -30...60 °C
Storage temperature[°C] [°C]-35...85
Max. relative air humidity[%] [%]90; (non condensing)
Max. height above sea level[m] [m]3000
ProtectionIP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
Pollution degree2

Tests / approvals

EMCUN/ECE-R10 noise emission and noise immunity:
100 V/m
DIN EN 61000-6-2 ESD
DIN EN 61000-6-4 Burst
ISO 7637-2 pulse 1
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b
severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (24 V)
ISO 7637-2 pulse 5
severity level 3 / function state C (24 V)
ISO 7637-2 pulse 4
severity level 4 / function state A (12 V)
UN/ECE-R10 noise emission and noise immunity:100 V/m
ISO 7637-2 pulse 1severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2aseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 2bseverity level 4 / function state C (24 V)
ISO 7637-2 pulse 3aseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 3bseverity level 4 / function state A (24 V)
ISO 7637-2 pulse 4severity level 4 / function state A (12 V)
ISO 7637-2 pulse 5severity level 3 / function state C (24 V)
Continuous shock resistanceISO 16750-3
30 g 6 ms / 24000 shocks
ISO 16750-330 g 6 ms / 24000 shocks
Fast temperature changeEN 60068-2-30 damp heat: cyclical
55 °C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant
40 °C 93 % rH / test period 21 days
EN 60068-2-30 damp heat: cyclical55 °C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant40 °C 93 % rH / test period 21 days
Vibration resistanceISO 16750-3 Test VII
random, mounting place car body
EN 60068-2-6 Sinus
10...500 Hz / 10 cycles/axis, sine
ISO 16750-3 Test VIIrandom, mounting place car body
EN 60068-2-6 Sinus10...500 Hz / 10 cycles/axis, sine
Salt spray testEN 60068-2-52 Salt spray
severity level 3 / motor vehicle
EN 60068-2-52 Salt sprayseverity level 3 / motor vehicle
MTTF[years] [years]41

Mechanical data

Weight[g] [g]1466.5
Housingrectangular
Type of mountingpanel / surface
Dimensions[mm] [mm]137.4 x 223.6 x 46.5
Materialsdiecast aluminium powder-coated; Display: glass anti-reflective and hardened
Information on service lifepushbuttons:
1000000 Betätigungen
navigation key with pushbutton:
1000000 Betätigungen
Display LED lifetime:
> 70000 h
pushbuttons:1000000 Betätigungen
navigation key with pushbutton:1000000 Betätigungen
Display LED lifetime:> 70000 h

Displays / operating elements

Displaystatus LED
1 LED, RGB
Operating elements
LED, RGB
status LED1 LED, RGB
Operating elements6
Operating elements
1
navigation key with pushbutton
6Operating elements
1navigation key with pushbutton
Display resolution800 x 480
Display typecolour display
Display size7"
Aspect ratio16:10
Display background illuminationLED
Colour depth18 Bit
Brightness[cd/m²] [cd/m²]< 800; (adjustable: 0...100 %; In steps of: 1 %)
Contrast ratio1000:1

Hardware

ProcessorARM Dual Core 64 Bit 800 MHz
RAM1 GByte RAM
Mass storage4 GByte Flash

Data memories

Real-time clockyes; UTC, battery buffered

Remarks

Pack quantity1 pcs.
