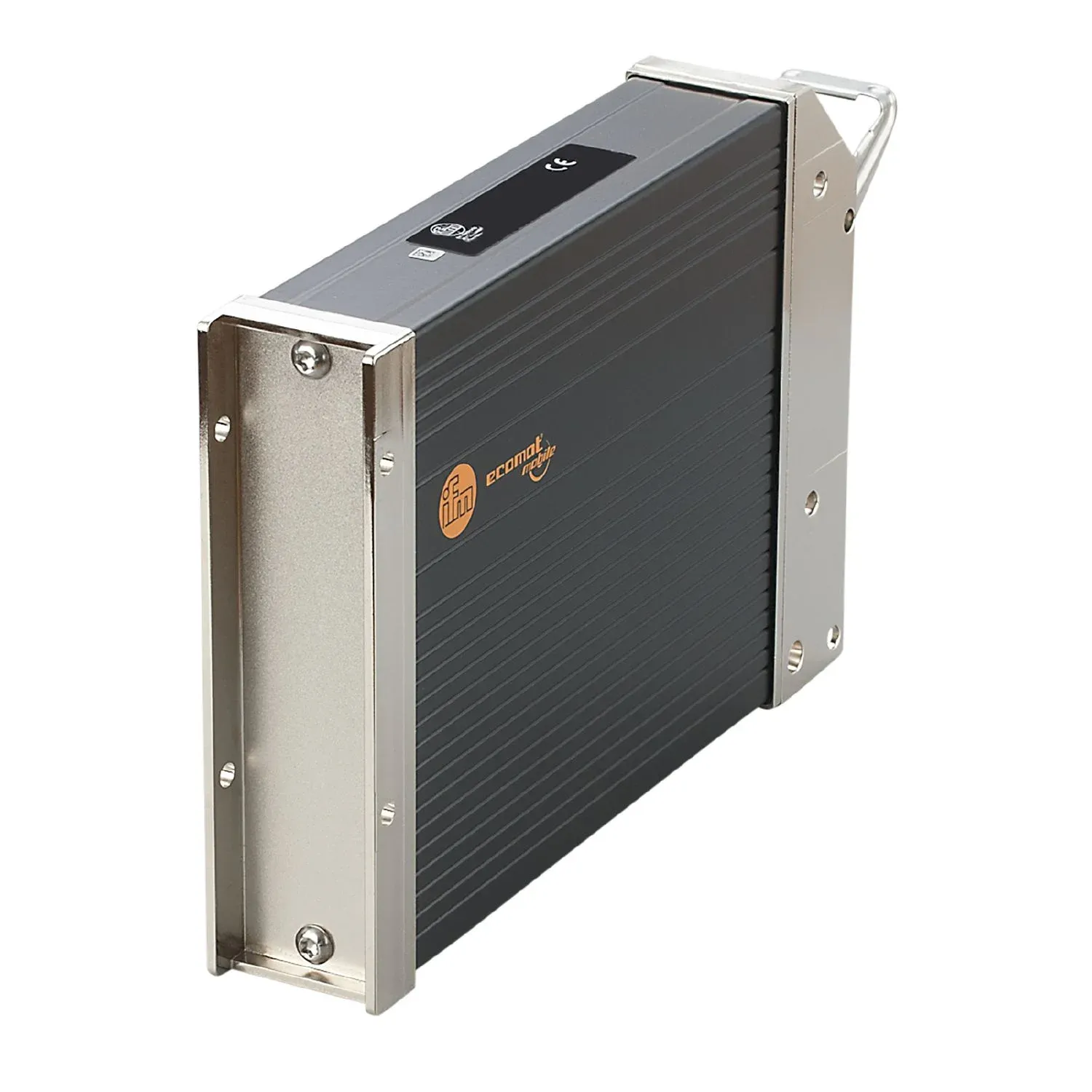

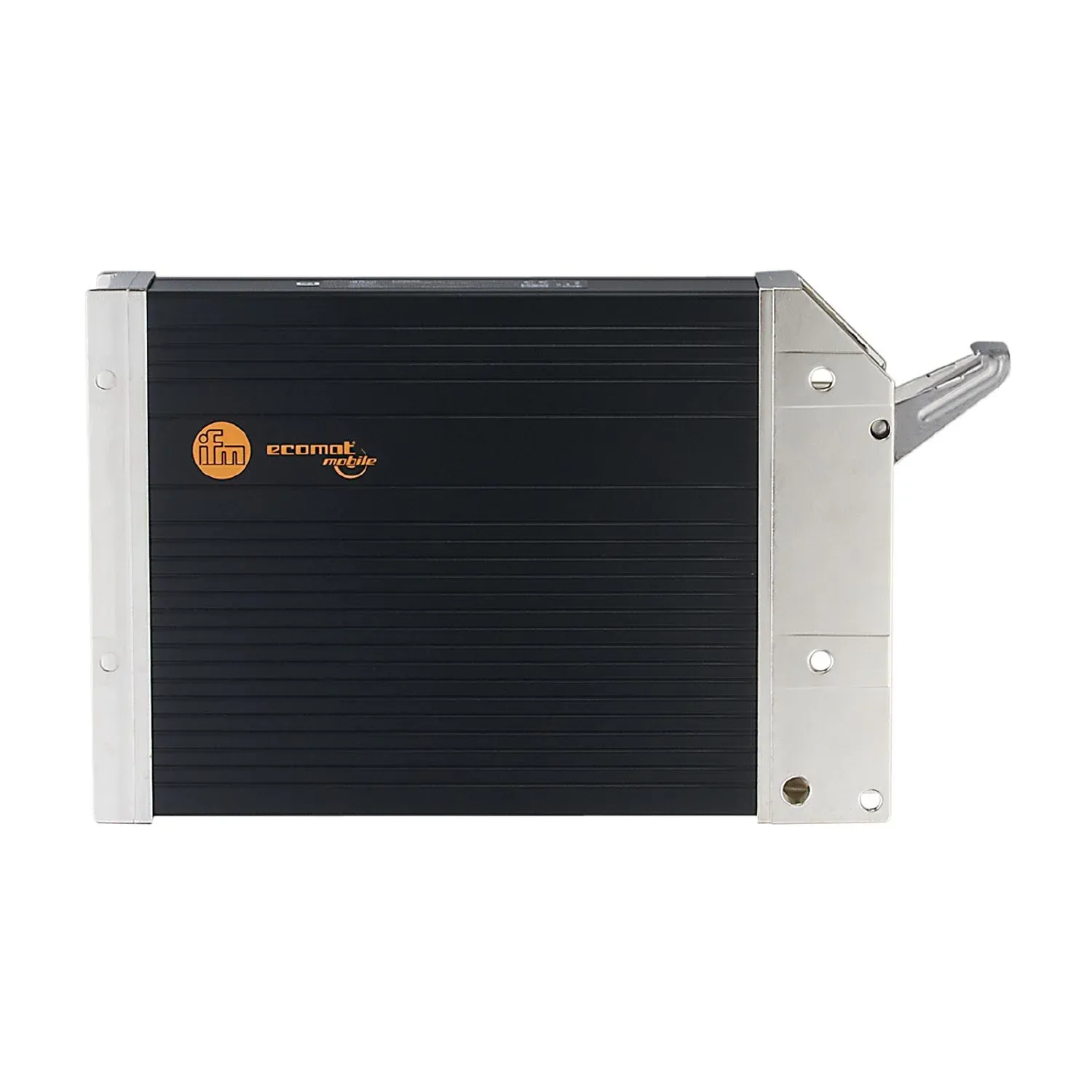

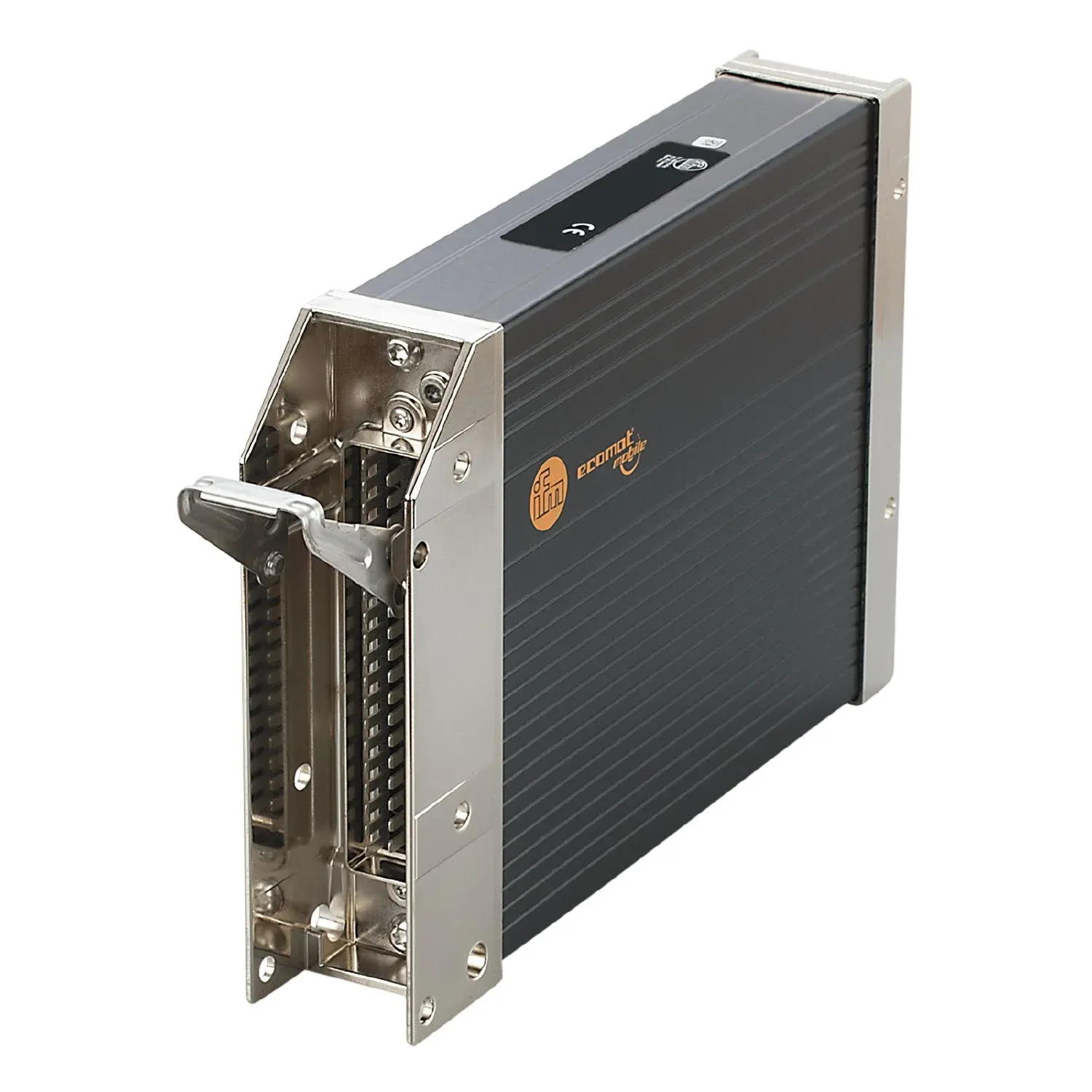

IFM CR0032
CR0032
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For complex control functions in vehicles and mobile machines
With many multifunctional configurable input and output channels
High-performance CAN interfaces for various communication tasks
High protection rating for the requirements of mobile machines
Freely programmable to IEC 61131-3 with CODESYS 2.3
Specification
Electrical data
| Operating voltage[V] [V] | 10...32 DC |
|---|
Inputs / outputs
| Total number of inputs and outputs | 32 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of analogue inputs: 16; Number of frequency inputs: 16; Number of digital outputs: 16; Number of outputs with H-bridge: 2 |
Inputs
| Number of frequency inputs | 16 |
|---|---|
| Number of digital inputs | 16 |
| Number of analogue inputs | 16 |
| Analogue input (current)[mA] [mA] | 0...20 |
| Analogue input (voltage)[V] [V] | 0...32 |
Outputs
| Number of digital outputs | 16 |
|---|---|
| Number of PWM outputs | 16 |
| Number of PWM-I outputs | 16 |
| Number of outputs with H-bridge | 2 |
Software / programming
| Parameter setting options | input/output functions |
|---|---|
| PLC function to IEC 61131-3 | yes |
Interfaces
| Number of CAN interfaces | 4 |
|---|---|
| Number of R232 interfaces | 1 |
| Number of USB interfaces | 1 |
Tests / approvals
| MTTF[years] [years] | 47 |
|---|
Mechanical data
| Weight[g] [g] | 1500 |
|---|---|
| Housing | rectangular |
| Type of mounting | screw mounting |
| Dimensions[mm] [mm] | 153 x 241 x 43 |
Remarks
| Notes | Please do not use for new projects. |
|---|---|
| Pack quantity | 1 pcs. |
