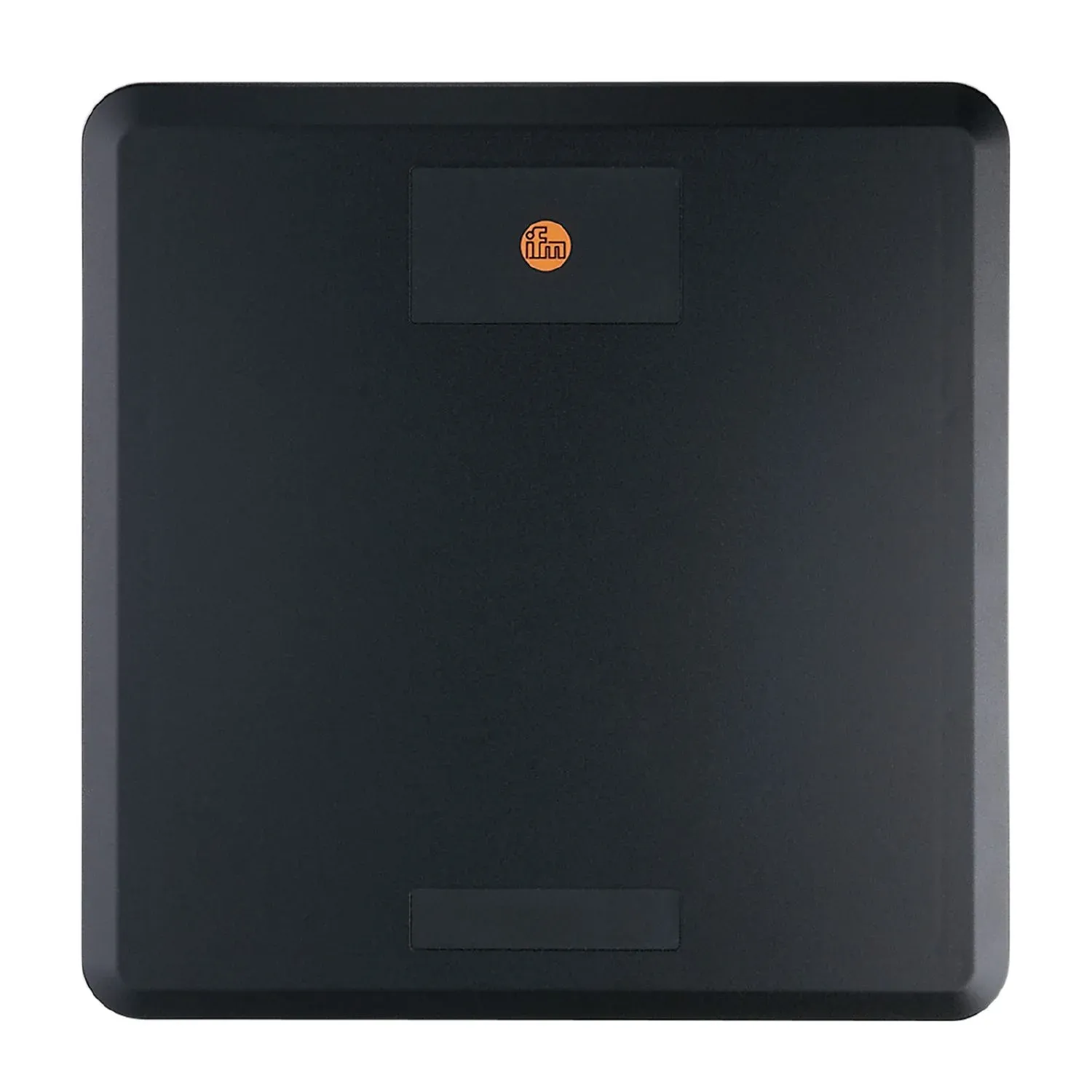

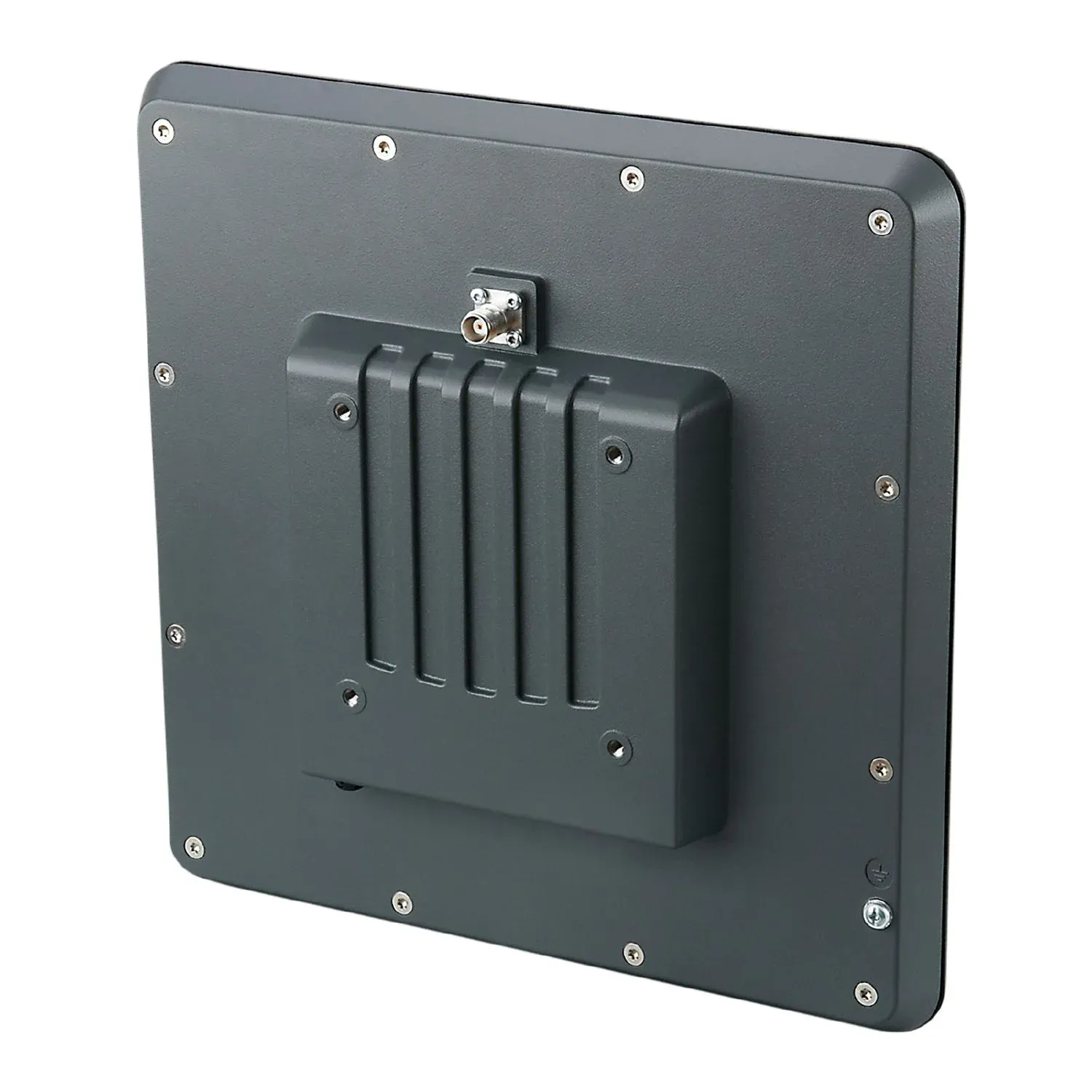

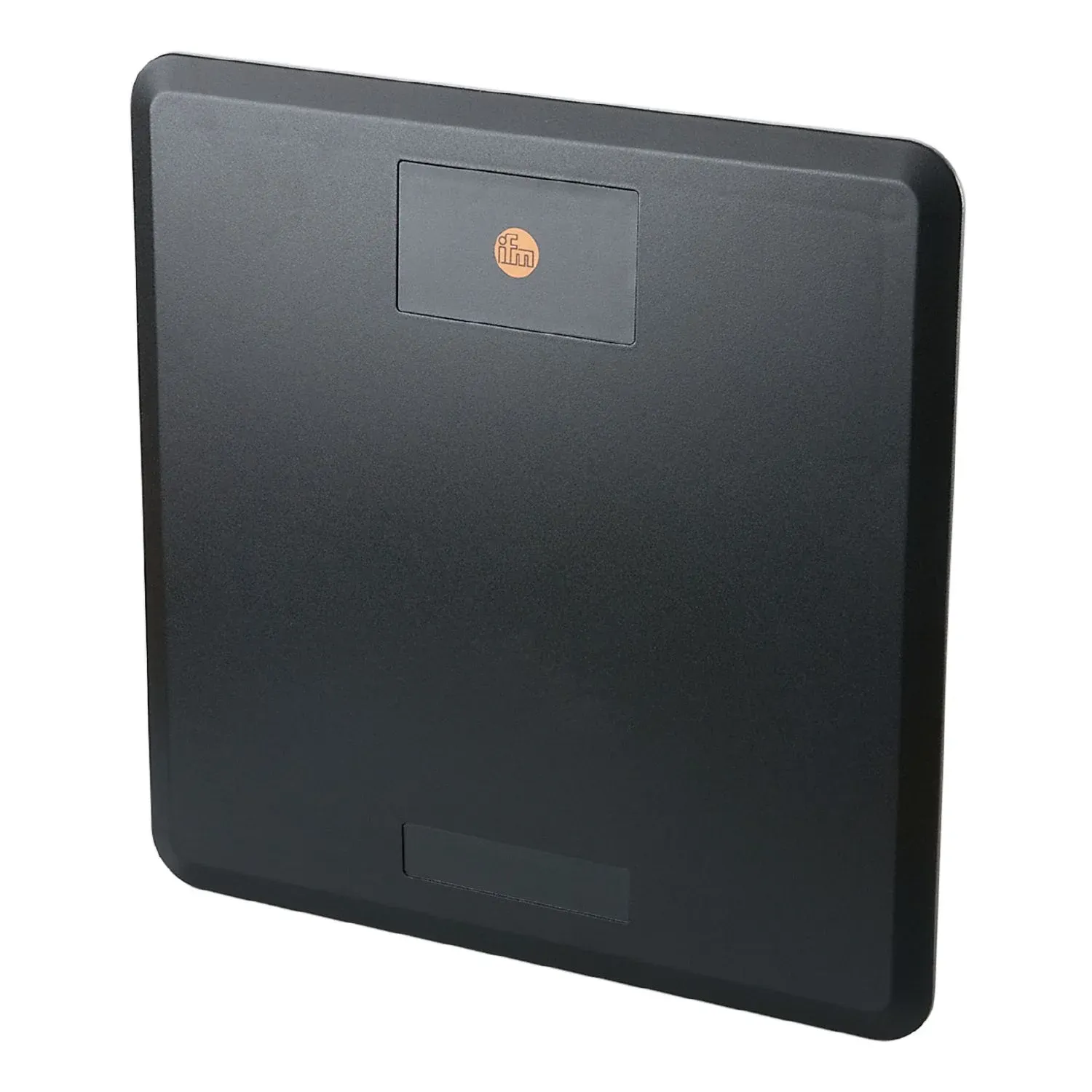

IFM ANT960
ANT960
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable identification of UHF ID tags in production and logistics
High protection rating for the requirements of harsh industrial environments
Specification
Electrical data
| Max. input power[mW] [mW] | 1000 |
|---|---|
| Operating frequency[MHz] [MHz] | 902...928 (FCC) |
| Antenna connections | 1; (TNC socket) |
| Polarisation | circular |
| Transmission power ERP[mW] [mW] | 3981 |
| Antenna gain[dB] [dB] | 8.5 |
| Impedance[Ω] [Ω] | 50 |
Detection zone
| Angle of aperture[°] [°] | 65 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 2406.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 300 x 300 x 79 |
| Materials | housing: aluminium; TNC socket: brass / PTFE; Protective cover: plastics; |
Remarks
| Pack quantity | 1 pcs. |
|---|
