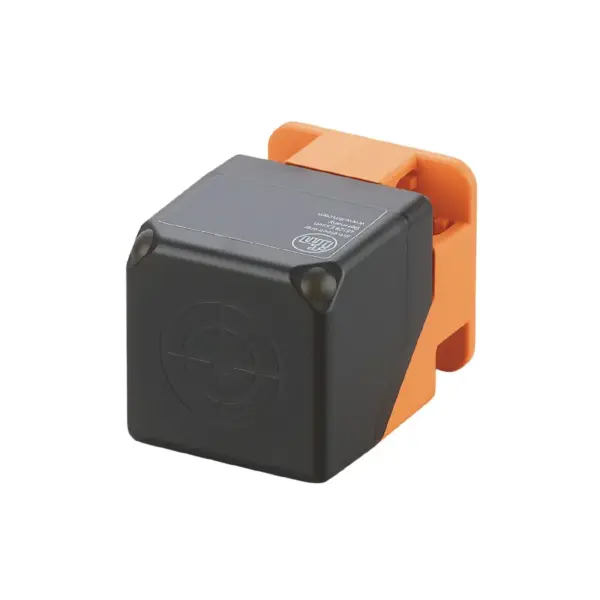

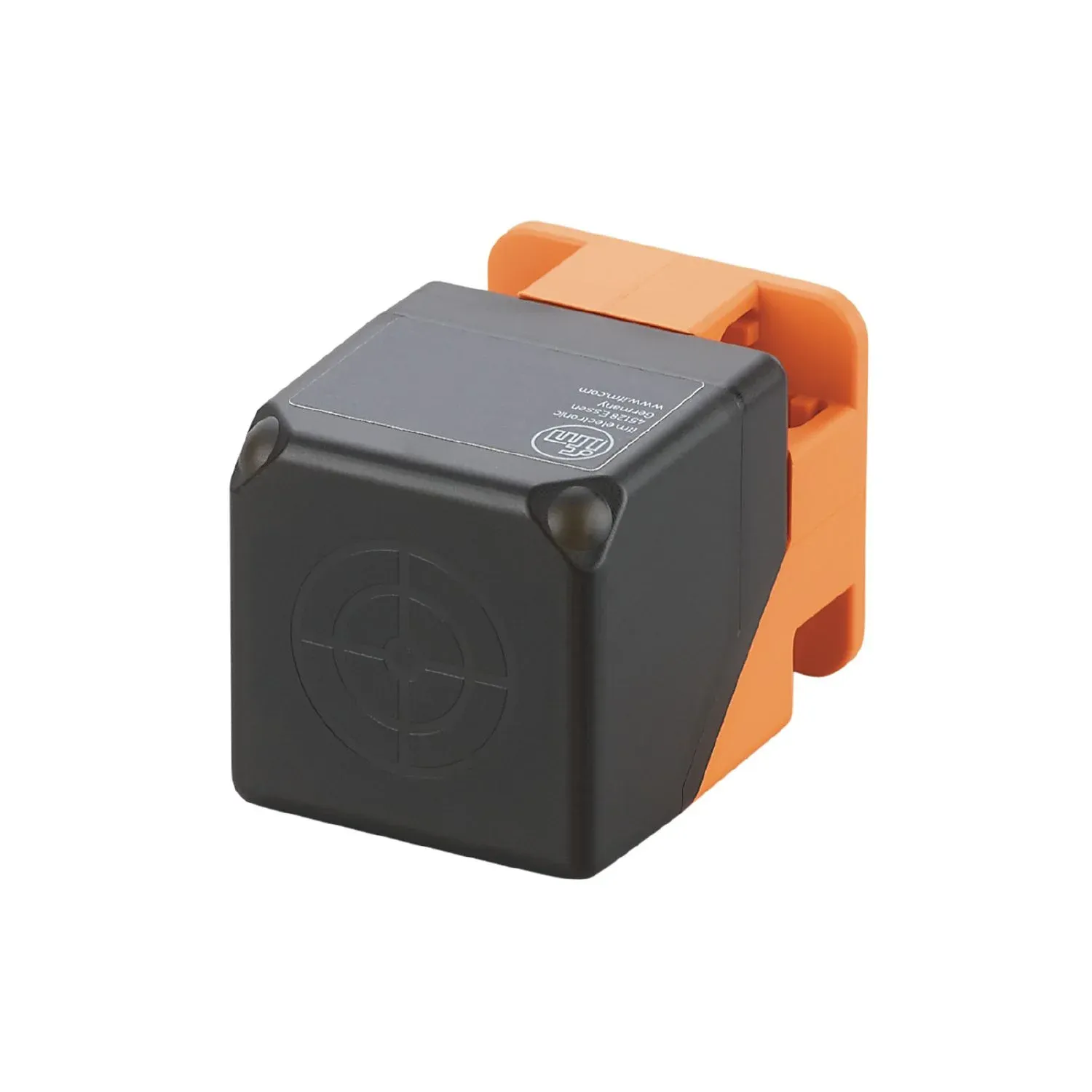

IFM ANT512
ANT512
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable identification of ID tags on workpiece carriers and products
Robust housing for applications in mounting, feeding and handling technology
High protection rating for the requirements of harsh industrial environments
Large write/read distance
Five positions of the sensing face selectable
Specification
Application
| Application | detection of objects on transport equipment |
|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; China; Taiwan; India; South Korea; Singapore; Malaysia; Great Britain; New Zealand; Mexico; Brazil; Indonesia |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 24 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 0,125 |
Detection zone
| Travel speed[m/s] [m/s] | < 0.5 |
|---|---|
| Distance write/read head front[mm] [mm] | 400 |
| Distance write/read head side[mm] [mm] | 400 |
| Distance to the ID tag[mm] [mm] | read : ≤ 60 ( static ) write : ≤ 55 ( static ) reference tag : E80360 |
| read | : |
| write | : |
| reference tag | : |
Interfaces
| Communication interface | DATA / DTE10x |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance | EN 60068-2-29 40 g 6 ms EN 60068-2-27 50 g 11 ms |
|---|---|
| EN 60068-2-29 | 40 g 6 ms |
| EN 60068-2-27 | 50 g 11 ms |
| Vibration resistance | EN 60068-2-6 20 g 10...55 Hz |
| EN 60068-2-6 | 20 g 10...55 Hz |
| MTTF[years] [years] | 536 |
Mechanical data
| Weight[g] [g] | 185 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Dimensions[mm] [mm] | 40 x 40 x 54 |
| Materials | housing: PA; metal parts: stainless steel |
Displays / operating elements
| Display | operation 1 x LED, green tag communication 1 x LED, yellow |
|---|---|
| operation | 1 x LED, green |
| tag communication | 1 x LED, yellow |
Remarks
| Remarks | For the distances to other ID tags see the respective data sheet (E803xx) |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12, rotatable, locking; coding: A |
|---|
