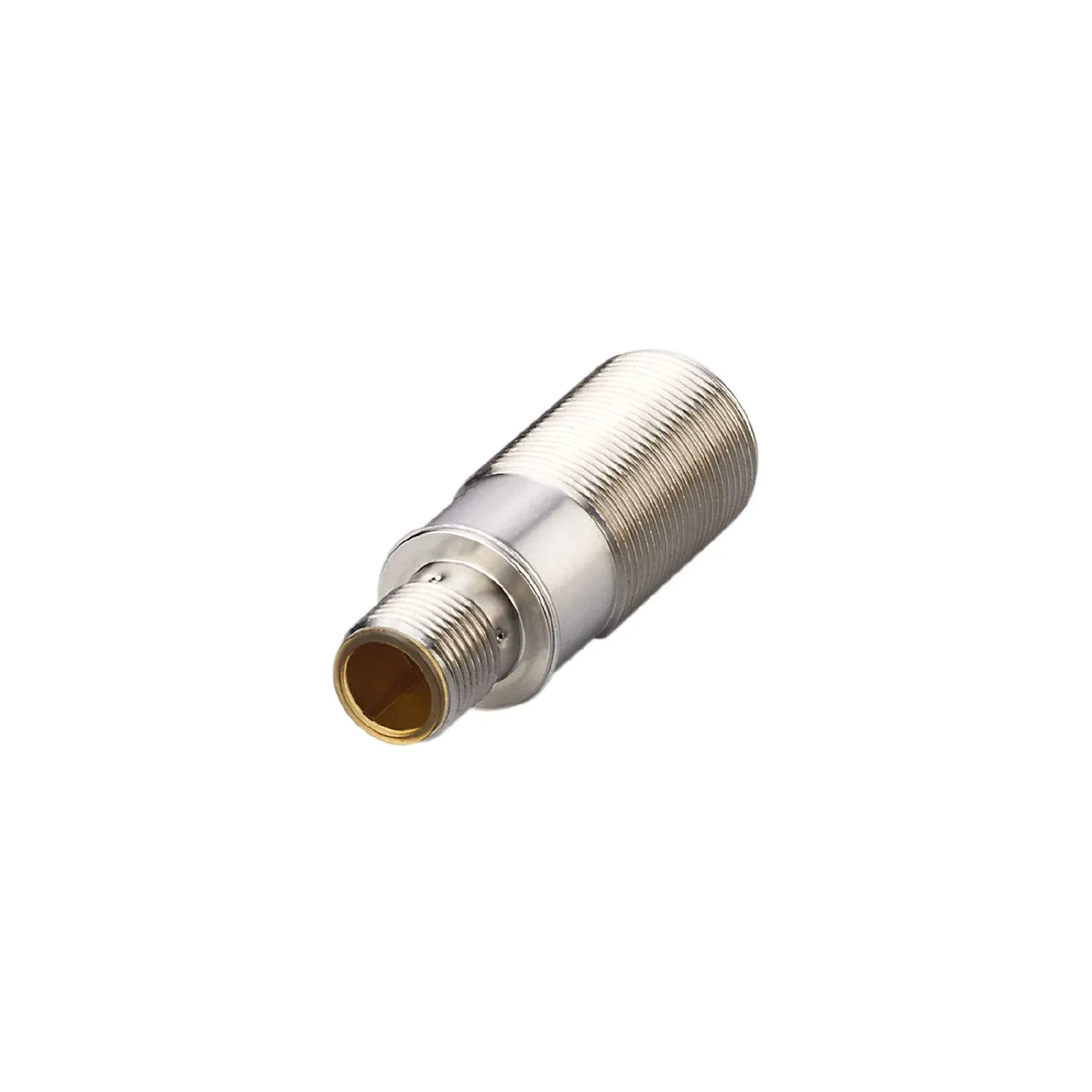

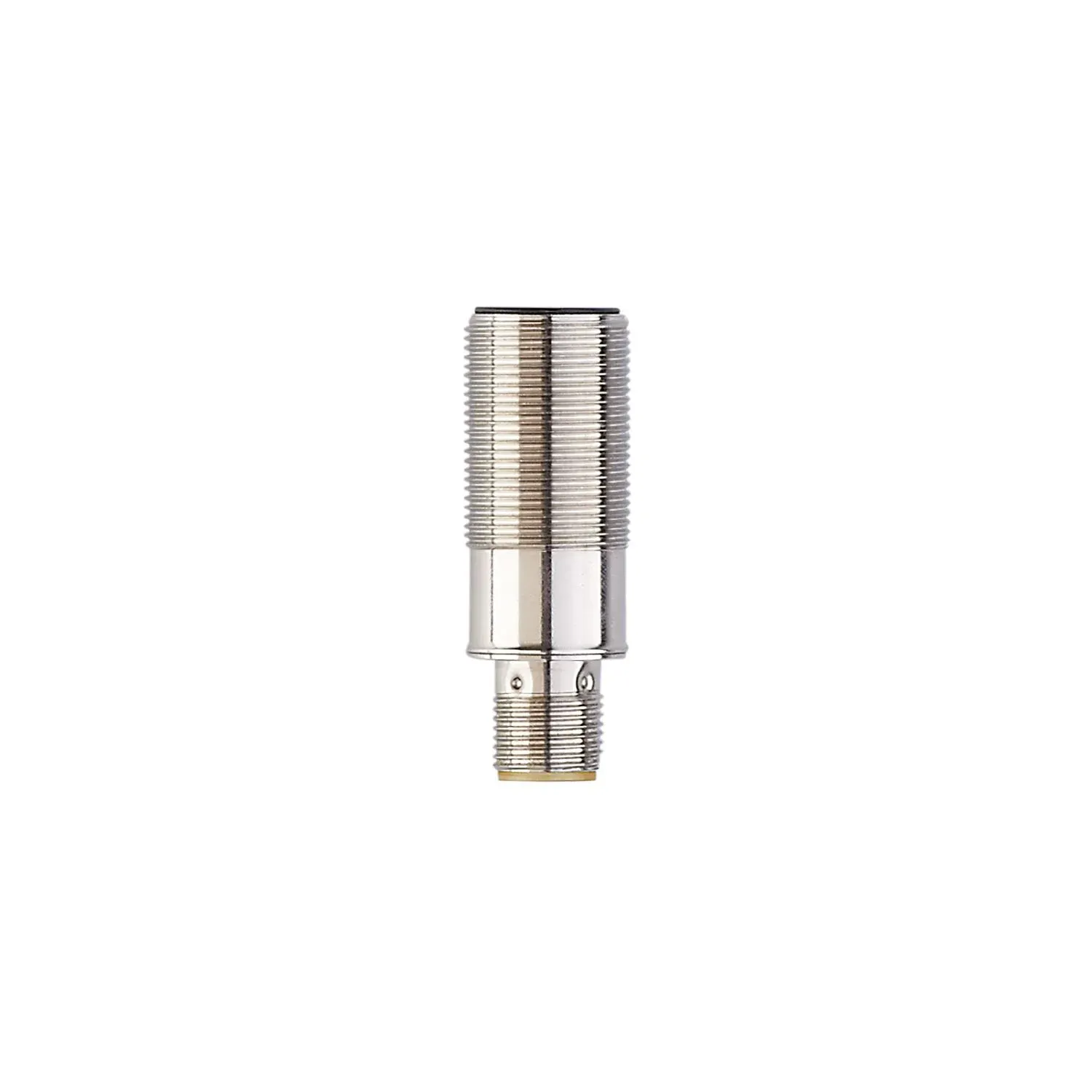

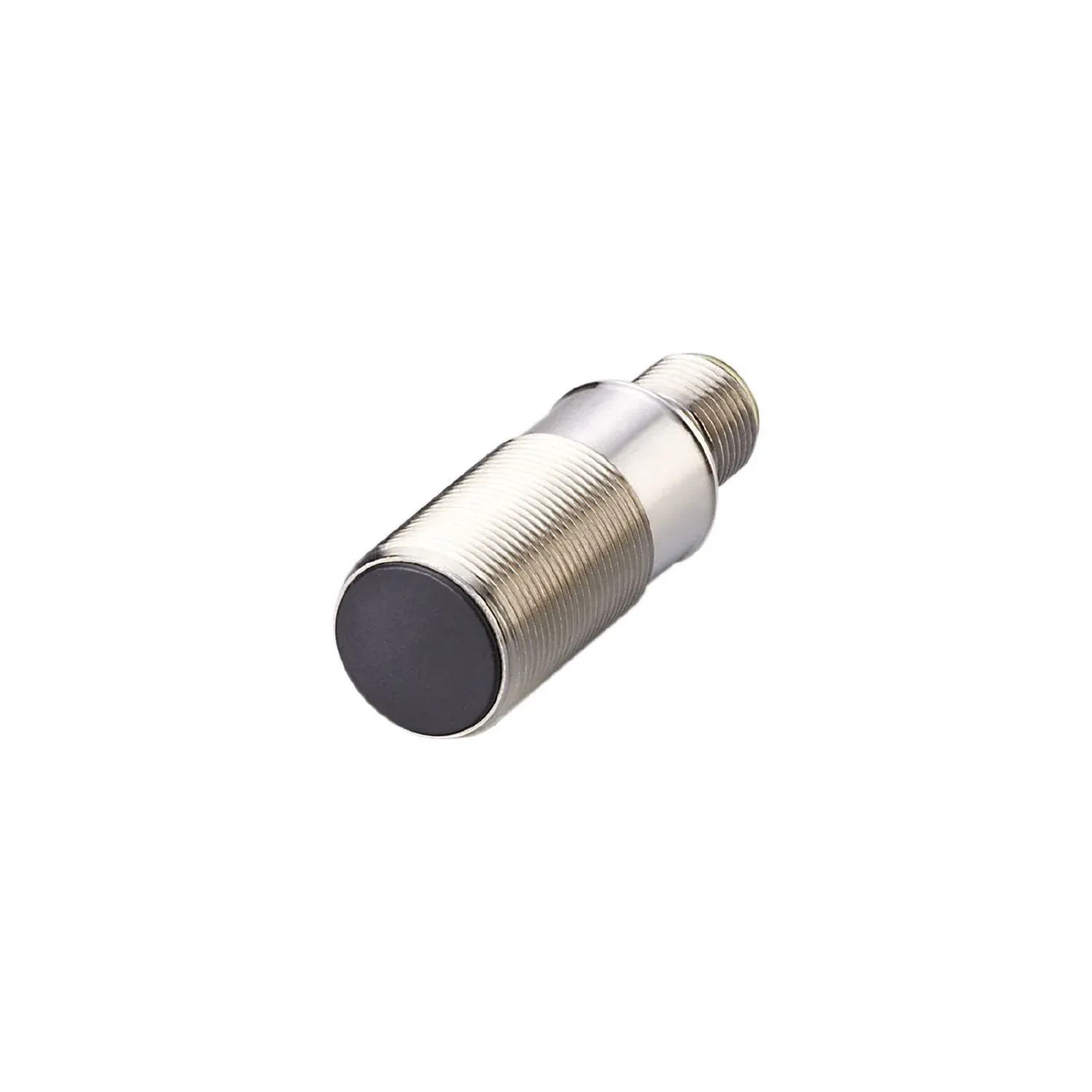

IFM ANT420
ANT420
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable identification of ID tags on workpiece carriers and products
Robust stainless steel housing for applications in mounting, feeding and handling technology
High protection rating for the requirements of harsh industrial environments
RFID read/write head HF for flush mounting
For the connection to RFID evaluation units LF/HF using the tried-and-tested M12 connection
Specification
Application
| Application | detection of objects on transport equipment |
|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 19.2...28.8 DC; (supply only via the DTE10x evaluation unit (to EN 60950-1)) |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Operating frequency[MHz] [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Detection zone
| Distance write/read head front[mm] [mm] | 100 |
|---|---|
| Distance write/read head side[mm] [mm] | 60 |
| Distance to the ID tag[mm] [mm] | referred to 30 mm coin tag; I-CODE SLI : ≤ 16 |
| referred to 30 mm coin tag; I-CODE SLI | : |
Interfaces
| Communication interface | DATA / DTE10x |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance | EN 60068-2-27 50 g 11 ms / 40 g (6 ms, continuous) |
|---|---|
| EN 60068-2-27 | 50 g 11 ms / 40 g (6 ms, continuous) |
| Vibration resistance | EN 60068-2-6 20 g 10...2000 Hz |
| EN 60068-2-6 | 20 g 10...2000 Hz |
| MTTF[years] [years] | 509.62 |
Mechanical data
| Weight[g] [g] | 109.6 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 50 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel; Protective cover: PPS; LED window: PEI |
Displays / operating elements
| Display | operation 1 x LED, green tag communication 1 x LED, yellow |
|---|---|
| operation | 1 x LED, green |
| tag communication | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 x M18 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
