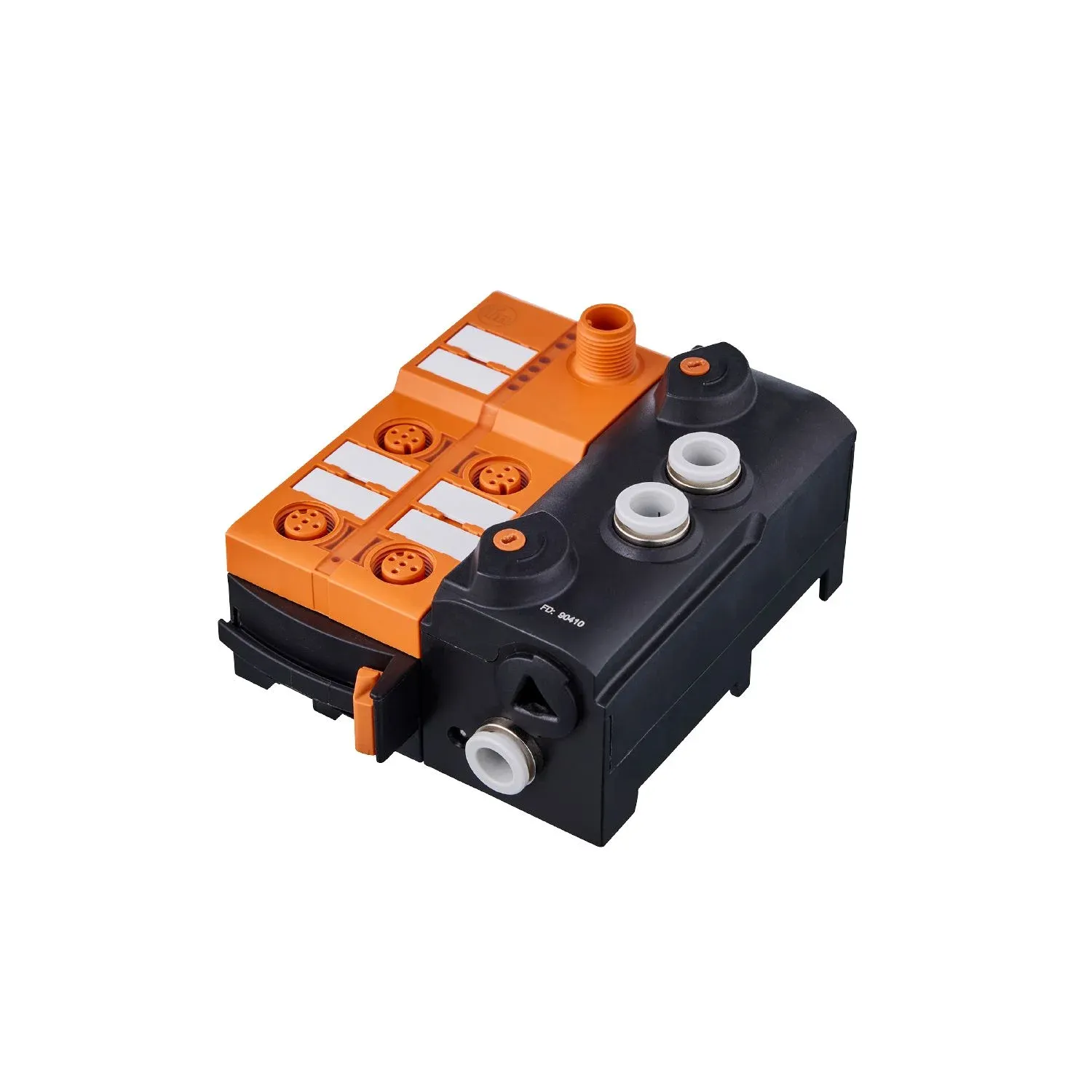

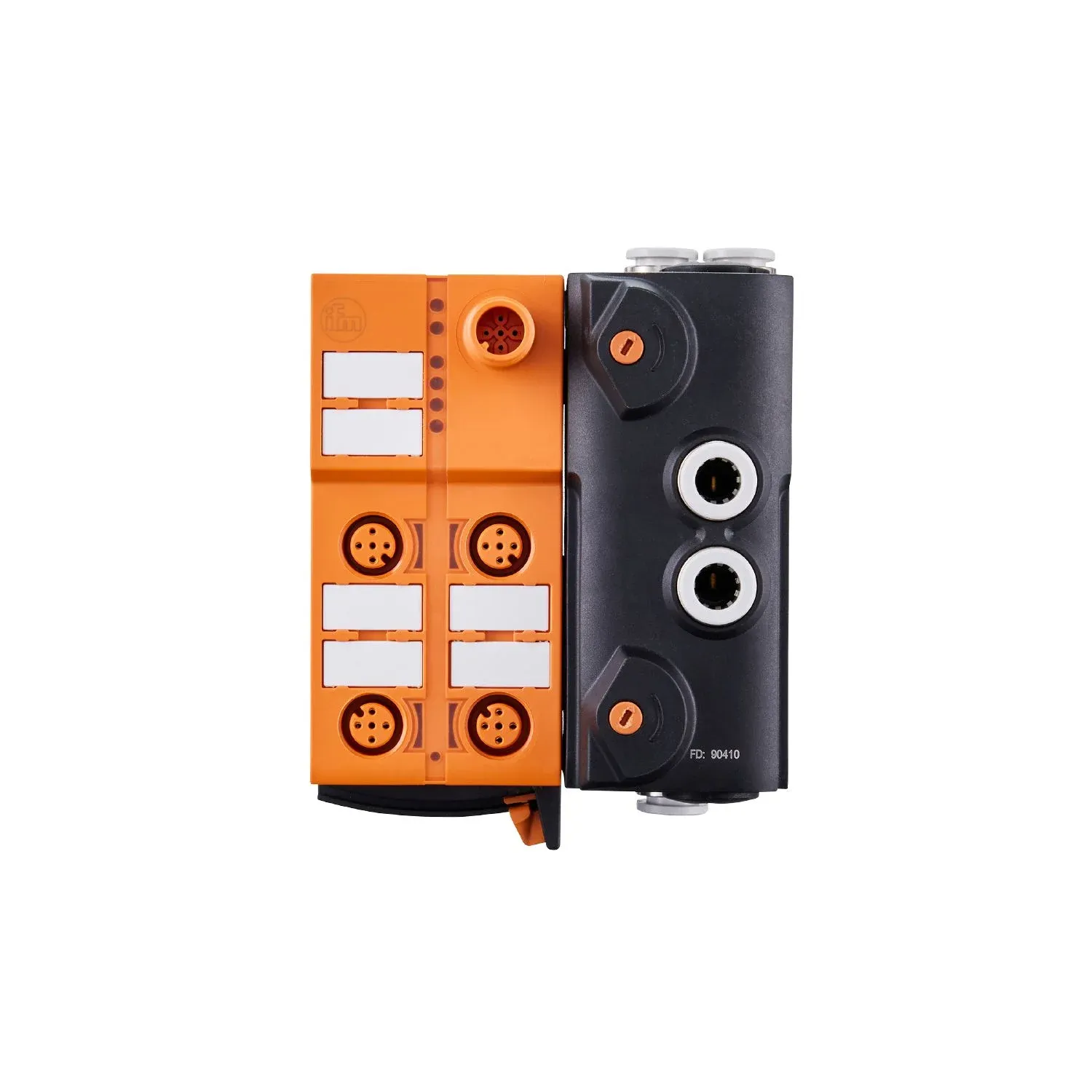

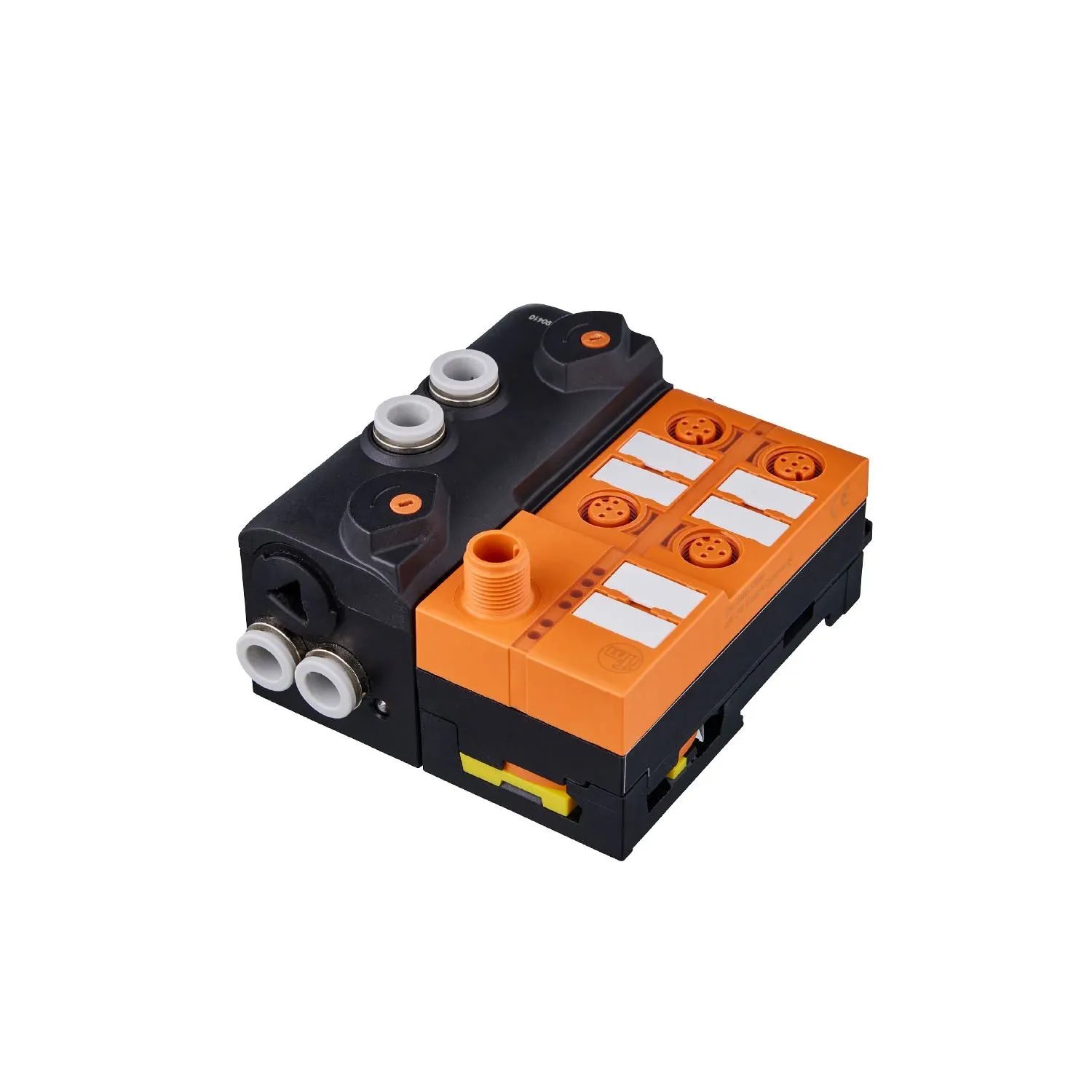

IFM AL5228
AL5228
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the decentralised triggering of cylinders and valve actuators
High energy efficiency due to decentralised application near the actuator
Reduced installation and wiring complexity
Easy toolless installation and wiring thanks to quick mounting technology
Combination of an IO-Link device and a solenoid valve
Specification
Product characteristics
| Number of inputs and outputs | Number of digital inputs: 8; Number of pneumatic outputs: 2 |
|---|
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | field installation; for use in wet environments |
| Media | compressed air |
| Medium temperature[°C] [°C] | -10...50 |
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | 80...680; (24 V DC, full load) |
| Overvoltage category | II |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 8; Number of pneumatic outputs: 2 |
|---|
Inputs
| Number of digital inputs | 8; (4 x 2) |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | US |
| Power supply[V] [V] | 18...30; (from operating voltage) |
| Max. total current rating of inputs[mA] [mA] | 400 |
| Input current High[mA] [mA] | 2...3.5 |
| Input current Low[mA] [mA] | 0...1.5 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of pneumatic outputs | 2 |
|---|---|
| Actuator supply outputs | US |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis Function Locator Function ProductURI |
| Common - I&D | Identification and Diagnosis |
| Function | ProductURI |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 2.7 |
| Supported DeviceIDs | default 1503 |
| default | 1503 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...55 |
|---|---|
| Note on ambient temperature | Switching frequency < 1,66 Hz: -10...50 °C Switching frequency > 1,66 Hz: -10...55 °C |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65; IP 67 |
| Pollution degree | 2 |
Mechanical data
| Weight[g] [g] | 311 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; quick mounting; AS-i flat cables directly connectable; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 109 x 85 x 52 |
| Materials | housing: PA 6.6; AirBox housing: PA 6; Sealing: TPE; O-rings: NBR |
| Pneumatic system | 2 x 3/2-way slide valves (free from overlapping) |
| Operating pressure range | 2...8 bar 0.2...0.8 MPa 29...116 psi |
| 2...8 bar | 0.2...0.8 MPa |
| Air flow at 6/5 bar[l/min] [l/min] | 500 |
| Permissible compressed air | non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4 |
| Manual override | pressing/releasing or pressing/turning/locking |
| Tube fittings | 8 mm |
| Exhaust | exhaust can be discharged through tube connection |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Accessories
| Items supplied | lower part |
|---|---|
| Accessories (optional) | Mounting plate:, E74999 Module lower part:, E75000 Protective cap: M12, E73004 sealing plugs:, E75231 silencer:, E75232 Push-in L-fitting:, E75228 Push-in T-fitting:, E75227 |
Remarks
| Remarks | If not pneumatically operated, E75231 sealing plug must be inserted. Avoid ingress of dirt and dust. Do not connect any of the following points to an external potential: L-, L+, I-1, I-2, I-3, I-4 Please see the notes on compressed air and EMC/ESD under "Downloads" |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - socket
| Connector | 4 x M12; coding: A |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A |
|---|
