IFM AL5021
AL5021
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Flexible wiring of digital input or output signals using cut-to-size wires

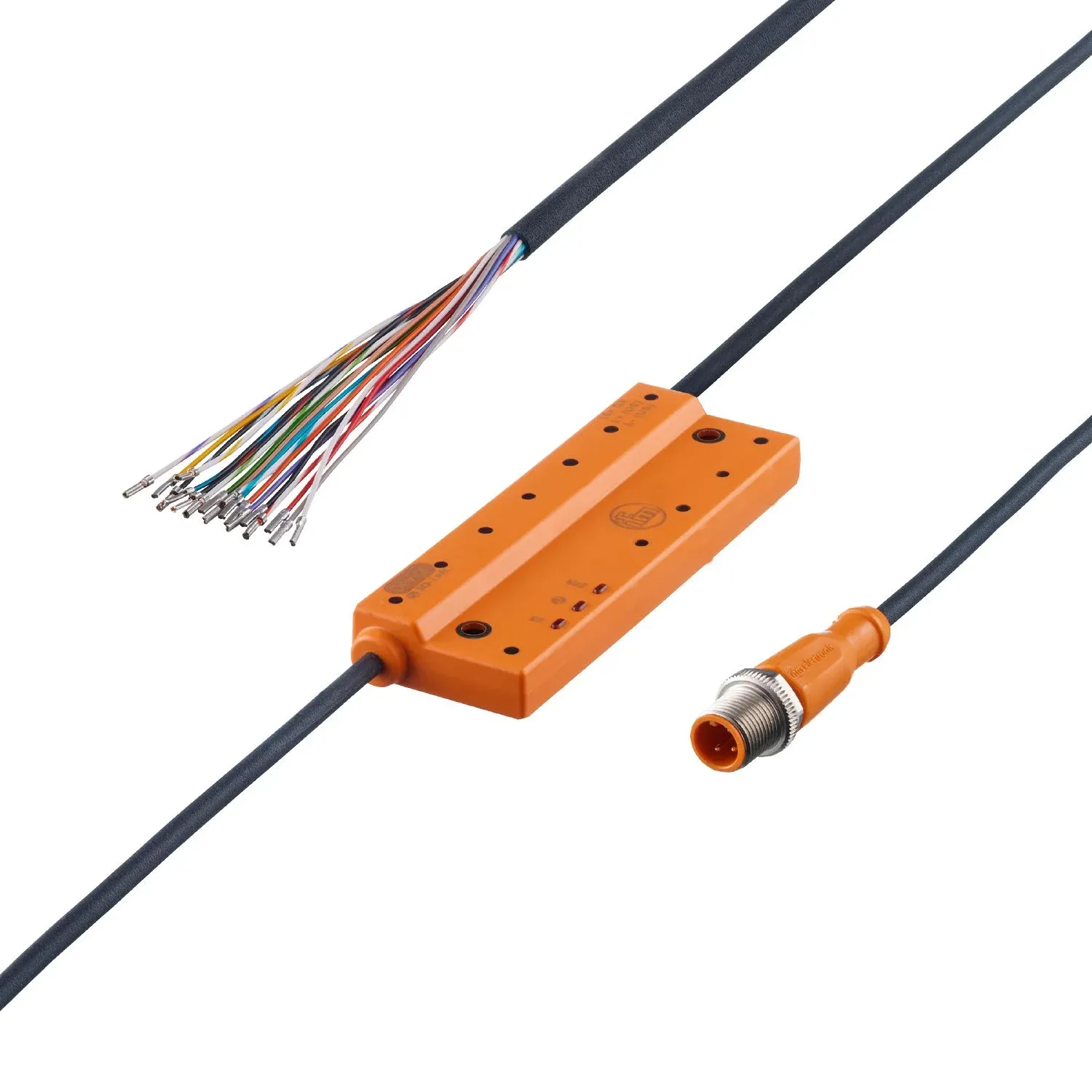

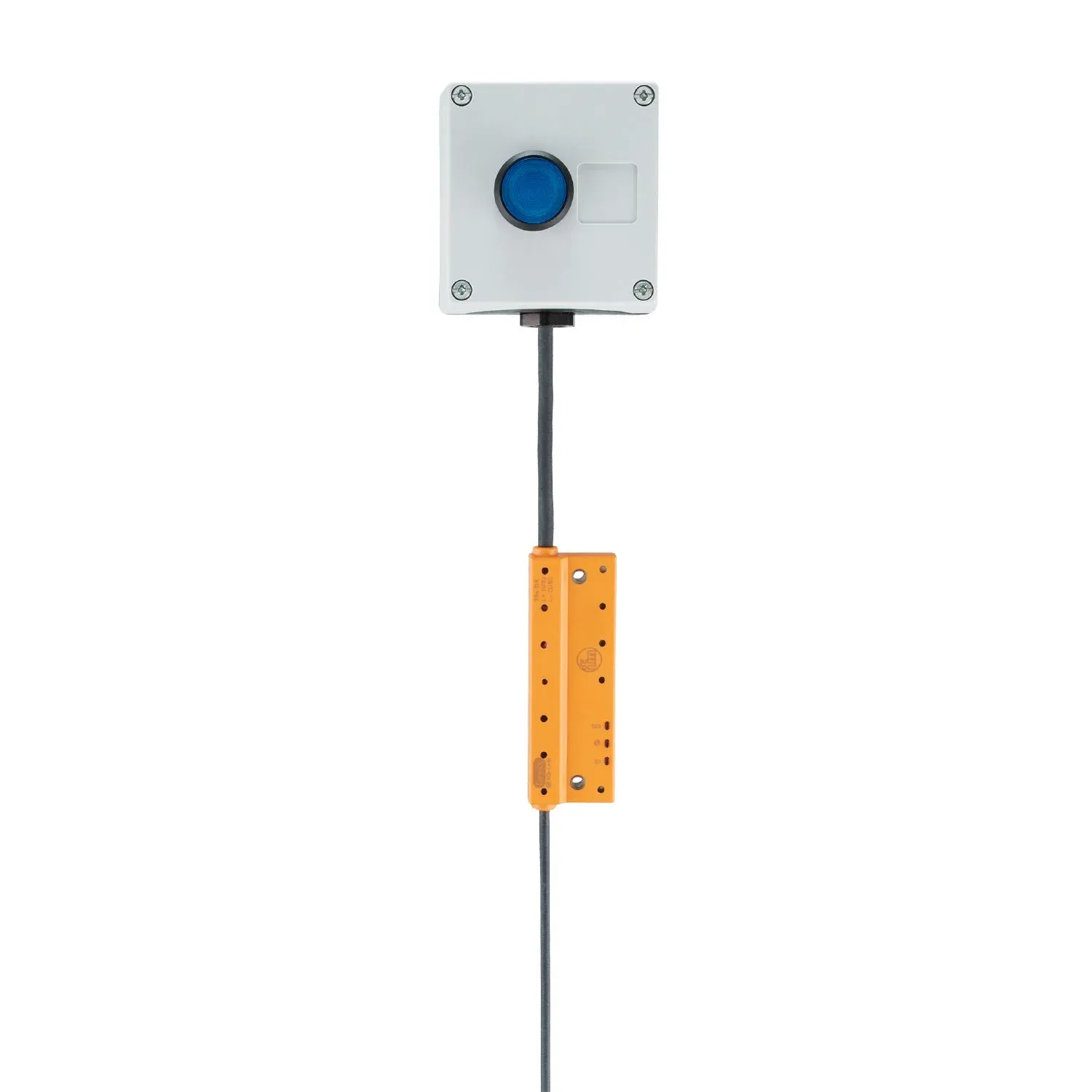

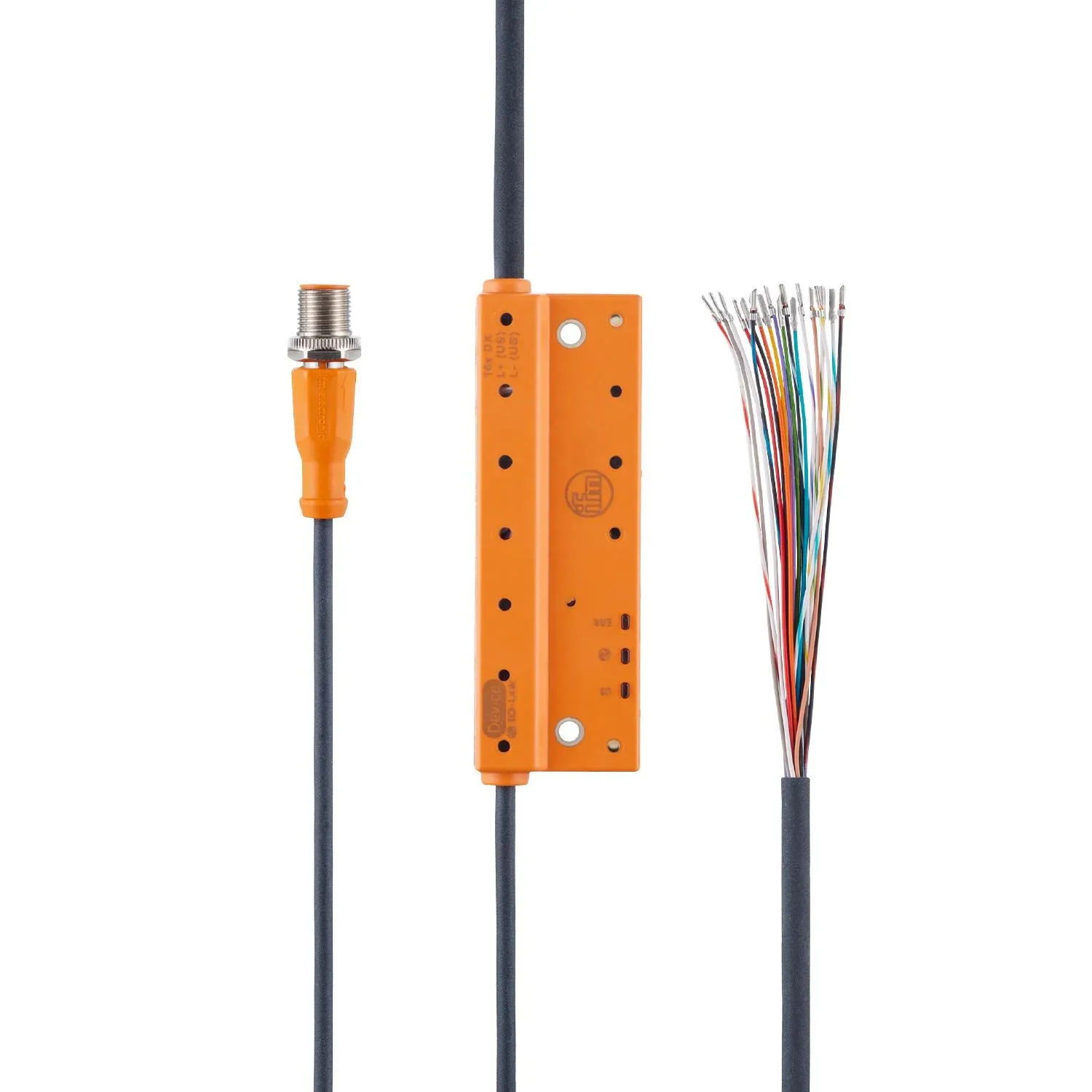

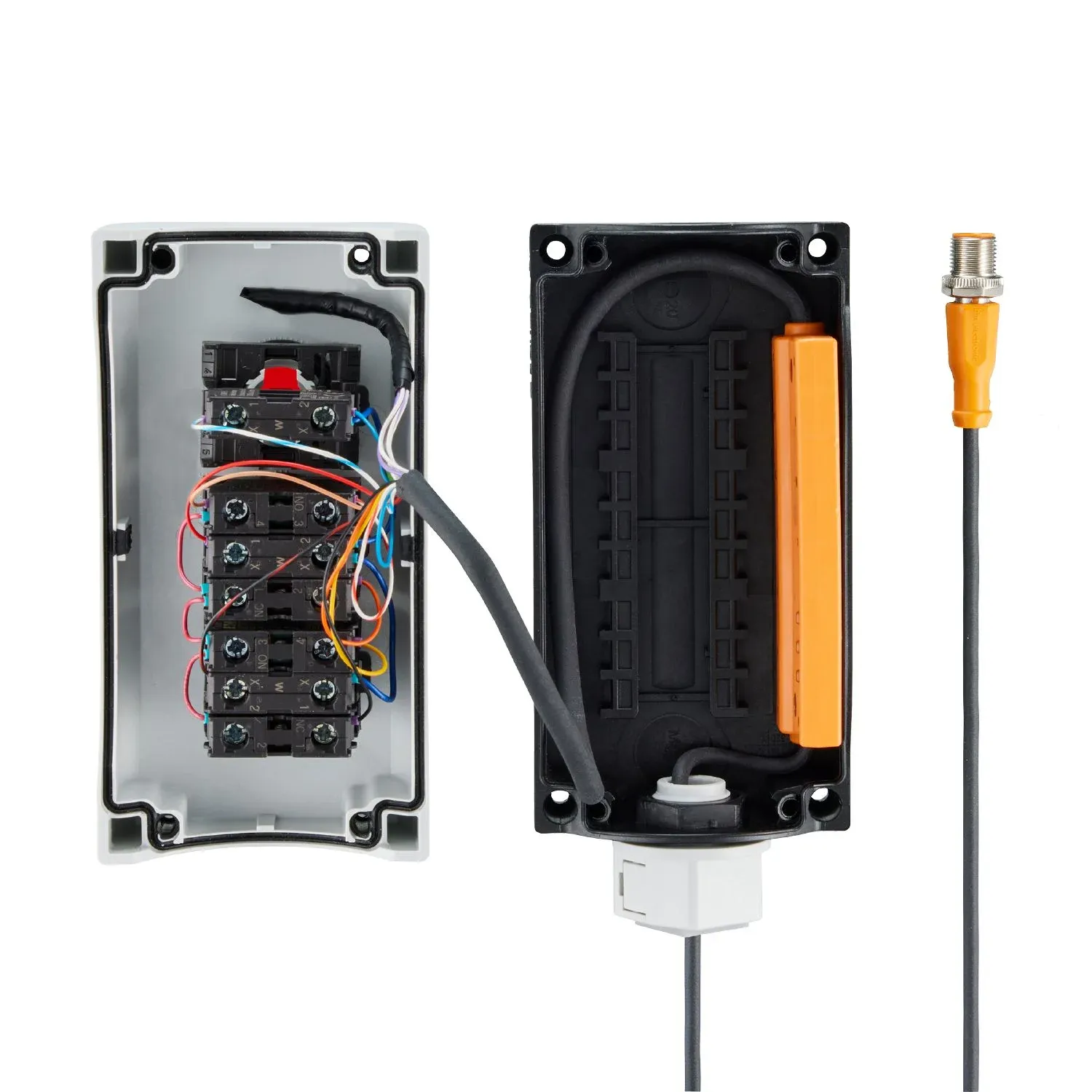

Easy installation in panels, button housings or directly in the cable path
Robust housing with high protection rating
Reliable M12 connector for connection to IO-Link masters
Specification
Application
| Special feature | Halogen-free; Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 50...1050; (US) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of digital outputs: 16 |
Inputs
| Number of digital inputs | 16; (parameterisable) |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | US |
| Power supply[V] [V] | 18...30 |
Outputs
| Number of digital outputs | 16; (parameterisable) |
|---|---|
| Max. current load outputs total[A] [A] | 1 |
| Short-circuit protection | yes |
| Actuator supply outputs | US |
Interfaces
| Communication interface | IO-Link |
|---|---|
| SDCI standard | IEC 61131-9 |
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 1 |
| Supported DeviceIDs | default 1452 |
| default | 1452 |
| Note | For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 IEC 61131-2 Type 3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
Mechanical data
| Weight[g] [g] | 233 |
|---|---|
| Dimensions[mm] [mm] | 107 x 35.4 x 15.1 |
| Materials | housing: PA orange |
Displays / operating elements
| Display | operation 2 x LED, green fault 1 x LED, red |
|---|---|
| operation | 2 x LED, green |
| fault | 1 x LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| Cable | 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|---|
| Connector | 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
Electrical connection - inputs / outputs
| Cable | 1.5 m, PUR, Halogen-free, black, Ø 6.0 mm; 18 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|
