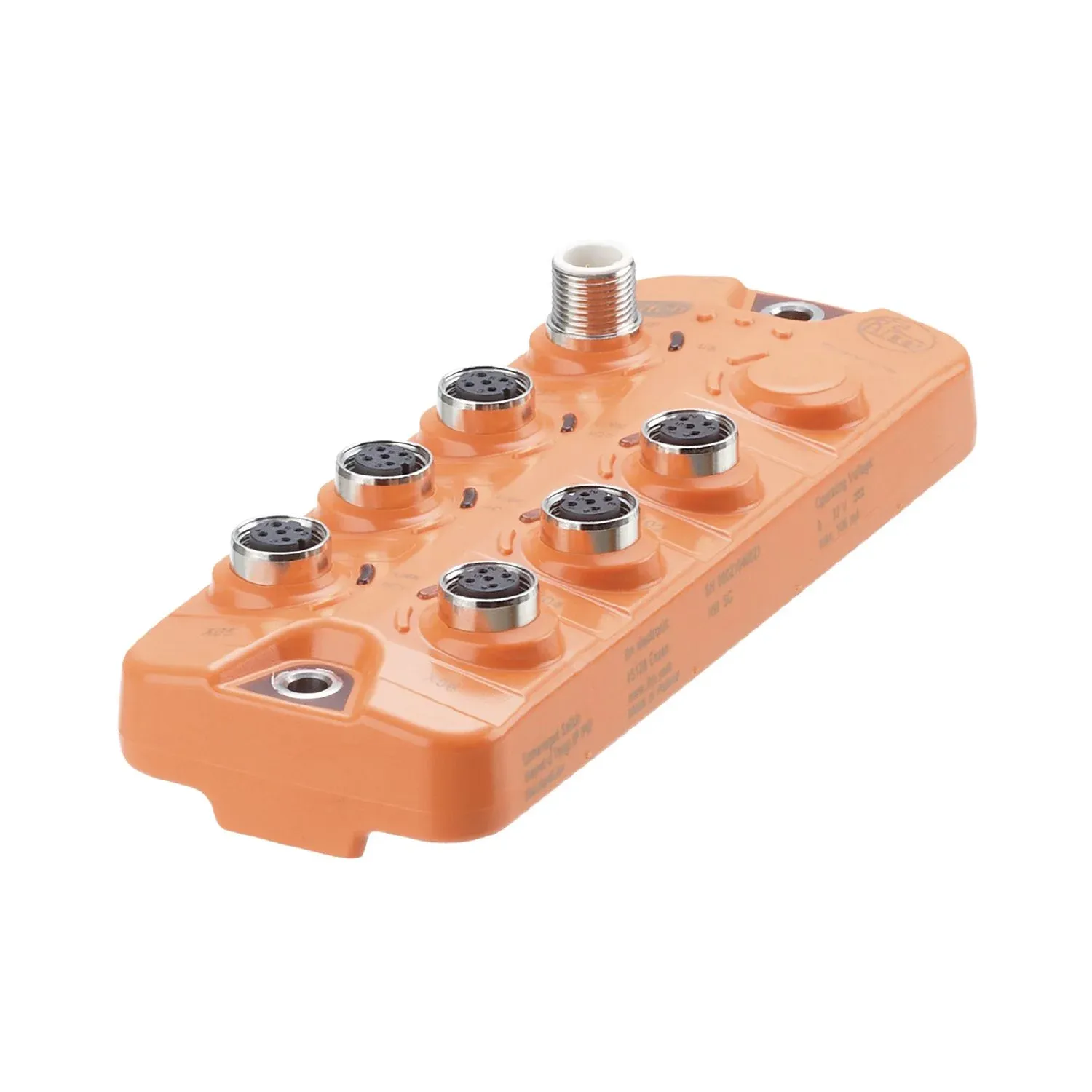

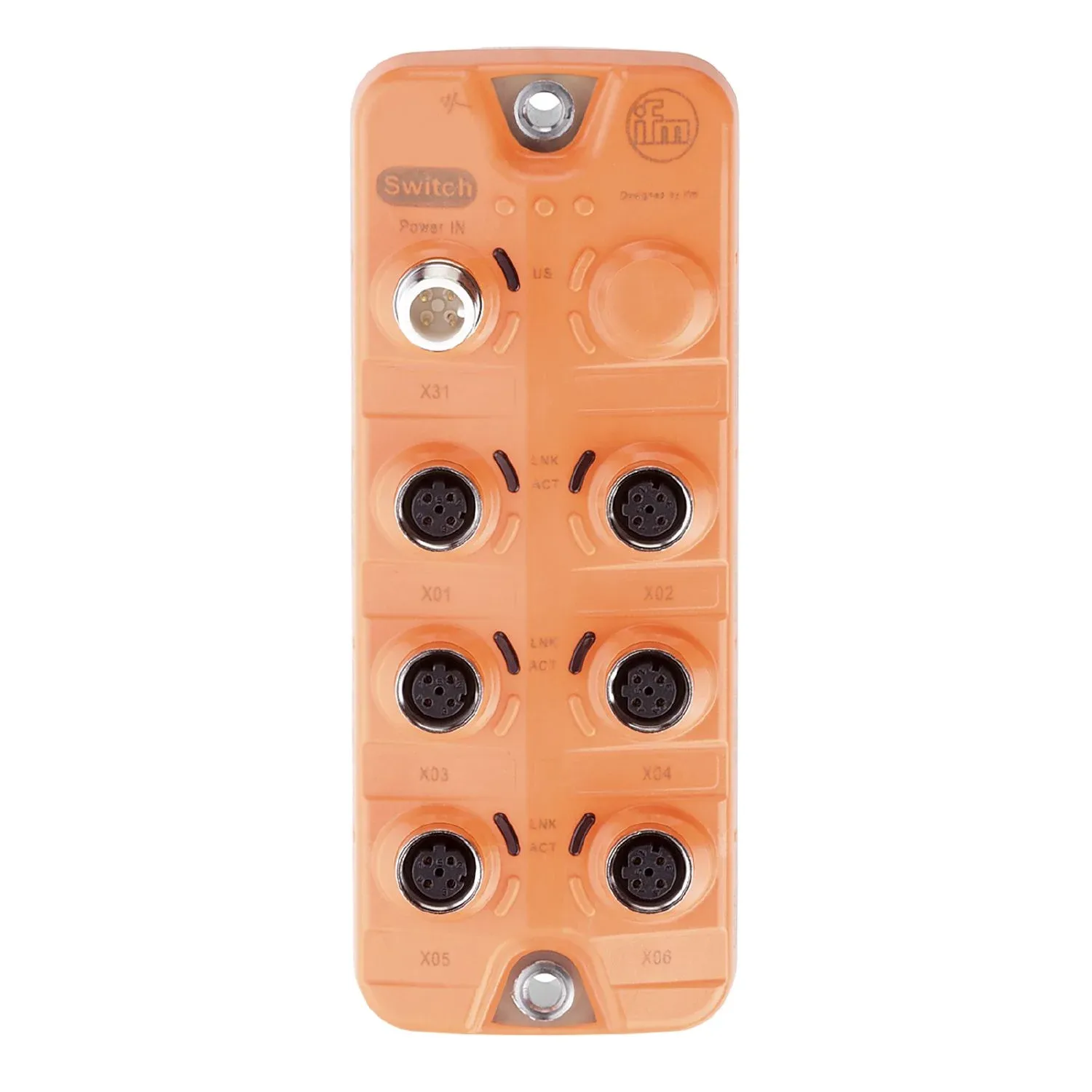

6-port switch (unmanaged) for all common automation protocols and IIoT applications
Voltage supply with standardised A-coded M12 connection technology
Robust housing for use in harsh industrial environments
Suitable for coolant emulsions, cleaning liquids or heavily polluted water
Suitable for mobile machines thanks to high tolerance for operating voltage and operating temperature
Specification
Application
| Design | unmanaged switch for field applications |
|---|---|
| Application | for TCP/IP networks; for EtherNet/IP networks; for Modbus TCP networks |
Electrical data
| Operating voltage[V] [V] | 8...32 DC; ((US ; to SELV/PELV)) |
|---|---|
| Nominal voltage DC[V] [V] | 12 / 24 |
| Current consumption[mA] [mA] | 100; (US; 24 V: 50 mA) |
| Protection class | III |
| Reverse polarity protection | yes |
Interfaces
| Communication interface | Ethernet |
|---|---|
| Number of Ethernet interfaces | 6 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10 MBit/s; 100 MBit/s |
| Note on interfaces | processing type: Store and Forward auto polarity auto negotiation auto MDI-X QoS (Quality of Service): IEEE 802.1p, IEEE 802.1Q priority queues: 4 MAC table size: 2000 addresses transmission: LLDP, PTCP 01:80:C2:00:00:0E |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65; IP 66; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | UN/ECE-R10 noise emission and noise immunity: 100 V/m DIN EN 61000-6-2 ESD DIN EN 61000-6-4 Burst ISO 7637-2 pulse 1 severity level 4 / function state C (12 V) ISO 7637-2 pulse 2a severity level 4 / function state A (12 V) ISO 7637-2 pulse 2b severity level 4 / function state C (12 V) ISO 7637-2 pulse 3a severity level 4 / function state A (12 V) ISO 7637-2 pulse 3b severity level 4 / function state A (12 V) ISO 7637-2 pulse 4 severity level 4 / function state A (12 V) ISO 7637-2 pulse 5a severity level 3 / function state A (12 V) ISO 7637-2 pulse 1 severity level 4 / function state C (24 V) ISO 7637-2 pulse 2a severity level 4 / function state A (24 V) ISO 7637-2 pulse 2b severity level 4 / function state C (24 V) ISO 7637-2 pulse 3a severity level 4 / function state A (24 V) ISO 7637-2 pulse 3b severity level 4 / function state A (24 V) ISO 7637-2 pulse 4 severity level 4 / function state A (24 V) |
|---|---|
| UN/ECE-R10 noise emission and noise immunity: | 100 V/m |
| ISO 7637-2 pulse 1 | severity level 4 / function state C (24 V) |
| ISO 7637-2 pulse 2a | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 2b | severity level 4 / function state C (24 V) |
| ISO 7637-2 pulse 3a | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 3b | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 4 | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 5a | severity level 3 / function state A (12 V) |
| Shock resistance | DIN EN 60068-2-27 |
| Fast temperature change | EN 60068-2-30 EN 60068-2-78 EN 60068-2-52 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 EN 60068-2-27 |
| MTTF[years] [years] | 232 |
Mechanical data
| Weight[g] [g] | 301.15 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 152 x 59.3 x 38.4 |
| Materials | housing: PA orange; socket: brass nickel-plated |
| Sealing material | FKM |
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
