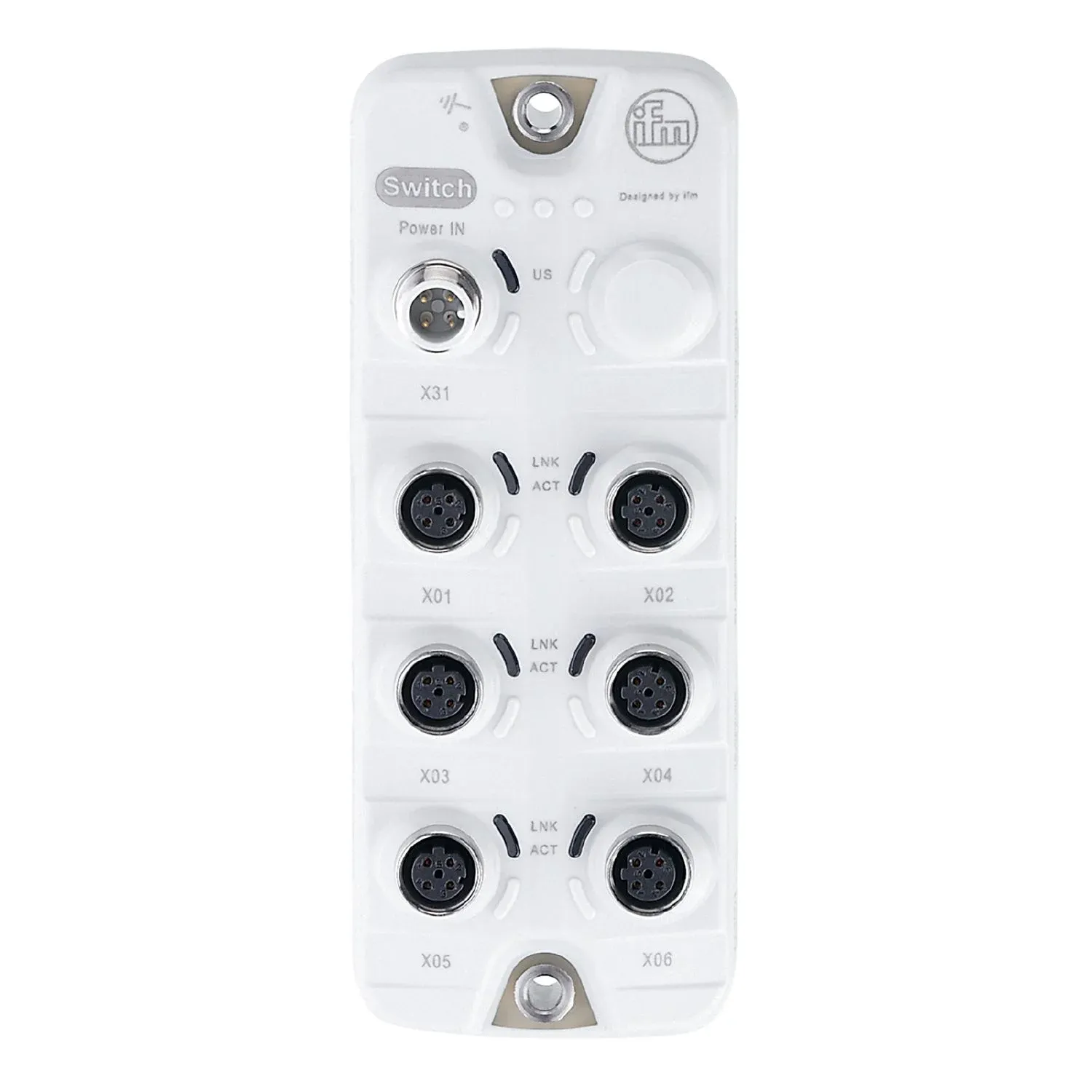

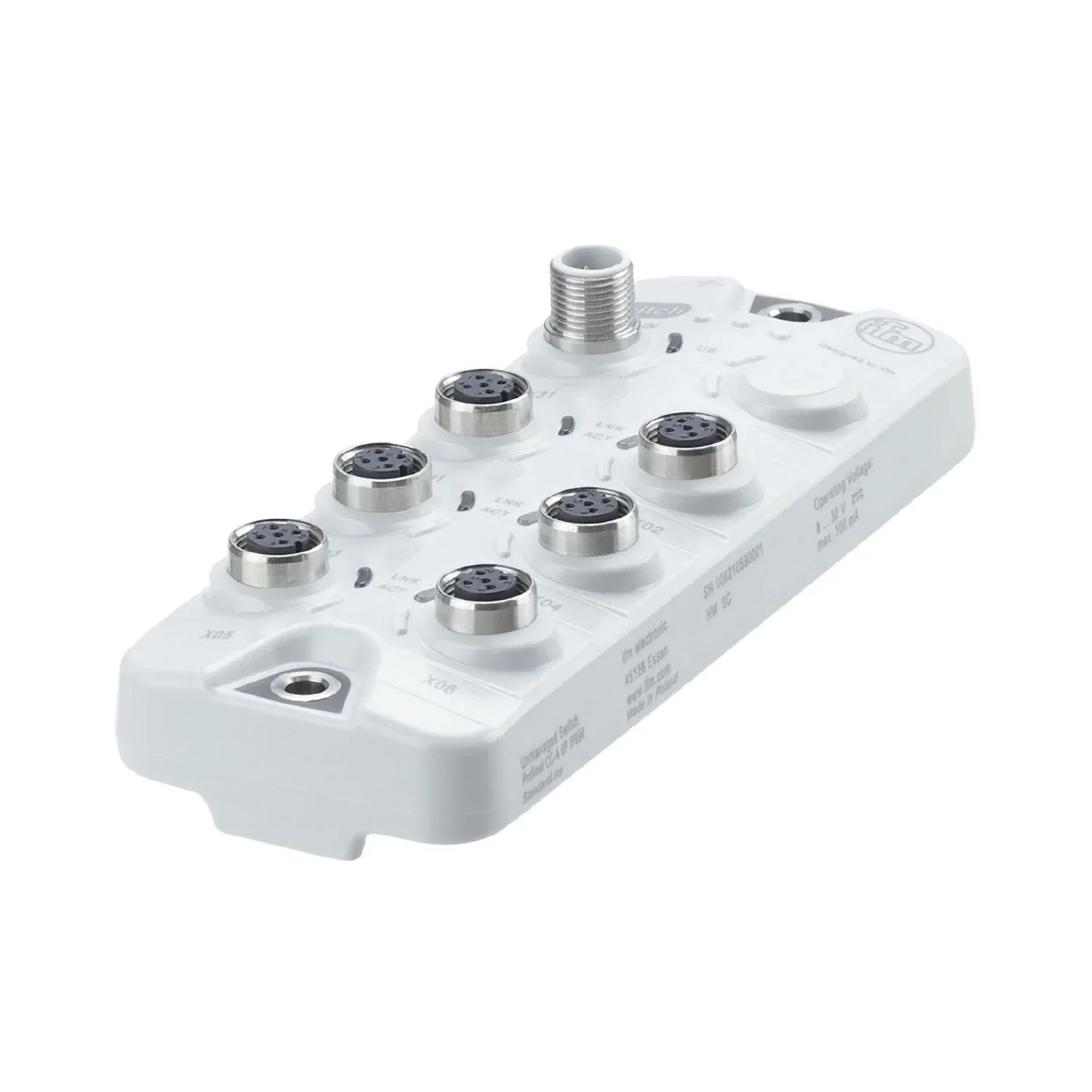

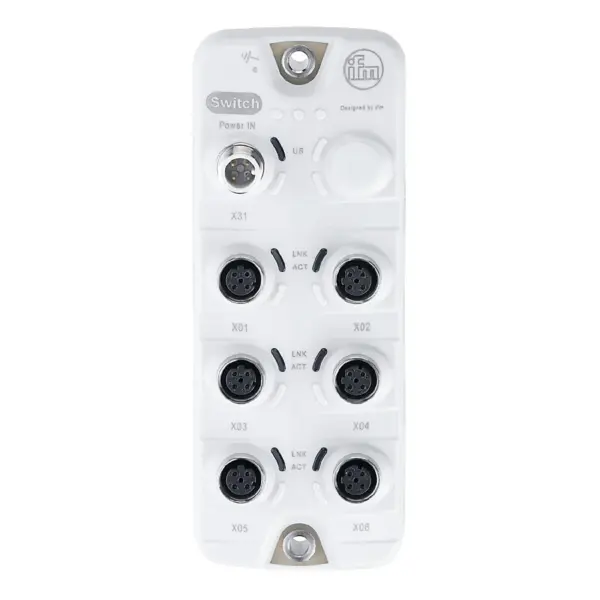

IFM AL3001
AL3001
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
6-port switches (unmanaged) for PROFINET Class A
Voltage supply with standardised A-coded M12 connection technology
For use in hygienic and wet areas in the food industry
Specification
Application
| Design | unmanaged switch for field applications |
|---|---|
| Application | for PROFINET networks |
Electrical data
| Operating voltage[V] [V] | 8...32 DC; (US ; to SELV/PELV; cULus: 8...28 DC) |
|---|---|
| Nominal voltage DC[V] [V] | 12 / 24 |
| Current consumption[mA] [mA] | 100; (US; 24 V: 50 mA) |
| Protection class | III |
| Reverse polarity protection | yes |
Interfaces
| Communication interface | Ethernet |
|---|---|
| Number of Ethernet interfaces | 6 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10 MBit/s; 100 MBit/s |
| Note on interfaces | PROFINET Conformance Class A (CC-A) processing type: Store and Forward auto polarity auto negotiation auto MDI-X QoS (Quality of Service): IEEE 802.1p, IEEE 802.1Q priority queues: 4 MAC table size: 2000 addresses blocking: LLDP, PTCP 01:80:C2:00:00:0E |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | UN/ECE-R10 noise emission and noise immunity: 100 V/m DIN EN 61000-6-2 ESD DIN EN 61000-6-4 Burst ISO 7637-2 pulse 1 severity level 4 / function state C (12 V) ISO 7637-2 pulse 2a severity level 4 / function state A (12 V) ISO 7637-2 pulse 2b severity level 4 / function state C (12 V) ISO 7637-2 pulse 3a severity level 4 / function state A (12 V) ISO 7637-2 pulse 3b severity level 4 / function state A (12 V) ISO 7637-2 pulse 4 severity level 4 / function state A (12 V) ISO 7637-2 pulse 5a severity level 3 / function state A (12 V) ISO 7637-2 pulse 1 severity level 4 / function state C (24 V) ISO 7637-2 pulse 2a severity level 4 / function state A (24 V) ISO 7637-2 pulse 2b severity level 4 / function state C (24 V) ISO 7637-2 pulse 3a severity level 4 / function state A (24 V) ISO 7637-2 pulse 3b severity level 4 / function state A (24 V) ISO 7637-2 pulse 4 severity level 4 / function state A (24 V) |
|---|---|
| UN/ECE-R10 noise emission and noise immunity: | 100 V/m |
| ISO 7637-2 pulse 1 | severity level 4 / function state C (24 V) |
| ISO 7637-2 pulse 2a | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 2b | severity level 4 / function state C (24 V) |
| ISO 7637-2 pulse 3a | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 3b | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 4 | severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 5a | severity level 3 / function state A (12 V) |
| Shock resistance | DIN EN 60068-2-27 |
| Fast temperature change | EN 60068-2-30 EN 60068-2-78 EN 60068-2-52 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 EN 60068-2-27 |
| MTTF[years] [years] | 232 |
Mechanical data
| Weight[g] [g] | 315.65 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 152 x 59.3 x 38.4 |
| Materials | housing: PA grey; socket: stainless steel (316L/1.4404) |
| Sealing material | EPDM |
Accessories
| Items supplied | Protective cap: 1 x M12, stainless steel, E12542 |
|---|
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| Connector | 6 x M12; coding: D; Sealing: EPDM |
|---|
Electrical connection - power supply
| Connector | 1 x M12; coding: A |
|---|
