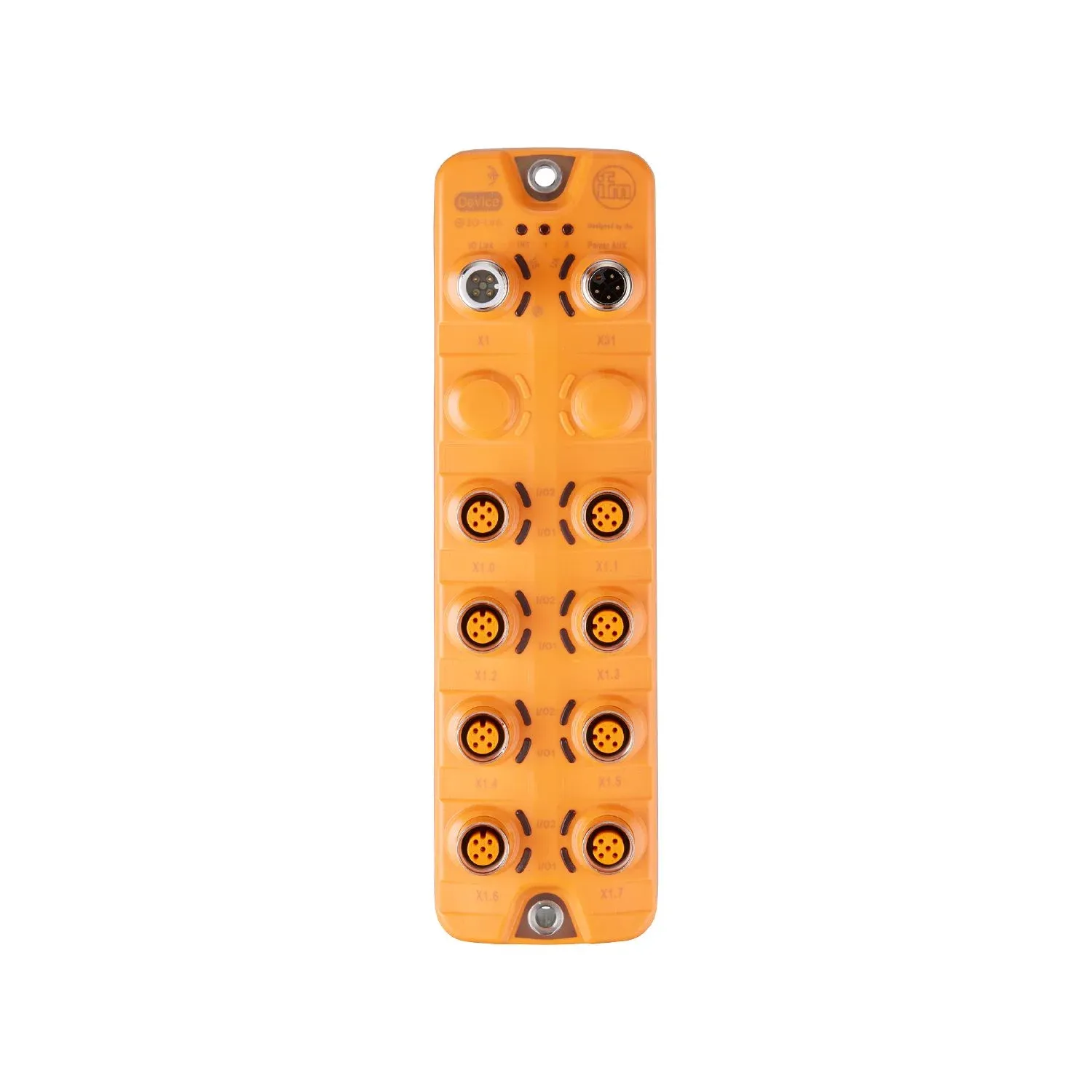

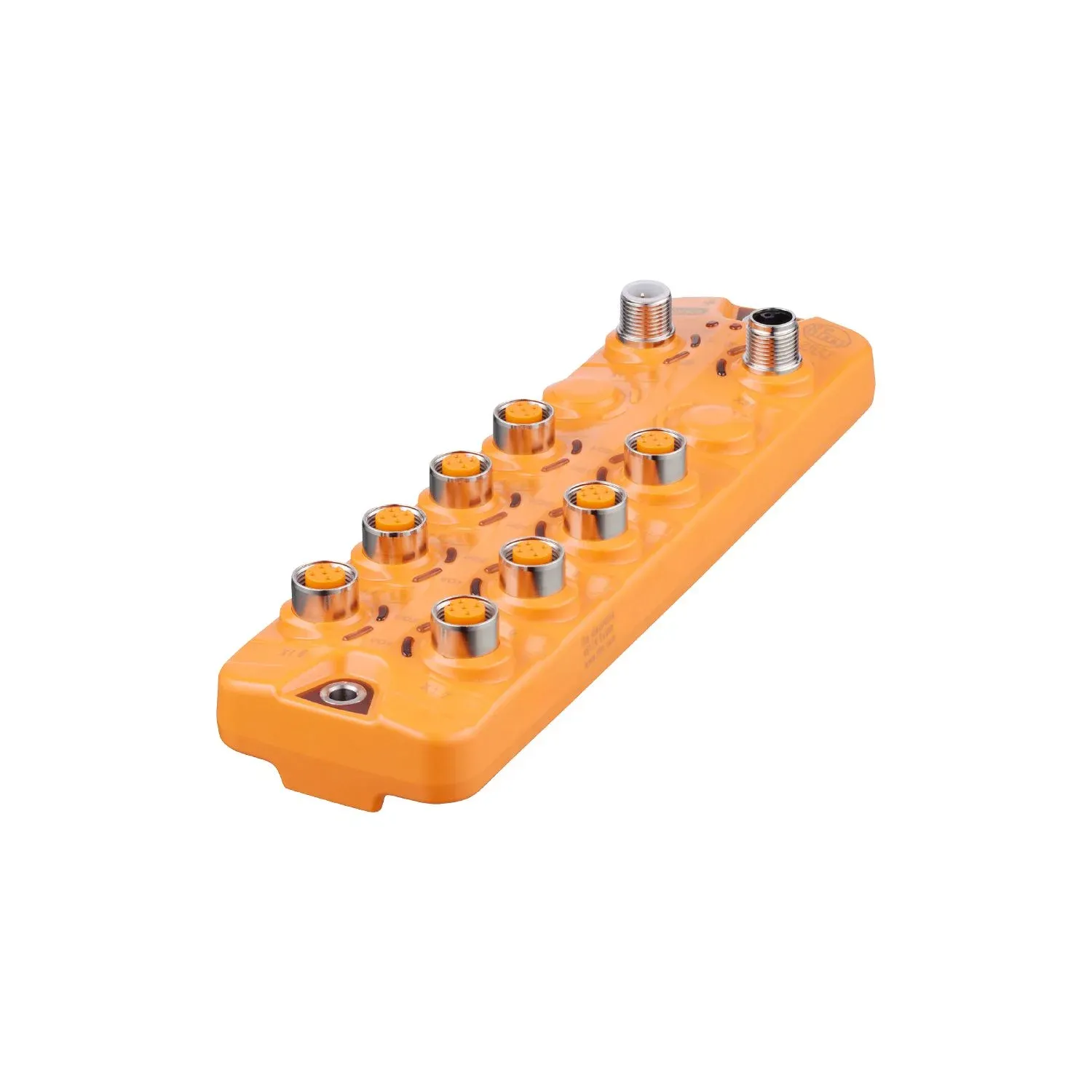

IFM AL2637
AL2637
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Two separate voltage supplies up to 16 A total current
Current rating per port up to 4 A
Use in safety circuits
Connection of up to 16 digital outputs
Specification
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 100; (US) |
| Protection class | III |
| Additional voltage supply[V] [V] | 18...30 DC; (UA1/UA2) |
| Max. current consumption from additional supply[mA] [mA] | 16000; (UA1: 8000; UA2: 8000) |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 16 |
|---|
Outputs
| Number of digital outputs | 16; (parameterisable) |
|---|---|
| Short-circuit protection | yes |
| Actuator supply outputs | AUX (UA1/UA2) |
| Current rating outputs[A] [A] | per port pair (X1.4 + X1.5; X1.6 + X1.7) 4 per port group (X1.4...X1.7) 8 |
| per port pair (X1.0 + X1.1; X1.2 + X1.3) | 4 |
| per port group (X1.0...X1.3) | 8 |
| per port pair (X1.4 + X1.5; X1.6 + X1.7) | 4 |
| per port group (X1.4...X1.7) | 8 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis Function Locator Function ProductURI |
| Common - I&D | Identification and Diagnosis |
| Function | ProductURI |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 1 |
| Supported DeviceIDs | default 1842 |
| default | 1842 |
| Note | For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
Mechanical data
| Weight[g] [g] | 421.15 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 208 x 59.3 x 38.4 |
| Materials | housing: PA orange; socket: brass nickel-plated |
| Sealing material | FKM |
| Tightening torque[Nm] [Nm] | < 0.8 |
Displays / operating elements
| Display | operation 4 x LED, green fault 3 x LED, red function 16 x LED, yellow |
|---|---|
| operation | 4 x LED, green |
| fault | 3 x LED, red |
| function | 16 x LED, yellow |
Accessories
| Accessories (optional) | protective cap for M12 sockets |
|---|
Remarks
| Remarks | Using the device within a system with requirements for functional safety is possible by deactivating the actuator voltage UA without interaction. For further information on functional safety, please refer to the operating instructions supplement under “Downloads”. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - AUX
| Connector | 1 x M12; coding: L |
|---|
Electrical connection - Outputs
| Connector | 8 x M12; coding: A; Sealing: FKM |
|---|
Electrical connection - Outputs
| Connector | 8 x M12; coding: A; Sealing: FKM |
|---|
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
