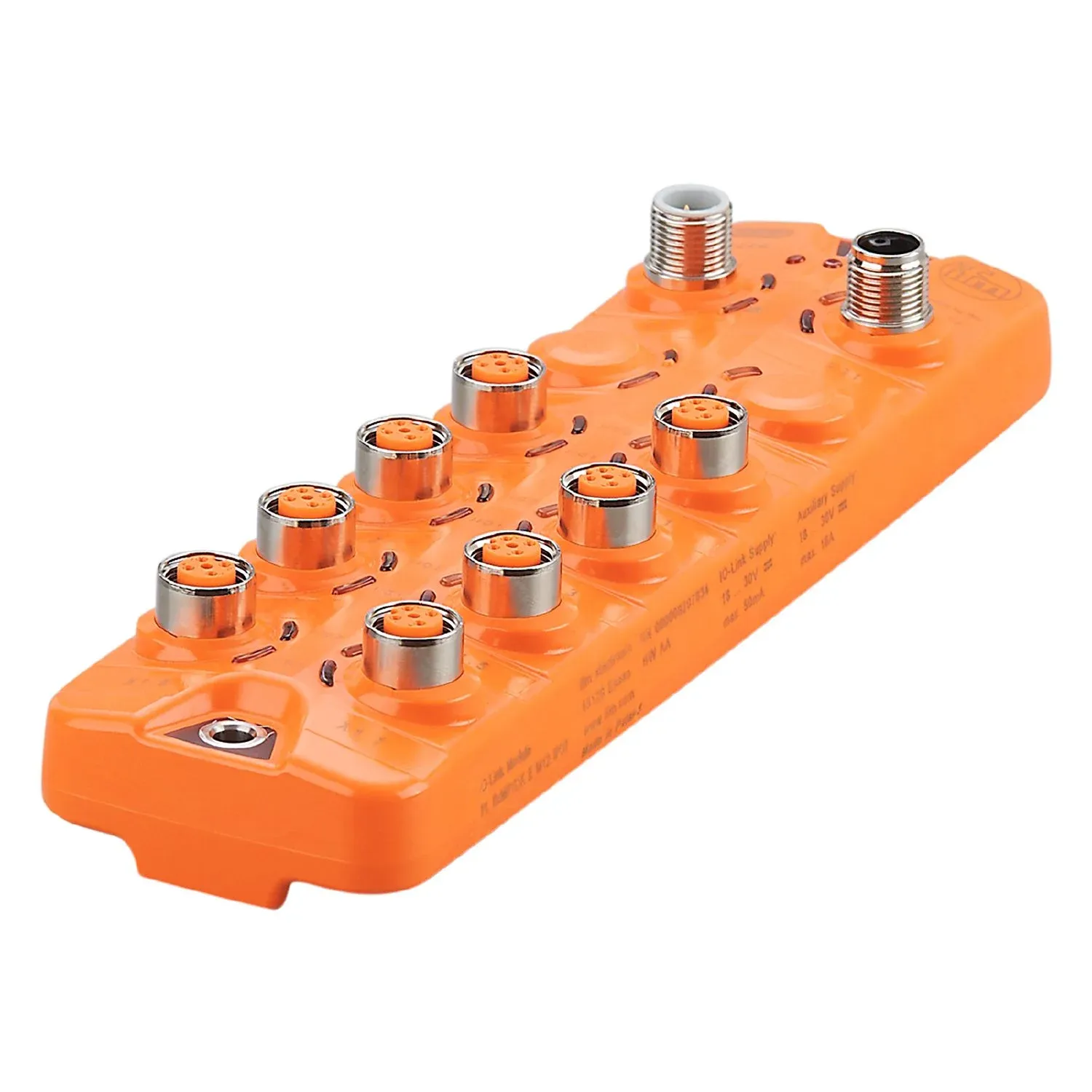

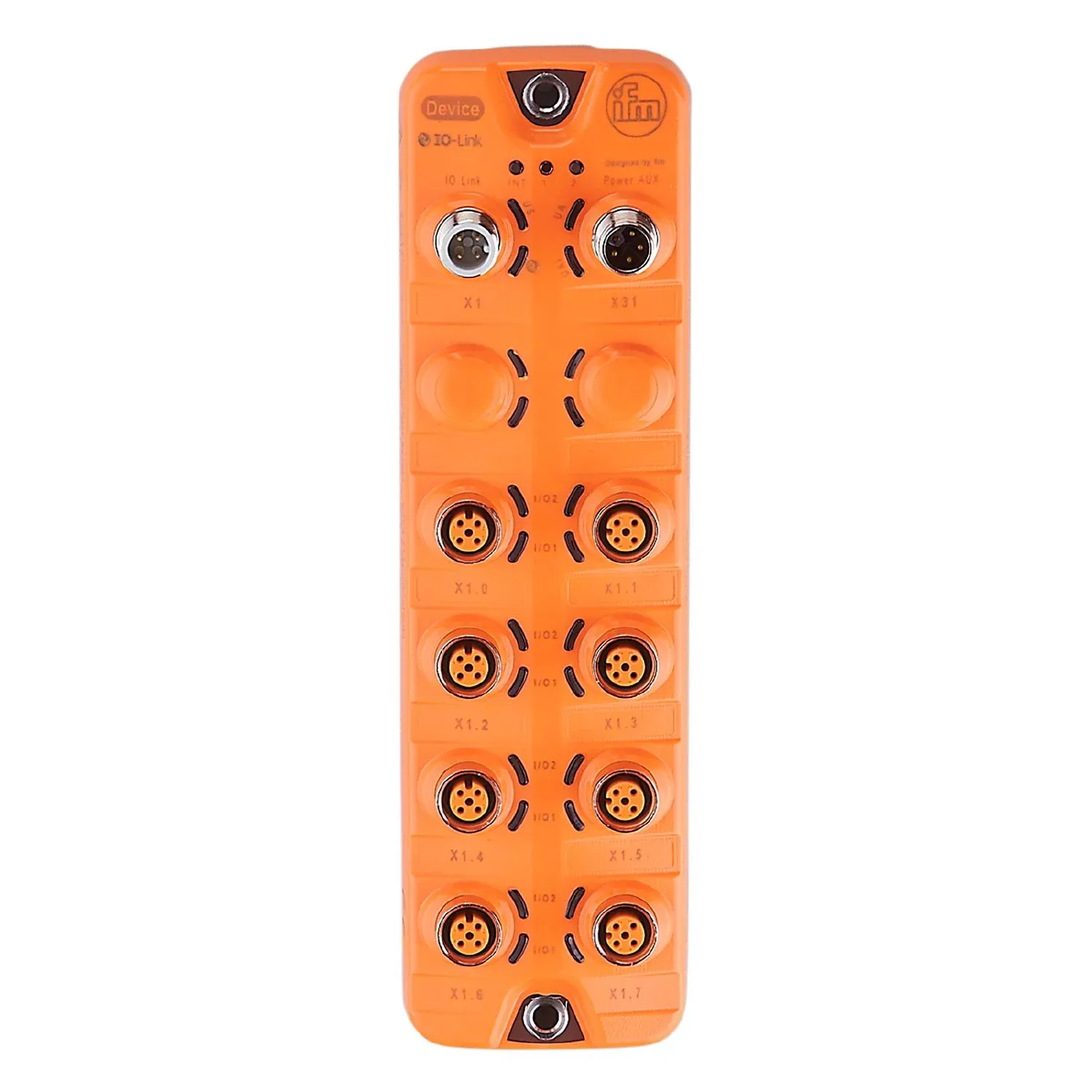

IFM AL2605
AL2605
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Each connection can be used as a digital input or output and additionally as an analogue input
controlling actuators using PWM/PWM-I and processing incoming frequency signals
Separate 24 V power supply of the outputs via standardised M12 L coding for high current rating
Robust design with full potting for use in harsh industrial environments
Extension of IO-Link masters with digital inputs and outputs
Specification
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 50; (US) |
| Protection class | III |
| Additional voltage supply[V] [V] | 18...30 DC; (UA UAi) |
| Max. current consumption from additional supply[mA] [mA] | 16000; (UA; UAi: 800 mA) |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of analogue inputs: 8; Number of frequency inputs: 2; Number of digital outputs: 16 |
Inputs
| Number of frequency inputs | 2 |
|---|---|
| Number of digital inputs | 16; (parameterisable) |
| Input circuit of digital inputs | PNP; (type 3 (IEC 61131-2)) |
| Sensor supply of the inputs | AUX (UA, UAi) |
| Power supply[V] [V] | 18...30 |
| Input current High[mA] [mA] | 2...15 |
| Input current Low[mA] [mA] | 0...1.5 |
| Switching level high[V] [V] | 11...28 |
| Switching level low[V] [V] | 0...5 |
| Number of analogue inputs | 8; (parameterisable current/voltage input) |
| Analogue input (current)[mA] [mA] | 4...20 |
| Analogue input (voltage)[V] [V] | 0...10 |
| Resolution of analogue input | 16 Bit |
| Precision analogue input[%] [%] | 0,3 |
Outputs
| Number of digital outputs | 16; (parameterisable) |
|---|---|
| Max. current load per output[mA] [mA] | 2000 |
| Max. current load outputs total[A] [A] | 16 |
| Short-circuit protection | yes |
| Actuator supply outputs | AUX (UA) |
| Number of PWM outputs | 8; (acyclic enhanced modus) |
| Number of PWM-I outputs | 2; (acyclic enhanced modus) |
| PMW/PWM-I output | max. current PWM-I output [mA] 2000 available factors for the controller [PID] Kp, Ki, Kd currently requested resolution [mA] 1 accuracy PWM-I Ausgang [%] 2,2 range of the PWM output pulse/pause ratio [‰] 0...1000 switch-on time resolution ‰] 1 PWM/PWM-I frequency range [Hz] 20...1000 number of configurable frequencies 2 number of PWM outputs with optional dither 8 dither level [‰] 1...250 dither number 1...20 |
| max. current PWM-I output [mA] | 2000 |
| available factors for the controller [PID] | Kp, Ki, Kd |
| currently requested resolution [mA] | 1 |
| accuracy PWM-I Ausgang [%] | 2,2 |
| range of the PWM output pulse/pause ratio [‰] | 0...1000 |
| switch-on time resolution ‰] | 1 |
| PWM/PWM-I frequency range [Hz] | 20...1000 |
| number of configurable frequencies | 2 |
| number of PWM outputs with optional dither | 8 |
| dither level [‰] | 1...250 |
| dither number | 1...20 |
Measuring/setting range
| Sampling rate[Hz] [Hz] | 0...3000 |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 4 |
| Supported DeviceIDs | Acyclic enhanced parametrisation 1448 Acyclic parametrisation 1316 Factory setting: parametrisation via Pdout 1315 |
| Acyclic enhanced parametrisation | 1448 |
| Acyclic parametrisation | 1316 |
| Factory setting: parametrisation via Pdout | 1315 |
| Note | Parameter setting can be changed from “cyclic” to “acyclic” and “acyclic enhanced” For further information please see the IODD PDF file under "Downloads" |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| Function | Multiple switching signal |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
| MTTF[years] [years] | 35 |
Mechanical data
| Weight[g] [g] | 394 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 208 x 59.3 x 38.4 |
| Materials | housing: PA orange; socket: brass nickel-plated |
| Sealing material | FKM |
| Tightening torque[Nm] [Nm] | < 0.8 |
Displays / operating elements
| Display | operation 4 x LED, green fault 3 x LED, red function 16 x LED, yellow |
|---|---|
| operation | 4 x LED, green |
| fault | 3 x LED, red |
| function | 16 x LED, yellow |
Accessories
| Accessories (optional) | protective cap for M12 sockets |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - AUX
| Connector | 1 x M12; coding: L |
|---|
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - inputs / outputs
| Connector | 8 x M12; coding: A; Sealing: FKM |
|---|
